Play in Campy NR FD Linkage

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Play in Campy NR FD Linkage

Old 09-06-21, 06:52 PM
  #1
73StellaSX76
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 246

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 70 Times in 42 Posts
Play in Campy NR FD Linkage

While doing some routine cleanup I noticed a gap I think is unusually large in the linkage of my early ‘70s (no circllip) fd. The gap is a little over 2mm wide. I disassembled it and the pin bearing at the center of the pivot spins freely and does not shift out. The cable pull vector may be pulling a little rearward but it running thru a fixed Campy bb cable guide so I can’t adjust that.

Is this normal wear? Should I be thinking replacement?
73StellaSX76 is offline
Old 09-06-21, 07:21 PM
  #2
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 1,651

Bikes: Schwinn Paramounts, Patelli Professional, Othon Ochsner, Masi, Faggin

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 710 Post(s)
Liked 624 Times in 469 Posts
How about replacing the missing circlip on the post. You are missing s 20 cent part that makes the thing work correctly. Smiles, MH
Mad Honk is offline
Old 09-06-21, 07:23 PM
  #3
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,265

Bikes: Lejeune, Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré, Springfield, Motobecane, John Howard, Greg Lemond, Andre Bertin

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 491 Post(s)
Likes: 0
Liked 317 Times in 172 Posts
There is no circlip on the early derailleurs. Not unusual. It can be fixed. You can tap the post for a small screw and put a small washer on it. I will share a pic when I find it.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos


Last edited by CV-6; 09-06-21 at 07:28 PM.
CV-6 is offline
Old 09-06-21, 08:03 PM
  #4
73StellaSX76
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 246

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 70 Times in 42 Posts
Thanks Lynn, I’d appreciate that.

Yes, this is an earlier model with no provision for a circlip. The main spring tail secures the other link and I suppose the original designer felt this was enough to hold both links on. I’ve gotten well more than my due use out of this one but I like to give parts another chance.

The closed end sleeve that the lever arm slides over actually spins on an inner pin. Without breaking I couldn’t see if it was possible to secure with a screw. Looks like it can!
73StellaSX76 is offline
Old 09-06-21, 08:53 PM
  #5
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,265

Bikes: Lejeune, Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré, Springfield, Motobecane, John Howard, Greg Lemond, Andre Bertin

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 491 Post(s)
Likes: 0
Liked 317 Times in 172 Posts

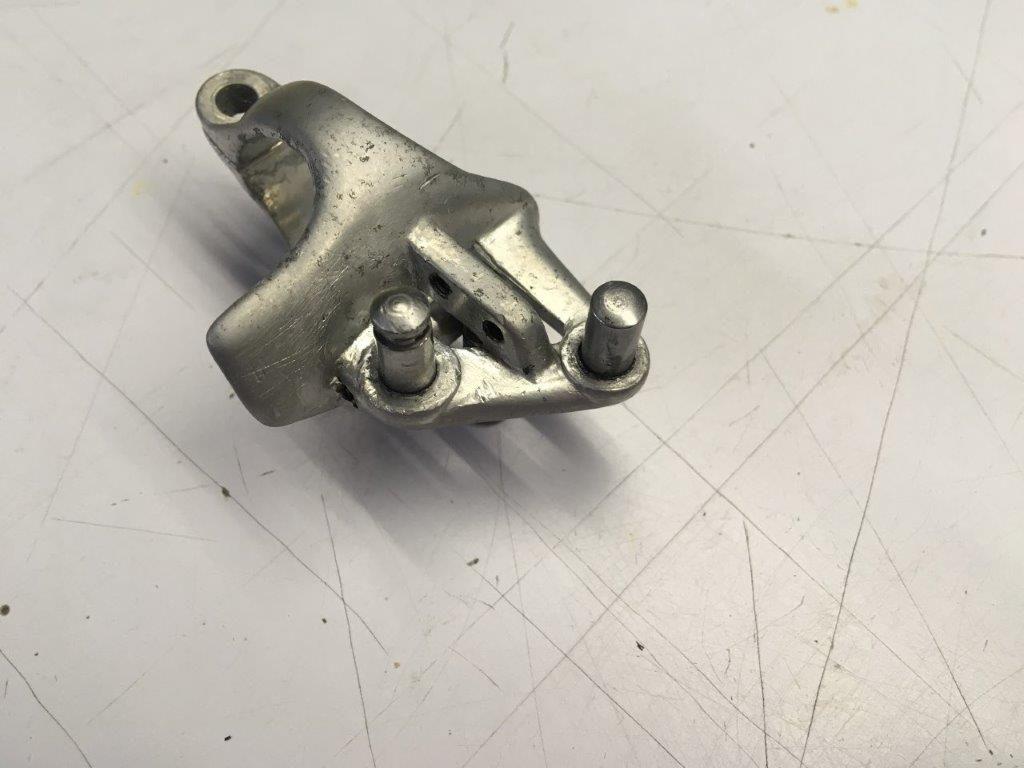

Photo as promised. I knew I had one that had been repaired. Bob Freeman did this one.


__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 09-06-21, 08:57 PM
  #6
73StellaSX76
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 246

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 70 Times in 42 Posts
Thanks muchly, Lynn. Do the threads extend thru the mount body? I suppose I can tap drill thru and find out what’s in there.
73StellaSX76 is offline
Old 09-06-21, 09:07 PM
  #7
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,265

Bikes: Lejeune, Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré, Springfield, Motobecane, John Howard, Greg Lemond, Andre Bertin

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 491 Post(s)
Likes: 0
Liked 317 Times in 172 Posts
Originally Posted by 73StellaSX76 View Post
Thanks muchly, Lynn. Do the threads extend thru the mount body? I suppose I can tap drill thru and find out what’s in there.

I cannot answer that. I did not do the work and have not disassembled. I would think you would not want to drill very deep into the post, but that is speculation. Nasty looking. Crap on it from having our floors done. Need to clean it up.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 09-07-21, 04:18 AM
  #8
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,591
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 604 Post(s)
Likes: 0
Liked 557 Times in 350 Posts
Originally Posted by onyerleft View Post
You seem to be more concerned about the visual appearance of the gap but you haven't said whether the gap impacts performance. If it's just aesthetics, you could probably learn to live without if you aren't too OCD.
It'll affect wear, and that will (further) affect performance.

Fix it or suffer.
oneclick is offline
Old 09-07-21, 05:41 AM
  #9
73StellaSX76
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 246

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 70 Times in 42 Posts
Originally Posted by oneclick View Post
It'll affect wear, and that will (further) affect performance.

Fix it or suffer.
This is what concerns me. The cage already wobbles through it’s travel. I was trying to solicit experience of how far I can let this go before performance really suffers or failure occurs. I’m supposing this wear is why the circlip was added to the design.

If I was really “OCD” about appearance then I don’t think I would be considering CV-6’s helpful suggestion to add a retaining screw.
73StellaSX76 is offline
Old 09-07-21, 11:28 AM
  #10
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 2,102

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 700 Post(s)
Liked 438 Times in 226 Posts
Hi Alex,

I had the same problem years ago and it was caused by the pivot pin coming loose from its base. Campy later beefed up the base to resolve this problem. You have the earlier design. I bet that if you pull the derailleur apart you will find that the pin is loose, requiring either a new part or Bob Freeman's fix.
davester is offline
Old 09-07-21, 02:43 PM
  #11
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,439

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 473 Post(s)
Liked 166 Times in 115 Posts
Originally Posted by 73StellaSX76 View Post
If I was really “OCD” about appearance then I don’t think I would be considering CV-6’s helpful suggestion to add a retaining screw.
I'd think "appearance" would be impacted by the type of screw selected. Instead of a straight-slot head, perhaps an Allen-key buttonhead machine screw might look a little more Campyesque?
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 09-07-21, 02:51 PM
  #12
Ex Pres
Cat 6

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,438
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 476 Post(s)
Liked 113 Times in 79 Posts
Originally Posted by davester View Post
Hi Alex,

I had the same problem years ago and it was caused by the pivot pin coming loose from its base. Campy later beefed up the base to resolve this problem. You have the earlier design. I bet that if you pull the derailleur apart you will find that the pin is loose, requiring either a new part or Bob Freeman's fix.
Originally Posted by tiger1964 View Post
I'd think "appearance" would be impacted by the type of screw selected. Instead of a straight-slot head, perhaps an Allen-key buttonhead machine screw might look a little more Campyesque?
Actually, the first version of this derailleur had screws - flathead at that. Then they went away for a while, before coming back as c-clips. See this picture from VB:
https://velobase.com/CompImages/FDer...3B4C932DD.jpeg
__________________
72 Frejus, Holdsworth Record & special CNC / 74 Italvega NR (for sale) / c80 ?French? / 82 Raleigh Intl MkII / 83 Trek 620 / 84 Bruce Gordon Chinook / 85 Ron Cooper / 87 Centurion IM MV (for sale) / 03 Casati Dardo / 08 BF IRO / 09 Dogma FPX / 10 Vassago Fisticuff



Ex Pres is offline
Old 09-07-21, 03:39 PM
  #13
73StellaSX76
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 246

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 70 Times in 42 Posts
I have had it apart as far as I can take it without breaking anything. What’s baffling me is that the post that the link arm pivots on is itself free to rotate but will not pull off. So this outer closed end shell spins as a captured part on a pin which is fixed to the mount body. I don’t know how the inner pin fixes to the body, whether it is integrally cast as a feature, or pressed in, or threaded in. My reservation about just drilling in is that I don’t know what the diameter of the inner pin will accept if I want to tap into it. I’ll take some photos as I tear into it and post them here.
73StellaSX76 is offline
Old 09-07-21, 04:49 PM
  #14
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,534
Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 2087 Post(s)
Liked 938 Times in 726 Posts
The image of the mechanism shown might be too far gone to fix, the connection between the steel pivot and the aluminum body might be compromised.

the early design of this mechanism did rely on screws to hold the arms in position.
cost savings eliminated them no doubt.
the later circlip helped much.

my new in 1972 bike had the same affliction as yours, through the shop I later worked for, I got the body replaced under warranty. I was bummed that it happened, Campagnolo was on such a high pedestal.
repechage is offline
Old 09-07-21, 09:09 PM
  #15
73StellaSX76
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 246

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 70 Times in 42 Posts
Originally Posted by repechage View Post
The image of the mechanism shown might be too far gone to fix, the connection between the steel pivot and the aluminum body might be compromised.

the early design of this mechanism did rely on screws to hold the arms in position.
cost savings eliminated them no doubt.
the later circlip helped much.

my new in 1972 bike had the same affliction as yours, through the shop I later worked for, I got the body replaced under warranty. I was bummed that it happened, Campagnolo was on such a high pedestal.
Thanks for your experience perspective. I can see it degrading faster the wider the gap opens. Just don’t know when it would fail. If the cable pulled with less of an end load I don’t think it would have been an issue. I’ll rebuild it with some of the suggestions given and report back.
73StellaSX76 is offline
Old 09-09-21, 10:01 AM
  #16
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,534
Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 2087 Post(s)
Liked 938 Times in 726 Posts
Originally Posted by 73StellaSX76 View Post
Thanks for your experience perspective. I can see it degrading faster the wider the gap opens. Just don’t know when it would fail. If the cable pulled with less of an end load I don’t think it would have been an issue. I’ll rebuild it with some of the suggestions given and report back.
I was very bummed back then about it. I suggest take it apart and review the upper pin integrity.
The body on these was dimensionally the same, you could purchase a later circlip body (whole unit will be cheapest) with a CPSC lip cage and transfer the earlier cage and be in business.
Performance will improve.
repechage is offline
Old 09-14-21, 10:03 PM
  #17
73StellaSX76
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 246

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 70 Times in 42 Posts
OK, to close the loop I redid the offending pivot by removing the upper pivot pin (rhs in the photo), drilling through for a 4mm BHCS, made a brass bushing to thread onto the screw, and secured the arm with a nyloc nut. Both studs spun freely on the body, Both are steel and are 6mm diameter. The pin was anchored in the aluminum body by some sort of steel insert. I would have ended up tearing the whole thing apart if I wanted to find out the details. As it turned out I had to put a step extension on the brass bushing to fit into a cylindrical recess created by pulling out the old pin. The bushing is threaded so it snugs the screw head to the body. Anyway, I'm confident of the strength of the new pivot pin and all slop is now removed. The derailleur shifts more crisply too.





And a view of the finished new assembly. The hex head of the cap screw is visible as is the nyloc nut on the other side. Yeah, its not original in appearance but it has served me for 40+ years, so worth a salvage.

73StellaSX76 is offline
Likes For 73StellaSX76:
Old 09-15-21, 01:30 PM
  #18
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,737

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1394 Post(s)
Liked 308 Times in 249 Posts
Originally Posted by tiger1964 View Post
I'd think "appearance" would be impacted by the type of screw selected. Instead of a straight-slot head, perhaps an Allen-key buttonhead machine screw might look a little more Campyesque?
I would go very-old old-school: a slotted Fillister-head screw.
Road Fan is offline
Old 09-15-21, 07:06 PM
  #19
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 2,102

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 700 Post(s)
Liked 438 Times in 226 Posts
We’ll done Alex! That repair looks perfect. When mine broke back in the day, a magnolia still had their Craftsman-like warranty and replaced the part for free. I guess that warranty no longer applies to 50-year old products.
davester is offline
