Raleigh Gran[d] Sport with stamped dropouts?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Raleigh Gran[d] Sport with stamped dropouts?

Old 09-13-21, 10:22 AM
  #1
Nwvlvtnr
Senior Member
Thread Starter

Join Date: Feb 2020
Location: San Diego
Posts: 60

Bikes: I have a few

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 42 Times in 22 Posts
Raleigh Gran[d] Sport with stamped dropouts?

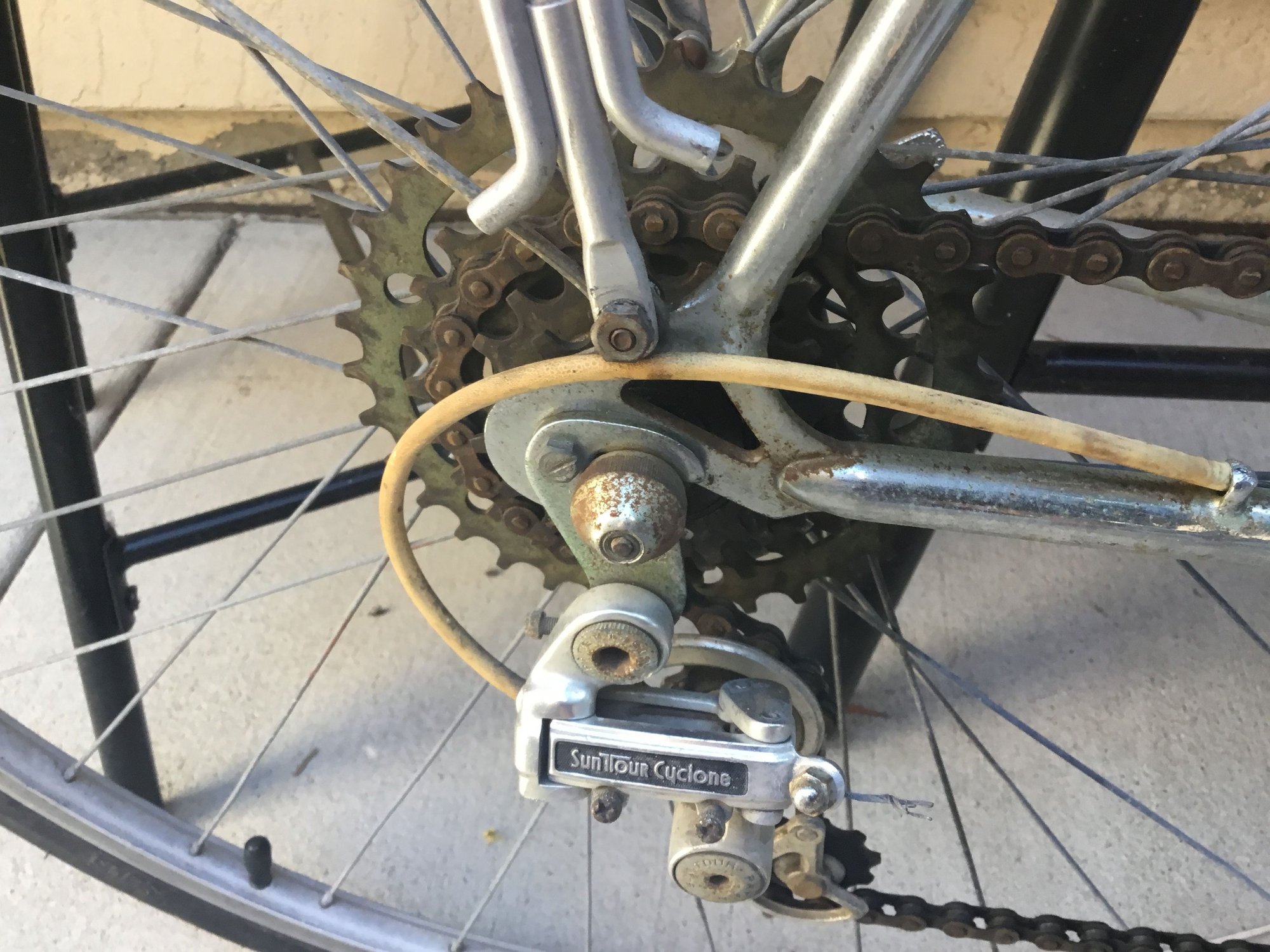

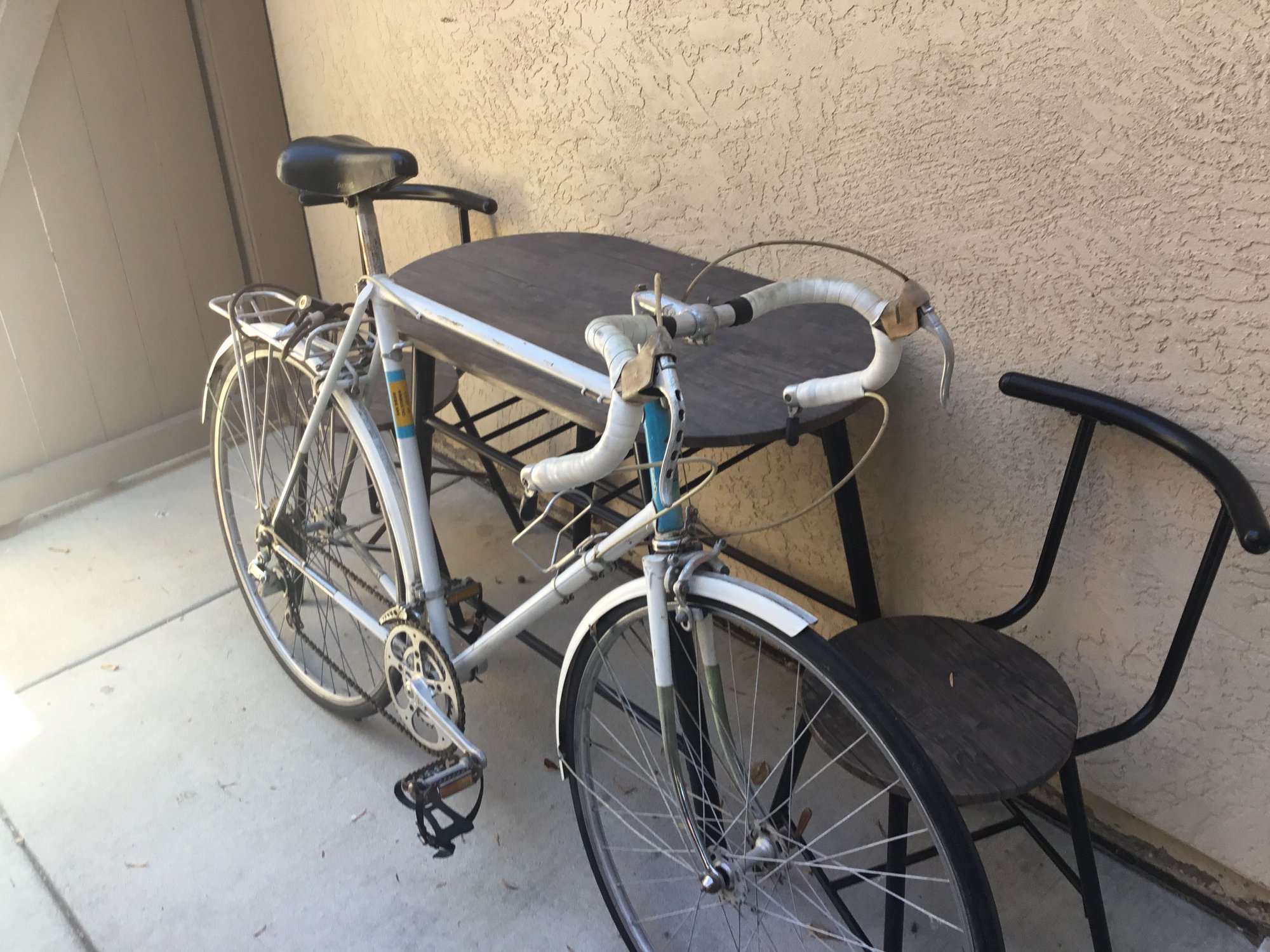

I just acquired this Raleigh and have a question. It appears to be a 73 Grand Sport save for one detail: it has stamped dropouts where the catalog appears to show forged Simplex dropouts. The white paint on the frame has been resprayed and appears to cover the lower blue seat post tube stripe while consistent otherwise. The fork crown and rear top tube cable housing stop also match the Gran/ Grand Sport not to mention the stem, bars, brakes and wheels match the factory spec from the 73 US Catalog. 27.0 mm seat post.

So do I have a Gran Sport? Are the stamped dropouts likely just due to early production or Bicycle boom shortages?

Regardless it rides really well despite being due for a complete overhaul, I also feel that I finally have a frame I can paint without a guilty conscience.




Nwvlvtnr is offline
Old 09-13-21, 11:11 AM
  #2
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,872

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 653 Post(s)
Liked 843 Times in 452 Posts
Yours is indeed a Raleigh GS, complete with the fancier of the two fork crowns used for this model and the Bocama Professional lugset. The overwhelming majority of these I have seen had stamped dropouts. My recently sold 1973 specimen did, as did the example I had in the early 80s. There were some outliers that used Zeus dropouts, but most of them were built with the same stamped dropouts that most Super Courses used - though there are exceptions to that rule as well.

I like the thoughtful upgrades to headset, crankset and derailleurs on your bike. Much as I love Stronglight 93s and Nervar Star cranksets, I bet you'll have an easier time of it finding chainrings for that Sugino crankset. And the Cyclone is just a wonderful derailleur, period. I fitted the same fenders to the .one I rode in the early 80s.

Nice bike, and I hope it fits you and you enjoy it greatly!
rustystrings61 is offline
Likes For rustystrings61:
Old 09-13-21, 12:37 PM
  #3
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,937

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1138 Post(s)
Liked 675 Times in 475 Posts
Nothing wrong with stamped dropouts.


All stripped down and ready to rebuild.

Repainted Cap Sieger frame, serial number very close to that of my other Sieger, so who was I to say no to it?

1959 Capo with Nervar Star crank and Campag. 980 derailleur upgrades and new Brooks Pro saddle.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 09-13-21, 01:06 PM
  #4
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,517
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 837 Post(s)
Liked 379 Times in 242 Posts
27.2 is likely the correct seat post size.
Nice bike.
due ruote is offline
Likes For due ruote:
Old 09-13-21, 02:06 PM
  #5
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,872

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 653 Post(s)
Liked 843 Times in 452 Posts
Originally Posted by due ruote View Post
27.2 is likely the correct seat post size.
Nice bike.
Indeed! I acquired TWO 531-tubed '73 Raleighs in 2019, and both of them had been fitted with undersized seatposts. Once I gently massaged the seat lugs back into roundness and ran a brake cylinder hone down the inside of the seat tube to smooth off the built-up corrosion, a greased 27.2 mm post fit perfectly.
rustystrings61 is offline
Likes For rustystrings61:
Old 09-14-21, 10:04 AM
  #6
Nwvlvtnr
Senior Member
Thread Starter

Join Date: Feb 2020
Location: San Diego
Posts: 60

Bikes: I have a few

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 42 Times in 22 Posts
Thank you all, I am not concerned about the stamped dropouts and I agree the upgrades are well chosen. The man I bought it from swore it was a Gand Prix but also had owned it since the late 1980s and stated he routinely rode it from San Diego to San Francisco and back.

Thanks for the heads up on the seat post I’ll be sure to take a look at that. It does fit me and appears to be nearly identical to my Bob Jackson Tourer in geometry and proportions. Not concerned about the stamped dropouts. I also love SunTour rear mechs and ride a Cyclone nearly every day.
Nwvlvtnr is offline
Old 09-14-21, 10:16 AM
  #7
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,937

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1138 Post(s)
Liked 675 Times in 475 Posts
Originally Posted by due ruote View Post
27.2 is likely the correct seat post size.
Nice bike.
For me, that is the real test of frame quality -- does it have a butted moly steel main triangle? For a 28.6mm seat tube OD, you want to see a 27.2mm seat post ID.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 09-14-21, 11:35 AM
  #8
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,734
Mentioned: 328 Post(s)
Tagged: 1 Thread(s)
Quoted: 2832 Post(s)
Liked 1,374 Times in 1,005 Posts
-----

here are the BOCAMA Professional model lugs used to construct the frame -




the fork crown of your example is Vagner model Nr. 12+



examples built with the Zeus dropouts received these -




---

Raleigh/Carlton called the shade of blue used on these "Lagoon Blue"

---

tip -

you may discover the shell to be of ~66.5mm in width rather than the nominal 68mm. often needs a 1.0mm spacer behind the fixed cup for an ideal chainline.
-----

Last edited by juvela; 09-14-21 at 11:40 AM. Reason: spellin'
juvela is offline
Old 09-14-21, 11:47 AM
  #9
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,872

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 653 Post(s)
Liked 843 Times in 452 Posts
... and because juvela has gifted us with the catalog pages, for completeness sake I will note that the OTHER fork crown used on the '72-76 Raleigh GS is the DP + losange fraise, which I think they also used on a lot of Super Courses.
rustystrings61 is offline
Old 09-14-21, 01:21 PM
  #10
jamesj
Senior Member

jamesj's Avatar

Join Date: Dec 2005
Location: Arizona
Posts: 920

Bikes: 2015 Specialized AWOL, 2006 Paul Frank Cruiser, 1987 Specialized Street Stomper, 1980 Trek 412, 1979 Raleigh Sport,

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 32 Times in 17 Posts
I really like that Sugino crankset.
