Spidel RD problem. Shifting gears - spring problem?

Search
Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Spidel RD problem. Shifting gears - spring problem?

Thread Tools

Search this Thread

Old 10-09-21 | 05:29 AM
  #1
Thread Starter
Newbie

Joined: Oct 2021
Posts: 1
Likes: 0
Spidel RD problem. Shifting gears - spring problem?

Hi, this is my first time posting here and I'm not very bike-literate. I have a problem with slipping out of lowest gears and I think it's a problem with the rear derailleur spring having too great a tension. The derailleur throws the chain correctly in both directions so I the problem isn't related to those simple adjustments. But once I've shifted to lowest gear, the derailleur springs back a little, pulling the chain to the 2nd or 3rd largest cogs and would only remain on the largest were I to hold down on the shifter, fighting the spring as it were. Can I fix this or, looking at the attached photos (not allowed to post photos yet) could the problem lie elsewhere? Many thanks for any advice. Bruno
brunolondinese is offline
Reply
Old 10-09-21 | 07:29 AM
  #2
Senior Member
15 Anniversary
Community Builder

Joined: Jun 2006
Posts: 21,865
Likes: 3,748
To confirm, the problem is not holding position to keep the chain in the larger cogs in back.

the most probable issue is at the shift lever.
not holding tension. As it is a Spidel rear mech a decent chance it has retro friction shift levers
if so, internal parts can wear or fracture- this would be the easy to assess and expensive to repair- no parts any more- one would have to buy an assembly. Regular friction levers would work too and be cheaper.
repechage is offline
Reply
Old 10-09-21 | 07:41 AM
  #3
Dylansbob's Avatar
2k miles from the midwest

Joined: Feb 2005
Posts: 1,963
Likes: 944
From: Washington

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

If it is the shifter slipping, I've heard replacing the flat-head screw on the lever with an allen will let you get it tighter and a few more miles out of it.
Dylansbob is offline
Reply
Old 10-09-21 | 08:48 AM
  #4
dddd's Avatar
Ride, Wrench, Swap, Race
15 Anniversary

Joined: Jan 2010
Posts: 9,831
Likes: 1,809
From: Northern California

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Originally Posted by Dylansbob
If it is the shifter slipping, I've heard replacing the flat-head screw on the lever with an allen will let you get it tighter and a few more miles out of it.
This is sometimes true even when the shifter is fine internally, as the barrel inside of the lever may be rotating (when it should be held stationary by the bolt's tension).

I would oil up the inside of the lever and tighten the bolt.
dddd is offline
Reply
Old 10-09-21 | 09:33 AM
  #5
verktyg's Avatar
verktyg

Joined: Jul 2006
Posts: 4,034
Likes: 1,271
From: SF Bay Area

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1980s DeRosa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1988 Colnago Technos, 1985 RalieghUSA SBDU Team Pro

Simplex Questions And Answers

Please read ALL of my posts in this thread (verktyg):

Simplex SLJ 6600 real life capacity

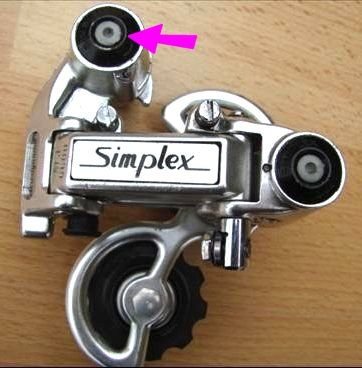

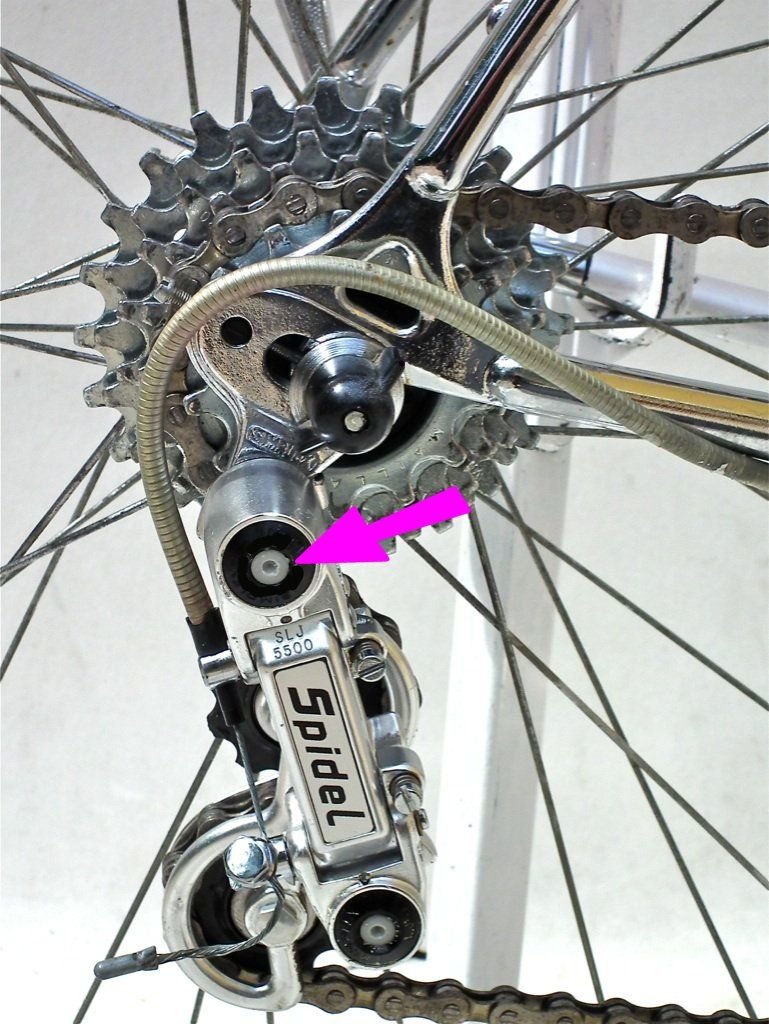

WHATEVER YOU DO - DON'T... Don't touch these hex sockets with the plastic plugs in the PIVOT BOLT! They're for adjusting the tension during assembly not for mounting and removal of the derailleur !!!!!




BTW, I have some Nylon plugs to fit in these sockets... FREE - PM me




For Retrofriction levers, there's a lot of info in this Flickr album I put together about 10 years ago. Click on the photos and read descriptions below them :

https://www.flickr.com/photos/282672...57627163433202

Good luck...

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 10-09-21 at 09:37 AM.
verktyg is offline
Reply
Old 10-09-21 | 05:49 PM
  #6
Chombi1's Avatar
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Nov 2015
Posts: 4,900
Likes: 1,125
Originally Posted by Dylansbob
If it is the shifter slipping, I've heard replacing the flat-head screw on the lever with an allen will let you get it tighter and a few more miles out of it.
Tightening or loosening the pivot screws on a Simplex/Spidel/Mavic retrofriction shifter does not change its resistance against the derailleur return spring(s).
All resistance on the Retrofriction system comes from the spring clutch inside the shifter body that grips around an internal shifter pivot hub, only in one direction. Think of it as a sort of one way ratchet mechanism, without the detents or clicks.
A truly elegant and surprisingly simple piece of bike engineering, from, of all people, the French, who had their big share of bicycle component questionsble designs, back in the day.....
