Is the frame wore out?
#1
Thread Starter
Senior Member


Joined: Jan 2019
Posts: 2,015
Likes: 1,053
From: Toledo Ohio
Bikes: 1964 Huffy Sportsman, 1972 Fuji Newest, 1973 Schwinn Super Sport (3), 1982 Trek 412, 1983 Trek 700, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk, plus others
Is the frame wore out?
I am about to purchase a vintage 72-76 Fuji Newest. It has been ridden hard as a commuter it seems. No decals and not many original parts. Replacement parts are/were good quality; Superbe rear derailleur, dura ace hubs with mismatched rims, universal center pulls, Blackburn rear rack etc. It was a commuter for years it seems. It is in an unrideable state now with no FD and needing work with cables shifters, levers and such but no rust.
So, the question is wether the frame with scratches and such could be ‘wore out”. Do they finally just expire from lots of miles and bumps. It looks straight and is fairly rare. No pics, but I think $100 will get it. I’ve not painted a bike or done decals but maybe just a homage style rebuild. Advice?
So, the question is wether the frame with scratches and such could be ‘wore out”. Do they finally just expire from lots of miles and bumps. It looks straight and is fairly rare. No pics, but I think $100 will get it. I’ve not painted a bike or done decals but maybe just a homage style rebuild. Advice?
#2
Senior Member

Joined: Sep 2005
Posts: 3,487
Likes: 1,552
From: Oakland, CA
Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited
I am about to purchase a vintage 72-76 Fuji Newest. It has been ridden hard as a commuter it seems. No decals and not many original parts. Replacement parts are/were good quality; Superbe rear derailleur, dura ace hubs with mismatched rims, universal center pulls, Blackburn rear rack etc. It was a commuter for years it seems. It is in an unrideable state now with no FD and needing work with cables shifters, levers and such but no rust.
So, the question is wether the frame with scratches and such could be ‘wore out”. Do they finally just expire from lots of miles and bumps. It looks straight and is fairly rare. No pics, but I think $100 will get it. I’ve not painted a bike or done decals but maybe just a homage style rebuild. Advice?
So, the question is wether the frame with scratches and such could be ‘wore out”. Do they finally just expire from lots of miles and bumps. It looks straight and is fairly rare. No pics, but I think $100 will get it. I’ve not painted a bike or done decals but maybe just a homage style rebuild. Advice?
Theoretically, I guess everything wears out, but if there is no visible damage or abuse, and you cannot see any rust in an inspection, the risk of failure is pretty low. More informed folks will chime in, but I would offer maybe $50-70 and see what happens. The Fuji Finest of that era is a well-regarded frame, and upgrades will not be too difficult because it uses mostly modern standards.
#4
Senior Member

Joined: Dec 2016
Posts: 2,945
Likes: 1,806
From: Long Island, NY
Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lambert, Schwinn Super Sport
A frame could be worn out. The thing that will cause the frame to be no longer good is cracks from a life of stress. Look for cracks at junctions. Around the bottom bracket, at the junctions with the head tube, around the seat tube. While you are at it be sure that the ears on the seat post clamp are in proper shape. Also check that there is no crack radiating from the seat clamp slot.
Rust and missing paint, is usually not an issue unless the rust has progressed to a degree where the steel has become thinner.
Even with the Superb derailleur and Dura Ace hubs, I would have a hard time spending $100 on it. Perhaps you can offer less, and see where it goes. To me it sounds like a few good parts and a frame painting project. And even the few good parts may be worn.
Rust and missing paint, is usually not an issue unless the rust has progressed to a degree where the steel has become thinner.
Even with the Superb derailleur and Dura Ace hubs, I would have a hard time spending $100 on it. Perhaps you can offer less, and see where it goes. To me it sounds like a few good parts and a frame painting project. And even the few good parts may be worn.
#5
Senior Member

Joined: Nov 2005
Posts: 4,049
Likes: 2,123
From: NW Ohio
Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-1977 Univega Grand Rally, S LTD, 1973 Sears Free Spirit 531, 197? FW Evans
I love those "blank canvas" kind of projects. It is not likely that the frame is worn out just from use. As long as the frame is straight, it should be fine. Fuji had pretty good quality control, so I would not expect there to be any flaws in the brazing.
I got Fuji decals from Velocals last year and was very happy with the quality. It's a one man operation, so delivery sometimes takes a while.
I got Fuji decals from Velocals last year and was very happy with the quality. It's a one man operation, so delivery sometimes takes a while.
#6
Thread Starter
Senior Member


Joined: Jan 2019
Posts: 2,015
Likes: 1,053
From: Toledo Ohio
Bikes: 1964 Huffy Sportsman, 1972 Fuji Newest, 1973 Schwinn Super Sport (3), 1982 Trek 412, 1983 Trek 700, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk, plus others
Looks like Wednesday before I can get back to it. I guess the allure was early Japanese vintage before there were group sets. That and a blank canvas as said earlier. That being said, many others seem to find the nearly new, all stock ones for pennies. I guess it’s only money and I’m about to retire so would have the time.
#7
Senior Member




Joined: Apr 2012
Posts: 21,793
Likes: 5,720
From: Middle Earth (aka IA)
Bikes: A bunch of old bikes and a few new ones

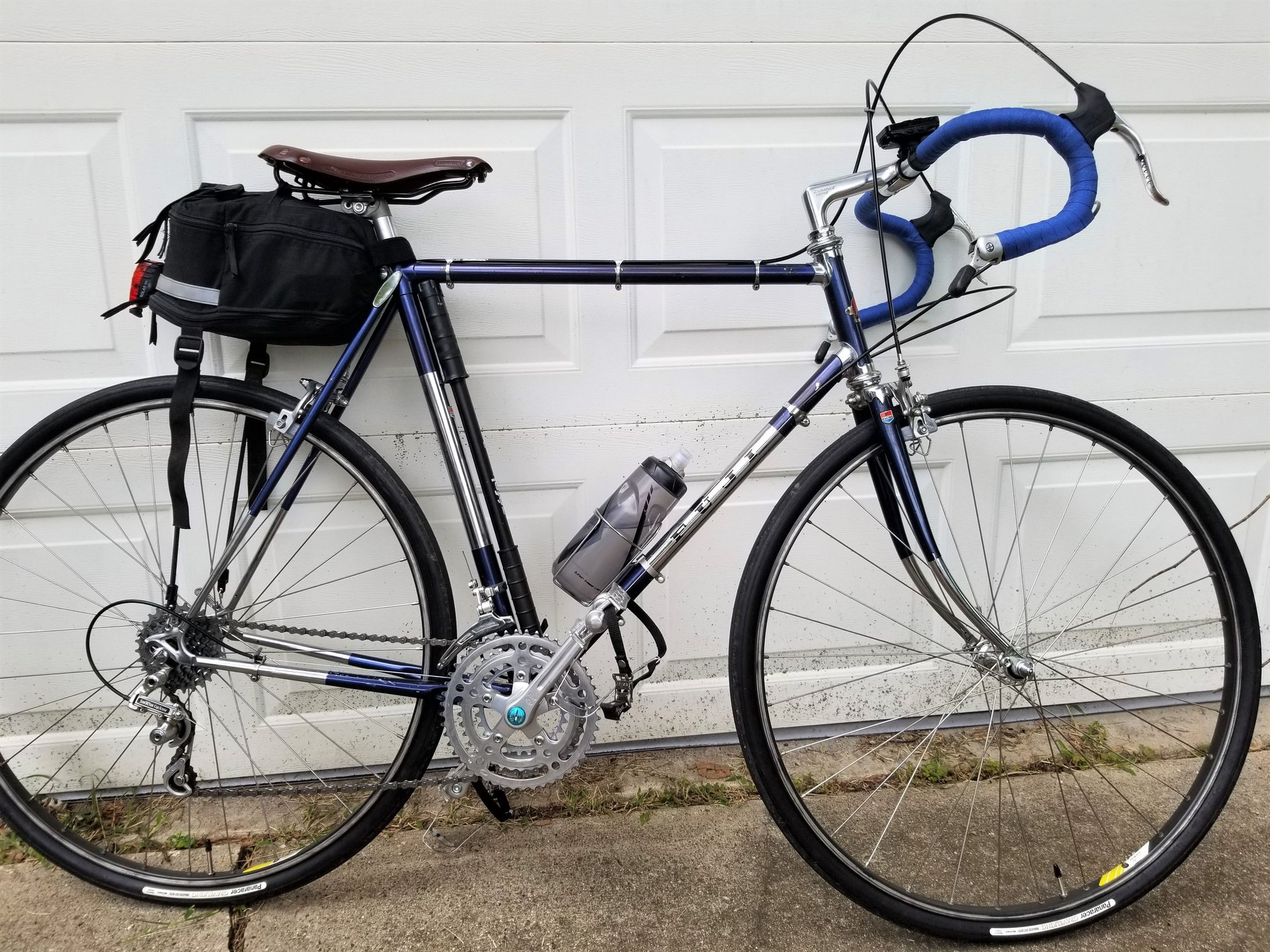

The 70s Fuji Finest is a great bike and a solid deal at $100 with the parts group you describe. If the frame is straight and has no dings, it's worth buying. It is a very well made and versatile bike. It is chromed underneath the paint. It is a full chrome moly frame with forged drop outs. It has a good geometry and will take 32c tires easily. This is a top end bike. This is my 70s Fuji Finest.
#8
Senior Member


Joined: Apr 2007
Posts: 12,565
Likes: 2,740
From: Thunder Bay, Ontario, Canada - burrrrr!
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

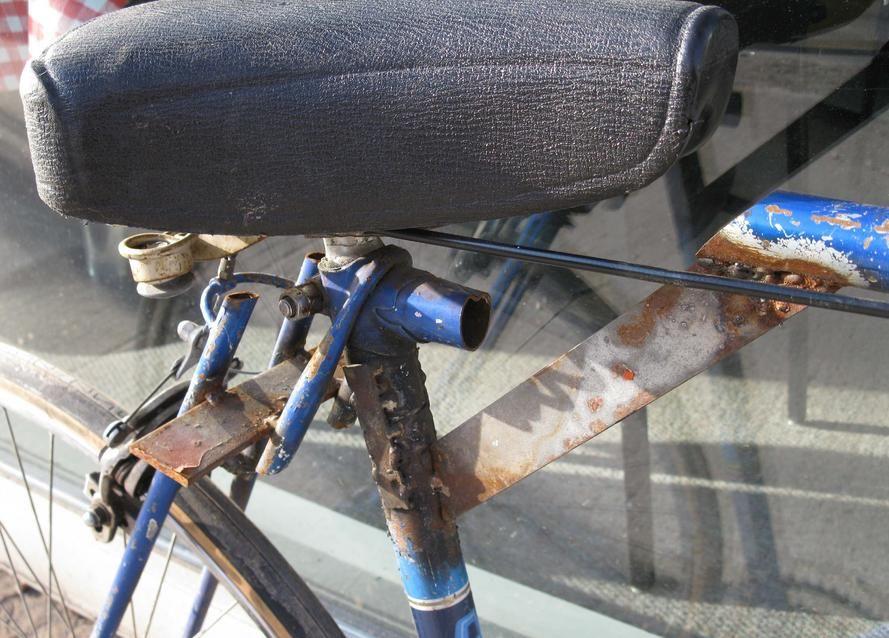

Frames do wear out, due to cracks, damage and even oxidation. Damage is the biggest issue. Paint that looks like this...

...is an indication of frame damage and is, as often as not, irreparable. Tubes can also suffer from serious or even not so serious denting. Again, dents tend to put the frame into the useless category in my book. That said, dents can be rolled out and filled but I am not all that into those repairs. However...

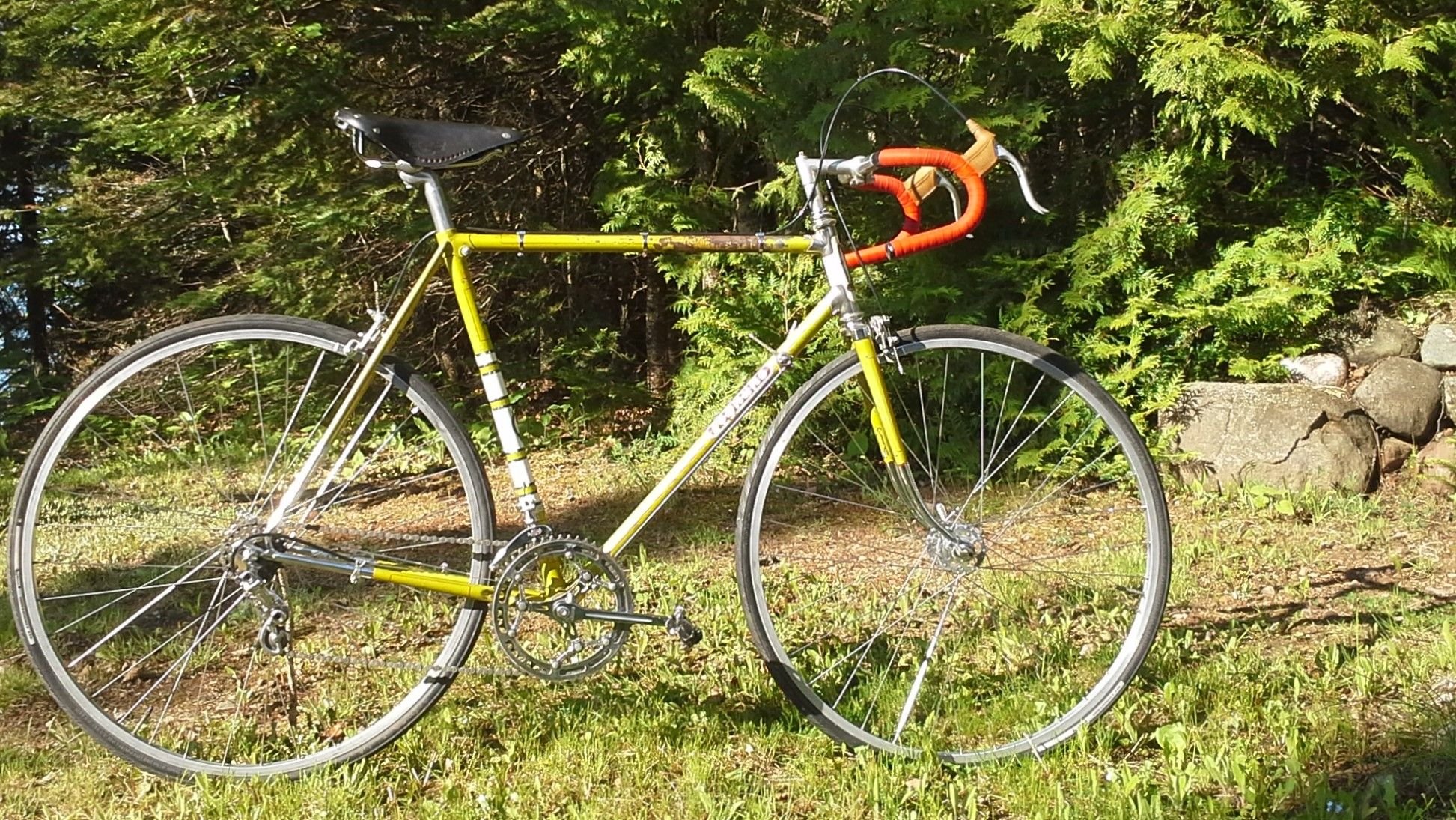

Thanks to a fellow forum member, who lent me a set of frame blocks, I did roll out a minor frame issue on this late sixties Carlton...

Rust, seen in the picture above, can be internal and external. In all honesty, I have yet to run across a frame/fork set that was worn out due to rust. That said, excessive rust on chrome frame stays, lugs or socks usually renders a frame useless to me and would fall into the worn out category. The rust on the Bottecchia lug is pitted and, in my world, renders the frame useless for restoration (I do not have anything rechromed due to my wish to keep my hobby as environmentally friendly as I can)...
Busted at the lug to tube joints is not all that uncommon and can be repaired but, once again, for me that condition would place the frame set into the worn out category.
This picture is and extreme example of damage, caused by some clever back yard mechanic. Right now I know where I can get a 60cm early seventies Bianchi with two holes drilled in the top tube (I passed)...

Paint and art damage does not mean the frame is worn out. In need of painting, perhaps, but be forewarned. Repainting a vintage bicycle does tend to be a bit costly and actually can lower the value of the bicycle. My Legnano has all but begged me for new paint and art but I still resist. Perhaps someday...

However, if paint becomes a must, you can do a pretty good job with some store bought art and a paint brush...

...is an indication of frame damage and is, as often as not, irreparable. Tubes can also suffer from serious or even not so serious denting. Again, dents tend to put the frame into the useless category in my book. That said, dents can be rolled out and filled but I am not all that into those repairs. However...

Thanks to a fellow forum member, who lent me a set of frame blocks, I did roll out a minor frame issue on this late sixties Carlton...

Rust, seen in the picture above, can be internal and external. In all honesty, I have yet to run across a frame/fork set that was worn out due to rust. That said, excessive rust on chrome frame stays, lugs or socks usually renders a frame useless to me and would fall into the worn out category. The rust on the Bottecchia lug is pitted and, in my world, renders the frame useless for restoration (I do not have anything rechromed due to my wish to keep my hobby as environmentally friendly as I can)...
Busted at the lug to tube joints is not all that uncommon and can be repaired but, once again, for me that condition would place the frame set into the worn out category.
This picture is and extreme example of damage, caused by some clever back yard mechanic. Right now I know where I can get a 60cm early seventies Bianchi with two holes drilled in the top tube (I passed)...

Paint and art damage does not mean the frame is worn out. In need of painting, perhaps, but be forewarned. Repainting a vintage bicycle does tend to be a bit costly and actually can lower the value of the bicycle. My Legnano has all but begged me for new paint and art but I still resist. Perhaps someday...

However, if paint becomes a must, you can do a pretty good job with some store bought art and a paint brush...
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
#9
Senior Member


Joined: Oct 2014
Posts: 14,164
Likes: 5,295
From: Portland, OR
Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder
He's got a Newest, not a Finest. I don't remember the differences but any of the details you mentioned could well be different.
I worked at the New England flagship Fuji store in 1977. Raced a last year's Pro. Had friends on the Fuji sponsored team out of Amherst. (They got the brand new SunTour Superbe equipped Pros. Quite the deal. Superbe wasn't even out yet.) So I saw a lot of Fujis and heard a lot of stories. Came away convinced Fuji made rock-solid bikes. I've kept my eyes on them. Don't see those bikes often now and all are closing in on 50 years old - but what I have see convinces me that they are one of the best bets around if you want a 45-50 year old frame you can trust.
I worked at the New England flagship Fuji store in 1977. Raced a last year's Pro. Had friends on the Fuji sponsored team out of Amherst. (They got the brand new SunTour Superbe equipped Pros. Quite the deal. Superbe wasn't even out yet.) So I saw a lot of Fujis and heard a lot of stories. Came away convinced Fuji made rock-solid bikes. I've kept my eyes on them. Don't see those bikes often now and all are closing in on 50 years old - but what I have see convinces me that they are one of the best bets around if you want a 45-50 year old frame you can trust.
#10
Senior Member
Joined: Aug 2013
Posts: 2,321
Likes: 1,921
The good news about a steel frame is that a competent frame builder or welder can often repair what is worn or broken. Something to consider if the bike really has your gaze.
This is from the inside left chain stay on a well abused old Schwinn.

There was one other small nick in the right seat stay. I had a local welder repair the damage, and built the bike back up.
This is from the inside left chain stay on a well abused old Schwinn.

There was one other small nick in the right seat stay. I had a local welder repair the damage, and built the bike back up.
