1985 Mercian Build in Process

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1985 Mercian Build in Process

Old 11-27-21, 11:38 AM
  #1
jnbrown
Senior Member
Thread Starter

jnbrown's Avatar

Join Date: Nov 2006
Location: Encinitas, CA
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 62 Times in 32 Posts

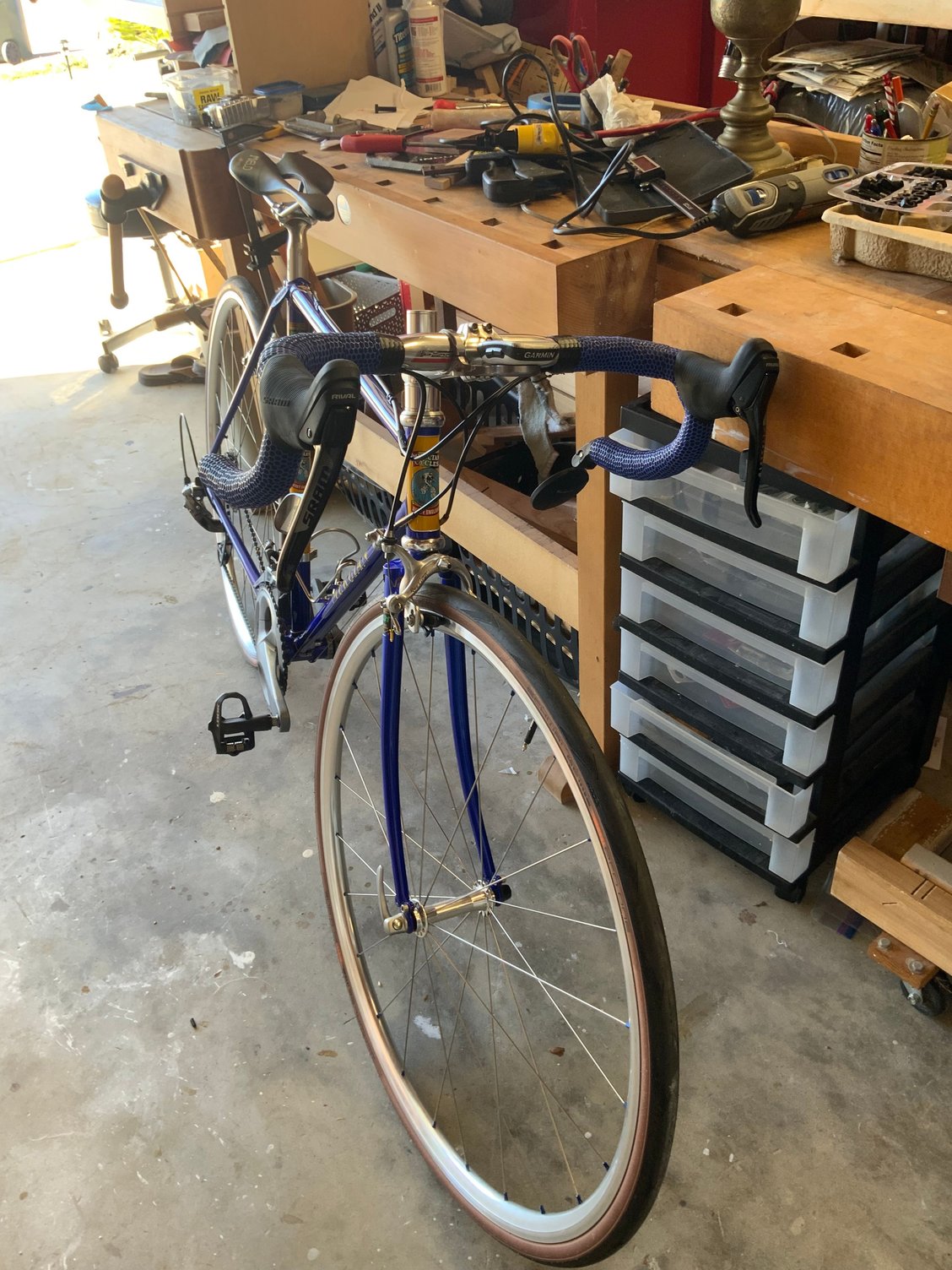

1985 Mercian Build in Process

In the early 1980s I had numerous steel bikes including a Mercian.
I always regretted selling it. At some point migrated to carbon bikes but occasionally would look for a replacement for the Mercian.
But nothing ever came up, they were always the wrong size, wrong price or too beat up.
But a few months ago one came up on ebay and it seemed perfect, the right size in great shape at a reasonable although maybe slightly high price.
I knew this might be my only chance and pulled the trigger. But when I got it there where lingering questions:

Would it really fit me?
Would I like the ride like I remembered it?
Could I fit the parts on it that I wanted.

While I appreciate a vintage bike that is period correct, I am a firm believer that modern components are just better in terms or weight and performance.
I did not want to use down tube shifters and square taper bottom brackets. The first task was getting rear dropouts spread to 130mm which had a local frame shop do for me.
It turned out that the seatpost was extremely hard to get in so I got a flex hone and cleaned out the seat tube and now it is much better.
There was much thought about the crankset and was originally going to use Campy Over Torque, but after getting the BSA bottom bracket discovered it was not going to work,
so I went with Shimano 105 in sliver. Not the best fit visually, but the best I could do for my budget.

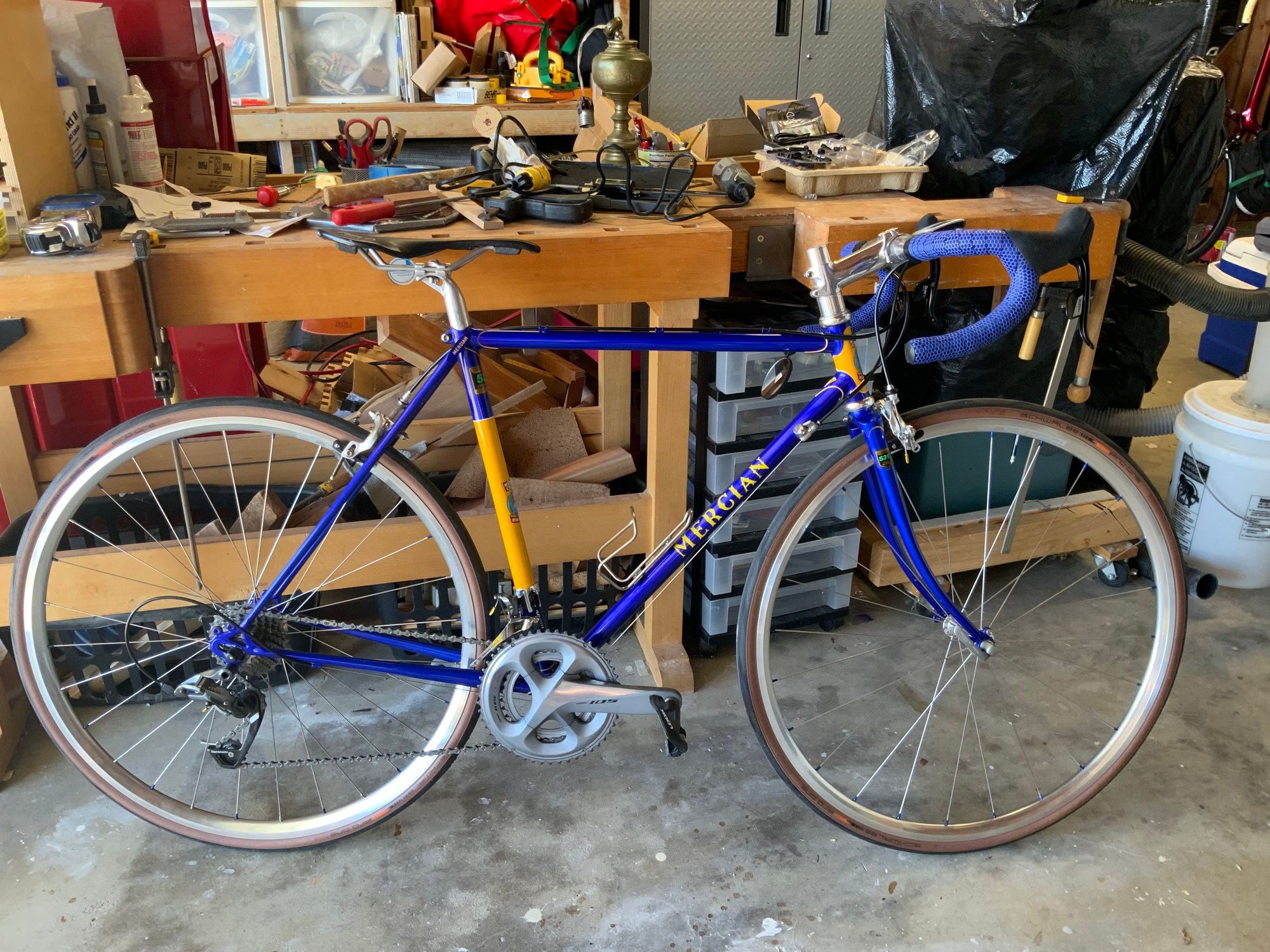

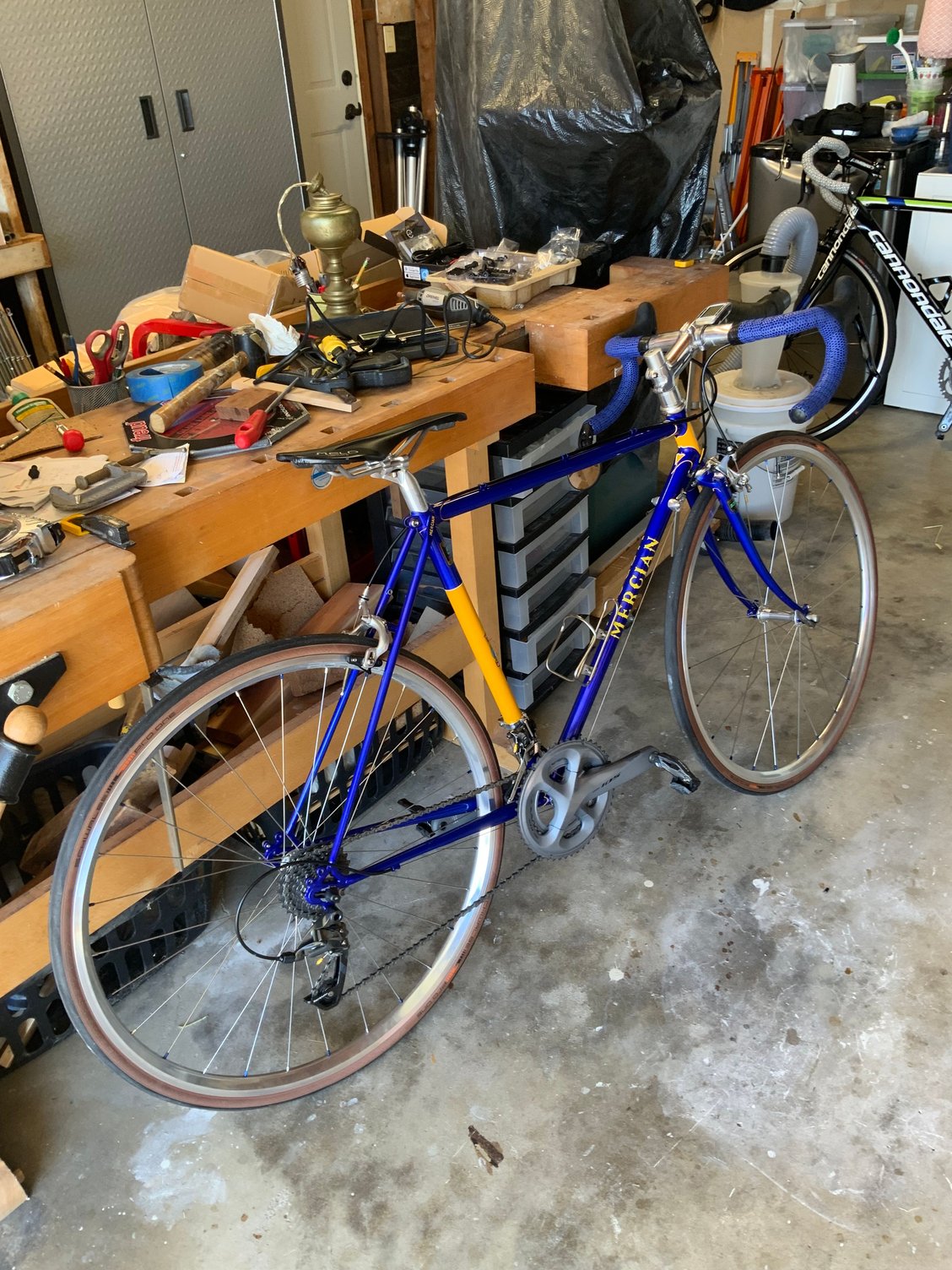

Here is what I have on the bike so far:

Innicycle headset
Shimano 105 crankset with Wheels Manufacturing BB
Ritchey Classic seatpost
SRAM Rival shifters
SRAM Force RD
Dia Compe Royal Compe brakes
Ritchey stem with black anodizing stripped and polished.
FSA bars with black anodizing stripped and polished.

I just ordered some Kinlin XR22T polished rims for the wheels.
In making measurements I discovered that the top tube is relatively short at 51cm, most of my bikes run 53 to 53.5cm.
But since my legs are relatively short I normally use a zero offset seatpost. So using a 25mm seatpost on this bike gets the fit close.
I was able to do a short test ride around the neighborhood by borrowing wheels and pedals from my other bike.
So far the I think it rides nice, very quiet and smooth. The SRAM shifting works perfectly.
I was surprised how stiff the frame feels, no noticeable flex, but that might become more apparent on a longer ride with some hills.
The weight is right around 19 lbs which what I had calcualted.
Really looking forward to doing a real ride on this.



jnbrown is offline
Old 11-27-21, 01:11 PM
  #2
icemilkcoffee
Senior Member

icemilkcoffee's Avatar

Join Date: Aug 2009
Posts: 1,263
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 745 Post(s)
Liked 578 Times in 355 Posts
Very nice. Does that threadless stem adapter only come in one length like that?
icemilkcoffee is offline
Old 11-27-21, 02:25 PM
  #3
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,017

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 982 Post(s)
Liked 956 Times in 577 Posts
Really nice looking Mercian. I’m slowly assembling an 83 and looking forward to riding it (hopefully by spring?).

About the conversion — the inventor is a BF member and sometimes updates this thread that discusses its development: Threadless Conversion Headset
noobinsf is offline
Old 11-27-21, 03:02 PM
  #4
jnbrown
Senior Member
Thread Starter

jnbrown's Avatar

Join Date: Nov 2006
Location: Encinitas, CA
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 62 Times in 32 Posts
Originally Posted by icemilkcoffee View Post
Very nice. Does that threadless stem adapter only come in one length like that?
AFAIK there is only one length. I will be cutting it once I have it dialed in.
it is really nice compared to a separate headset and adapter.
jnbrown is offline
Old 11-27-21, 03:10 PM
  #5
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,539
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2443 Post(s)
Liked 1,372 Times in 1,031 Posts
Looks nice even with the greasy finger front derailleur system.
repechage is offline
Old 11-27-21, 06:59 PM
  #6
jnbrown
Senior Member
Thread Starter

jnbrown's Avatar

Join Date: Nov 2006
Location: Encinitas, CA
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 62 Times in 32 Posts
Originally Posted by repechage View Post
Looks nice even with the greasy finger front derailleur system.
I use a piece of newspaper to shift the front to avoid the grease. 🙂
jnbrown is offline
Old 11-27-21, 09:20 PM
  #7
jjhabbs
Senior Member

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,719

Bikes: to many to list

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 523 Times in 170 Posts
Great bike! I love the way you built it.

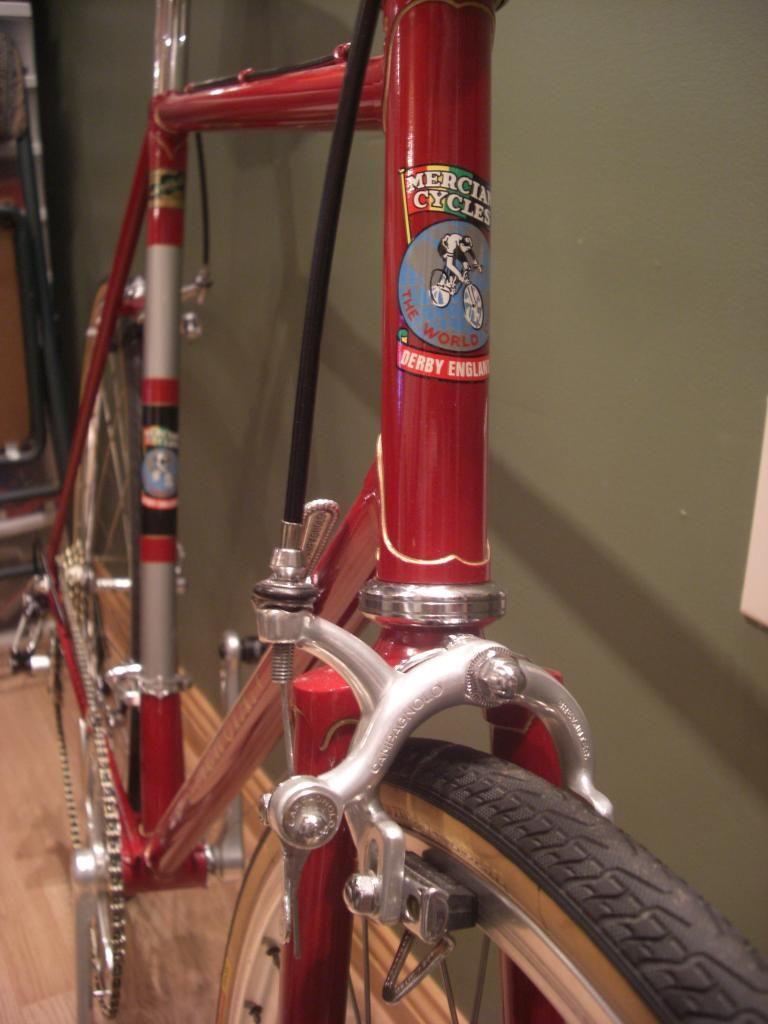

I have a couple 1982 models. They are both built up vintage however.
What size seat post was it. I'm curious?

JJ
__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John's vintage road bike garage
jjhabbs is offline
Old 11-28-21, 10:28 AM
  #8
jnbrown
Senior Member
Thread Starter

jnbrown's Avatar

Join Date: Nov 2006
Location: Encinitas, CA
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 62 Times in 32 Posts
Originally Posted by jjhabbs View Post
Great bike! I love the way you built it.
I have a couple 1982 models. They are both built up vintage however.
What size seat post was it. I'm curious?

JJ
seatpost is 27.2. Initially I could not get it in even though the frame looks barely used and no rust.
spent some time cleaning the seat tube with a flex hone, now it is much better but still a little tight.
would love to see some pictures of yours.
jnbrown is offline
Old 11-28-21, 11:28 AM
  #9
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,017

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 982 Post(s)
Liked 956 Times in 577 Posts
Is the model the King of Mercia Touring? I ask because mine is, and it takes a 27.0 seat post. I was having trouble getting my 27.2 seat post to even start, so I tried a 27.0 and it fit like a glove. I wrote to Mercian about the serial and to ask about the 27.0, and sure enough, they said that in the early 80’s, they would have reamed the touring frame out to 27.0. But again, I couldn’t get a 27.2 to budge with a clean seat tube, so it was clearly the wrong size for mine.
noobinsf is offline
Old 11-28-21, 08:27 PM
  #10
jnbrown
Senior Member
Thread Starter

jnbrown's Avatar

Join Date: Nov 2006
Location: Encinitas, CA
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 62 Times in 32 Posts
Yes I believe it is a King of Mercia. Prior to using the flex hone I measured the seat tube at several places and it measured 27.2mm using digital calipers.
it is possible that a 27.0 mm would have worked but those are hard to find.
According to the seller mine was made in 1985 but I did not verify that.
did you measure the diameter of your seat tube?
jnbrown is offline
Old 11-29-21, 07:49 AM
  #11
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,918

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 670 Post(s)
Liked 880 Times in 472 Posts
You can figure out the date from the serial number. For example, my '82 Mercian Colorado is marked 45882 built by no. 6 (George Bryan, I am told).
rustystrings61 is online now
Old 11-29-21, 09:25 AM
  #12
jnbrown
Senior Member
Thread Starter

jnbrown's Avatar

Join Date: Nov 2006
Location: Encinitas, CA
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 62 Times in 32 Posts
Mine is 70185, so indeed it is a 1985.
jnbrown is offline
Old 11-29-21, 02:26 PM
  #13
jjhabbs
Senior Member

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,719

Bikes: to many to list

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 523 Times in 170 Posts
Originally Posted by jnbrown View Post
seatpost is 27.2. Initially I could not get it in even though the frame looks barely used and no rust.
spent some time cleaning the seat tube with a flex hone, now it is much better but still a little tight.
would love to see some pictures of yours.

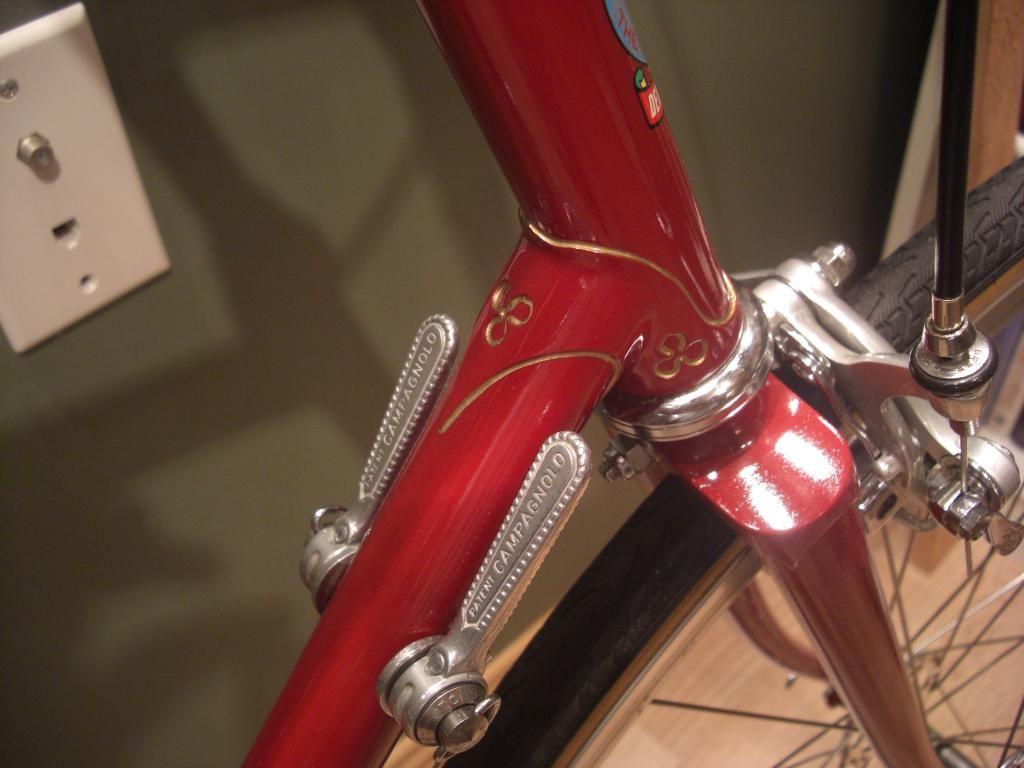

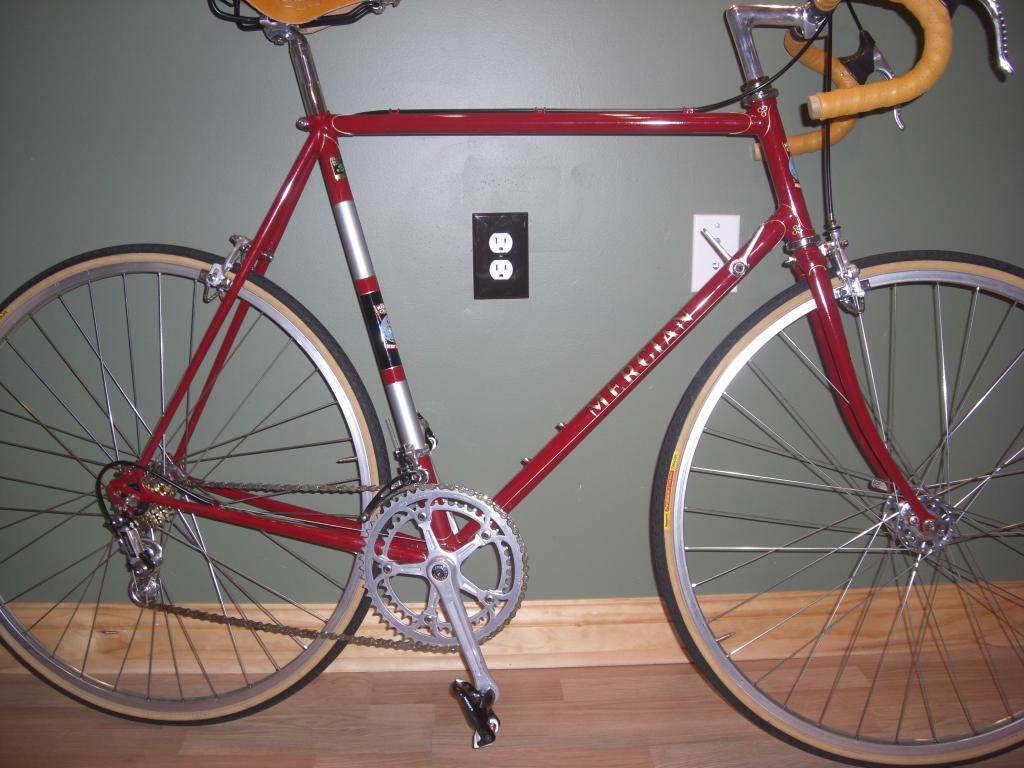

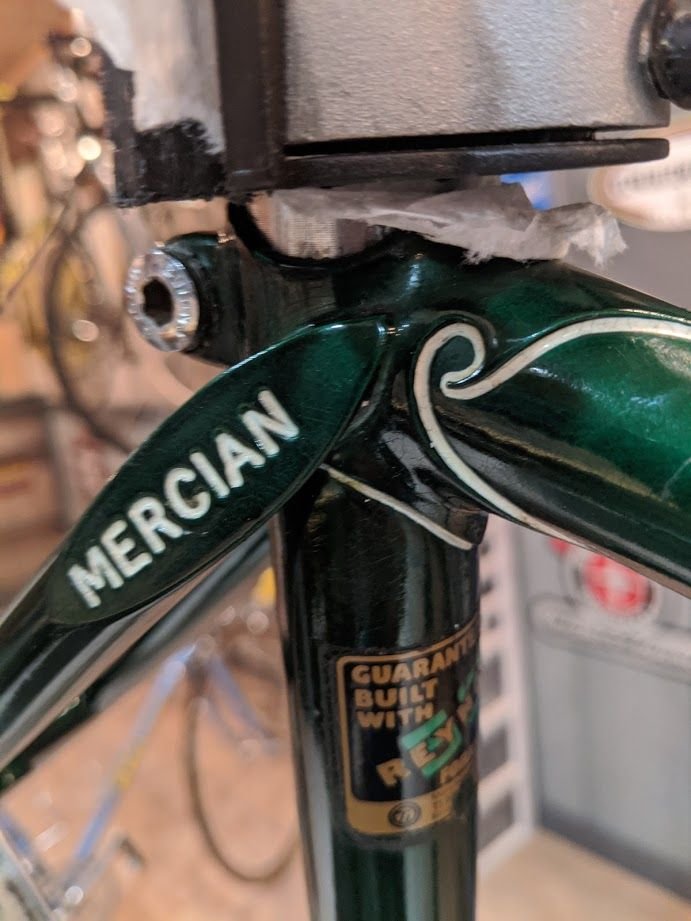

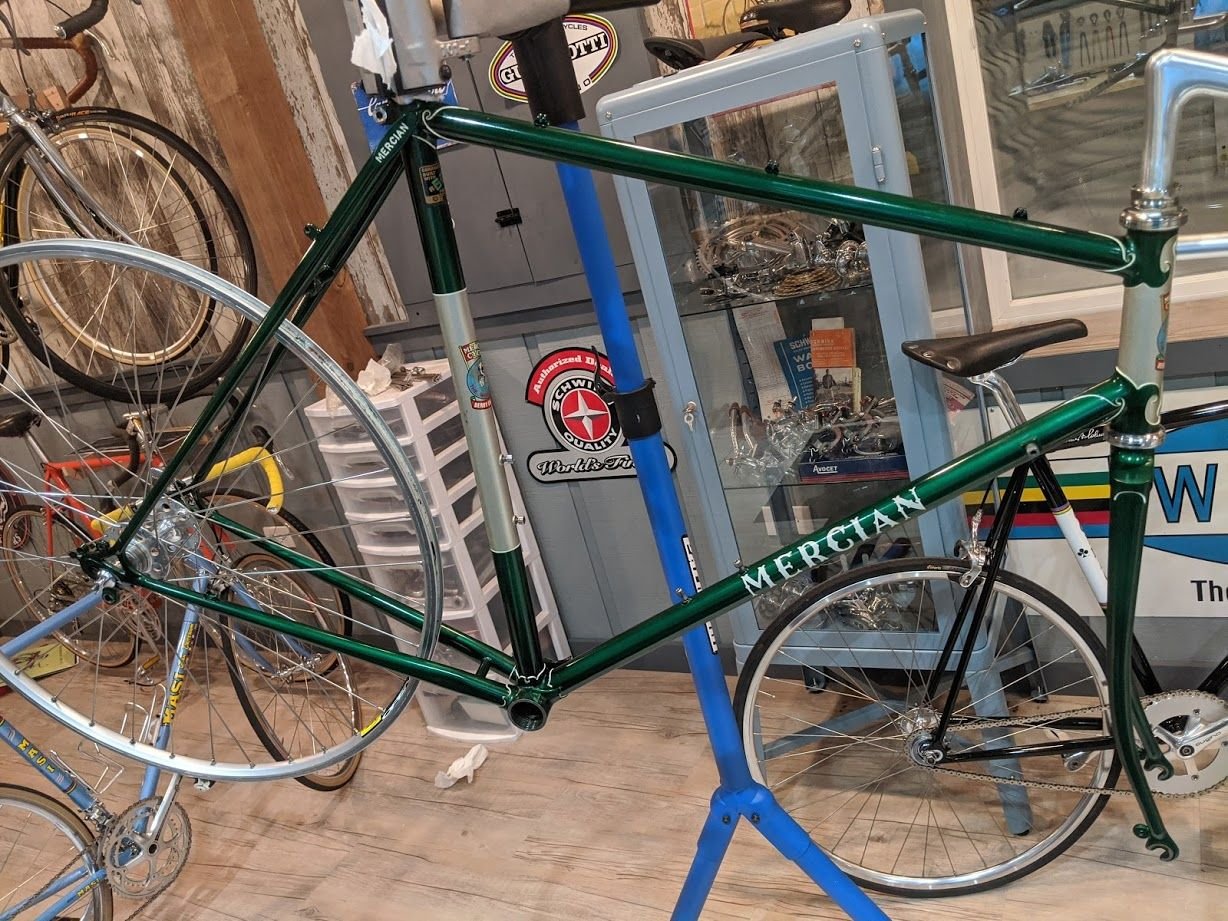

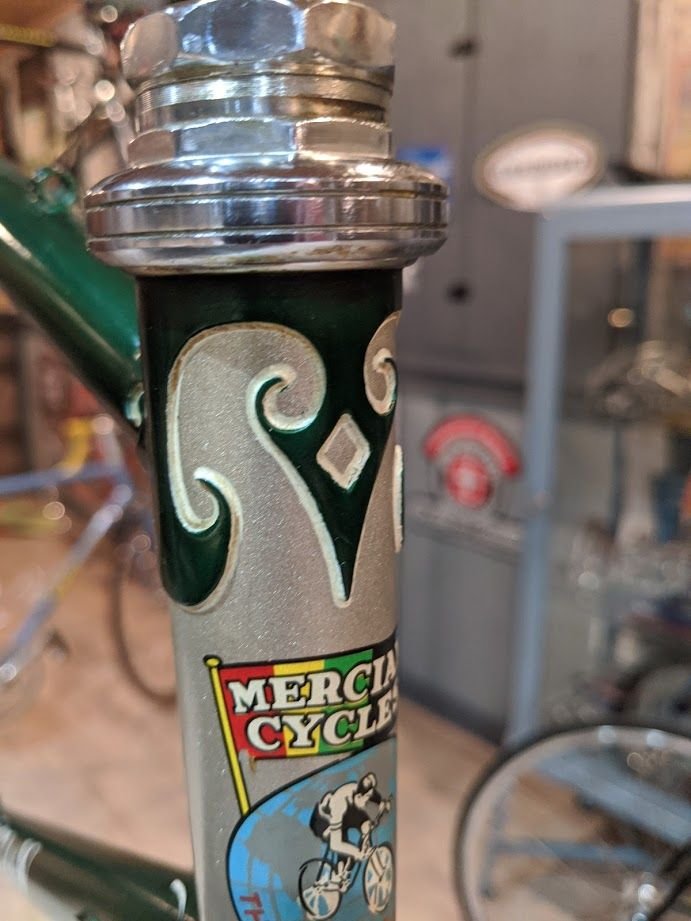

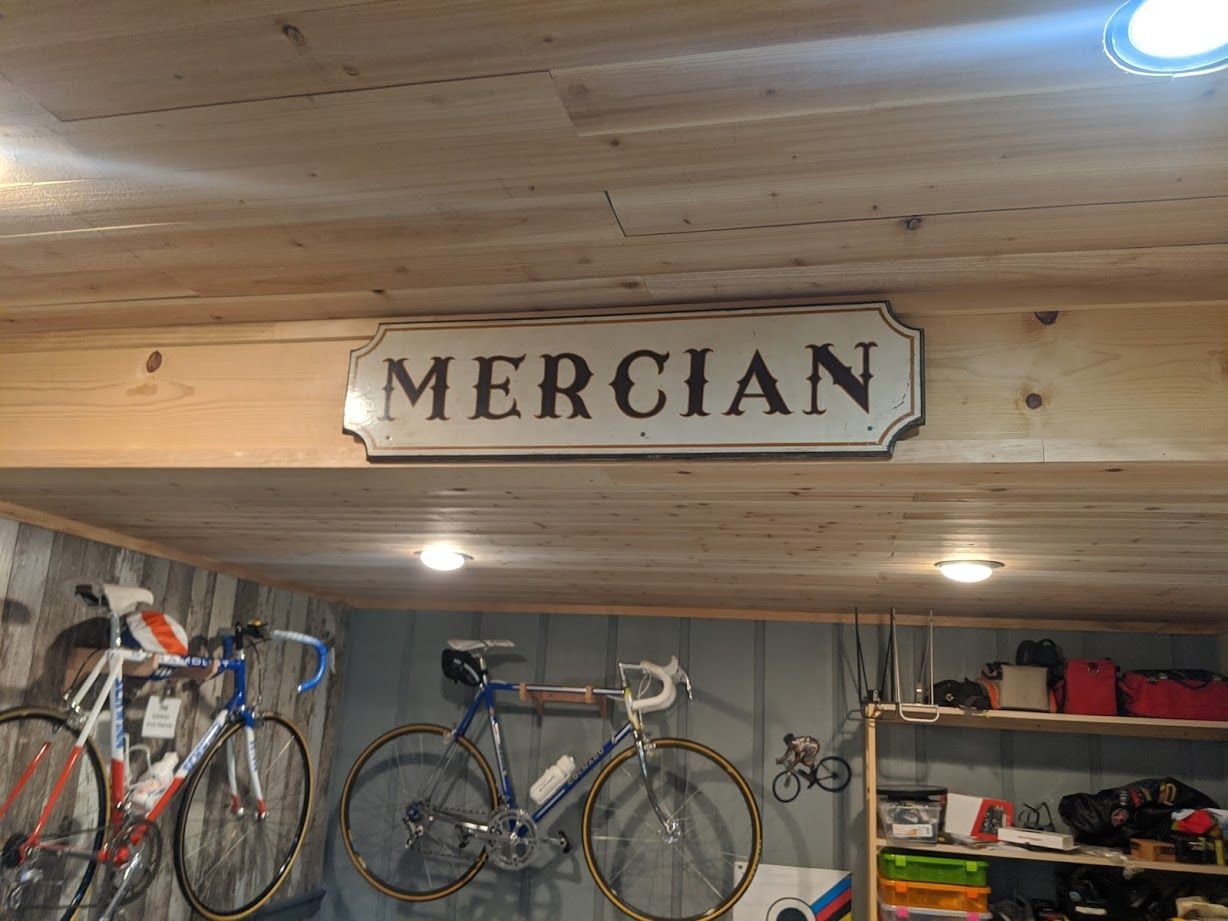

Hi, Here are some links to videos and some pics!








__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John's vintage road bike garage
jjhabbs is offline
Old 11-29-21, 02:58 PM
  #14
jnbrown
Senior Member
Thread Starter

jnbrown's Avatar

Join Date: Nov 2006
Location: Encinitas, CA
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 62 Times in 32 Posts
Beautiful bikes, you are lucky to have them.

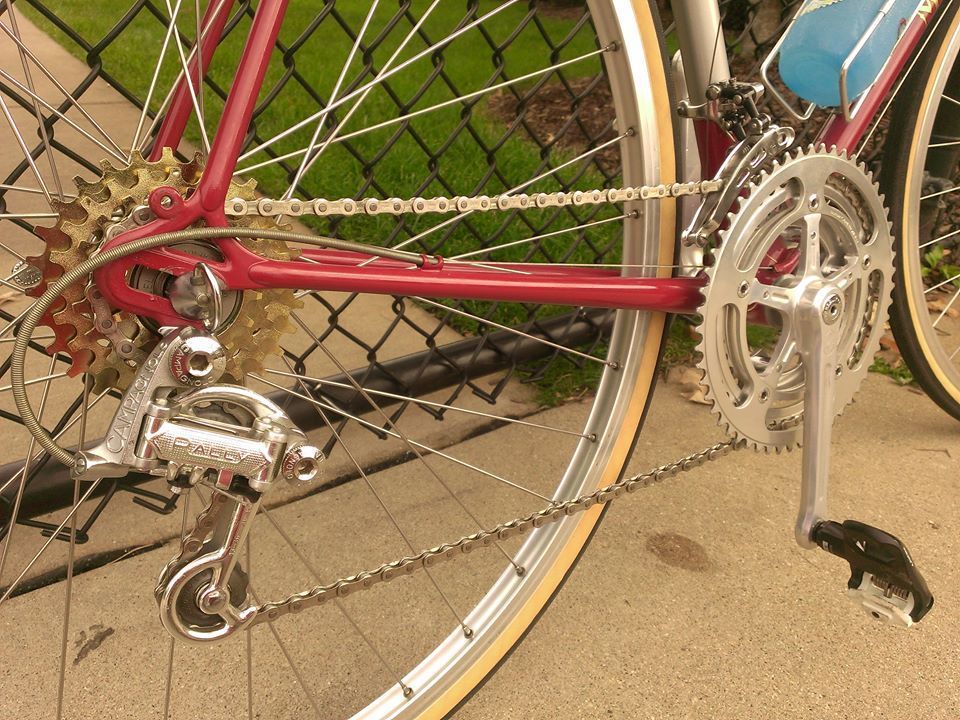

I believe the one I owned in the 80's had the same triple crankset and Rally derailleur.
It was white with red panels, I wonder where it is now?
jnbrown is offline
Old 01-03-22, 05:43 PM
  #15
jnbrown
Senior Member
Thread Starter

jnbrown's Avatar

Join Date: Nov 2006
Location: Encinitas, CA
Posts: 1,227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 62 Times in 32 Posts

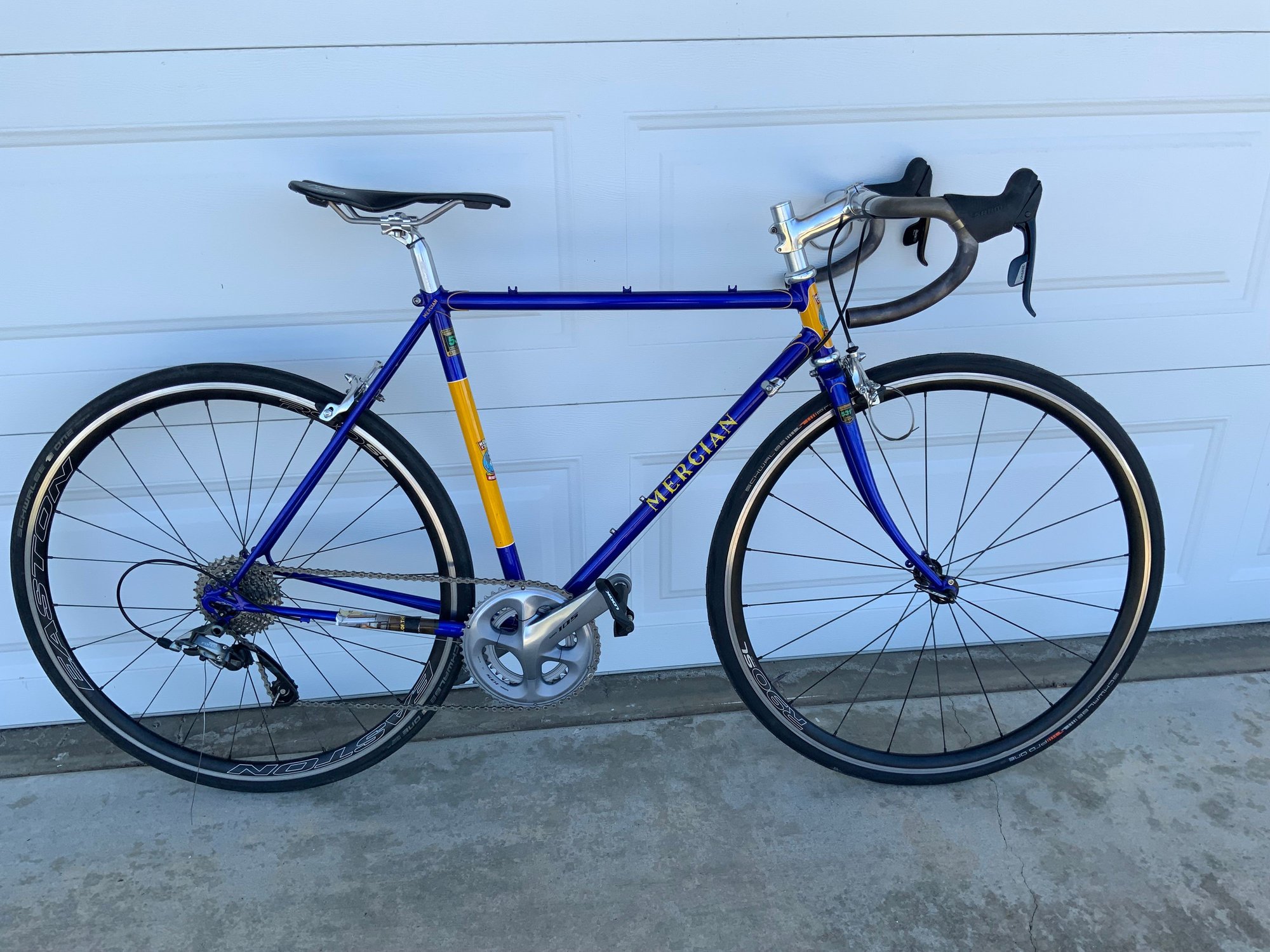

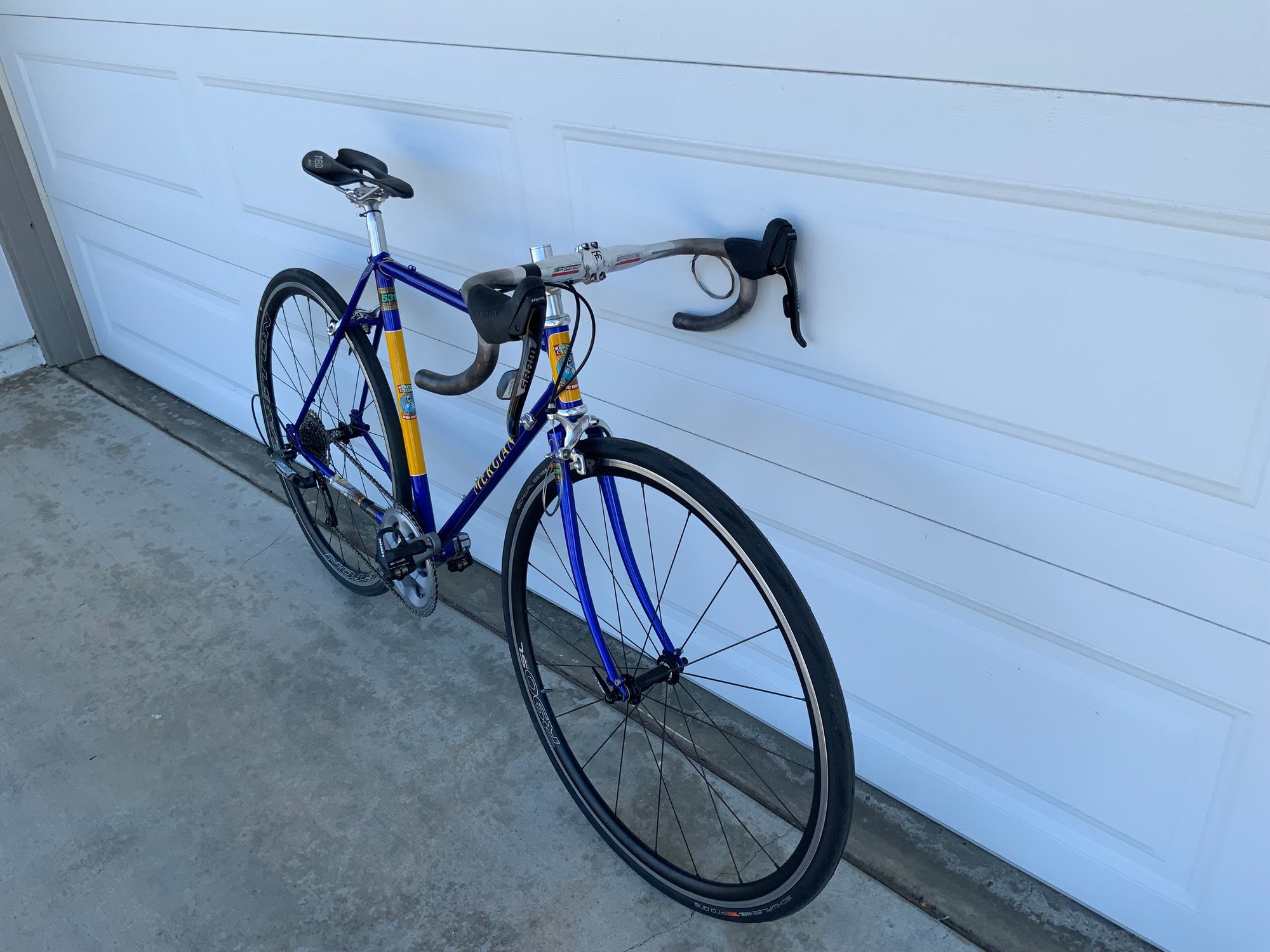

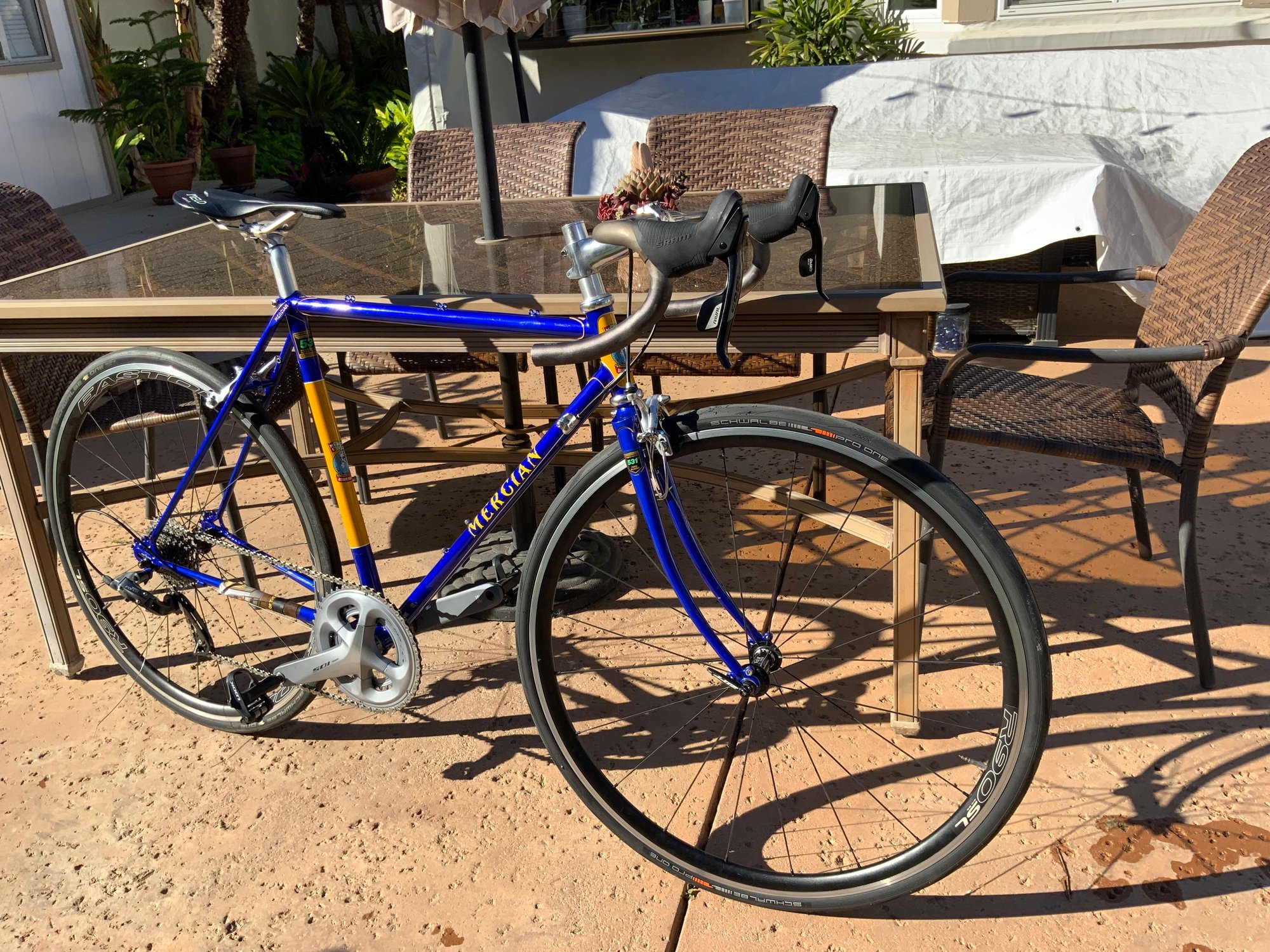

Here it is with the build completed. Just finished building the wheels with BORG22 (Kinlin XR22T) rims and Bitex hubs.
I have done a few 30 to 40 mile rides and really like it. Compared to my Cannondale the wheelbase is 45mm longer.
I like the stability especially when standing. As far as bumps and rough roads so far it seems about the same as my Cannondale.
Makes sense since I am using the same tires. I am seriously thinking about ordering a new Strada Speciale from Mercian.
While I like the longer wheelbase I would like something a bit shorter but longer than my Cannondale and maybe 853 tubing.
Also the top tube on this bike is too short for me so I had push my saddle way back.
