Zeus components

Specifically bottom brackets. I am used to Campy, Suntour and others with shell width markings, 68,70. I keep seeing Zeus marked (spindle length) x55? Like 118x55. What is the 55? Shell width for the bearings? Velobase didn't elaborate so trying to figure out what's up. French, Swiss?
Thanks
Tom.
tfbike is offline
Old 11-28-21, 10:23 AM
  #2
Senior Member

grant40's Avatar

Join Date: Sep 2021
Posts: 718
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Liked 343 Times in 202 Posts
Originally Posted by tfbike
Specifically bottom brackets. I am used to Campy, Suntour and others with shell width markings, 68,70. I keep seeing Zeus marked (spindle length) x55? Like 118x55. What is the 55? Shell width for the bearings? Velobase didn't elaborate so trying to figure out what's up. French, Swiss?
Thanks
Tom.
Zeus is Spanish made, so it is probably not any of those.
grant40 is offline
Old 11-28-21, 10:30 AM
  #3
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,180
Mentioned: 409 Post(s)
Tagged: 1 Thread(s)
Quoted: 3732 Post(s)
Liked 3,166 Times in 2,079 Posts
-----

the 55 marking refers to the distance apart of the bearing centres as measured in mm

it indicates a spindle intended for use with 68mm shells


-----
juvela is offline
Likes For juvela:
Old 11-28-21, 12:55 PM
  #4
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, and High Falls, NY, USA
Posts: 40,553

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 505 Post(s)
Tagged: 0 Thread(s)
Quoted: 7208 Post(s)
Liked 2,223 Times in 1,312 Posts
Spanish math!
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Likes For noglider:
Old 11-28-21, 02:07 PM
  #5
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,180
Mentioned: 409 Post(s)
Tagged: 1 Thread(s)
Quoted: 3732 Post(s)
Liked 3,166 Times in 2,079 Posts
-----

Zeus spindles marked with a 57 are intended for use with 70mm shells

spindles of 109 length marking are intended for use with with single plateau drive trains

spindles of 114 and 118 length markings are intended for use with two plateau drive trains

spindles of 123 length marking are made for use with three plateau drive trains


-----
juvela is offline
Old 11-28-21, 06:51 PM
  #6
Newbie
Thread Starter

Join Date: Apr 2017
Location: Wellington, Co
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 12 Times in 7 Posts
Thanks. I also ask on a different forum and found out Zeus marks theirs different, the 55 instead of 68, etc. Of course I then measured a couple of spindles I have and amazing! Also, and please correct me if, they mark the cups with a bcs for English, 36x24F for Italian, and just Zeus for French?
This gets tedious sometimes.
tfbike is offline
Old 11-28-21, 09:57 PM
  #7
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,862

Bikes: Several, mostly not name brands.

Mentioned: 153 Post(s)
Tagged: 0 Thread(s)
Quoted: 3543 Post(s)
Liked 3,281 Times in 1,878 Posts
Originally Posted by tfbike
please correct me if, they mark the cups with a bcs for English
Yes.
Attached Images
File Type: jpg
JohnDThompson is offline
Old 11-29-21, 08:15 AM
  #8
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,180
Mentioned: 409 Post(s)
Tagged: 1 Thread(s)
Quoted: 3732 Post(s)
Liked 3,166 Times in 2,079 Posts
-----

the set imaged above looks to be a Criterium series example

the marking shown was employed for a fairly long period

later on they went to writing it out in full as on this Italian dimension 2000 serie set -




CH dimension sets were not offered

-----
juvela is offline
Old 11-29-21, 11:37 AM
  #9
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,862

Bikes: Several, mostly not name brands.

Mentioned: 153 Post(s)
Tagged: 0 Thread(s)
Quoted: 3543 Post(s)
Liked 3,281 Times in 1,878 Posts
the set imaged above looks to be a Criterium series example
Yes, that one is a "Criterium" model.

Originally Posted by juvela
the marking shown was employed for a fairly long period

later on they went to writing it out in full as on this Italian dimension 2000 serie set
I have a couple "2000" model bottom brackets; both marked B.S.C. Curiously, I have "ZEUS 2000" marked crank mounting bolts in both steel and titanium.
Attached Images
File Type: jpg

Last edited by JohnDThompson; 11-29-21 at 11:41 AM.
JohnDThompson is offline
Likes For JohnDThompson:
Old 11-29-21, 12:02 PM
  #10
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,180
Mentioned: 409 Post(s)
Tagged: 1 Thread(s)
Quoted: 3732 Post(s)
Liked 3,166 Times in 2,079 Posts
Originally Posted by JohnDThompson
Yes, that one is a "Criterium" model.



I have a couple "2000" model bottom brackets; both marked B.S.C. Curiously, I have "ZEUS 2000" marked crank mounting bolts in both steel and titanium.
-----



the 2000 series components launched in 1974 so one can see how there would be examples with the earlier thread marking format


-----
juvela is offline
Old 11-29-21, 01:42 PM
  #11
Newbie
Thread Starter

Join Date: Apr 2017
Location: Wellington, Co
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 12 Times in 7 Posts
Those are great examples. I have looked at several on the bay and most seem unmarked, guessing French. Just bought a used BB marked bsc so hoping the races and such are good. Headsets seem a little harder, any markings on those? Once again most sellers don't know what they have concerning threading. Not sure how much I want to gamble.

Tom.
tfbike is offline
Old 11-29-21, 02:04 PM
  #12
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,180
Mentioned: 409 Post(s)
Tagged: 1 Thread(s)
Quoted: 3732 Post(s)
Liked 3,166 Times in 2,079 Posts
-----

the most common Zeus steel headset is a model termed the Gran Sport - it is very good

on this model the thread is marked in two places:

a) on one of the spanner flats of the locknut

b) on the "cheek" of the adjustable race

the catalogue states it was offered in metric and in BSC, not in Italian

​​​​​​
here are shown the thread markings on models 2000, New Racer and Cosmos:

​​​​​​
​​​​​​
​​​​​​


-----
juvela is offline
Old 11-29-21, 10:24 PM
  #13
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,862

Bikes: Several, mostly not name brands.

Mentioned: 153 Post(s)
Tagged: 0 Thread(s)
Quoted: 3543 Post(s)
Liked 3,281 Times in 1,878 Posts
The Zeus headset I have is marked "B.S.C." on both the locknut and the threaded cup:
Attached Images
File Type: jpg
JohnDThompson is offline
Old 11-29-21, 11:46 PM
  #14
Banned.

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,997
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 469 Post(s)
Liked 2,436 Times in 646 Posts

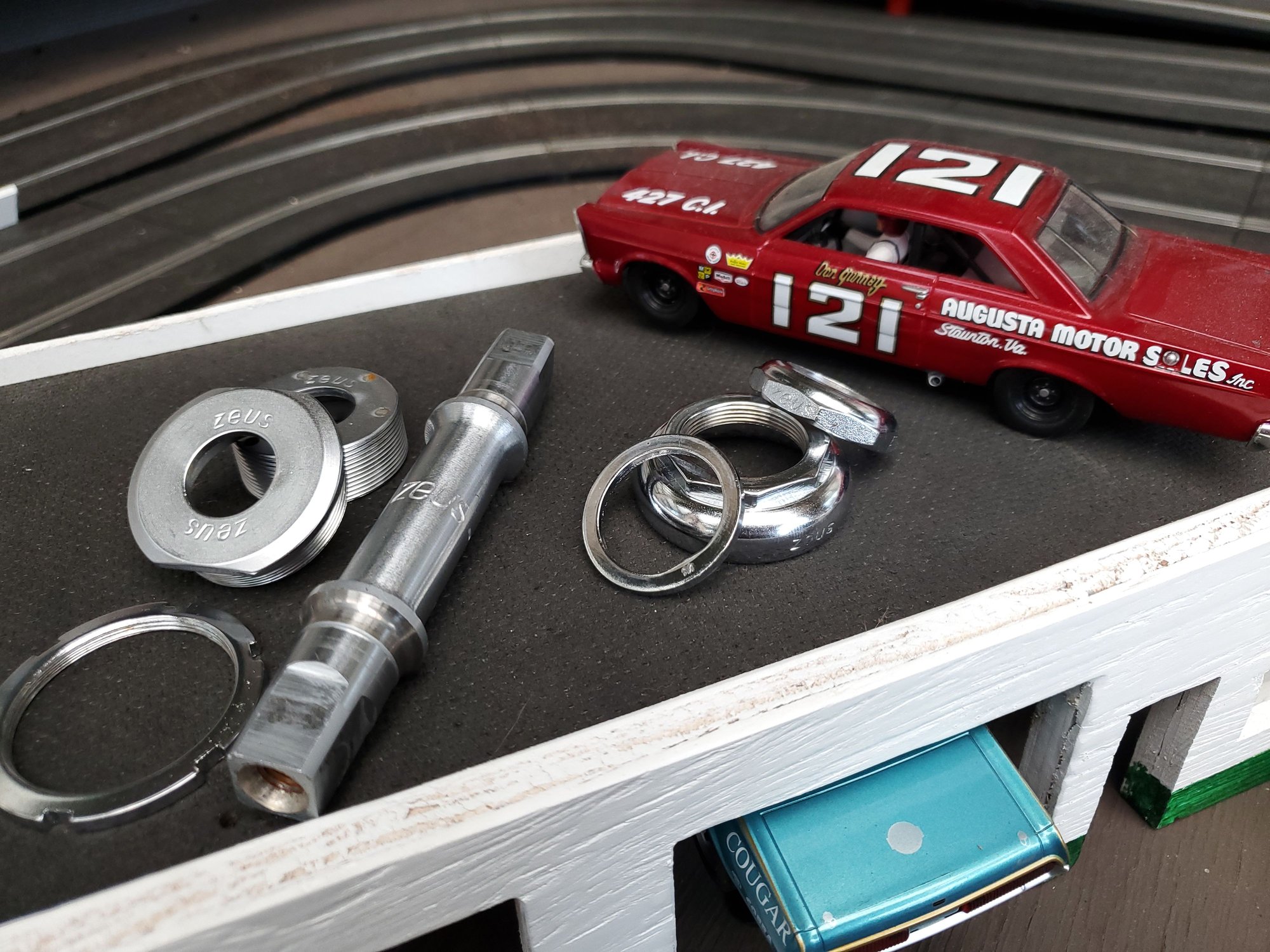

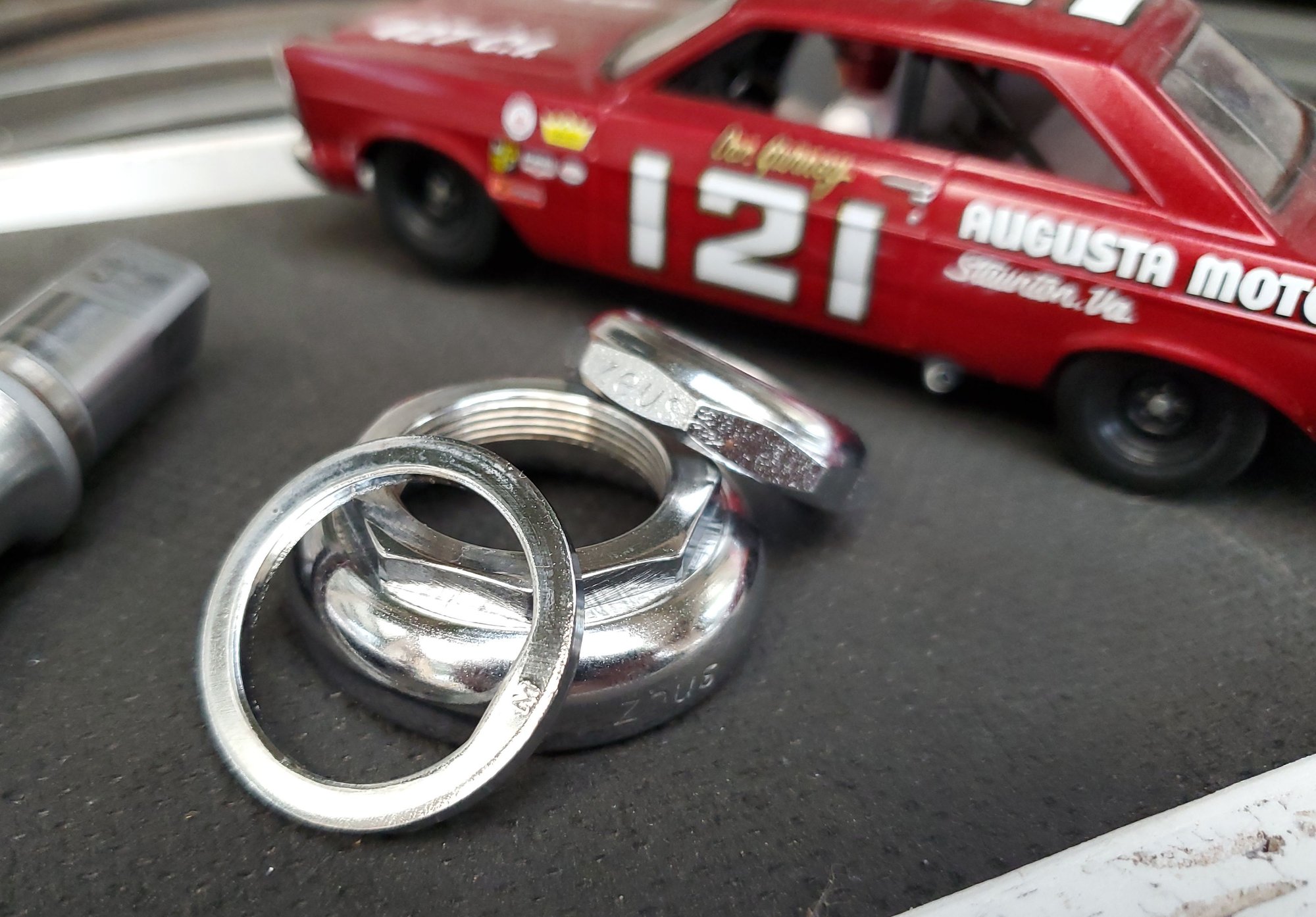

My sons headset doesn't have any markings, other than 'Zeus', and an M on the washer.



The spindle is marked 118x55c
Roger M is offline
Likes For Roger M:
Old 11-30-21, 07:35 AM
  #15
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,862

Bikes: Several, mostly not name brands.

Mentioned: 153 Post(s)
Tagged: 0 Thread(s)
Quoted: 3543 Post(s)
Liked 3,281 Times in 1,878 Posts
Originally Posted by Roger M
My sons headset doesn't have any markings, other than 'Zeus', and an M on the washer.
Is it perhaps metric (25mm x 1mm) thread?
JohnDThompson is offline
Old 11-30-21, 08:33 PM
  #16
Banned.

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,997
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 469 Post(s)
Liked 2,436 Times in 646 Posts
Yes. These parts are from my sons 1977 Zeus.
Roger M is offline
Old 11-27-23, 04:30 PM
  #17
Newbie

San_Son's Avatar

Join Date: Nov 2023
Location: Bilbao
Posts: 9

Bikes: french Toulouse style, campy style Torrot and Orbea Orduña

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Do you know which standard Zeus complied with? JIS or ISO?

Originally Posted by juvela
-----

Zeus spindles marked with a 57 are intended for use with 70mm shells

spindles of 109 length marking are intended for use with with single plateau drive trains

spindles of 114 and 118 length markings are intended for use with two plateau drive trains

spindles of 123 length marking are made for use with three plateau drive trains


-----
Hi,
You seam to know quite a lot about Zeus bikes. I'm trying to bring back to life a Torrot bicycle from late '70s. It has been tweaked up a bit. It came with two different types of cranks, Stronglight on the driveside and Arregui on the left. The left one (Arregui) it leaves a gap of 5mm between the end of the spindle and the crank's outer side square hole ( I suppose the crank is ISO and the spindle JIS) The Stronglight fits deeper and leaves a gap of 3mm. The spindle is 118x55 GS. Do you know which standard Zeus complied with? JIS or ISO? Thanks a lot.
San_Son is offline
Old 11-27-23, 09:09 PM
  #18
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,180
Mentioned: 409 Post(s)
Tagged: 1 Thread(s)
Quoted: 3732 Post(s)
Liked 3,166 Times in 2,079 Posts
Originally Posted by San_Son
Hi,
You seam to know quite a lot about Zeus bikes. I'm trying to bring back to life a Torrot bicycle from late '70s. It has been tweaked up a bit. It came with two different types of cranks, Stronglight on the driveside and Arregui on the left. The left one (Arregui) it leaves a gap of 5mm between the end of the spindle and the crank's outer side square hole ( I suppose the crank is ISO and the spindle JIS) The Stronglight fits deeper and leaves a gap of 3mm. The spindle is 118x55 GS. Do you know which standard Zeus complied with? JIS or ISO? Thanks a lot.
----

Arregui designed their cotterless chainsets a good two or three decades prior to the existence of ISO

have no experience of mixing Zeus with other brands so cannot comment there

no one in europe was designing to JIS standard back when Zeus tapered square chainsets were first created

other readers are sure to be able to give a better answer to your very reasonable question

---

sidenote on Verot-Perrin -

they performed a major reworking of their range in 1977

new models were introduced which employ a 22.0mm puller thread and which have their dentition cut from both sides of the stock rather than one as is found on older models

this new cutting of dentition means lands need to be thinner

mention this as there may have been other changes as well...


-----

Last edited by juvela; 11-27-23 at 09:34 PM. Reason: addition
juvela is offline
Old 11-28-23, 12:04 AM
  #19
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,742
Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1135 Post(s)
Liked 645 Times in 335 Posts
Originally Posted by San_Son
Hi,
You seam to know quite a lot about Zeus bikes.
juvela knows quite a lot about quite a lot, not just Zeus bikes!
TenGrainBread is offline
Likes For TenGrainBread:
Old 11-28-23, 12:00 PM
  #20
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,658

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 210 Post(s)
Tagged: 0 Thread(s)
Quoted: 1366 Post(s)
Likes: 0
Liked 1,739 Times in 931 Posts
This goes up for sale, on the G
For Sale forum, in the Spring, when I get back to Canada...

__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 11-29-23, 11:25 AM
  #21
Newbie

San_Son's Avatar

Join Date: Nov 2023
Location: Bilbao
Posts: 9

Bikes: french Toulouse style, campy style Torrot and Orbea Orduña

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Arregui crank
Originally Posted by juvela
----

Arregui designed their cotterless chainsets a good two or three decades prior to the existence of ISO

have no experience of mixing Zeus with other brands so cannot comment there

no one in europe was designing to JIS standard back when Zeus tapered square chainsets were first created

other readers are sure to be able to give a better answer to your very reasonable question


-----
Thanks!

My Zeus spindle looks more like an ISO type. Zeus is supposed to have copied Campanglo a lot so maybe they tapered their cranks like it. However pre '94 Campy it was closer to JIS than ISO. This would explain the fit gap if Arregui crank is added later and it is ISO. But being Arregui and Torrot both basque companies it appears to me more natural have used originally Arregui cranks and not Stronglight. I tryed upload a few pics but I need to have 10 post done for that.


​​​​​​​
San_Son is offline
Old 11-29-23, 11:42 AM
  #22
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,180
Mentioned: 409 Post(s)
Tagged: 1 Thread(s)
Quoted: 3732 Post(s)
Liked 3,166 Times in 2,079 Posts
Originally Posted by San_Son
Arregui crank

Thanks!

My Zeus spindle looks more like an ISO type. Zeus is supposed to have copied Campanglo a lot so maybe they tapered their cranks like it. However pre '94 Campy it was closer to JIS than ISO. This would explain the fit gap if Arregui crank is added later and it is ISO. But being Arregui and Torrot both basque companies it appears to me more natural have used originally Arregui cranks and not Stronglight. I tryed upload a few pics but I need to have 10 post done for that.

-----

The forum has had a few threads on Torrot cycles.

If you have not done so already you could use the on-site search function to bring them up.

Torrot marque history is interesting. It issues from what was originally the Terrot agent of Espana. For some reason the manufacturer wished to take it away from them so they responded by creating a new marque one letter away from Terrot.

By this time Terrot may have ceased their manufacture of motorcycles. The marque was acquired by Peugeot in 1958 who kept it alive for several years by manufacturing Peugeot built cycles bearing the Terrot name. AFAIK Peugeot allowed the Terrot name to close by 1965. There is a France based club for the owners of Terrot products; they have a good deal of historical material archived at their web site.

Will look forward to seeing your Torrot whenever you are able to begin a thread on it.


​​​​​​​-----
juvela is offline
Old 11-29-23, 12:17 PM
  #23
Paramount Fan

sbarner's Avatar

Join Date: Dec 2006
Location: Vermont
Posts: 277

Bikes: Paramounts, Raleigh Pros, Colnago, DeRosa, Gios, Masis, Pinarello, R. Sachs, Look, D. Moulton, Witcomb, Motobecane, Bianchis, Fat City, Frejus, Follis, Waterford, Litespeed, d'Autremont, others, mostly '70s-'80s

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 225 Times in 124 Posts
Originally Posted by randyjawa
This goes up for sale, on the G
For Sale forum, in the Spring, when I get back to Canada...

So typically Zeus. The knuckles are what you would expect to see on a pre-1967 Campy bronze derailleur, the cage and body like restyled copies of the then-current Nuovo Record, drill some holes, slather on some extra (and better) chrome, and give it a futuristic name and you have a winner -- especially when you discount the price,
sbarner is offline
Likes For sbarner:
Old 11-29-23, 12:35 PM
  #24
señor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 8,727

Bikes: '70s - '80s Campagnolo

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 3827 Post(s)
Liked 6,393 Times in 3,162 Posts
Anybody need a brakeset with new hoods?
SurferRosa is offline
Old 11-29-23, 12:39 PM
  #25
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,180
Mentioned: 409 Post(s)
Tagged: 1 Thread(s)
Quoted: 3732 Post(s)
Liked 3,166 Times in 2,079 Posts
Originally Posted by SurferRosa
Anybody need a brakeset with new hoods?

-----

LXXI, MM or MMI ?

-----

Last edited by juvela; 11-29-23 at 06:46 PM. Reason: spellin'
juvela is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service -

Copyright © 2024 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
