Mystery Touring Frame ID Help

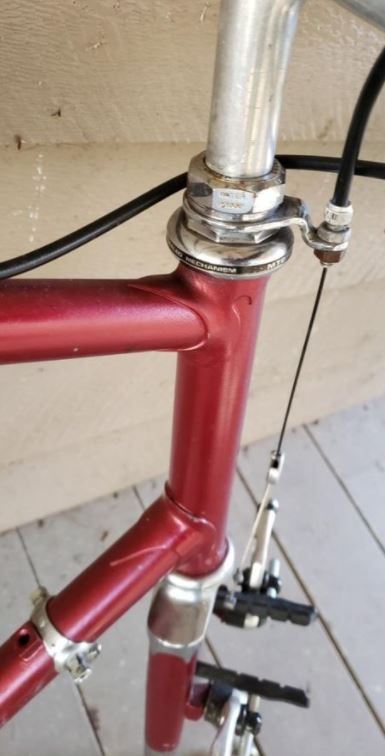

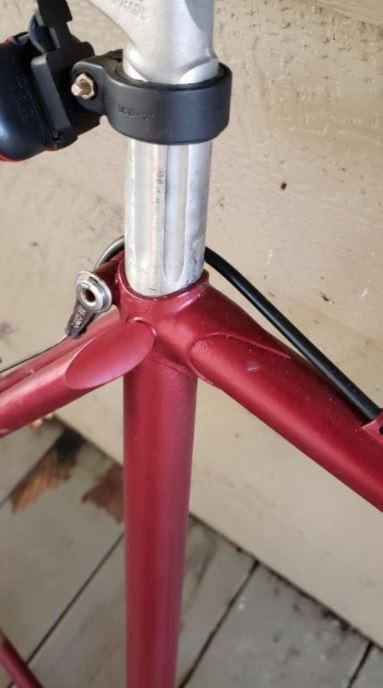

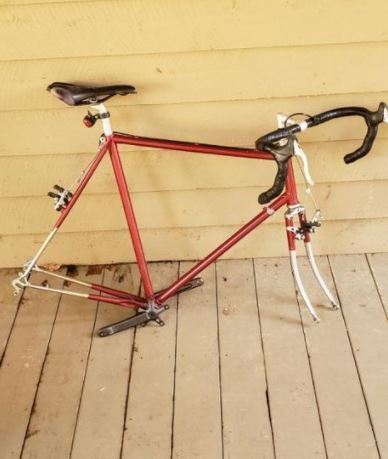

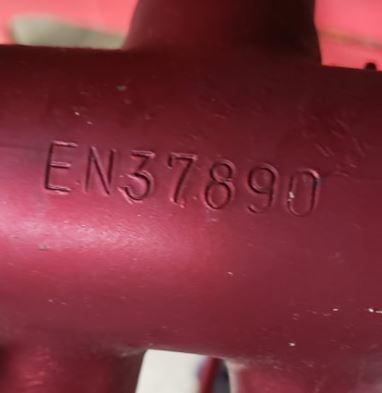

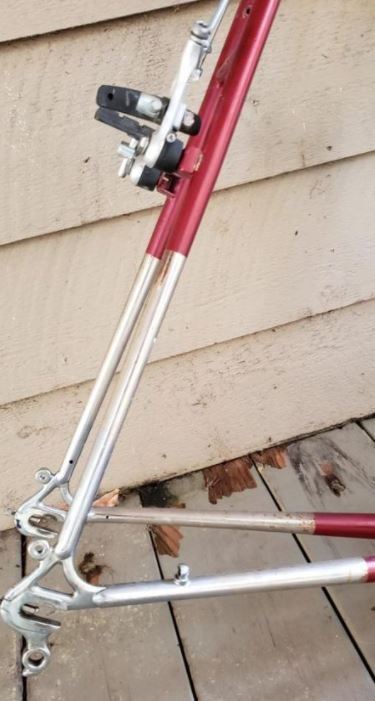

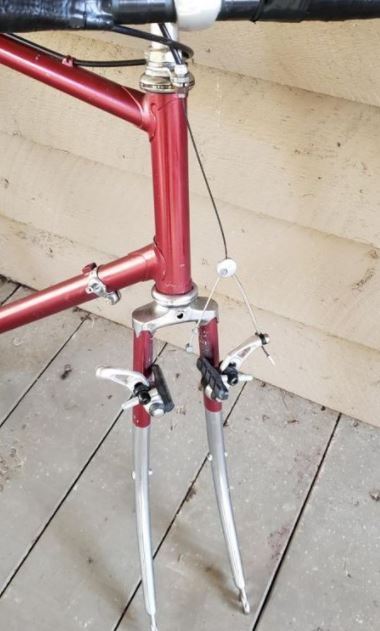

Long point lugs, chrome socks & fork crown, mid-fork rack mounts. Looks like it once had Suntour Symetric shifters, so I'm assuming 83-85. No manufacturer decals or tubing stickers. Anyone recognize it? I've included a photo of the serial #. Many thanks!





OutnBack is offline
Old 12-11-21, 12:46 PM
  #2
seypat
Senior Member

Join Date: Oct 2010
Posts: 7,212
Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 2443 Post(s)
Liked 1,503 Times in 973 Posts
You can go to the Asian Serial Number Guide sticky at the top of the page and figure out the maker.

Asian Serial Number Guide
seypat is offline
Likes For seypat:
Old 12-11-21, 01:10 PM
  #3
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,029

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 989 Post(s)
Liked 964 Times in 581 Posts
Any markings on the dropouts and fork ends? It's a Campy derailleur tab, but I'm curious if they're branded Campy, Suntour, Shimano, etc.
noobinsf is offline
Old 12-11-21, 03:10 PM
  #4
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,907
Mentioned: 613 Post(s)
Tagged: 1 Thread(s)
Quoted: 4548 Post(s)
Likes: 0
Liked 2,699 Times in 1,700 Posts
Based on the serial number and apparent era, my leading candidate would be a 1985 Maruishi product, though it could be something contract built for one of their clients, such as Nashbar, as I don't recall the Tourace variants having the extensive chrome during this era. The top mount shift levers remained popular for grand touring models, as you didn't have to reach down quite as far, which was a big advantage with a fully loaded bicycle.
T-Mar is offline
Old 12-11-21, 04:31 PM
  #5
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,907
Mentioned: 613 Post(s)
Tagged: 1 Thread(s)
Quoted: 4548 Post(s)
Likes: 0
Liked 2,699 Times in 1,700 Posts

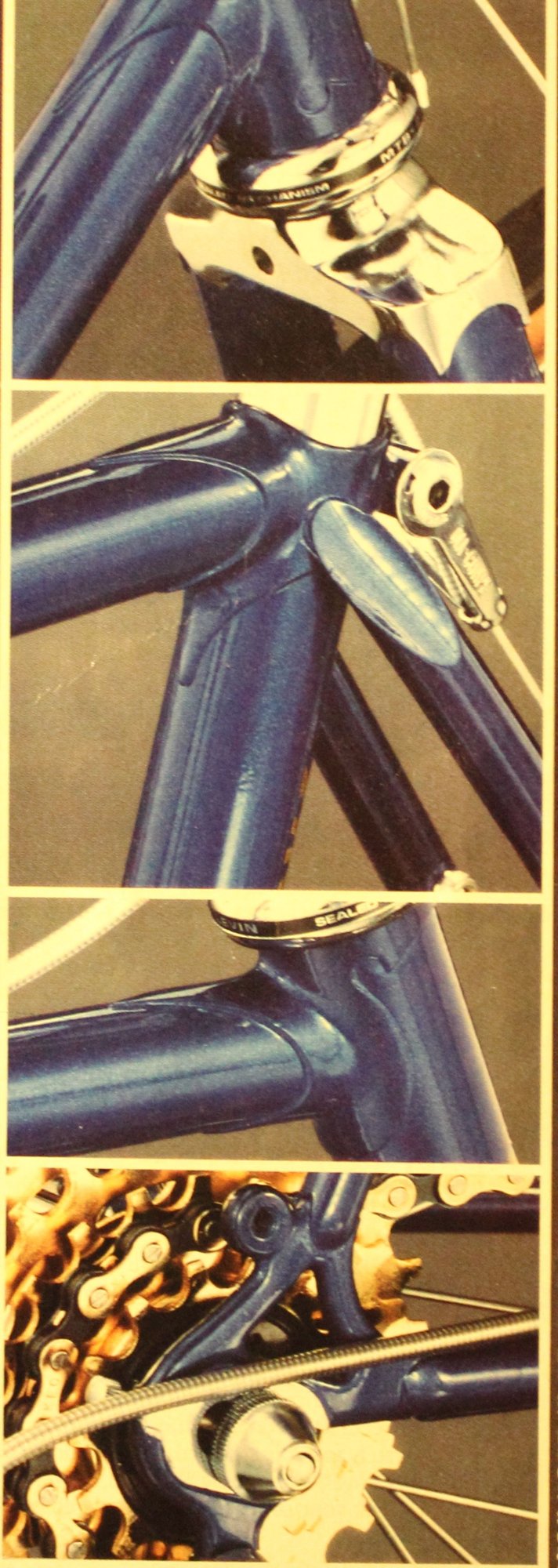

I went back and checked my 1985 Nashbar literature. With the exception of the chrome plated blade and stay ends, it's a very good match for the Nashbar Toure MT. Detail photos show what appear to be the same dropouts, stay caps, lugeset, fork crown and Tange Levin MTB headset. Like the OP's bicycle, it also used a top mount shift lever boss. lo-rider fork mounts and rack bosses on the inside of the seat stays. While not a prefect match, the similarities, in conjunction with the serial number format, support it being a Maruishi product.
