Replacing cantilever brakes

Anyone have replaced cantilever brakes on old steel bikes with modern ones?
I had a pair of Altus BR-CT91 and thought it will just fit nicely and went ahead disassembled the old ones to find out that doesn't fit
The boss that holds it to fork / seat stay is too close to the rim, so I have installed back the older one for now
I am looking at the BR-CX50 and found there are 3 different size of washers but still seems too long for my Centurion ProTour15.
I am running 700c while originally it is for 27" rims, and have wider rims at 25mm.
Since the frame of BR-CX50 is like a caliper where the pads are attached - kind of - does someone actually try to attach the caliper pads directly to the BR-CX50?
It seems will work, but if someone actually did it will be great to know
phtomita is offline
Old 03-13-22, 02:24 PM
  #2
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,823

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 459 Post(s)
Liked 752 Times in 367 Posts
Some touring bikes have their posts too close to use modern cantis. The width between the posts is too narrow. Sounds like that might be your case.
Dylansbob is offline
Old 03-13-22, 02:44 PM
  #3
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,215

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2213 Post(s)
Liked 2,290 Times in 1,415 Posts
https://velo-orange.blogspot.com/201...izing-psa.html
dedhed is offline
Old 03-13-22, 05:18 PM
  #4
USAZorro
Seor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 17,234

Bikes: Mostly English - predominantly Raleighs

Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 1184 Post(s)
Liked 509 Times in 342 Posts
I found the same as I adapted a 1981 Miyata 1000 for my wife using 700c wheels instead of the original 27's. The nice, new Tektro's fit the rear, but I had to locate and acquire something with shorter arms for the front.
__________________
In search of what to search for.
USAZorro is offline
Old 03-13-22, 06:12 PM
  #5
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 805

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '03 Litespeed Firenze

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 143 Times in 98 Posts
Cool, I see some nice comments regarding the Shimano CX50 and its richer brother CX70 for the 27 -> 700c conversion on older steel frames.
Will try out and update some pics here.
phtomita is offline
Old 03-13-22, 09:20 PM
  #6
imcorn
Senior Member

Join Date: Jun 2007
Location: Orange County, CA
Posts: 75

Bikes: '83 Specialized Expedition, '87 Ritchey Ultra, '88 Ritchey Ascent Comp, '89 GT Avalanche, '90 Bianchi Equinox, '90 Bianchi Project 5, '90 Trek 950, '90 Miyata TripleCross, '95 Kona Explosif, '09 Alan Wanta

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 33 Times in 19 Posts
I'd say most cantis Pre-1986ish will usually have that narrower spacing. I usually just throw on new pads and the cantis will perform good enough for what I typically need. New pads will do wonders, as long as they are set up correctly (straddle cable length/angle, toe in, etc.).

I have seen someone on Instagram use some CX50s (on a '83 Specialized Expedition), as you mentioned, with success, but I haven't tried them personally. Please let us know how it turns out for you!
imcorn is offline
Old 03-17-22, 08:44 PM
  #7
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 805

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '03 Litespeed Firenze

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 143 Times in 98 Posts

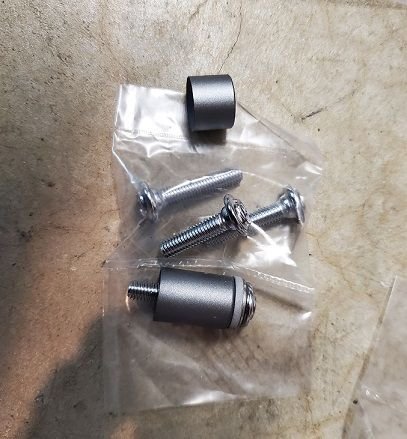

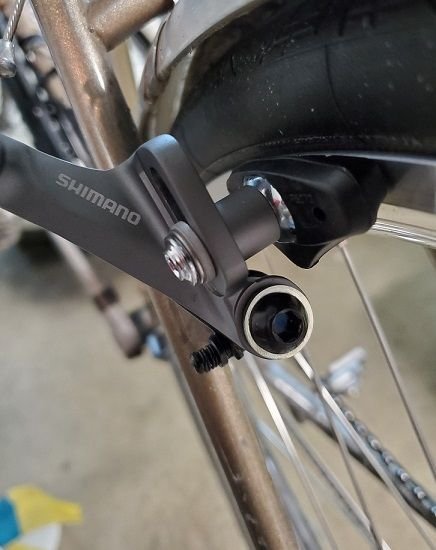

Got the BR-CX50 today and tried to install it.
There are 3 spacers and I used the shortest one at 10mm - for reference on second pic the longer spacer is the one that came assembled.


Last edited by phtomita; 03-17-22 at 09:47 PM.
phtomita is offline
Old 03-17-22, 08:48 PM
  #8
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 805

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '03 Litespeed Firenze

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 143 Times in 98 Posts

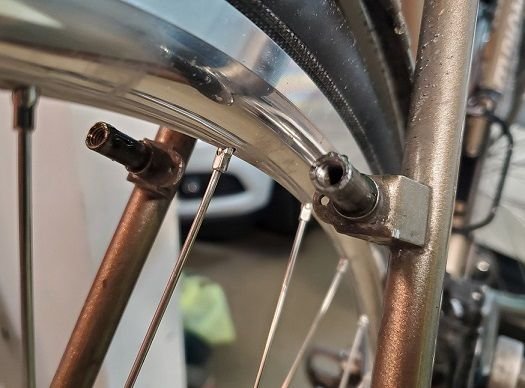

The Centurion ProTour15 has a 65mm center to center space between the bosses to attach the brakes. The rim is 23.4mm wide.

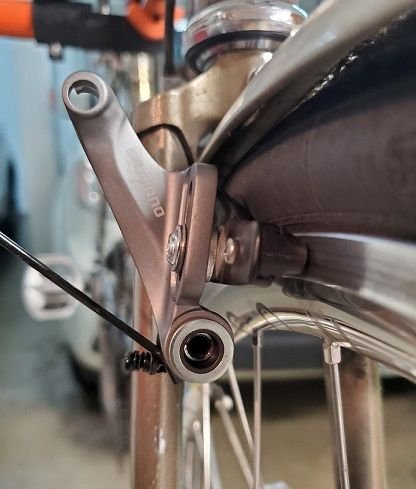

Having the pads at lowest position and the shortest spacer it fit nice.



Last edited by phtomita; 03-17-22 at 09:44 PM.
phtomita is offline
Likes For phtomita:
Old 03-17-22, 08:54 PM
  #9
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 805

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '03 Litespeed Firenze

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 143 Times in 98 Posts

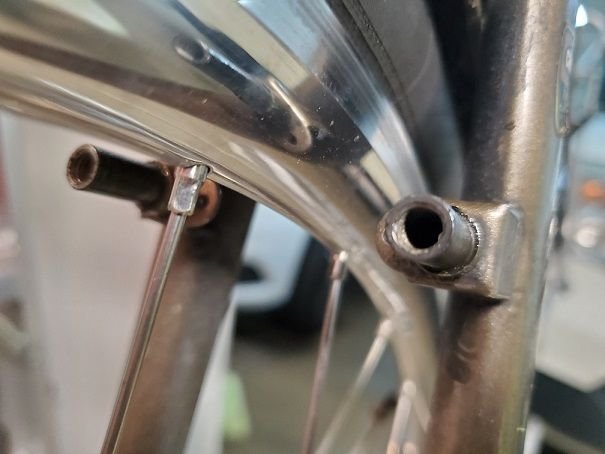

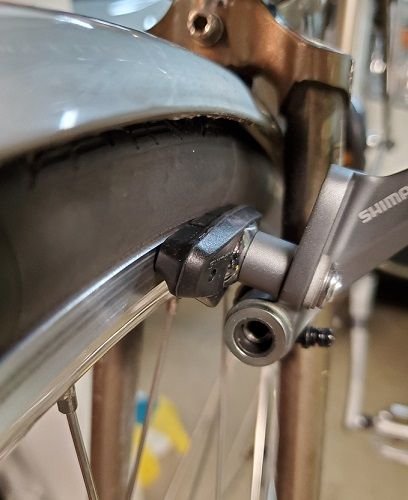

For the front, I measured 57mm between the bosses... so trouble coming.
I tried to attach a 105 brake shoe (it is upside down) to see how the spacing goes - it gets a bit too far.
I am thinking on cutting the longer spacer to 6mm and use it, so will fit nicely.





Last edited by phtomita; 03-17-22 at 09:43 PM.
phtomita is offline
Old 03-18-22, 07:18 AM
  #10
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,823

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 459 Post(s)
Liked 752 Times in 367 Posts
If it were me, I might try a set of threaded Koolstop Thinlines. By playing with the conical spacers, you might be able to get the right angle. Or I might just try running an mtb pad without any spacers just to see if it would work. If so, then I'd tweak the post or file the pad to get a little toe.
Dylansbob is offline
Old 03-18-22, 08:06 AM
  #11
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,853
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1740 Post(s)
Liked 534 Times in 369 Posts
Curious why you don't just use period correct cantis?
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Likes For shoota:
Old 03-18-22, 10:03 AM
  #12
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 805

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '03 Litespeed Firenze

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 143 Times in 98 Posts
Originally Posted by shoota View Post
Curious why you don't just use period correct cantis?
I converted this from 27" to 700c and had the dia-compe cantis where I had to direct the pads down. Anyways, the bike is built with modern components.
phtomita is offline
Likes For phtomita:
Old 03-18-22, 02:22 PM
  #13
OldCoot
Senior Member

Join Date: Dec 2019
Location: SANTA CRUZ
Posts: 92

Bikes: 82 Univega Specialissima, Bike Friday Pocket Rocket, Kona Wheelhouse, Rocky Mtn Thunderbolt, Viner Strada Bianca, ~73 Bob Jackson, ~75 Volkscycle Mark100.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 88 Times in 42 Posts
Originally Posted by phtomita View Post
I converted this from 27" to 700c and had the dia-compe cantis where I had to direct the pads down. Anyways, the bike is built with modern components.
I did that exact same thing to my 81 Univega Specialissma (sister ship to your Miyata 1000) . The brakes are the same that are in your photo, and the frame is probably the same too.... certainly was the same color. I have not had any issues running them for the last 10 years. Used compressionless housing and new pads.... all is well. They work great.
OldCoot is offline
Old 03-18-22, 09:24 PM
  #14
Clang
Senior Member

Join Date: Nov 2013
Location: South of the Twin Cities, MN
Posts: 5,091
Mentioned: 25 Post(s)
Tagged: 1 Thread(s)
Quoted: 975 Post(s)
Liked 1,159 Times in 806 Posts
Would you run into the exact same problem with mini-V brakes as you would with modern cantis on a touring bike with too-narrow spacing?
Clang is offline
Old 03-19-22, 12:36 AM
  #15
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 805

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '03 Litespeed Firenze

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 143 Times in 98 Posts

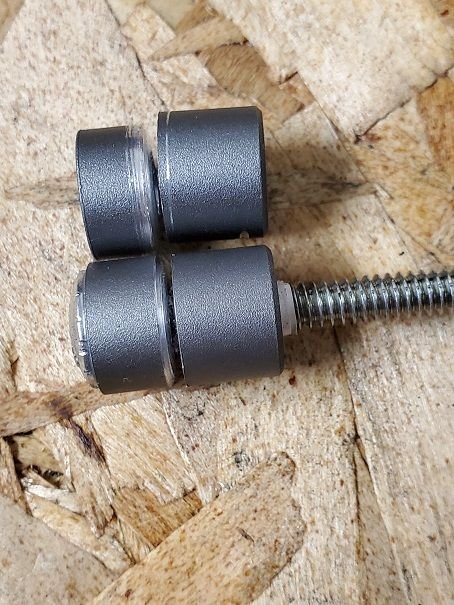

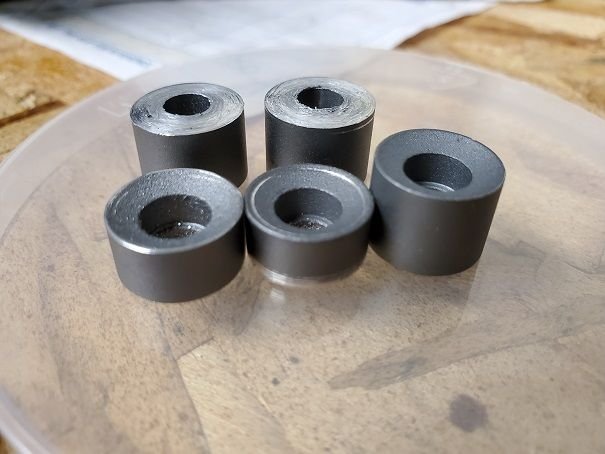

Happy with the outcome of shortening the spacers.

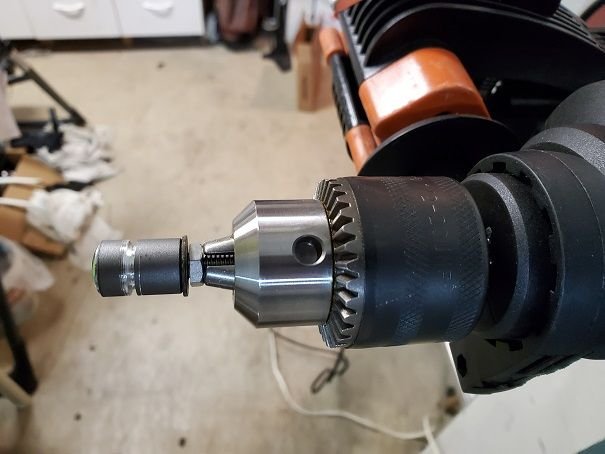

Used a drill attached to the bike stand, a bolt with nut and few rounds of electric tape to get tight into the spacer hole.
First, marked the length with a file and then a hacksaw to cut it. Need to file to make them flat and smooth.

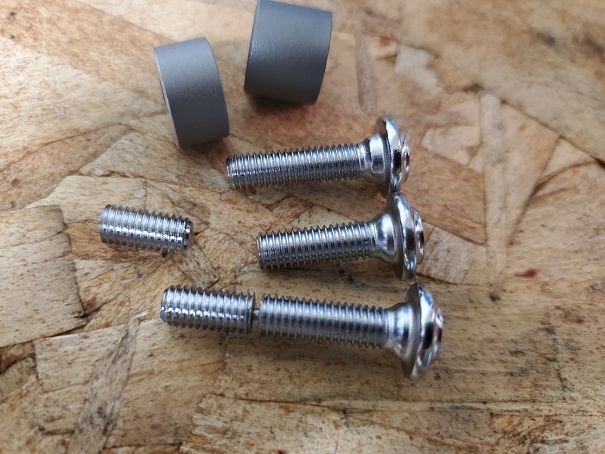

Will cut the bolts tomorrow with same method to go with shorter spacers.


phtomita is offline
Likes For phtomita:
Old 03-19-22, 07:03 AM
  #16
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,215

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2213 Post(s)
Liked 2,290 Times in 1,415 Posts
Don't know if it helps but they make offset pad holders as well.

https://bdopcycling.com/product/bdop...rs-pair-black/


​​​​​​https://www.ebay.com/itm/22477955946...hoCHSEQAvD_BwE
dedhed is offline
Likes For dedhed:
Old 03-19-22, 11:41 AM
  #17
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,833

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1460 Post(s)
Liked 1,681 Times in 847 Posts
That would actually be a decent use for those offset pads. I should have tried them when I needed them.
52telecaster is online now
Old 03-19-22, 04:03 PM
  #18
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 805

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '03 Litespeed Firenze

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 143 Times in 98 Posts

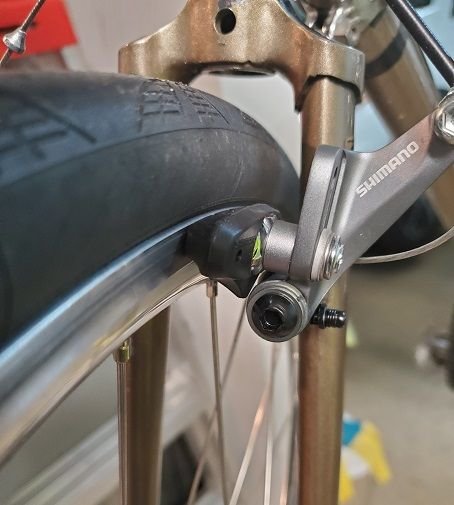

Finish modifying the length of spacer and installation.
The actual length of the spacer got to 6.7mm - didn't want to file down to around 6mm that should be the ideal leng.
The rear one is the shortest one that comes with the brakes at 10mm.



phtomita is offline
Likes For phtomita:
Old 03-19-22, 04:09 PM
  #19
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 805

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '03 Litespeed Firenze

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 143 Times in 98 Posts
Originally Posted by dedhed View Post
Don't know if it helps but they make offset pad holders as well.
The main issue on cantis was the distance from the brake to the wheel rim.
I am moving the rear brake bridge a bit up to have a wider tire fit on a steel frame and if caliper gets short these will be nice.

Last edited by phtomita; 03-21-22 at 05:39 PM.
phtomita is offline
Old 03-20-22, 06:28 PM
  #20
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 805

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '03 Litespeed Firenze

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 143 Times in 98 Posts
Today went to a morning ride and took a long downhill that merges to a busy road and braking feels much better compared with the old dia-compes.
phtomita is offline
Likes For phtomita:
