Frame size

After doing alot of fettling on the Dawes Galaxy I finally got take it for a test ride. I may have underestimated the size of the frame, which measures about 23-24" crank-to-top of seatpost depending on how you look at it. The top tube is probably too high, as it just touches the crotch. I'm starting to think re-framing this project might be good, especially since this frame isn't the greatest shape anyways.
It would be good to stick with English so that most parts will swap over. If I'm looking for a new frame, how should I expect it to be measured?

Last edited by swampyankee2; 03-20-22 at 12:48 PM.
swampyankee2 is offline
Old 03-20-22, 07:55 AM
  #2
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,572
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 992 Times in 591 Posts
That would depend on on the origin and or manufacture. Some would measure bb center to top seattube, others measure bb center to toptube center. Toptubes are always measured center to center(ctc). English bikes are in inches center to top, most French are metric center to top, a lot of Italian are measured metric center to center, but I see many Roma ctt. Also there is the standover height. On to of that there is the sellers measuring, that can be all over the board on how they record.
Mr. 66 is offline
Old 03-20-22, 08:43 AM
  #3
swampyankee2
Full Member
Thread Starter

Join Date: Feb 2022
Location: RI
Posts: 334

Bikes: '08 Specialized Sirrus, '92 Trek 820, '72 Raleigh Sports, 60? Fongers single speed, '72 Dawes Galaxy, '67 Robin Hood Lenton Sports

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 131 Times in 91 Posts
That's why I was limiting my query to English bikes. I know my selection would be limited, but at least the measurements might be more standard.
when I look for bikes online I generally look at the stem as an indication of frame size and assumed the Dawes would be about right.

But in my excitement and naiveté I neglected to check standover height which turns out to be a bit high for me.

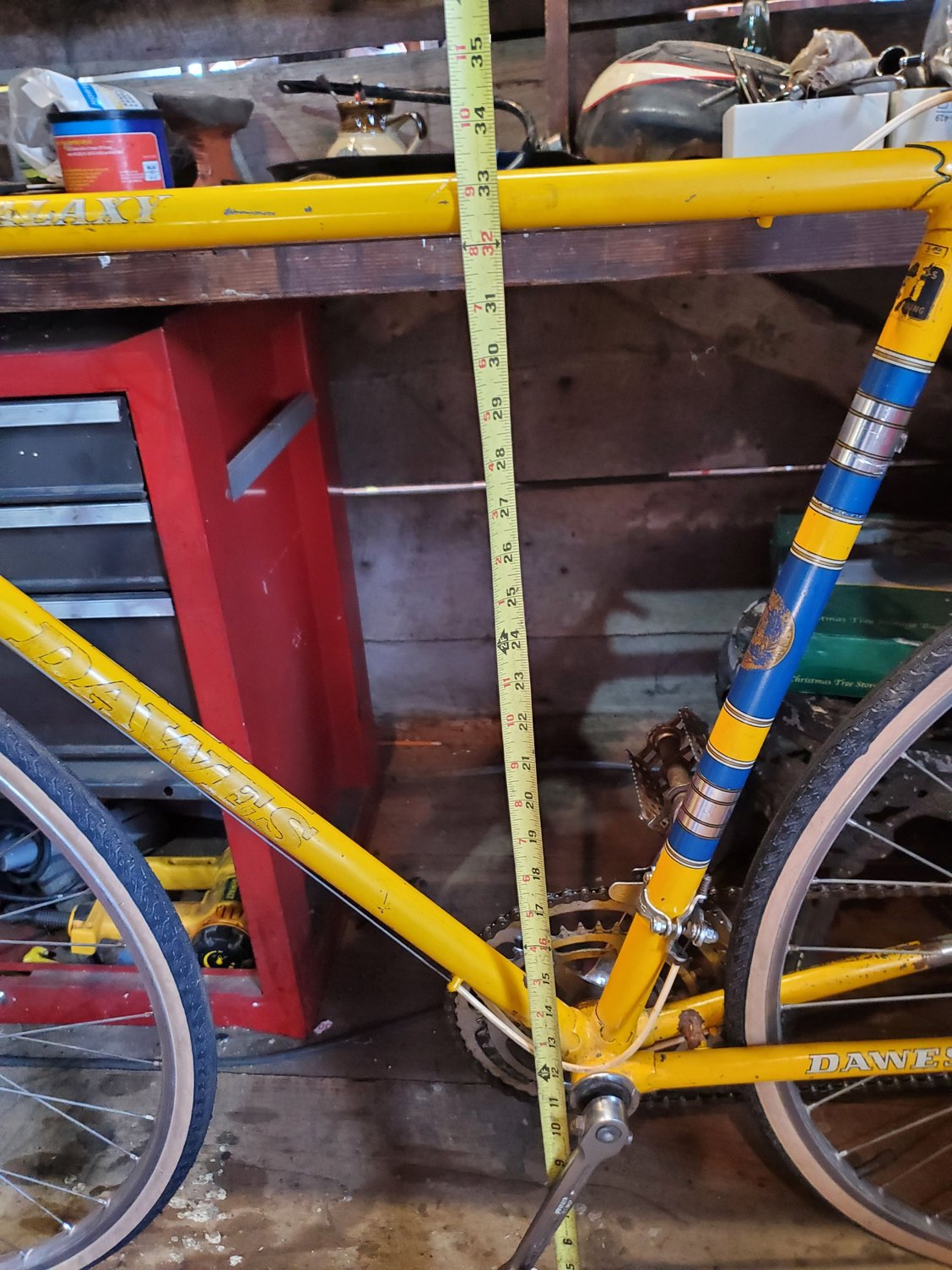

The actual frame size seems to be 23". I would need a 21" as measured by this method:
swampyankee2 is offline
Old 03-20-22, 08:50 AM
  #4
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 1,680

Bikes: 1984 Schwinn Supersport, 1988 Trek 400T, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1978 Raleigh Supercourse, 1986 Trek 400 Elance, 1991 Waterford PDG OS Paramount, 1971 Schwinn Sports Tourer, 1985 Trek 670

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Liked 828 Times in 442 Posts
When buying a vintage frame online, by vintage I mean horizontal top tube, I always look at the head tube only. Frame angles tend to affect the ride more then the fit. Too bad, nice looking bike.
Tim

Last edited by tkamd73; 03-20-22 at 08:55 AM.
tkamd73 is offline
Likes For tkamd73:
Old 03-20-22, 08:52 AM
  #5
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,200

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1219 Post(s)
Liked 839 Times in 572 Posts
Agreed. With a 30" trouser inseam, my ideal frame size is 55cm C-T, which is why I collected the three Capos and the Bianchi and why I gave my 57cm Peugeot PKN-10 to my elder son, who is 3" taller than I am. My 21" Peugeot UO-8 also fits me, by virtue of its proportionately long top tube.

I just barely pass the "crotch standover test" on my 55cm road bikes.


1959 Capo with Nervar Star crank and Campag. 980 derailleur upgrades and new Brooks Pro saddle.

Having said this, I confess to having bought a 23" Nishiki Competition and ridden it 40K miles until the frame broke at the bottom bracket shell. It was a bit tall for me, but compensated with an extremely short top tube. (It was so short that I bought a long-reach stem for it. In contrast, the PKN-10's top tube was so long for me that I needed a close-coupled, minimal-reach stem.) Many people have advised that top tube length may be even more important than seat tube length in frame sizing, although both obviously count.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069

Last edited by John E; 03-20-22 at 08:57 AM.
John E is offline
Likes For John E:
Old 03-20-22, 08:56 AM
  #6
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,572
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 992 Times in 591 Posts
I don't think you want a frame 2" smaller than the Dawes. Is the saddle position correct for you? How is the standover now? Are you actually on toptube in standover? Try standover and lift the bike to the pelvis how far are the wheels of ground? I would think that you would want about 3/4"- 1 1/4" clearance, I think 1/2" gap would be considered French fit.
Mr. 66 is offline
Old 03-20-22, 09:05 AM
  #7
swampyankee2
Full Member
Thread Starter

Join Date: Feb 2022
Location: RI
Posts: 334

Bikes: '08 Specialized Sirrus, '92 Trek 820, '72 Raleigh Sports, 60? Fongers single speed, '72 Dawes Galaxy, '67 Robin Hood Lenton Sports

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 131 Times in 91 Posts
Granted, I've only straddled the bike while in casual clothes (and commando) so the standover height might be better in cycling garb. The only other traditional frame bike I have to go by is my Raleigh Sports, which measures 21" C to T and has a very comfortable 31" standover height.

Last edited by swampyankee2; 03-23-22 at 06:36 PM.
swampyankee2 is offline
Old 03-20-22, 09:17 AM
  #8
Aardwolf
Old Git

Join Date: Aug 2021
Location: Putney, London UK
Posts: 327

Bikes: 1982 Holdsworth Avanti

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 207 Times in 114 Posts
FYI, my 1982 Holdsworth Avanti is 22" top tube (centre to centre) and 22" seat tube (centre bb to seat tube top).
I just measured the standover at 31.5".
Aardwolf is offline
Old 03-20-22, 09:34 AM
  #9
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 5,051

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1612 Post(s)
Liked 1,623 Times in 1,100 Posts
I would imagine your comfort zone should be around 54-55cm. Maybe someone has a frame to trade/sell on here.

23" is 58 cm, which for me at 5'11" is a no go.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.





jdawginsc is offline
Old 03-20-22, 09:49 AM
  #10
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 5,096

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1548 Post(s)
Liked 1,943 Times in 987 Posts
For my taste I prefer a frame that many would call too tall. I never actually stand over the bike so it's not an issue. I ride 23-23.5 usually and like 24. My take on it is that when you stop you have one foot on a pedal and one on the ground. Top tube length and stem reach + handlebars make so much difference for fit that seat tube length doesn't account for.
52telecaster is offline
Likes For 52telecaster:
Old 03-20-22, 10:16 AM
  #11
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 23,371

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1174 Post(s)
Liked 794 Times in 538 Posts
I have negative stand over on some of my bikes. I focus on top tube length instead. Plenty of top tube length sizing guides out there on Google. I always tell people "you don't ride a bike like the Flinstones drove their cars." I came from the era (1970) where a small Schwinn was 22 inch ST, medium was 24 inch ST, and large was 26 ST. Wow, those were the days.

I've had smaller ST bikes with super long top tubes, like a 52 cm CTT ST, 58cm TT CTC, that was too big due to the silly long top tube. I use stem length to fine tune TT sizing. I've seen XL bikes with short stems, and small bikes with long stem. I would not use stem length to represent sizing. Realize these bikes are 50 years old, so even if they originally came with a long stem, over the years, riders could have swapped them out to better fit them. Heck, sometimes they didn't leave the original dealer without a stem swap.

Last edited by wrk101; 03-20-22 at 10:22 AM.
wrk101 is offline
Old 03-20-22, 11:02 AM
  #12
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,425

Bikes: Yes, please.

Mentioned: 262 Post(s)
Tagged: 0 Thread(s)
Quoted: 1966 Post(s)
Liked 3,065 Times in 1,304 Posts
Originally Posted by swampyankee2 View Post
For a touring bike like the Galaxy this size is spot-on.

__________________
Perhaps.










non-fixie is offline
Likes For non-fixie:
Old 03-20-22, 12:54 PM
  #13
swampyankee2
Full Member
Thread Starter

Join Date: Feb 2022
Location: RI
Posts: 334

Bikes: '08 Specialized Sirrus, '92 Trek 820, '72 Raleigh Sports, 60? Fongers single speed, '72 Dawes Galaxy, '67 Robin Hood Lenton Sports

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 131 Times in 91 Posts
Originally Posted by Mr. 66 View Post
I don't think you want a frame 2" smaller than the Dawes. Is the saddle position correct for you? How is the standover now? Are you actually on toptube in standover? Try standover and lift the bike to the pelvis how far are the wheels of ground? I would think that you would want about 3/4"- 1 1/4" clearance, I think 1/2" gap would be considered French fit.
Saddle position is correct heightwise but after today's ride I shifted and tilted it forward, since I had to slide forward on it to reach brakes.
i can stand over the toptube but there is zero clearance between it and the tender parts. I'd consider that a French fit by your description.
swampyankee2 is offline
Old 03-20-22, 01:41 PM
  #14
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,572
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 992 Times in 591 Posts
On reach, you do have some minor adjustments that can draw your reach closer. I though your saddle set height and tilt looks great to the size of frame. Could pull that forward a tiny maybe. If you were to reposition the brake levers higher on the curve of the bar. Which will take pressure off your wrists. Another would be to rotate the handlebars up, both of those can put you a touring position as opposed to race. Other things can be done but this changes no parts. Experiment, back and forth, being comfortable makes so much difference.
Mr. 66 is offline
Old 03-20-22, 02:02 PM
  #15
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,946

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1372 Post(s)
Liked 1,561 Times in 820 Posts
@swampyankee2 - Your brake levers are waaaay to far down on the HB. If you take a straight edge and align it with the flats of the drops, the ends of the levers should be touching or slightly above the straight edge. You could also rotate yourbars.
1983 Colnago Superissimo on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 03-20-22, 02:20 PM
  #16
Senior Ryder 00
Old bikes, Older guy

Senior Ryder 00's Avatar

Join Date: Jun 2014
Location: Fiscal Conservative on the Lefty Coast - Oregon
Posts: 690

Bikes: A few modern, Several vintage, All ridden when weather allows.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 90 Times in 67 Posts
One issue that I've had with seat tube measurement and stand over is BB height. Acquired a few frames that had the "right" size seat tube, but the BB height made the stand over tight.
Cheers,
Van
__________________
Remember: Real bikes have pedals.
...and never put a yellow tail on a Red, White and Blue kite!
Senior Ryder 00 is offline
Likes For Senior Ryder 00:
Old 03-20-22, 07:26 PM
  #17
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 1,092
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 342 Post(s)
Liked 266 Times in 182 Posts
Keep in mine that with a smaller frame you would not be able to raise your handlebars as high in relation to the seat. Adjusting your brake levers as SJX426 & Mr66 said will help shorten reach a lot. Judging by saddle height, I wouldn't call that French fit. French fit usually results in the top of the bars being almost level with the saddle, without the stem being too high (there should always be at least 2" of stem inside of the fork, 2 1/2" is better). You should check yours - it looks like it may be too far out of the fork. Once you adjust the bars & brake levers, if you still wanted a shorter reach, you could get a stem with less reach, and maybe more height.
Hobbiano is offline
Old 03-20-22, 07:57 PM
  #18
Chuck M
Butted Hi-Tensile

Chuck M's Avatar

Join Date: Sep 2020
Location: Oklahoma
Posts: 1,285

Bikes: Hi-Ten bike boomers, a Trek Domane and some projects

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Liked 1,173 Times in 580 Posts
FWIW, one my most comfortable bikes to ride just touches my crotch. But I spend more time riding it than I do standing over it. I would take the suggestions offered above to correct the brake lever position before giving up on this frame. You may find with tilting the saddle that you still have issues reaching the brakes and now have another issue with sliding forward and thus having to hold yourself more with your palms.
__________________
"It is the unknown around the corner that turns my wheels." -- Heinz Stücke

Chuck M is offline
Old 03-20-22, 09:19 PM
  #19
nlerner
Senior Member

Join Date: Dec 2005
Posts: 16,105
Mentioned: 421 Post(s)
Tagged: 0 Thread(s)
Quoted: 3193 Post(s)
Liked 4,522 Times in 1,919 Posts
IMO, stand over height is the least useful measurement you can use. How much time does one spend standing over the top tube with two feet on the ground, anyway? And I agree the OP’s brake levers are set up too far forward. I try to achieve a level surface between bars and the tops of the hoods.
nlerner is offline
Likes For nlerner:
Old 03-20-22, 09:36 PM
  #20
albrt
Full Member

Join Date: Oct 2020
Location: Phoenix, AZ
Posts: 328

Bikes: 1967 Dawes Double Blue, 1982 Claud Butler Dalesman, 1982 Nishiki International upright bar conversion, 1983 Schwinn Paramount Elite, 1990s Specialized Hard Rock drop bar conversion, 2014 Brompton, maybe a couple more

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 182 Times in 99 Posts
Originally Posted by nlerner View Post
IMO, stand over height is the least useful measurement you can use. How much time does one spend standing over the top tube with two feet on the ground, anyway? And I agree the OP’s brake levers are set up too far forward. I try to achieve a level surface between bars and the tops of the hoods.
Standover height is important for beginning riders who are at serious risk of falling over when they have an unplanned stop. The more experience you have and the faster and further you want to go, the more you should go with what is comfortable.
albrt is offline
Likes For albrt:
Old 03-21-22, 05:44 PM
  #21
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 5,051

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1612 Post(s)
Liked 1,623 Times in 1,100 Posts
Looking more closely now that it is not on a small phone, that is a perfect size bike for you if the seat is in the right position. A smaller frame is going to necessitate a significant jump (2cm) in seatpost height from seat tube. And then the corresponding stem (Technomic zone)

Maybe get a shorter stem reach, and I agree with everyone here, move the levers around and up until you find a comfortable zone, looks be darned. Neal has a nice rule of thumb I am going to use for quick adjustments...
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.





jdawginsc is offline
Old 03-21-22, 05:44 PM
  #22
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,769

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1833 Post(s)
Liked 1,581 Times in 959 Posts
Remember a proper fitting bike will be one that you have to get off the seat at stops, typical answer to a close to uncomfortable top tube is to lean it over a bit when stopped.

how are you setting saddle height? My go to is to do an initial set based on heel on pedal axle with knee locked, from there if you hips don't rock when pedaling, keep raising until they do, and then lower a bit.

Looking at the amount of seat post you have, i thinks this is probably not a bad fit and you probably don't need to go down a size
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is online now
Old 03-21-22, 06:52 PM
  #23
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,016
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2624 Post(s)
Liked 1,632 Times in 1,206 Posts
Top tube length and handlebar position also play a roll.
when I was young and 5'-7"
I bought a 59 ctt framed bike, everyone thought I would grow... I did but not eneough.
I sold it off for. 56 cm ctt frame when I was 5'-9". I gained some height but gravity struck back. I still have that 56cm bike but truthfully it is now a tad long.

if I wanted my bars level with the saddle a 58-59 cm would work.

but most often those bikes have a top tube too long.

I am not discussing seat tube angle or as some note "setback".

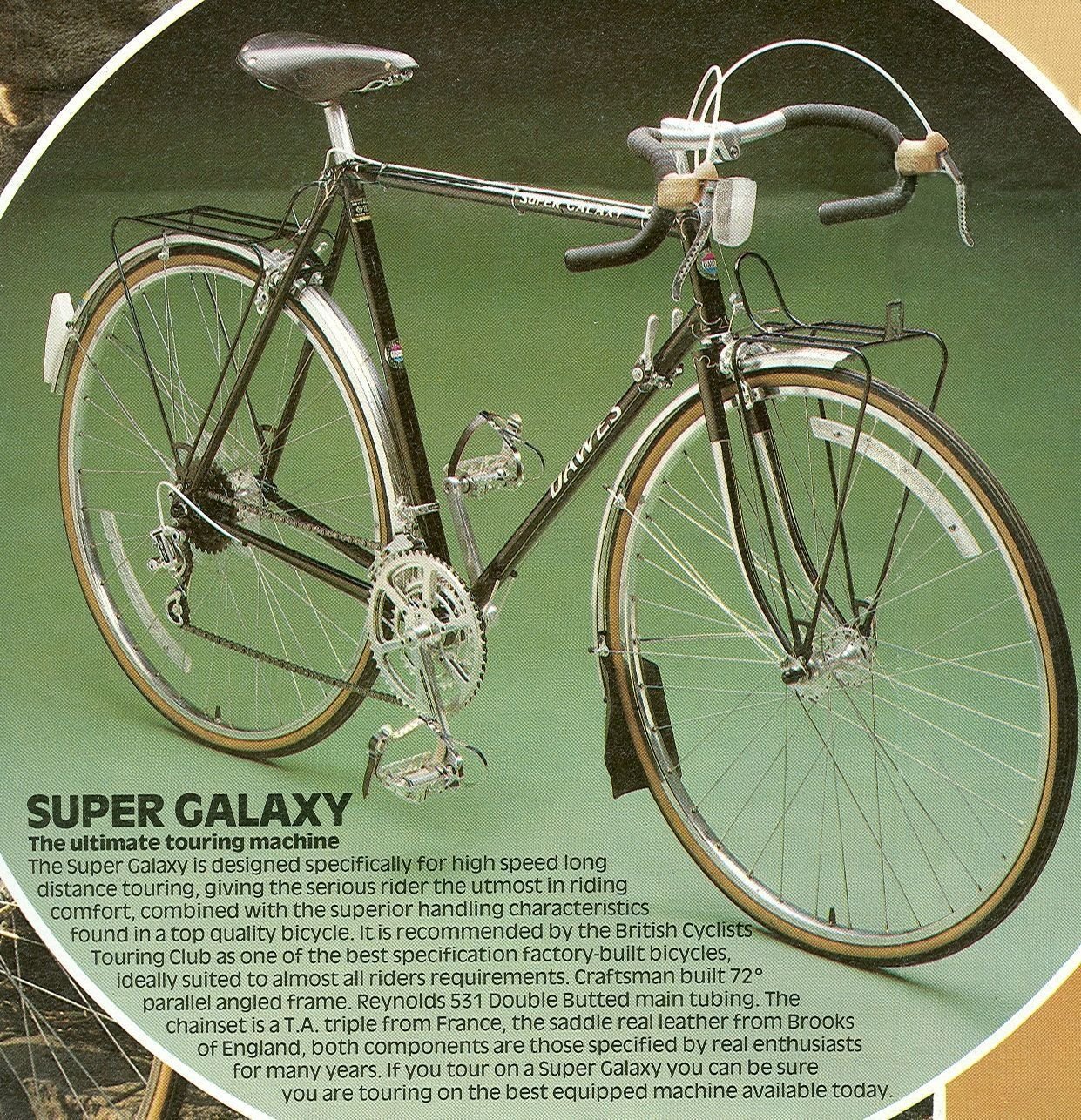

I think the Dawes is on the middle- longer side.
a 22.5" top tube might be what it has, if so, can be made to work with a shorter stem.

consider what you need and go from there.
Dawes I think went 19, 21, 23... maybe even add a 1/2" to each size.
Sometimes even the 21" frames had long top tubes... easier to avoid toe clip overlap.
repechage is offline
Old 03-21-22, 07:10 PM
  #24
spudly
Junior Member

Join Date: Jun 2012
Posts: 145
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 40 Times in 20 Posts
Originally Posted by tkamd73 View Post
When buying a vintage frame online, by vintage I mean horizontal top tube, I always look at the head tube only. Frame angles tend to affect the ride more then the fit. Too bad, nice looking bike.
Tim
Interesting! Can you expand a bit? Thanks
spudly is offline
Old 03-22-22, 09:41 AM
  #25
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,572
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 992 Times in 591 Posts
Swampy, double check your rear wheel. It does not look properly seated in the claw and dropouts in the picture posted.
Mr. 66 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
