Nervex Lugged frame -help to identify
Hi Folks,

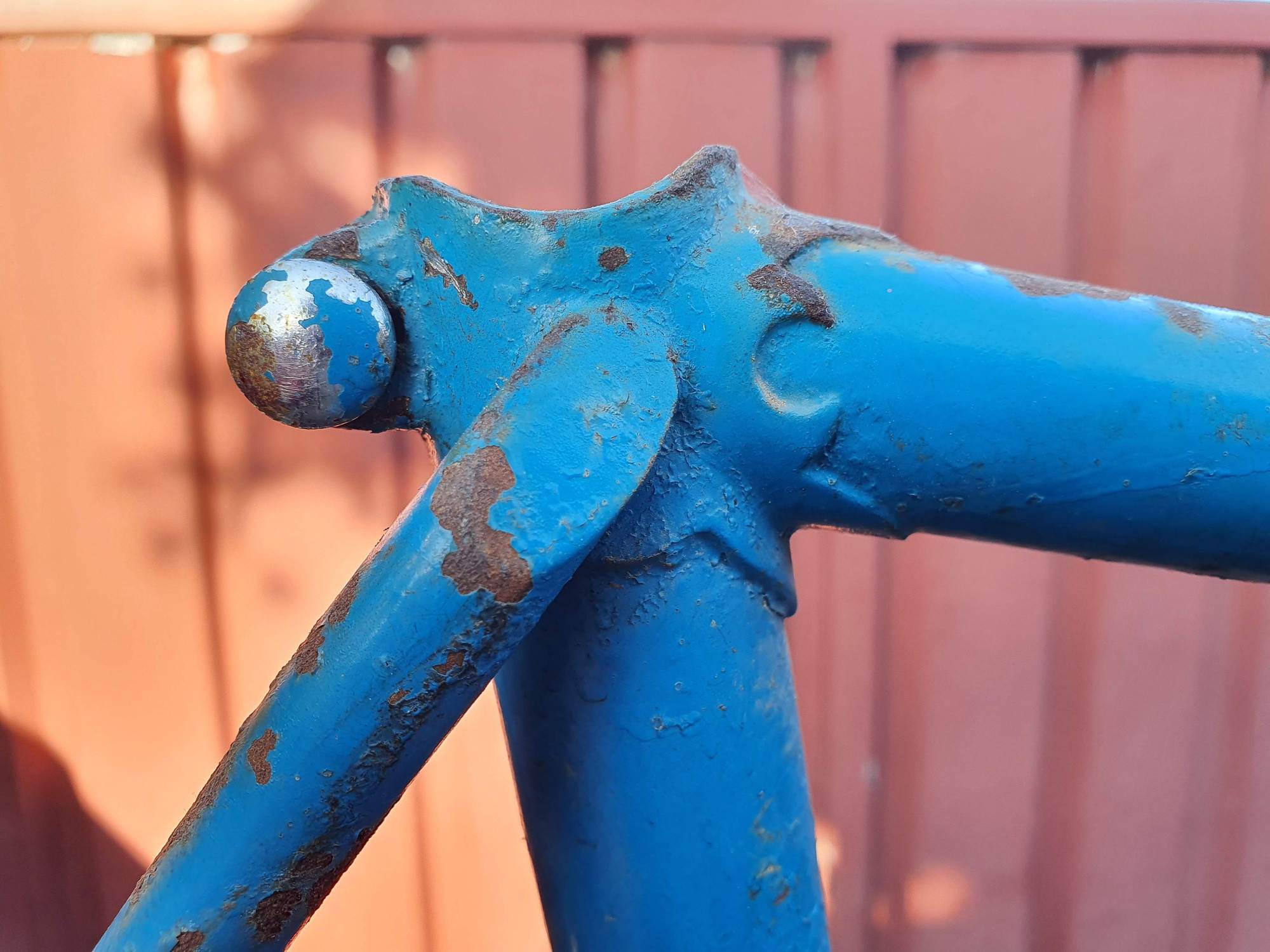

I bought this old frame recently and have stripped it down. It came from an old bloke here in Sydney who reportedly got it from his mum. She apparently said it was Gary Sutton's bike. It is fairly old and is a 5 speed rear wheel with very close spacing. The OLD appears to be around 126mm but i has definitely been opened up a little. I am trying to identify it if possible. Please see photos below of the parts and frame junctions. Info relating to dimensions also follows - thanks for your help!
Rear mech: Zeus Gransport 2 - 5 Speed
Front mech: Campag ?
Crankset: Magistroni
Brakes: Weinmann Type 730
Rims look like Weinmann High pressure

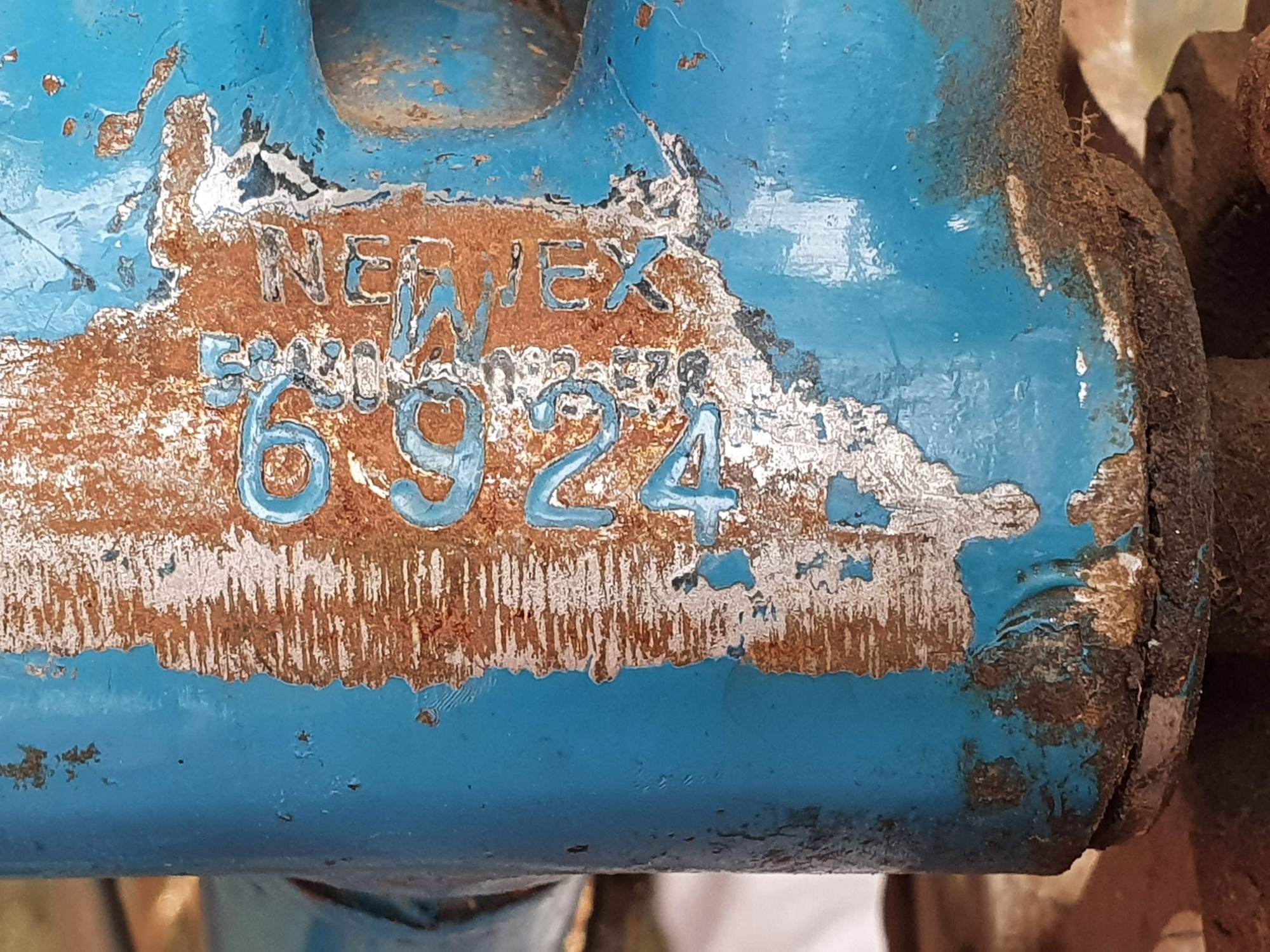

English threaded BB - Nervex followed by lug set numbers. Then stamped over the top W 6924
Seat tube ID / OD: 26.6 / 28.6, CTT: 560mm
Head tube ID / OD: 29.8 / 31.6
Top tube OD: 25.6, CTC: 575mm
Frame weighs: 1937g
Fork weighs 910g









I bought this old frame recently and have stripped it down. It came from an old bloke here in Sydney who reportedly got it from his mum. She apparently said it was Gary Sutton's bike. It is fairly old and is a 5 speed rear wheel with very close spacing. The OLD appears to be around 126mm but i has definitely been opened up a little. I am trying to identify it if possible. Please see photos below of the parts and frame junctions. Info relating to dimensions also follows - thanks for your help!
Rear mech: Zeus Gransport 2 - 5 Speed
Front mech: Campag ?
Crankset: Magistroni
Brakes: Weinmann Type 730
Rims look like Weinmann High pressure
English threaded BB - Nervex followed by lug set numbers. Then stamped over the top W 6924
Seat tube ID / OD: 26.6 / 28.6, CTT: 560mm
Head tube ID / OD: 29.8 / 31.6
Top tube OD: 25.6, CTC: 575mm
Frame weighs: 1937g
Fork weighs 910g









#2
Senior Member

Joined: Aug 2014
Posts: 540
Likes: 761
From: Los Angeles, CA
Bikes: None in ridable condition
I think the serial number position and format is consistent with Speedwell.
I know they used Nervex Pro lugs on their Olympic model but, as far as I know, those only had track ends, so this must be a different model. Possibly from around early 60s?
Here's another Speedwell number with a 'W' prefix:

The fork is also most likely original. Here's a an example with Nervex lugs and that fork crown:
I know they used Nervex Pro lugs on their Olympic model but, as far as I know, those only had track ends, so this must be a different model. Possibly from around early 60s?
Here's another Speedwell number with a 'W' prefix:

The fork is also most likely original. Here's a an example with Nervex lugs and that fork crown:
#3
Thread Starter
Junior Member
Joined: May 2019
Posts: 18
Likes: 1
From: sydney
Bikes: 1974 peugeot noveau folding (restored), 2016 polygon helios a9x, vivente world randonneur patagonia, merida e one twenty 500, new unidentified steel frame??
I think the serial number position and format is consistent with Speedwell.
I know they used Nervex Pro lugs on their Olympic model but, as far as I know, those only had track ends, so this must be a different model. Possibly from around early 60s?
Here's another Speedwell number with a 'W' prefix:

The fork is also most likely original. Here's a an example with Nervex lugs and that fork crown:

I know they used Nervex Pro lugs on their Olympic model but, as far as I know, those only had track ends, so this must be a different model. Possibly from around early 60s?
Here's another Speedwell number with a 'W' prefix:

The fork is also most likely original. Here's a an example with Nervex lugs and that fork crown:
