Swapping Simplex shifters for Campy - Tapping threads

Old 12-05-22, 11:53 AM
  #1
Dirt Road Blues
Junior Member
Thread Starter

Dirt Road Blues's Avatar

Join Date: Sep 2022
Location: Eugene, OR
Posts: 131
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 102 Times in 36 Posts
Swapping Simplex shifters for Campy - Tapping threads

To clarify this is in regards to downtube braze on levers. I want to install a set of Nuovo Record levers in place of the SLJ's.

Anyone ever tap those oddly threaded Simplex bosses to accept a Campy screw? 5x1 to 5x0.8 if I remember correctly.

Assuming that the tapping job was successful, how'd things turn out for you? Did the swap perform well for you?

I've read that it's difficult to keep things tight. Wondering if thread locker would help, or not.

Thinking of giving this a go on my PX-10, but want to hear from folks with firsthand experience before I go and do something I might regret.
Dirt Road Blues is offline
Old 12-05-22, 12:49 PM
  #2
seypat
Senior Member

Join Date: Oct 2010
Posts: 7,901
Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 2751 Post(s)
Liked 1,922 Times in 1,201 Posts
I thought a version of Simplex DT shifters were the best that's ever been. As good as Johnny the fiddler who kicked Ol Scratch's a$$ back to Hades. Anyway, if you want to see if the Campys shift better, put them on a clamp on mount and give them a try. After that, make a decision.
seypat is offline
Old 12-05-22, 01:06 PM
  #3
Dirt Road Blues
Junior Member
Thread Starter

Dirt Road Blues's Avatar

Join Date: Sep 2022
Location: Eugene, OR
Posts: 131
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 102 Times in 36 Posts
Originally Posted by seypat View Post
I thought a version of Simplex DT shifters were the best that's ever been. As good as Johnny the fiddler who kicked Ol Scratch's a$$ back to Hades. Anyway, if you want to see if the Campys shift better, put them on a clamp on mount and give them a try. After that, make a decision.
Certainly the retrofrictions are loved by many. I often read how they're "the best shifters ever made." And I can't disagree that they perform great. I've been riding with a pair for a couple months now.

To be honest though, my inclination to swap them out for Campy is more about completing a group set than anything else. And then there an aesthetic preference as well. I simply love a low profile lever, while wide protruding levers tend to irk me.

I would actually assume that NR levers will perform not quite as well as SLJ, but for my riding style, that's not much of a concern.

I just need to know if the Campy mounting/adjusting screws should hold dependably in a re-tapped boss or not.
Dirt Road Blues is offline
Old 12-05-22, 01:17 PM
  #4
seypat
Senior Member

Join Date: Oct 2010
Posts: 7,901
Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 2751 Post(s)
Liked 1,922 Times in 1,201 Posts
You'll have to wait for someone else to answer the question then. I will say though, if that's a high level Pug that came with a high level Simplex group, a future buyer will probably want the complete Simplex group back on it. So, retapping the bosses will probably decrease the value.
seypat is offline
Old 12-05-22, 01:50 PM
  #5
Dirt Road Blues
Junior Member
Thread Starter

Dirt Road Blues's Avatar

Join Date: Sep 2022
Location: Eugene, OR
Posts: 131
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 102 Times in 36 Posts
Originally Posted by seypat View Post
You'll have to wait for someone else to answer the question then. I will say though, if that's a high level Pug that came with a high level Simplex group, a future buyer will probably want the complete Simplex group back on it. So, retapping the bosses will probably decrease the value.
I get your point. And normally that'd be a consideration I'd hold too. And while it is a high end frame, it had most of its original parts changed out prior to my purchasing it. I also really feel this bike is a keeper. I'm enjoying it as much or more than anything else that has passed through my hands.
Dirt Road Blues is offline
Old 12-06-22, 09:30 AM
  #6
AdventureManCO
Senior Member

Join Date: Jul 2008
Location: Front Range CO
Posts: 616

Bikes: '88 Novara Randonee, 1981 Trek 957, 1968 Peugeot PX-10, 1972 Gitane Tour de France, 1973 Raliegh Super Course, 1987 Centurion Ironman Expert, 1987 Trek 560 Pro Series, 1972 Dawes Galaxy, 1996 Schwinn Homegrown, 1996 Trek 990

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 260 Post(s)
Liked 348 Times in 163 Posts

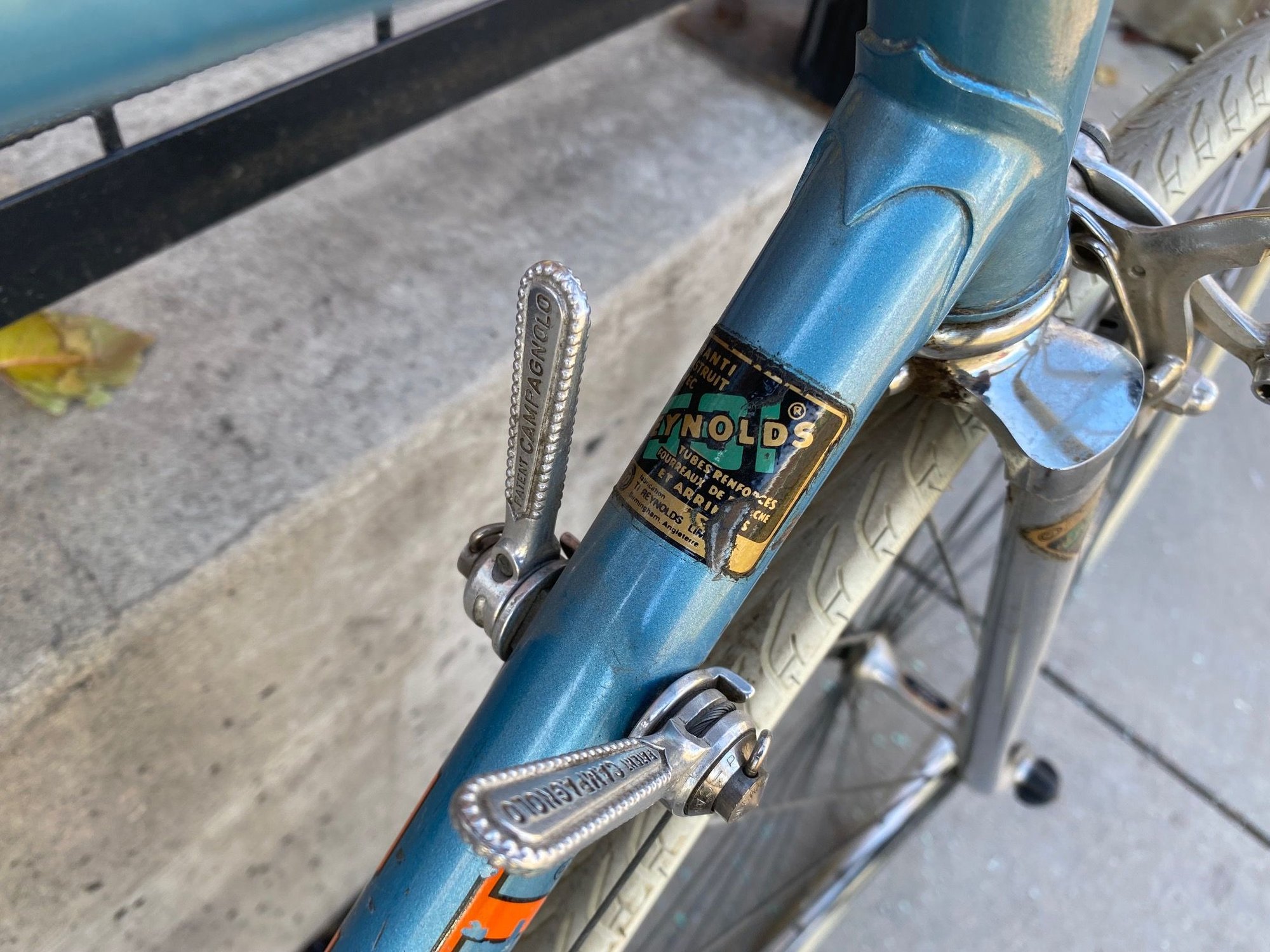

Hmmm...I'm looking for some retrofrictions for my PXN10 and it has these on it...



Wanna trade?
AdventureManCO is offline
Old 12-06-22, 09:51 AM
  #7
daka
Full Member

Join Date: Nov 2019
Location: SF Bay Area
Posts: 381

Bikes: Raleigh Super Course x2, Raleigh International, Raleigh Gran Sport

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 202 Post(s)
Liked 220 Times in 136 Posts
What is the compatibility between Simplex and Huret DT levers? Huret made some elegant, slender levers in the mid to late '70s with the Success group.

https://velobase.com/ViewComponent.a...0084a&Enum=104
daka is offline
Old 12-06-22, 12:02 PM
  #8
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,209
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 823 Post(s)
Likes: 0
Liked 891 Times in 548 Posts
Originally Posted by Dirt Road Blues View Post
To clarify this is in regards to downtube braze on levers. I want to install a set of Nuovo Record levers in place of the SLJ's.
[snip]
Anyone ever tap those oddly threaded Simplex bosses to accept a Campy screw?
I think you may find the Simplex boss
a) is too short;
b) has no flats; or
c) both of the above.
oneclick is offline
Likes For oneclick:
Old 12-06-22, 12:15 PM
  #9
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,950

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 905 Post(s)
Liked 1,248 Times in 649 Posts
Aside from the above concerns, I would not tap to 5x0.8 from 5x1. It will be a mess. The thread pitches are so close that there will be nearly no threads left by the end of your tapping job. That's also what happens when you tap a French bb to English. The pitches are so close there won't hardly be any thread left by the end.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Likes For scarlson:
Old 12-06-22, 12:22 PM
  #10
Dirt Road Blues
Junior Member
Thread Starter

Dirt Road Blues's Avatar

Join Date: Sep 2022
Location: Eugene, OR
Posts: 131
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 102 Times in 36 Posts
Originally Posted by oneclick View Post
I think you may find the Simplex boss
a) is too short;
b) has no flats; or
c) both of the above.

​​After looking into it more, it began to appear that there's a bit of inconsistency regarding the subject. Conflicting reports. Surprise, right?

Anyhow, I decided to attempt a straight swap rather than leap right into making any permanent changes with a thread tap that may or may not have worked.

Turns out, at least in my case, that Campy levers install just fine on Simplex bosses without need for any modifications. Everything pressed right into place, and the screws threaded in easily and snugly. Should note that this is a '79 frame in case era makes a difference or not.



Last edited by Dirt Road Blues; 12-06-22 at 01:49 PM.
Dirt Road Blues is offline
Likes For Dirt Road Blues:
Old 12-06-22, 01:45 PM
  #11
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 13,148
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 3666 Post(s)
Liked 2,467 Times in 1,467 Posts
Glad it was that simple for you.
himespau is offline
Likes For himespau:
Old 12-07-22, 04:37 PM
  #12
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,094
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 463 Post(s)
Liked 284 Times in 174 Posts
Calling Emily Litella . . .
Charles Wahl is offline
Old 12-07-22, 08:04 PM
  #13
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,077
Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1464 Post(s)
Likes: 0
Liked 593 Times in 391 Posts
Simplex Retrofriction levers will usually have the same threading as Campys, as long as they are not the ones that came with a band clamp. The oddball threaded ones are the ones with the band clamp.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Likes For Chombi1:
