Tire Width--At My Limit?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Tire Width--At My Limit?

Old 05-13-23, 06:30 AM
  #1
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
Tire Width--At My Limit?

I am riding more on gravel these days, so I have tried to increase my tire width for more comfort. I went up to 28mm on my Panasonic Team Japan, and while the ride is good, I'm was hoping for a little better.

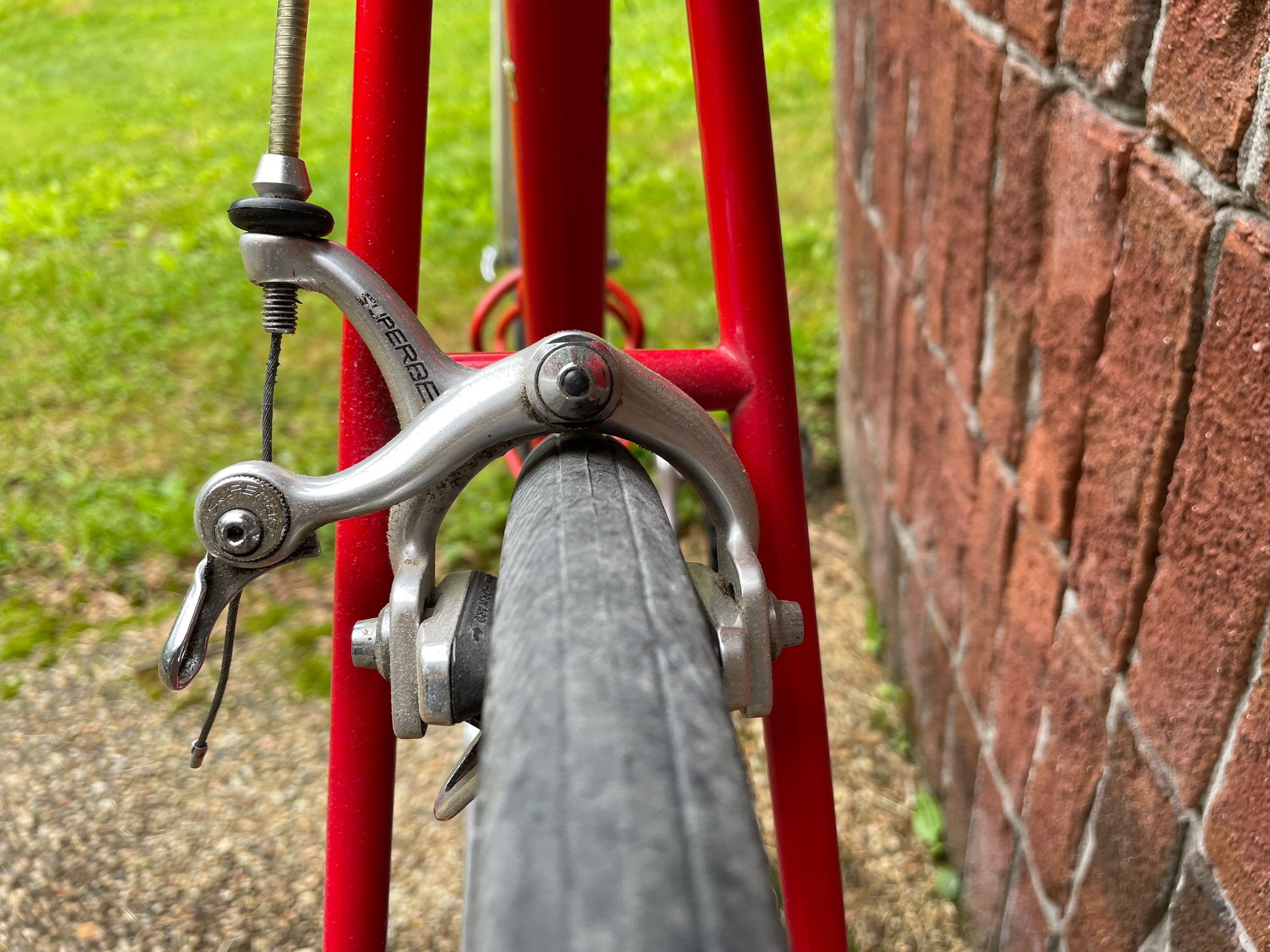

I was wondering about going up to 30mm, but I may already be at my limit. I've attached photos of the current brake clearance. Could I go to 30mm here?

WT160 is offline
Old 05-13-23, 06:33 AM
  #2
Senior Member

Join Date: Jun 2006
Posts: 20,305
Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 3464 Post(s)
Liked 2,834 Times in 1,998 Posts
I would be confirming wheel dish and fork alignment.
I would not attempt a bigger tire.
repechage is offline
Old 05-13-23, 07:21 AM
  #3
Senior Member

Join Date: Jan 2013
Posts: 2,701

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 571 Post(s)
Liked 603 Times in 418 Posts
I have read there is an ISO ( Internal Organization for Standardization ) standard of 6mm, I see lots of 4mm on frames/forks/brakes and in my retirement community where the roads are kept clean I can get away with slightly less but no way in gravel/wet.
easyupbug is offline
Old 05-13-23, 07:22 AM
  #4
Senior Member

Join Date: Jun 2021
Posts: 1,701

Bikes: '38 Schwinn New World, ’69 Peugeot PX-10, '72 Peugeot PX-10, ‘7? Valgan, '78 Raleigh Comp GS, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Hercules

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 765 Post(s)
Liked 1,614 Times in 770 Posts
I think I'm more OK with running things close to the clearance limit than perhaps most people, and that's about as tight as I'd go. You could take some measurements and see how much clearance a 650b conversion would get you, but that'd involve new wheels/tires/brakes. Or use this as an excuse to get another bike that can run fatter tires for gravel rides!
ehcoplex is offline
Likes For ehcoplex:
Old 05-13-23, 07:28 AM
  #5
Senior Member

Join Date: Sep 2021
Location: SW Florida, USA
Posts: 1,305

Bikes: Yes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 558 Post(s)
Liked 703 Times in 473 Posts
Originally Posted by repechage
I would be confirming wheel dish and fork alignment.
I would not attempt a bigger tire.
Agreed. Wheel in the last photo does not seem to be centered (can't really say about the one in the first photo). Clearance there is also already fairly tight IMO.
Hondo6 is offline
Likes For Hondo6:
Old 05-13-23, 10:01 AM
  #6
Senior Member

Join Date: Dec 2005
Posts: 17,190
Mentioned: 481 Post(s)
Tagged: 0 Thread(s)
Quoted: 3822 Post(s)
Liked 6,770 Times in 2,633 Posts
I suggest getting some calipers on those tires to measure actual width. You might already be over 28mm.
nlerner is offline
Old 05-13-23, 10:13 AM
  #7
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 2,543

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 936 Post(s)
Liked 1,328 Times in 492 Posts
I'd say that both front and rear wheels do not appear to be centered. Something's bent and/or the wheel dish is way off. Also note that the clearance shown is as low as I would go. Furthermore, I've found that the tire width limiting factor is usually clearance at the chain stays, not the brakes.
davester is offline
Likes For davester:
Old 05-13-23, 11:03 AM
  #8
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
Originally Posted by davester
I'd say that both front and rear wheels do not appear to be centered. Something's bent and/or the wheel dish is way off. Also note that the clearance shown is as low as I would go. Furthermore, I've found that the tire width limiting factor is usually clearance at the chain stays, not the brakes.
Thanks. I'll look into the alignment issues.
WT160 is offline
Old 05-13-23, 11:30 AM
  #9
don't try this at home.

rm -rf's Avatar

Join Date: Jan 2006
Location: N. KY
Posts: 5,971
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 986 Post(s)
Liked 526 Times in 361 Posts
Originally Posted by ehcoplex
I think I'm more OK with running things close to the clearance limit than perhaps most people, and that's about as tight as I'd go. You could take some measurements and see how much clearance a 650b conversion would get you, but that'd involve new wheels/tires/brakes. Or use this as an excuse to get another bike that can run fatter tires for gravel rides!
My previous road bike had little clearance at the fork crown. It was fine for road riding. Until I rode over a road with newly laid chipseal -- there was loose gravel dust and small stone particles that were damp that day, and stuck to my tire. I was hearing "zing" as it scraped the paint on the fork, yikes!

So, I'd want a lot more clearance for gravel road riding than for riding on paved roads.
rm -rf is offline
Likes For rm -rf:
Old 05-13-23, 11:37 AM
  #10
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 20,441

Bikes: A bunch of old bikes and a few new ones

Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 5893 Post(s)
Liked 3,480 Times in 2,081 Posts
I'd be thinking about a 650b conversion assuming that this measures out OK for that conversion or a different bike with more generous tire clearance. Finding a vintage bike that can take a 35c tire isn't hard; it's a little harder to find one with 38c clearance if we're talking about road bikes. If you really want an all roads bike, an old school mountain bike or hybrid can work well. I did a drop bar conversion on a 90s Specialized Stumpjumper for gravel riding and I'm running 26 x 1.95 tires on it.
bikemig is offline
Old 05-14-23, 04:11 AM
  #11
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 5,131

Bikes: many

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1457 Post(s)
Liked 1,407 Times in 770 Posts
Since nobody else has mentioned it, this sounds like there perfect excuse for another bike.
__________________
Monti Special
smontanaro is offline
Likes For smontanaro:
Old 05-14-23, 06:54 AM
  #12
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
Originally Posted by smontanaro
Since nobody else has mentioned it, this sounds like there perfect excuse for another bike.
Ha! That's why I got this bike. I was limited to 26mm on my DeRosa.
WT160 is offline
Old 05-14-23, 07:00 AM
  #13
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,820

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 1398 Post(s)
Liked 1,340 Times in 846 Posts
Originally Posted by WT160
Ha! That's why I got this bike. I was limited to 26mm on my DeRosa.
That sounds like my Bianchi. Works fine with Continental 700Cx28s, which run a bit small, but I could never use Specialized or other 700Cx28s that run large. That was the one big advantage my same-vintage Peugeot PKN-10 had -- larger tire clearance.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 05-14-23, 07:44 AM
  #14
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 5,131

Bikes: many

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1457 Post(s)
Liked 1,407 Times in 770 Posts
Originally Posted by WT160
Ha! That's why I got this bike. I was limited to 26mm on my DeRosa.
There ya go. n+1 until you get it right!
__________________
Monti Special
smontanaro is offline
Old 05-14-23, 07:57 AM
  #15
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 3,690

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1168 Post(s)
Liked 443 Times in 316 Posts
Which rims do you have the 28’s mounted on? I haven’t made actual measurements with wider tubeless type modern rims But I’m thinking you might eke out a bit more width with something with more internal width like a HED Belgium +, a Pacenti Brevet or a Velocity Quill. My theory is that a 28 would fit more like a low profile car tire and possibly ride a few mm lower.

The older standard Mavic Open Pro type aluminum clincher rims are like 14mm internal width which leads to the “lightbulb” tire profile with certain wider clincher tires.

It appears from the photos that you have adequate side clearance for a bit more tire width, it is the height under the brake caliper that is the limiting factor.

Last edited by masi61; 05-14-23 at 08:01 AM.
masi61 is offline
Old 05-15-23, 12:21 PM
  #16
Full Member
Thread Starter

Join Date: Sep 2020
Posts: 210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 50 Times in 32 Posts
Originally Posted by masi61
Which rims do you have the 28’s mounted on? I haven’t made actual measurements with wider tubeless type modern rims But I’m thinking you might eke out a bit more width with something with more internal width like a HED Belgium +, a Pacenti Brevet or a Velocity Quill. My theory is that a 28 would fit more like a low profile car tire and possibly ride a few mm lower.

The older standard Mavic Open Pro type aluminum clincher rims are like 14mm internal width which leads to the “lightbulb” tire profile with certain wider clincher tires.

It appears from the photos that you have adequate side clearance for a bit more tire width, it is the height under the brake caliper that is the limiting factor.
They're FiRs. I may try to experiment with some other rims. Thanks!
