Need help with my chain sizing

Thread Tools

Search this Thread

Old 07-20-23 | 01:50 PM
  #1
sfazio's Avatar
Thread Starter
Junior Member

Joined: Oct 2020
Posts: 141
Likes: 153
From: Northern California

Bikes: 1970 Peugeot PX10, 1977 PX-10, 1978 Peugeot UE8, 1972 Schwinn Paramount P15-9, 1970 Raleigh Competition, 1985 Centurion Ironman, 2012 Trek Madone 4.5

Need help with my chain sizing

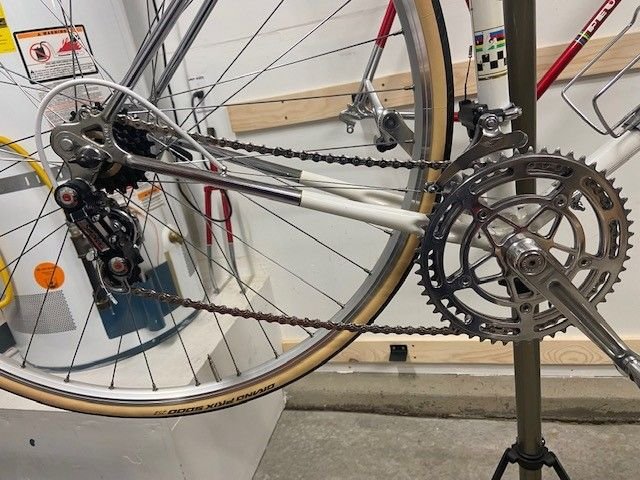

Looking for some chain help. I seem to be in between link sizes—as it sits on the bike the chain is a little loose and a test ride confirmed that there is some occasional slippage. When I removed a link it was too tight and was not shifting properly. Is the solution as simple as removing a link in the chain and bringing the stoppers up a bit or is this a derailleur issue?



sfazio is offline
Reply
Old 07-20-23 | 02:13 PM
  #2
Senior Member
5 Anniversary

Joined: Dec 2020
Posts: 7,001
Likes: 3,849
From: Wake Forest, NC

Bikes: 1989 Cinelli Supercorsa

I'd suspect the derailleur isn't tensioning the chain as it should.
smd4 is offline
Reply
Old 07-20-23 | 02:36 PM
  #3
Senior Member
Titanium Club Membership

Joined: Jun 2021
Posts: 2,037
Likes: 2,028

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, 78 Raleigh Comp GS, ’80 Peugeot TH-8 tandem

Was the RD recently 'serviced/rebuilt'? I can't 100% remember, but I seem to recall there are two hole 'positions' for the pivot spring, one providing more tension. I think there's a Simplex rebuild video on YouTube by a french bike mechanic that covers it. Also looks like you should shorten up the shift cable housing a bit- it's coming out of the stop at a pretty extreme angle....
ehcoplex is offline
Reply
Old 07-20-23 | 02:59 PM
  #4
mpetry912's Avatar
aged to perfection
Titanium Club Membership
15 Anniversary

Joined: Jun 2009
Posts: 2,242
Likes: 1,660
From: PacNW

Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

that derailleur is 40+ years old and they were only marginal back in the day.

Looks to me like the tension spring is pooched out. Slack. Kaput.

I'd suggest a new RD. Get a mid range shimano off ebay for 20 bucks.

Caution - you may have a french threaded dropout. Solvable problem

/markp
mpetry912 is offline
Reply
Old 07-20-23 | 03:11 PM
  #5
Senior Member
Titanium Club Membership

Joined: Jun 2021
Posts: 2,037
Likes: 2,028

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, 78 Raleigh Comp GS, ’80 Peugeot TH-8 tandem

Looks like a PX-10, so swapping out for a 'new' RD will be a little complicated- you'll have to tap the mounting hole and grind a stop into the hanger. Or (I think...) you could look for an old Shimano Crane RD that I believe doesn't require the stop (but I think would still require tapping).
ehcoplex is offline
Reply
