Cinelli 1a stem handlebar bolt spinning

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Cinelli 1a stem handlebar bolt spinning

Old 11-16-23, 07:33 PM
  #1
Full Member
Thread Starter

Join Date: Sep 2013
Location: Portland, Cascadia
Posts: 374
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 146 Times in 68 Posts
Cinelli 1a stem handlebar bolt spinning

This should be an easy one.

Picked up a Cinelli stem from the Co-op for some Cinelli bars I have (26.4).

Someone tightened the handlebar bolt down, and I can't unscrew it enough to remove it or get handlebars in. Turning the bolt from the back only causes the front to spin:





I tried leveraging the stem "open" as I unscrew to give some more purchase to the nut, but hard to do with just two hands and also makes it difficult to apply the right amount of pressure that lets me turn the bolt.
jPrichard10 is offline
Old 11-16-23, 07:48 PM
  #2
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 763

Bikes: Raleigh Classic 15, 84; Miyata 912, 85; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 118 Times in 72 Posts
Dremel a slot?
John Nolan is offline
Old 11-16-23, 07:57 PM
  #3
Full Member
Thread Starter

Join Date: Sep 2013
Location: Portland, Cascadia
Posts: 374
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 146 Times in 68 Posts
Originally Posted by John Nolan
Dremel a slot?

​​​​​​I'd prefer something that isn't altering the stem this drastically, and figured with how many Cinelli stems are out there that there would be some easy trick that all the Italophiles are doing.
jPrichard10 is offline
Old 11-16-23, 08:13 PM
  #4
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 763

Bikes: Raleigh Classic 15, 84; Miyata 912, 85; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 118 Times in 72 Posts
Originally Posted by jPrichard10
​​​​​​I'd prefer something that isn't altering the stem this drastically, and figured with how many Cinelli stems are out there that there would be some easy trick that all the Italophiles are doing.
Yes, I hope someone does have better idea ;-)
John Nolan is offline
Old 11-16-23, 08:14 PM
  #5
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 23,538

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1226 Post(s)
Liked 928 Times in 608 Posts
If the entire bolt is spinning, time to drill the bolt out. You will need a drill press.
wrk101 is offline
Old 11-16-23, 08:46 PM
  #6
Senior Member

Join Date: Jan 2016
Posts: 3,181
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 1,929 Times in 1,120 Posts
Possibly hold the bolt with the wrench and carefully hacksaw through the clamping slot . I’m not sure how hard the bolt is but use a new fine pitch blade.
Kabuki12 is offline
Old 11-16-23, 09:24 PM
  #7
Full Member
Thread Starter

Join Date: Sep 2013
Location: Portland, Cascadia
Posts: 374
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 146 Times in 68 Posts
Dang, was hoping this was easier than replacing the bolt.

What normally prevents the bolt from spinning? I assumed it was knurled in some way on the inside?
jPrichard10 is offline
Old 11-16-23, 10:34 PM
  #8
Senior Member

Join Date: Jan 2016
Posts: 3,181
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 1,929 Times in 1,120 Posts
Either knurled or keyed. I really can’t remember. You may try penetrating oil and tapping on it while gently turning the wrench back and forth . ATF mixed with acetone is great if you don’t have Marvel Mystery Oil. Vibration helps the penetrating oil penetrate. I use a brass hammer for this
Kabuki12 is offline
Old 11-16-23, 10:44 PM
  #9
Full Member
Thread Starter

Join Date: Sep 2013
Location: Portland, Cascadia
Posts: 374
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 146 Times in 68 Posts



Okay, looking up replace bolts ($60! Bonkers) I now see what I'm working with here. For such a storied piece of equipment, this seems like one of the dumbest designs.

I suppose sawing through would allow me to salvage the nut (if it's worth salvaging; clearly it has no "bite" left) and maybe replace the bolt.

Would be nice if someone made little shiny Allen bolt caps. Then you could have an Allen head on either side and plug the cap when you're done. Plus think of all the money you'd make reselling caps when they eventually rattle out of the stem!

It seems like a whole new stem may be my cheapest option here, unless someone has some really creative ideas.
jPrichard10 is offline
Old 11-16-23, 10:57 PM
  #10
Senior Member

Join Date: Jan 2016
Posts: 3,181
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 1,929 Times in 1,120 Posts
Hit the smooth head with a sacrificial bolt and hammer to try to lodge it into the stem hole . The serration should still be there and may just need to be driven in.
Kabuki12 is offline
Likes For Kabuki12:
Old 11-16-23, 11:03 PM
  #11
Senior Member

Join Date: Jan 2016
Posts: 3,181
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 1,929 Times in 1,120 Posts
For sixty bucks you could probably buy a complete stem!
Kabuki12 is offline
Old 11-16-23, 11:06 PM
  #12
Senior Member

Join Date: Oct 2013
Location: Dallas
Posts: 357

Bikes: 71 Lygie72 Raleigh Grand Prix76 Raleigh Super Course76 Bruce Gordon74 Raleigh International(2)2005 Specialized Roubaix Pro

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 148 Times in 69 Posts
Maybe a SMALL drop or two of permanent loctite under the front cap delivered at end of a toothpick and apply pressure to create anerobic-ness so it will lock. Danger is too much and you lock the threads more.

Worth a try, but a long shot

Do you think you might have a 26 bar in a 26.4 stem that created over-tightness?
obuckler is offline
Old 11-17-23, 12:46 AM
  #13
Full Member
Thread Starter

Join Date: Sep 2013
Location: Portland, Cascadia
Posts: 374
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 146 Times in 68 Posts
Originally Posted by obuckler
Maybe a SMALL drop or two of permanent loctite under the front cap delivered at end of a toothpick and apply pressure to create anerobic-ness so it will lock. Danger is too much and you lock the threads more.

Worth a try, but a long shot

Do you think you might have a 26 bar in a 26.4 stem that created over-tightness?
This bar and stem are both new to me, but I'm certain the bar is 26.4 the stem fits onto the sleeve, but I would mar the sleeve if I forced it any more. Plus I wouldn't be able to tighten the pinch bolt anyway even if I got the stem in place!

I tried hitting the bolt head into place with another bolt and it still spins, but I did a good job of marring the nice clean face of the bolt... Might try the locktite trick? I'm about ready to just find another stem.
jPrichard10 is offline
Old 11-17-23, 01:22 AM
  #14
seor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 8,505

Bikes: '70s - '80s Campagnolo

Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 3709 Post(s)
Liked 6,130 Times in 3,051 Posts
Friction on the nut is needed. Pry a 3 or 4mm allen key in there to add friction while you turn the bolt.

And/or check this thread to see if you can find a replacement or replacement parts:

A Stem Exchange Thread
SurferRosa is offline
Old 11-17-23, 03:08 AM
  #15
Senior Member

Join Date: Feb 2020
Posts: 2,725
Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 1034 Post(s)
Likes: 0
Liked 1,204 Times in 714 Posts
a) Spread the clamp better:
Two large screwdrivers of the flat-blade variety may work, opposed, as wedges; arrange it so they will stay in position after you tap them together
I'd find a way to hold the stem in a vice and support the handle ends.
It should be pretty easy to adjust the amount and it may be enough to break the screw free.

b) Saw the screw & nut:
You'll need to keep the screw from rotating.
Put a hex key in the screw socket, and fix it to the stem with a hose-clamp, then put the stem in your vice and hack away.
oneclick is offline
Likes For oneclick:
Old 11-17-23, 04:18 AM
  #16
Senior Member

Trakhak's Avatar

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 4,738
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 2073 Post(s)
Liked 2,393 Times in 1,363 Posts
Slide a handlebar into the stem and twist as if you were trying to get the handlebar to wobble, while turning the bolt with the Allen wrench. Maybe use a full-circumference soda can shim to protect the bar. (Probably a 3- or 4-hand operation, so have a helper nearby.) Make sure that the handlebar fits pretty tightly in the stem before applying the twisting pressure.

You should be able to apply enough pressure to force the stem farther open, thus seating the knurled portion of the stem bolt
Trakhak is offline
Old 11-17-23, 04:33 AM
  #17
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 1,454
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 410 Post(s)
Liked 655 Times in 316 Posts
I only use Cinelli 1A stems and most of the bolts were keyed. I only had one that was knurled. I just thought I would throw this in.
gearbasher is offline
Likes For gearbasher:
Old 11-17-23, 05:34 AM
  #18
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 763

Bikes: Raleigh Classic 15, 84; Miyata 912, 85; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 118 Times in 72 Posts
Is it possible that isn't the right bolt? Looking at it, I would have expected it to be closer to flush with the front of the stem.
John Nolan is offline
Likes For John Nolan:
Old 11-17-23, 06:59 AM
  #19
Senior Member

velomateo's Avatar

Join Date: Aug 2007
Location: California
Posts: 977

Bikes: '87 Serotta Colorado,'96 Moots VaMoots, Bertoni MAX, Eddy Merckx Grand Prix Team USA

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Liked 296 Times in 137 Posts
I would suggest using a non metallic wedge or shim to spread the opening, that would add some pressure against the forward nut.
You may find plastic shims or scrapers (that could be modified to the width you need) at the local hardware store.
Once wedged in, you should be able to work hands free.

Last edited by velomateo; 11-17-23 at 07:19 AM.
velomateo is offline
Old 11-17-23, 08:51 AM
  #20
Senior Member

Join Date: Jun 2006
Posts: 19,873
Mentioned: 128 Post(s)
Tagged: 0 Thread(s)
Quoted: 3260 Post(s)
Liked 2,545 Times in 1,817 Posts
Only if you have a drill press - punch center of stem nut and Kroil it, the hopefully enough depth to use an easyout. I do not see using this nut again, maybe the bolt.
‘I have one right now that is recalcitrant, but it is half way out. Hoping to avoid destructive methods. This seems to happen most often when the 26.4 stem was paired to a 26.0 bar.
repechage is offline
Old 11-17-23, 09:18 AM
  #21
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 3,329
Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1080 Post(s)
Liked 1,584 Times in 892 Posts
I would try a pair of hemostats, the thin surgical steel pliers may have enough grip to hold for removing
Mr. 66 is offline
Old 11-17-23, 09:25 AM
  #22
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 2,723

Bikes: Paramount, Faggin, Ochsner, Ciocc, Basso

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1197 Post(s)
Liked 1,630 Times in 1,005 Posts
I think there is an easier way than all of the destructive methods being proposed. Take a small nut and epoxy it to the spinning part. You can then use the nut as a leverage method to remove the bolt. When finished heat the epoxy, it breaks down at 350* so the nut can be removed. Then clean the chrome with something like Simichrome, or Quick Glo chrome polish. HTH, MH
Mad Honk is offline
Likes For Mad Honk:
Old 11-17-23, 09:51 AM
  #23
Senior Member

Join Date: Jan 2016
Posts: 3,181
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 1,929 Times in 1,120 Posts
Originally Posted by Mr. 66
I would try a pair of hemostats, the thin surgical steel pliers may have enough grip to hold for removing
If his bolt is the same as what is pictured , he would be holding the wrong side of the fastener.
Kabuki12 is offline
Likes For Kabuki12:
Old 11-17-23, 10:00 AM
  #24
Full Member
Thread Starter

Join Date: Sep 2013
Location: Portland, Cascadia
Posts: 374
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 146 Times in 68 Posts
Wow, lots of ideas here!

My sacrificial bolt marred the chrome a bit when K was trying to hammer it to get the knurls to bite.

I agree, it does look like the nut isn't flush with the end; maybe it's the wrong one? The stem is as I found it at the co-op, so no knowing if it was original or not.

​​​​​​I may try the epoxy trick if various wedges don't work.

​​​​​
​​​​
jPrichard10 is offline
Old 11-17-23, 10:12 AM
  #25
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 9,465

Bikes: '65 Frejus TDF, '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1561 Post(s)
Liked 2,117 Times in 1,051 Posts

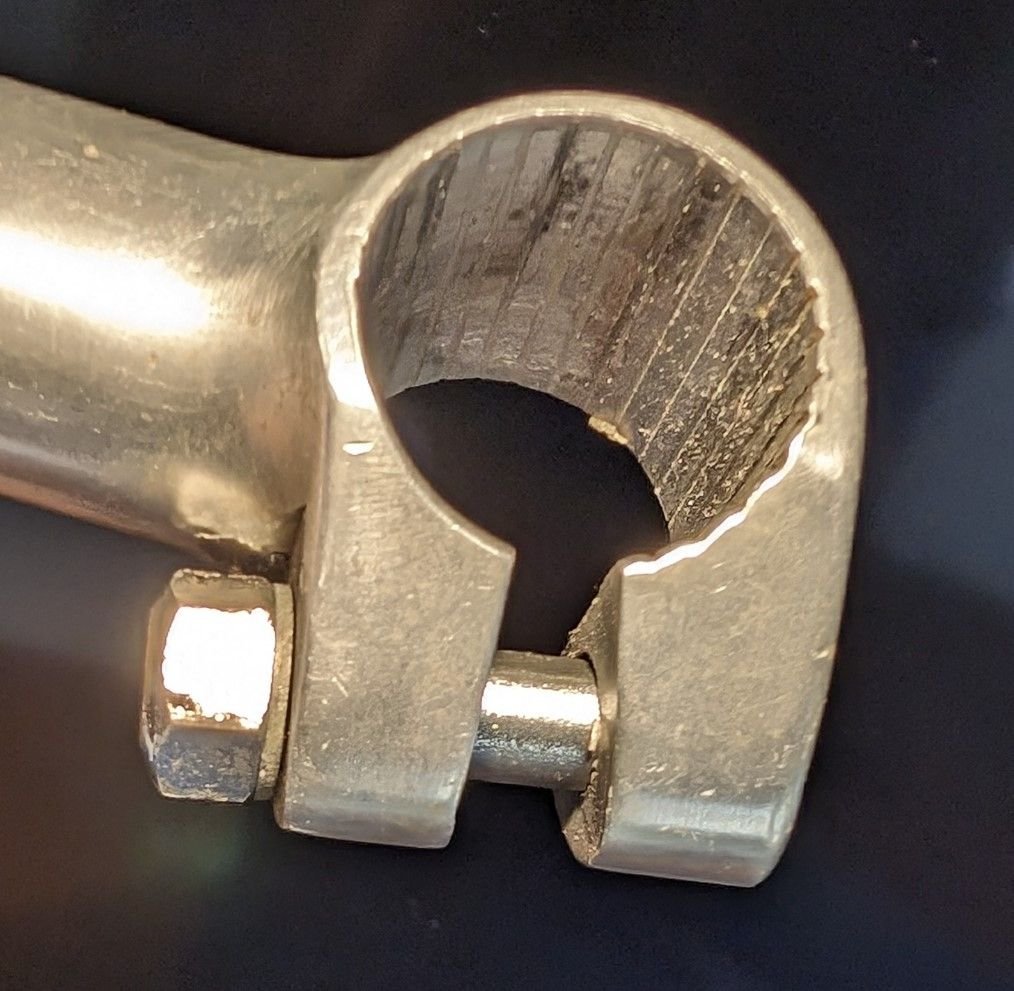

One of my 1A stems



__________________
Bikes don't stand alone. They are two tired.
