Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Lygie

Old 06-27-24, 11:21 AM
  #1
Senior Member
Thread Starter

capnjonny's Avatar

Join Date: Nov 2014
Location: Saratoga calif.
Posts: 1,068

Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.

Likes: 0
Liked 662 Times in 241 Posts
Lygie

Yet another present to me from the bike Exchange. No sooner had I taken the Schwinn Signature Slicker hotrod out of my truck and given it to the Q A Crew to check over than I spotted an old Italian Ligie that had just been donated. I quickly scooped it up and put it iin the truck before anyone could stop me and now it is in my garage. I think it is probably 60's vintage and judging from the fancy luggs and the adjustable stem, campagnolo dropouts, fork ends, hubs, shifters and front derailleur might be something special. I found a good website https://utahrandonneur.wordpress.com/the-lygie-barn/ which is dedicated to this make and hopefully will be able to pin down the detail through them.

Here are the as found pictures. More as the resto progresses. Any info re this bike greatly appreciated.











Last edited by capnjonny; 06-27-24 at 11:27 AM.
capnjonny is offline
Old 06-27-24, 11:22 AM
  #2
Forum Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 20,965

Bikes: Fuji SL2.1 Carbon Di2 Cannondale Synapse Alloy 4 Trek Checkpoint ALR-5 Viscount Aerospace Pro Raleigh C50 Cromoly Hybrid Legnano Tipo Roma Pista

Liked 7,179 Times in 4,058 Posts
Missing the pics!

EDIT: They made it!
__________________












cb400bill is offline
Old 06-27-24, 11:30 AM
  #3
Senior Member
Thread Starter

capnjonny's Avatar

Join Date: Nov 2014
Location: Saratoga calif.
Posts: 1,068

Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.

Likes: 0
Liked 662 Times in 241 Posts
lygie more pics












Last edited by capnjonny; 06-27-24 at 11:35 AM.
capnjonny is offline
Likes For capnjonny:
Old 06-27-24, 11:33 AM
  #4
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 12,174
Liked 4,035 Times in 1,475 Posts
Open C on the downtube shifter makes it more 50s than 60s. Lovely Venetian (Veneta) bike.
iab is offline
Likes For iab:
Old 06-27-24, 11:48 AM
  #5
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,630
Liked 3,633 Times in 2,352 Posts
-----

...wonder if it came out of a Tomb...

Oldairhead shall be along shortly to enlighten

​​​​​​https://utahrandonneur.wordpress.com/the-lygie-barn/


-----
juvela is offline
Old 06-27-24, 11:51 AM
  #6
Senior Member

icemilkcoffee's Avatar

Join Date: Aug 2009
Posts: 2,648
Liked 1,996 Times in 1,099 Posts
The adjustable stem is a nice score. The rest of it though- looks like a lot of work
icemilkcoffee is offline
Likes For icemilkcoffee:
Old 06-27-24, 12:15 PM
  #7
Senior Member

Join Date: Jan 2016
Posts: 3,560
Liked 2,387 Times in 1,337 Posts
Nice score . Could be well worth putting some effort into. I look forward to future posts on what is planned for this bike.
Kabuki12 is offline
Old 06-27-24, 12:45 PM
  #8
señor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,781

Bikes: '70s - '80s Campagnolo

Liked 6,737 Times in 3,331 Posts
Originally Posted by juvela
wonder if it came out of a Tomb.


Lots of work needed, but probably worth it.

The stem and bars might be worth $$$.
SurferRosa is offline
Likes For SurferRosa:
Old 06-27-24, 01:58 PM
  #9
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 3,103

Bikes: Paramount, Faggin, Ochsner, Ciocc, Basso

Liked 2,101 Times in 1,234 Posts
Looks like a great find. And it will likely clean up to be a cool bike. It's not often a 1950's model shows up pretty much complete. Can't wait for the follow up pictures of the restoration. Smiles, MH
Mad Honk is offline
Old 06-27-24, 02:15 PM
  #10
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 1,537

Bikes: 1964 Huffy Sportsman, 1972 Fuji Newest, 1973 Schwinn Super Sport (3), 1982 Trek 412, 1983 Trek 700, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk, plus others

Liked 724 Times in 407 Posts
This is kinda drool worthy for this crowd. It looks to have sat for at least 3-4 decades. Most here would have a lot of fun slowly bringing it out of its slumber. Have fun with this!
sd5782 is offline
Likes For sd5782:
Old 06-27-24, 04:31 PM
  #11
Senior Member

Pcampeau's Avatar

Join Date: Aug 2017
Location: Minneapolis
Posts: 954

Bikes: 1968 Raleigh Super Course, 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1960 Carlton Franco Suisse Peugeot PX10, 1972 Motobecane Le Champ

Liked 710 Times in 359 Posts
The serial number is on the seat tube, the first two digits are the year of manufacture. The pic isn’t perfectly clear but from here it looks to be 60, so 1960. Cool find!
Pcampeau is offline
Likes For Pcampeau:
Old 06-27-24, 04:43 PM
  #12
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,878

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Liked 1,389 Times in 875 Posts
I was thinking 1960, as well. Is that an Agrati crankset with aluminum chainrings? Reminds me of my mostly-original 1960 Sieger, which has an adjust-reach-from-the-rear stem, rather than your Major Taylor style adjust-from-the-bars. Mine has an obvious safety disadvantage if you move the bars too far back. .
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 06-27-24, 05:28 PM
  #13
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,630
Liked 3,633 Times in 2,352 Posts
-----

should you gaze upon the underside of the shell you shall likely find a "21" in two places

this is the cycle's nominal frame size as measured in inches c-t-t

frame constructed with Agrati lug pattern "BRIANZA" ART. 000.8030/U

upper head lug N.000.8034

lower head lug N. 000.8033

seat lug N. 022.8039

from the bit which can be seen of the shell it appears it may be pattern "AM"

tubing likely to be something such as Falck plain gauge, would expect a pillar of 26.2 or 26.4

hub axle locknut dates should be something close to 59

pedali originali would likely have been something from Sheffield, most probably model Corsa 655 or model 663 rather than these Sakae Ringyo fellas




OEM stem would have been either Ambrosio I-beam or Champion

count yourself fortunate that chainset Y-adaptors are ferrous, they were also produced in dural which were failure prone

wedgebolts are 9.0mm in diameter with a "medium" cut

original gear mech would of course been a GS

model appears a midliner, one up from base and two down from top

Oldairhead shall have far more & better information whenst he chooseth to drop by


-----



Last edited by juvela; 06-28-24 at 05:51 AM. Reason: addition
juvela is offline
Likes For juvela:
Old 06-27-24, 05:47 PM
  #14
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 2,186
Liked 2,881 Times in 1,198 Posts
Originally Posted by juvela
model appears a midliner, one up from base and two down from top
I dunno, I see some pretty fine worksmanship there. Thin/smoothed lugs, delicate seatstay top work... I'm thinkin' closer to top o' the line.
Pics of the dropouts might help. I especially like to see the inner face of the right rear DO, to show what they did for chain/freewheel clearance.

Anyway, definitely worth cleaning up, full spa treatment without repainting is what I'd like to see. Not that my opinion counts, not my bike, just mouthing off...

If you don't have any EvapoRust, consider buying a gallon, works like magic.
bulgie is offline
Old 06-27-24, 06:27 PM
  #15
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 12,174
Liked 4,035 Times in 1,475 Posts
If the bike is indeed 1960, Gran Sport and a steel crank would be a midline bike. 1960 would have all the Record aluminum on the top tier bike. But the components look to be a mishmash or original and owner upgrades. I think the FD, calipers, levers, headset, crankset, probably BB, shift levers are original. Owner upgrades include saddle, wheels, RD, stem, maybe bars.

I have access to only the 1956 catalog. It has a Corsa Normale and a Corsa Professionista. Both are sporting Simplex 543 RDs, 4-speed for the Normale, 5 speed for the Professionista. So not much help there.
iab is offline
Old 06-27-24, 06:36 PM
  #16
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 12,174
Liked 4,035 Times in 1,475 Posts
I will also say the seat stay is a bit perplexing. If you go to the Lygie site in the OP, you see bullet style tops in the late 50s, early 60s. You see the OP style of pointed tips in the mid 50s.
iab is offline
Old 06-27-24, 06:36 PM
  #17
Senior Member

Join Date: Aug 2020
Location: Saratoga, CA
Posts: 873

Bikes: 1981 Bianchi Specialissima, 1971 Bob Jackson. 2012 Kestrel 4000. 2012 Willier. 2016 Fuji Cross 1.1, 1950 Hetchins, 194X James Fothergill, 1971 Paramount P15, 1973 Paramount P12, 1963 Legnano

Liked 1,000 Times in 409 Posts
Great find cap’n. I’ll try to swing by and check it out.
SwimmerMike is online now
Old 06-28-24, 05:57 AM
  #18
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,630
Liked 3,633 Times in 2,352 Posts
-----

this image telling

frame constructed for 700 wheel with brake centres of 51mm front and 64mm rear to accommodate the Fratelli Pietra Extra calipers

now fitted with 27" wheel pads need to be raised 4mm in slot

​​​​​​

-----
juvela is offline
Likes For juvela:
Old 06-28-24, 06:43 AM
  #19
Senior Member

Join Date: Jun 2006
Posts: 20,344
Liked 2,866 Times in 2,020 Posts
A trick Lygie employed was to use Campagnolo ends on mid tier bikes. Increases Perceived value.
‘these seat stays are interesting, the basic geometry of the bike appears good. I would really consider tubulars or 700c.
‘the owner spent money on upgrades over time.
‘the LA bicycle licenses are a throwback to a different time. They were good for 3? 4 years. The background color changed each year, like annual renewal stickers on a car.
I expect the seatpost to be 26.8 at best.
repechage is offline
Old 06-28-24, 11:39 AM
  #20
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,767
Liked 1,190 Times in 873 Posts
As I recall the LAPD Police (who issued the bike license decals) often put the new ones on top of the old, assuming you (or siblings) kept a bike long enough to need "layers of licenses". It's an LA thing

I spotted my first Lygie (and never saw the alternate spelling "Ligie" except in recent posts, here) when a Junior High classmate whose family had Money, bought him a white model with Campagnolo gear and "rat-trap" pedals. We classmates thought this bike was sooooo exotic and special, and "Doug" closely guarded it from the errant louts who might tweak the shift levers out of curiosity and "strip my gears"!!!

Then many years later (College in Santa Monica) there was a Golden Couple of Very Attractive SoCal Architecture Students who had matching His-n-Hers Lygies, also in white with Campy gear. So I had the idea that Lygies were only sold in white (with chrome lugs) and always had expensive Italian gruppos: thus WAY out of my league!

Clearly there was at least one shop/importer for the brand (frame decal on the OP's says in West Hollywood) but I think another one or two handled the brand elsewhere in Greater LA.

Blast from the Past as I stumble down Memory Lane!
unworthy1 is offline
Likes For unworthy1:
Old 06-30-24, 04:33 PM
  #21
Senior Member
Thread Starter

capnjonny's Avatar

Join Date: Nov 2014
Location: Saratoga calif.
Posts: 1,068

Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.

Likes: 0
Liked 662 Times in 241 Posts
Thanks everyone for the interest in the Lygie. I have some more pica below for your examination.
I have beem deconstructing the bike since my previous post. It has been fighting me but so far I am winning. Both the seat post and stem were stuck solid . luckily for me they were both steel and liberal dousing with Kroil , some appropriate cursing,. threats with a sawsall and hammer, and finally a blood offering to the bike gods saw them both gradually rise from the dark recesses of the frame into the light of eternal bliss.

Unfortunately the handle bars are no longer with us. Every attempt to seperate them from the track stem proved futile. Even after sawing off one sideof the bars I had a tough time removing the remaining piece. They don't appear to have been anything special though, no markings st all on them, so no great loss. The track stem will be put up on E Bay by the bike Exchange . I have a variety of old stems. we'll see what fits.

The seat post is indeed 20.8 mm and is in good shape. Some variety of brooks ish saddle will replace the Specialized perch currently installed. I have cleaned up one 27" Weinman wheel so far. the Campi hub polished up nicely and the internals were like new. I dropped one of the bearings while putting it back together and discovered that they were 6/32".A few minutes pushing my floor magnet around finaly uncovered the wayward item and I was able to button everything up. The spokes were rusty so I used 0000steel wool followed by linseed oil to clean them up.

The Crank appears to be a Simplex with Lygie branding and 50-47 tooth steel chain rings . I will have to wait till Wednesday to go into the Bike Exchange and use their cotter press to remove them.
The freewheel is a Maeda 14-28 tooth. I tried to remove the locknut from the rear axle so I could remove it but the nuts on both sides were frozen. I put some kroil on them and let them sit overnight. Hopefully when I try again they will give up and let me have my way with them.

I am not sure about how to finish the bike. Lots of folks will advocate for keeping it in original paint. I tend to want to make it look like new if possible. I am likely to keep the 27" wheels as I am thinking they are original.I have lots of 700c wheels but none with age appropriate Campi hubs. If I can ever get the rear axle off I will probably change the freewheel. possibly to a more close ratio mech like 14-24. I 'm sure we have some italian freewheels in the shop. Then again, a 5 speed Shimano hyperglide would be a worthy improvement as far as ridability is concerned.

the brake levers had Diacomp hoods on them which I removed. Any chance they are universal levers?
So here are the pics. Feel free to comment or ask for more detail.











capnjonny is offline
Likes For capnjonny:
Old 06-30-24, 04:38 PM
  #22
Senior Member
Thread Starter

capnjonny's Avatar

Join Date: Nov 2014
Location: Saratoga calif.
Posts: 1,068

Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.

Likes: 0
Liked 662 Times in 241 Posts
and more pics

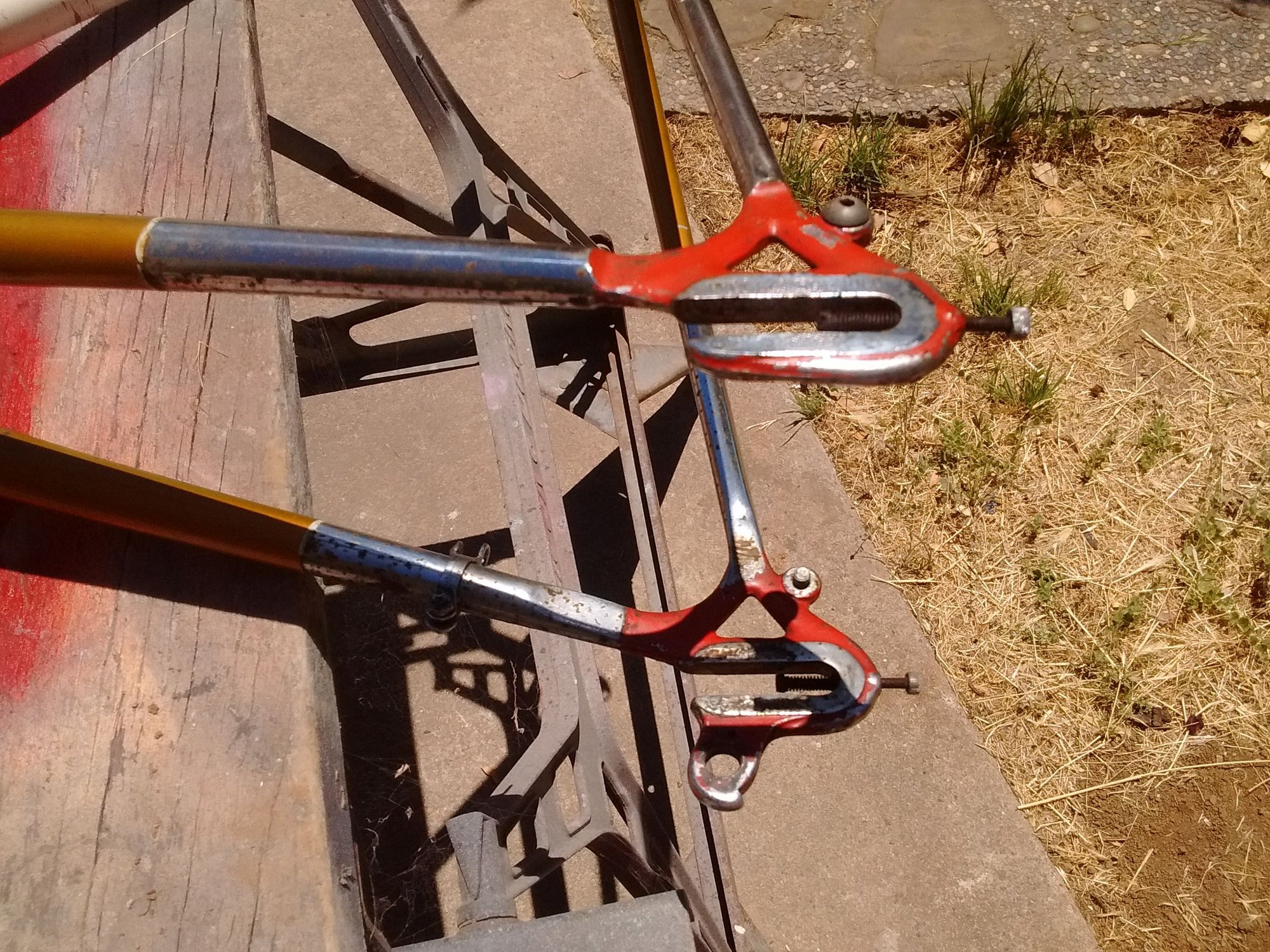

Any guess about the red painted fork ends and dropouts? I think I saw pics of another lygie with this detail???










capnjonny is offline
Likes For capnjonny:
Old 06-30-24, 04:42 PM
  #23
Senior Member
Thread Starter

capnjonny's Avatar

Join Date: Nov 2014
Location: Saratoga calif.
Posts: 1,068

Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.

Likes: 0
Liked 662 Times in 241 Posts
Thanks everyone for the interest in the Lygie. I have some more pics










below for your examination.
I have beem deconstructing the bike since my previous post. It has been fighting me but so far I am winning. Both the seat post and stem were stuck solid . luckily for me they were both steel and liberal dousing with Kroil , some appropriate cursing,. threats with a sawsall and hammer, and finally a blood offering to the bike gods saw them both gradually rise from the dark recesses of the frame into the light of eternal bliss.

Unfortunately the handle bars are no longer with us. Every attempt to seperate them from the track stem proved futile. Even after sawing off one sideof the bars I had a tough time removing the remaining piece. They don't appear to have been anything special though, no markings st all on them, so no great loss. The track stem will be put up on E Bay by the bike Exchange . I have a variety of old stems. we'll see what fits.

The seat post is indeed 20.8 mm and is in good shape. Some variety of brooks ish saddle will replace the Specialized perch currently installed. I have cleaned up one 27" Weinman wheel so far. the Campi hub polished up nicely and the internals were like new. I dropped one of the bearings while putting it back together and discovered that they were 6/32".A few minutes pushing my floor magnet around finaly uncovered the wayward item and I was able to button everything up. The spokes were rusty so I used 0000steel wool followed by linseed oil to clean them up.

The Crank appears to be a Simplex with Lygie branding and 50-47 tooth steel chain rings . I will have to wait till Wednesday to go into the Bike Exchange and use their cotter press to remove them.
The freewheel is a Maeda 14-28 tooth. I tried to remove the locknut from the rear axle so I could remove it but the nuts on both sides were frozen. I put some kroil on them and let them sit overnight. Hopefully when I try again they will give up and let me have my way with them.

I am not sure about how to finish the bike. Lots of folks will advocate for keeping it in original paint. I tend to want to make it look like new if possible. I am likely to keep the 27" wheels as I am thinking they are original.I have lots of 700c wheels but none with age appropriate Campi hubs. If I can ever get the rear axle off I will probably change the freewheel. possibly to a more close ratio mech like 14-24. I 'm sure we have some italian freewheels in the shop. Then again, a 5 speed Shimano hyperglide would be a worthy improvement as far as ridability is concerned.

the brake levers had Diacomp hoods on them which I removed. Any chance they are universal levers?
So here are the pics. Feel free to comment or ask for more detail.
capnjonny is offline
Old 06-30-24, 04:48 PM
  #24
Senior Member
Thread Starter

capnjonny's Avatar

Join Date: Nov 2014
Location: Saratoga calif.
Posts: 1,068

Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.

Likes: 0
Liked 662 Times in 241 Posts
more pics.
Are the red fork ends and dropouts original? the brake levers had diacomp hoods. Anyone recognize these levers. could they be Universal?









capnjonny is offline
Old 06-30-24, 05:27 PM
  #25
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 3,445
Liked 1,892 Times in 1,025 Posts
Originally Posted by capnjonny
and more pics
Any guess about the red painted fork ends and dropouts? I think I saw pics of another lygie with this detail???

That must be their detail style. I have white detail on the tips and dropouts
Mr. 66 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Your Privacy Choices -

Copyright © 2024 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
