This is a true guessing situation. This is listed locally with only a single photo and the simple statement "vintage Atala bike frame". It's an estate sale and there's no way I can get there today. I emailed the seller and said if it doesn't sell I'd be interested. The tubular rims caught me eye.

Wondering what if anything can be offered to identify it? I seems that it has no bottle brazeons suggesting 70's (?). It does have a derailleur hanger and some nice enough lugs.

Any ideas?

I am no Atala expert, but look at the 1971 catalog for hints. https://labibleduvelocataloguesatala...tala-1971.html

Note that the two best models both use Columbus tubing and are differentiated by their parts. What I’d do is check the seatpost diameter. If it’s 27.2 or 27.0, you can be confident it’s a good frame.

I am gonna say Atala is second from top of the line. Probably early seventies. Had one with the same colors years ago.

The difference between top of the line and second, was, as I recall, the presence of a chrome plated seat tube lug. Even though I let the white and orange one go, I brought this Atala Professional home on another day. Great bikes, by the way...

randyjawa
Randy
Thank you. I'll wait and see if it doesn't sell...
Aubergine
thank you as well. For some reason your post didn't appear until now. I haven't had a reply yet. If I do go I'll bring caliper to check.

-----

lug pattern Prugnat 62/d



stem/bar set 3TT Gran Prix, suprseded in '71 by launch of Record model

wired-on wheel hanging from hook appears constructed with Campag Sportman hub, current in early-to-mid sixties, date marking on axle locknuts between 1961 & 1965

brake calipers likely an upgrade and later than cycle

nominal frame size, as measured in inches, marked in two places on underside of bottom bracket shell




serial is on side of seat tube; the first two numerals indicate year of manufacture as here -

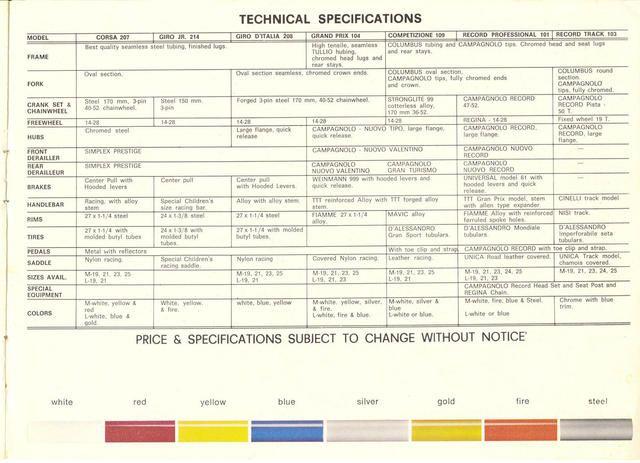

brochure page of 1971 ^


-----

-----

Double entry

juvela
Thank you.
I guessed an earlier model because no water bottle bosses but assumed late 70s.
Guessing cranks were an upgrade as well. Wondering if any other parts laying around there as well...

-----

some manufacturers were fitting 3TTT Gran Prix stem & bar stock on new cycles as late as 1971-72 as they used up existing supplies

would expect cycle just late enough to have been fitted with a Campag NR gear ensemble


-----

That photo is so ominous.

That drive side dropout looks to me suffered stress - like a caught derailleur in the spokes stress.

Here is a link to my Atala project from a few years ago.


From what I can tell, the main difference between the "Competezione" and the "Record Pro" was mainly the component spec. The frames were the same except perhaps for some model specific labelling.


Here is how mine turned out as a Retro Mod, Campy 3x9 Veloce.
https://utahrandonneur.wordpress.com...izione-before/
https://utahrandonneur.wordpress.com...tizione-after/

Wes-

The Atala sale photo shows a chrome seat lug so likely a Professional as per the brochure link.

Seems I arrived too late.......

Pretty sure the only difference between the Record and the Competizione frames in the early '70s was that they masked off the seat lug on the Record, and may have painted the bands a different color. On mine, you can see the chrome under the spots where the paint on the seat lug have chipped off.
