Placement of Stem Shifters

Search
Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Placement of Stem Shifters

Thread Tools

Search this Thread

Old 02-15-25 | 01:30 PM
  #1
plonz's Avatar
Thread Starter
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Mar 2015
Posts: 3,161
Likes: 927
From: Western MI
Placement of Stem Shifters

Building a C&V mixte with stem shifters for the missus to tootle around town. I've yet to mess with stem shifters and am wondering how high or low on the stem does one go?


plonz is offline
Reply
Old 02-15-25 | 01:36 PM
  #2
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Nov 2013
Posts: 2,399
Likes: 1,572
From: Near Pottstown, PA: 30 miles NW of Philadelphia

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Set and cable them high then let her decide. Part of the fitting phase.
Prowler is offline
Reply
Old 02-15-25 | 01:39 PM
  #3
maddog34's Avatar
Senior Member
10 Anniversary
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Jul 2015
Posts: 7,331
Likes: 3,199
From: NW Oregon

Bikes: 1982 Trek 930R Custom, '91 Diamondback Ascent w/ XT, XTR updates, Fuji Team Pro CF road flyer, Specialized Sirrus Gravel Convert, '09 Comencal Meta 5.5 XC, '02 Marin MBX500, '84 Gitane Criterium bike

make sure to put anti-seize on the clamp screw threads.... they love to permanently rust in place..
maddog34 is offline
Reply
Old 02-15-25 | 01:40 PM
  #4
daverup's Avatar
Senior Member
Titanium Club Membership
5 Anniversary

Joined: Jun 2019
Posts: 1,663
Likes: 1,964
From: Michigan USA

Bikes: A bunch of old bikes.

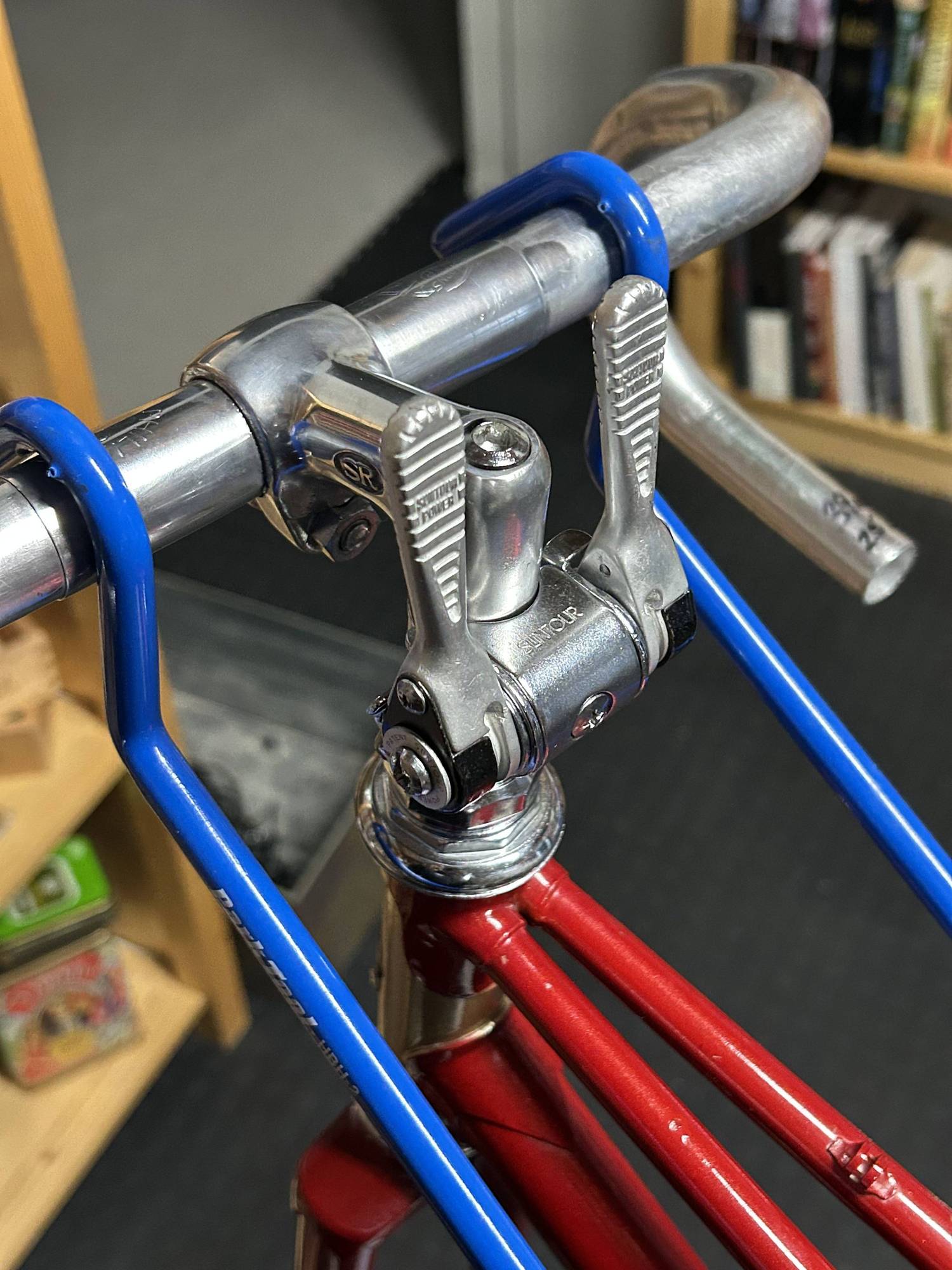

I've got a similar set of Suntour stem shifters on one of my bikes, and they are set about like yours. Seems fine to me.
My missus has a couple of mixte's with downtube shift levers. She hasn't asked for the stem shifter mod, yet.
daverup is offline
Reply
Old 02-15-25 | 03:03 PM
  #5
Senior Member
Titanium Club Membership
5 Anniversary

Joined: Jan 2019
Posts: 2,002
Likes: 1,044
From: Toledo Ohio

Bikes: 1964 Huffy Sportsman, 1972 Fuji Newest, 1973 Schwinn Super Sport (3), 1982 Trek 412, 1983 Trek 700, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk, plus others

I love the Suntour shifters. I’ve tried them stem mounted but was not really happy no matter where I mounted them. I believe the problem for me is that they are mounted too far rearward from the axis of the stem. I believe that is the reason for the easy use of the great Schwinn Twin Stik levers as they are mounted forward of the stem axis. I think the forward mounting allows the hand to subconsciously bump into the handlebar stem and automatically find the levers. IIRC, I believe I once looked at the Suntours to see if they could be reversed to be positioned in front of the axis vs behind. I run them on down tubes now after trying stem mounts at several different heights. YMMV of course and with Suntour ratchets, you can’t go wrong.
sd5782 is offline
Reply
Old 02-15-25 | 04:06 PM
  #6
dddd's Avatar
Ride, Wrench, Swap, Race
15 Anniversary

Joined: Jan 2010
Posts: 9,808
Likes: 1,781
From: Northern California

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Originally Posted by sd5782
I love the Suntour shifters. I’ve tried them stem mounted but was not really happy no matter where I mounted them. I believe the problem for me is that they are mounted too far rearward from the axis of the stem. I believe that is the reason for the easy use of the great Schwinn Twin Stik levers as they are mounted forward of the stem axis. I think the forward mounting allows the hand to subconsciously bump into the handlebar stem and automatically find the levers. IIRC, I believe I once looked at the Suntours to see if they could be reversed to be positioned in front of the axis vs behind. I run them on down tubes now after trying stem mounts at several different heights. YMMV of course and with Suntour ratchets, you can’t go wrong.
Good point about the positioning of the lever axis being perhaps better in front of the stem quill, especially when a longer stem is used!

Suntour, for their part, actually offered some of their stem levers with a choice of different "pivot box" housings that mounted either in front of or behind the stem quill.
Recalling one such example, one of their earlier ratcheting stem lever assemblies having the larger, alloy levers, and usually also having short, thicker rubber covers on their tips, like these (though here, I converted them to an old 333 DT band clamp).



Another view of the same levers, mounted to a behind-the-quill version of the pivot/clamp housing, and which was a poor choice for the longer stem length:

dddd is offline
Reply
Old 02-15-25 | 04:37 PM
  #7
zandoval's Avatar
Senior Member
Titanium Club Membership
15 Anniversary

Joined: May 2010
Posts: 5,595
Likes: 2,460
From: Bastrop Texas

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

For me I keep them just below the bars. On a really tall bike I was ridding I put them on the Top Tube just infront od the stem. That was a Sunrace set. I think it kinda makes a difference on the brand. Certainly the Suntour Ratchet stem shifters are the best.
__________________
No matter where you're at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Reply
Old 02-15-25 | 05:13 PM
  #8
plonz's Avatar
Thread Starter
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Mar 2015
Posts: 3,161
Likes: 927
From: Western MI
Great insights and advice from the BF members as usual.
plonz is offline
Reply
Old 02-16-25 | 12:10 AM
  #9
icemilkcoffee's Avatar
Senior Member
Titanium Club Membership
15 Anniversary
Community Builder
Active Streak: 30 Days

Joined: Aug 2009
Posts: 4,257
Likes: 3,665
The higher the better. Because you WILL hit your knee on the shifters at some point.
icemilkcoffee is offline
Reply
Old 02-16-25 | 07:52 AM
  #10
Pompiere's Avatar
Senior Member
20 Anniversary

Joined: Nov 2005
Posts: 4,035
Likes: 2,116
From: NW Ohio

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-1977 Univega Grand Rally, S LTD, 1973 Sears Free Spirit 531, 197? FW Evans

It's been a while since I have mounted any stem shifters, but I recall putting them so the tip of the lever was just above the top of the stem. I tend shift both levers with one hand, so that makes it easier to reach across to the opposite side.
Pompiere is offline
