How do I open this cassette?

Search
Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

How do I open this cassette?

Thread Tools

Search this Thread

Old 03-11-25 | 10:19 PM
  #1
Thread Starter
Newbie

Joined: Oct 2024
Posts: 16
Likes: 4

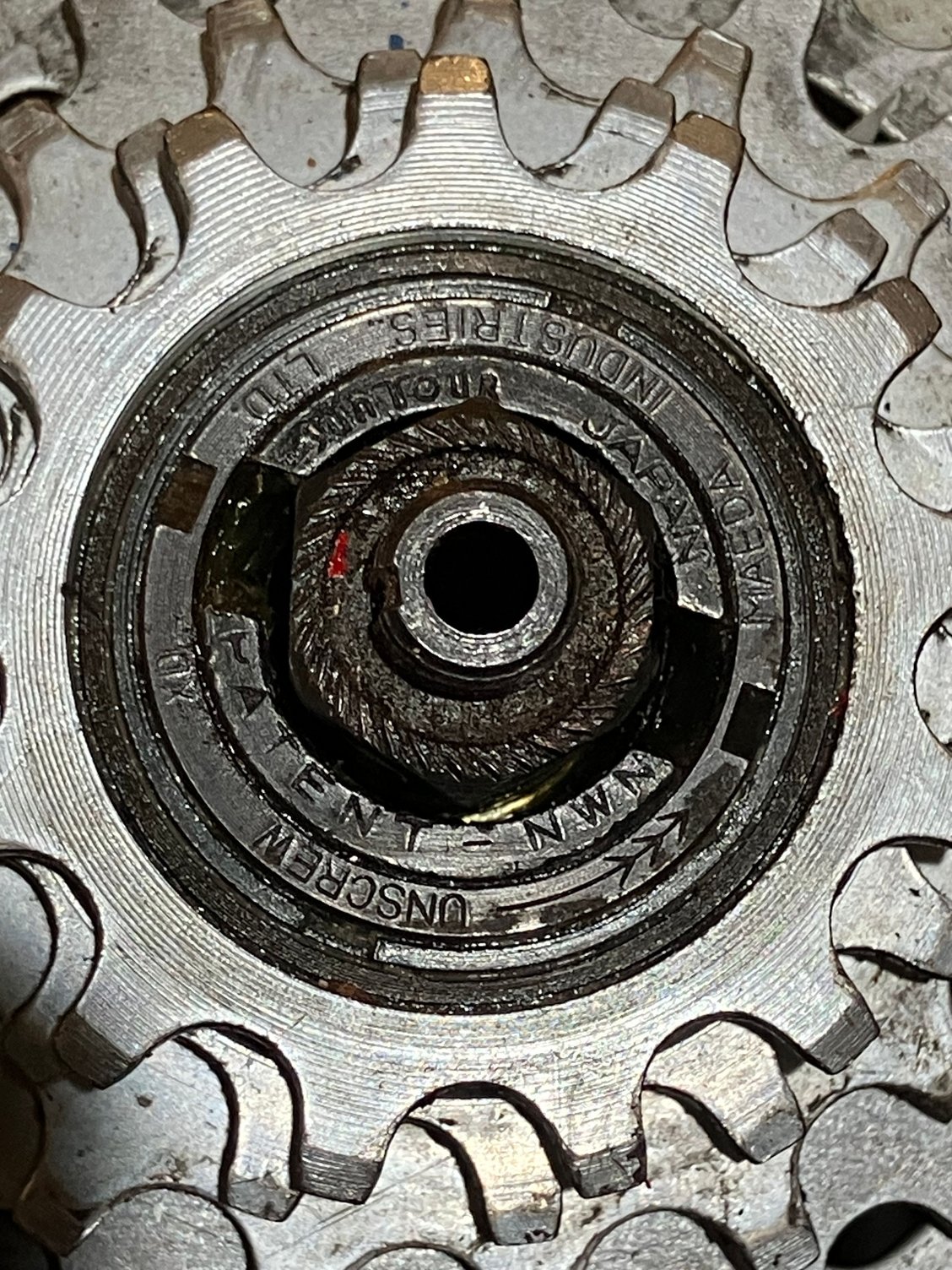

How do I open this cassette?

Can you please let me know the name of this cassette so I can look up the tool and how to open it?

chrisleusa is offline
Reply
Old 03-11-25 | 10:28 PM
  #2
roadcrankr's Avatar
Mister Geezer to you
Titanium Club Membership
20 Anniversary

Joined: Mar 2004
Posts: 1,256
Likes: 932
From: Glendora, CA

Bikes: Croll '94 & Cannondale Supersix '15

Looks like a Suntour 6sp from the late-70's.
If it's a little balky, sometimes you can put some drops of thin oil to free it up.
roadcrankr is offline
Reply
Old 03-11-25 | 10:29 PM
  #3
jdawginsc's Avatar
Edumacator
Titanium Club Membership
5 Anniversary
Community Builder
Active Streak: 30 Days

Joined: Jan 2018
Posts: 9,691
Likes: 5,177
From: Goose Creek, SC

Bikes: More than the people who ride them...oy.

Originally Posted by chrisleusa
Can you please let me know the name of this cassette so I can look up the tool and how to open it?

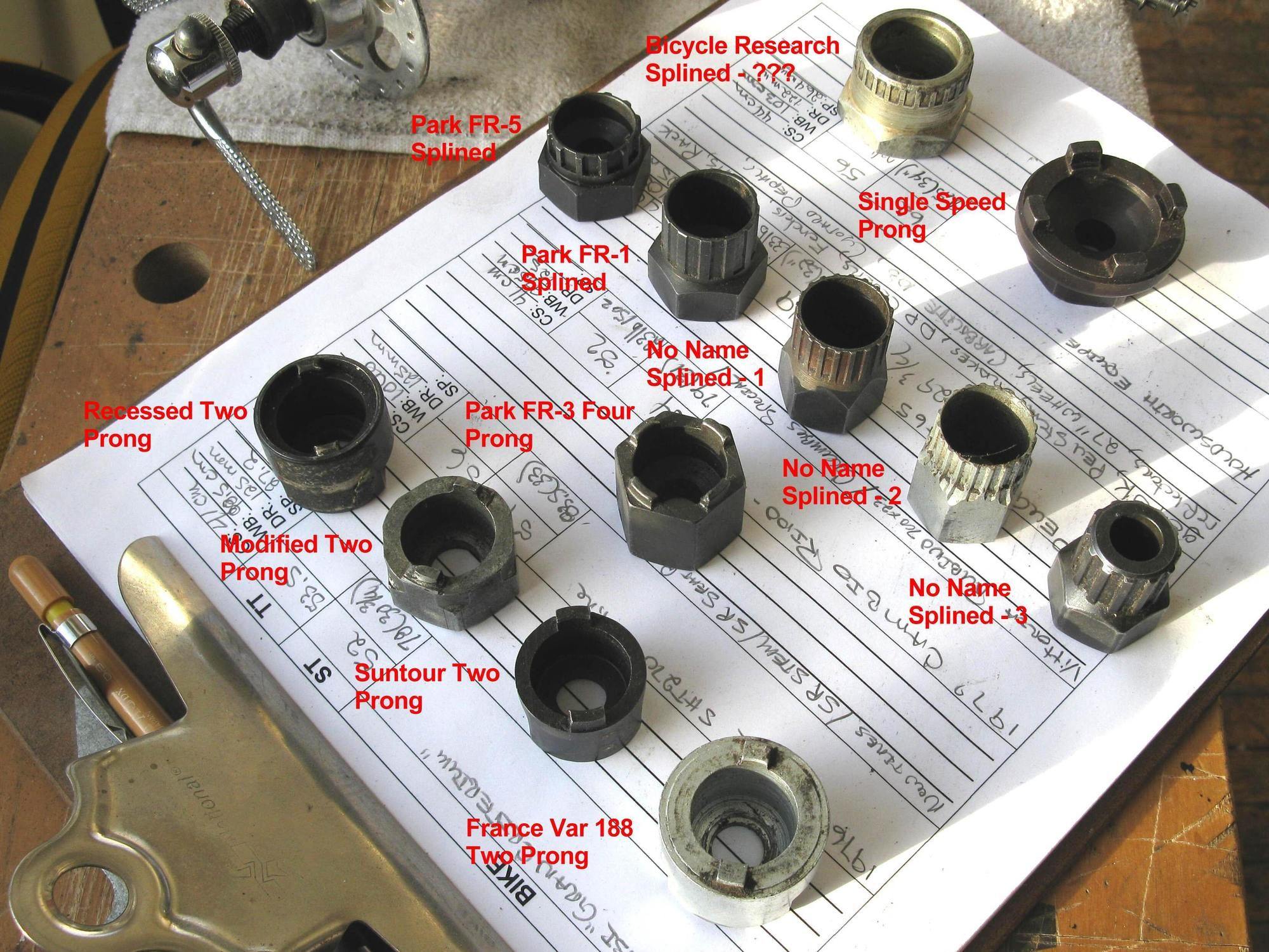

Thats a SunTour freewheel which takes a two notch remover. Park tools version works well. FR-2.

…as it is a freewheel it comes off as a unit.
1. Remove QR skewer
2. place tool in the notches completely
3. put skewer back on and tighten until the springs compress against the tool
4. place wrench/adjustable wrench on flats and pray it turns counterclockwise easily. If not, Kroil from the back!

Last edited by jdawginsc; 03-11-25 at 10:37 PM.
jdawginsc is offline
Reply
Old 03-11-25 | 10:31 PM
  #4
Senior Member
Titanium Club Membership
5 Anniversary

Joined: Oct 2020
Posts: 1,526
Likes: 1,190
From: Phoenix, AZ

Bikes: 1964(?) Frejus Tour de France, 1967(?) Dawes Double Blue, 1979 Trek 710, 1982 Claud Butler Dalesman, 1983 Schwinn Paramount Elite, 1984 Miyata 1000, 2014 Brompton, maybe a couple more

That appears to be the technological predecessor of a cassette, commonly called a freewheel. Removing it is conceptually simple, you just need a Park FR-2 freewheel remover or equivalent and a large bench vise or equivalent, plus a lot of brute strength and a little bit of technique.

Actually disassembling it and reassembling it is more challenging. This one does not appear to be in a condition where it would need to be disassembled, but if it is actually broken then it is probably a lot cheaper to replace it than fix it.
albrt is offline
Reply
Old 03-11-25 | 10:33 PM
  #5
Thread Starter
Newbie

Joined: Oct 2024
Posts: 16
Likes: 4
Thank you for the info, I found the two notch remover tool for this freewheel.

I'll try the oil method before I attempt to open it since this looks a bit more complicated.
chrisleusa is offline
Reply
Old 03-11-25 | 10:55 PM
  #6
noobinsf's Avatar
Senior Member
20 Anniversary

Joined: Sep 2005
Posts: 3,487
Likes: 1,553
From: Oakland, CA

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Youtube is great for stuff like this. Just look up "disassemble freewheel" and you'll have a lot of hits. You can also search for a creator called "RJ the Bike Guy," who has a series of instructional videos on many basic bike maintenance topics.

Manufacturers from that era had proprietary methods, so your Suntour will come apart differently from Shimanos (and different Suntour models as well), so just be sure to research before deciding to tackle it.

Last edited by noobinsf; 03-11-25 at 10:58 PM.
noobinsf is offline
Reply
Old 03-12-25 | 04:40 AM
  #7
randyjawa's Avatar
Senior Member
Titanium Club Membership
15 Anniversary

Joined: Apr 2007
Posts: 12,567
Likes: 2,740
From: Thunder Bay, Ontario, Canada - burrrrr!

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Insert the freewheel tool and secure it just less than finger tight. Now, put the wheel in a vice, snug the vice up to freewheel tool and, using both hand, break the freewheel threaded fit loose. Just a wee bit loose. Remove the wheel from the vice and loosen the skewer a bit. Now, with the tool still installed, unthread it. Best of luck...


__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Reply
Old 03-12-25 | 07:11 AM
  #8
Kontact's Avatar
Senior Member
15 Anniversary
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Apr 2011
Posts: 12,752
Likes: 4,866
"Unscrew >>>>>>>"
Kontact is offline
Reply
Old 03-12-25 | 07:21 AM
  #9
thumpism's Avatar
Bikes are okay, I guess.
Titanium Club Membership
10 Anniversary
Community Builder

Joined: Jan 2015
Posts: 8,029
Likes: 3,792
From: Richmond, Virginia

Bikes: Waterford Paramount Touring, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT, Jeunet mixte

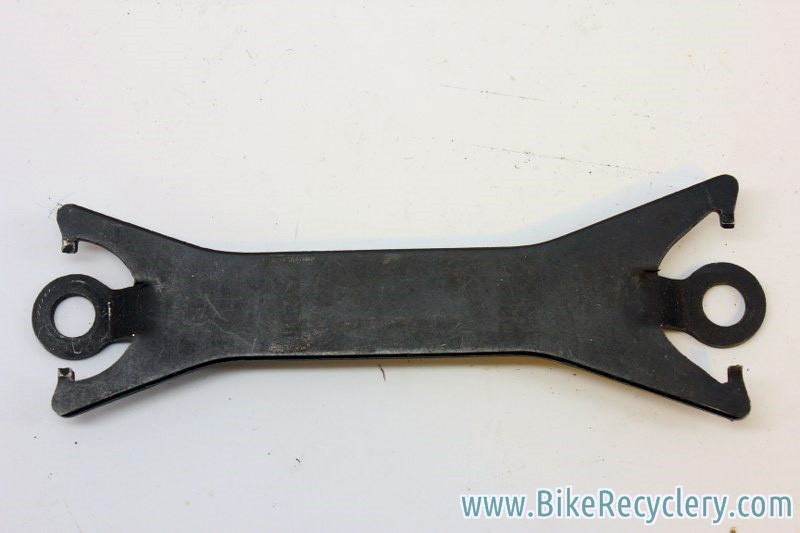

That is a SunTour Winner freewheel and there's a tool for the disassembly, in addition to the one you already know about for removal. I have one of these but this net photo is handier than me having to get off my butt and go into the cold garage to take pic for you. Good luck!
thumpism is offline
Reply
Old 03-12-25 | 07:39 AM
  #10
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,402
Likes: 5,333
From: Appleton WI

Bikes: Several, mostly not name brands.

That's not a cassette; it's a SunTour "New Winner" freewheel. To remove it from the hub, you need the proper two-prong remover tool to fit the wide notches in the freewheel body. The other, narrower notches are to adjust the bearings, for which you need a special tool. Chances are, that will be unnecessary; if it is necessary, let a bike shop or Pastor Bob deal with it.

JohnDThompson is offline
Reply
Old 03-12-25 | 04:10 PM
  #11
The Golden Boy's Avatar
Extraordinary Magnitude
Titanium Club Membership
15 Anniversary

Joined: Aug 2009
Posts: 14,085
Likes: 2,140
From: Waukesha WI

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Originally Posted by chrisleusa
Can you please let me know the name of this cassette so I can look up the tool and how to open it?
Just out of curiosity- are you trying to take the freewheel apart or are you just trying to remove it from the wheel?




__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Reply
Old 03-12-25 | 05:11 PM
  #12
Thread Starter
Newbie

Joined: Oct 2024
Posts: 16
Likes: 4
The freewheel was stuck and I was trying to open and grease it, but per roadcrankr suggestion I put some oil in it and it starts to spin again.
chrisleusa is offline
Reply
Old 03-13-25 | 11:33 AM
  #13
pastorbobnlnh's Avatar
Freewheel Medic
Titanium Club Membership
Sheldon Brown Memorial - Titanium
20 Anniversary

Joined: Oct 2005
Posts: 13,569
Likes: 3,314
From: An Island on the Coast of GA!

Bikes: Snazzy* Schwinns, Classy Cannondales & a Super Pro Aero Lotus (* Ed.)

Originally Posted by chrisleusa
The freewheel was stuck and I was trying to open and grease it, but per roadcrankr suggestion I put some oil in it and it starts to spin again.
IMO, dripping oil is only a temporary solution. Something was causing it not to freewheel. It could be corrosion, contaminated grease, a broken bearing or pawl, or a combination of these causes. You may have caused a temporary fix only to run into trouble while out on a ride. Do yourself a favor and properly service this New Winner.
__________________
Bob
Enjoying the GA coast all year long!

Thanks for visiting my website: www.freewheelspa.com





pastorbobnlnh is offline
Reply
Old 03-13-25 | 01:17 PM
  #14
Bianchi84's Avatar
Senior Member
5 Anniversary

Joined: Feb 2017
Posts: 874
Likes: 604
From: Concord, NC

Bikes: 1984 Bianchi Tipo Corsa, 1985 Cannondale SM600 (24/26)

Originally Posted by pastorbobnlnh
IMO, dripping oil is only a temporary solution. Something was causing it not to freewheel. It could be corrosion, contaminated grease, a broken bearing or pawl, or a combination of these causes. You may have caused a temporary fix only to run into trouble while out on a ride. Do yourself a favor and properly service this New Winner.
I agree; in my experience, Suntour freewheels are pretty robust. If you rebuild, take your time, be prepared for extremely small bearings to be accounted for and, as mentioned above, maybe look for YouTube tutorials. Not ready for that? Maybe hit up a co-op in your area fir a replacement.
Bianchi84 is offline
Reply
