Canpagnolo Record HS7-RE headset stack height
03-13-25 | 04:22 AM
#1
Thread Starter
Newbie
Joined: Feb 2023
Posts: 10
Likes: 1
Campagnolo Record HS7-RE headset stack height

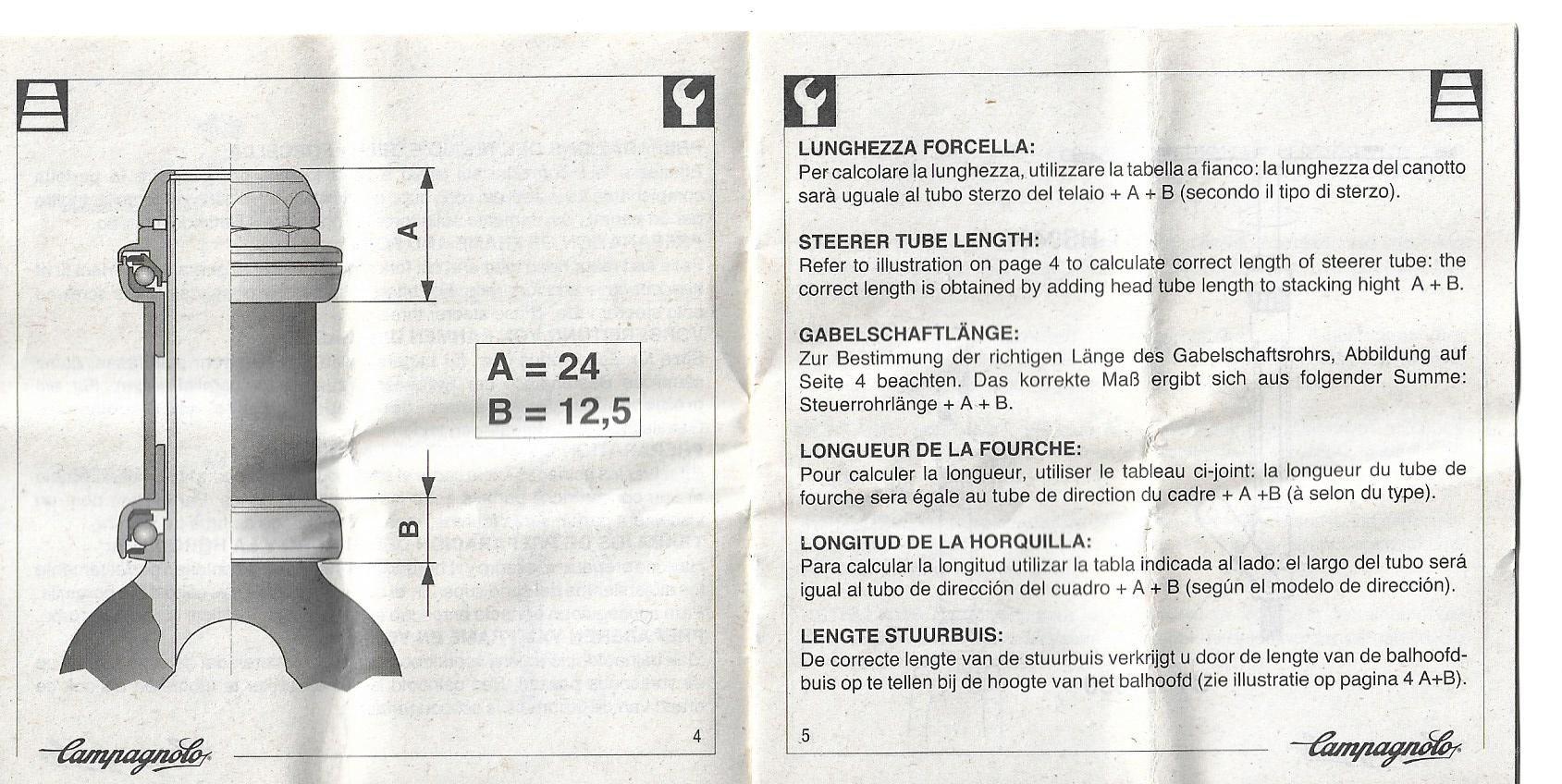

I found different information regarding the Campagnolo Record HS7-RE headset stack heigh on internet. 36.5 or 38.5
If any of you guys have the real deal in your hands/on your bike, could you help me figure out what is the real measurement please?
Thanks
If any of you guys have the real deal in your hands/on your bike, could you help me figure out what is the real measurement please?
Thanks
03-13-25 | 09:18 AM
#3
aged to perfection
Joined: Jun 2009
Posts: 2,242
Likes: 1,660
From: PacNW
Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

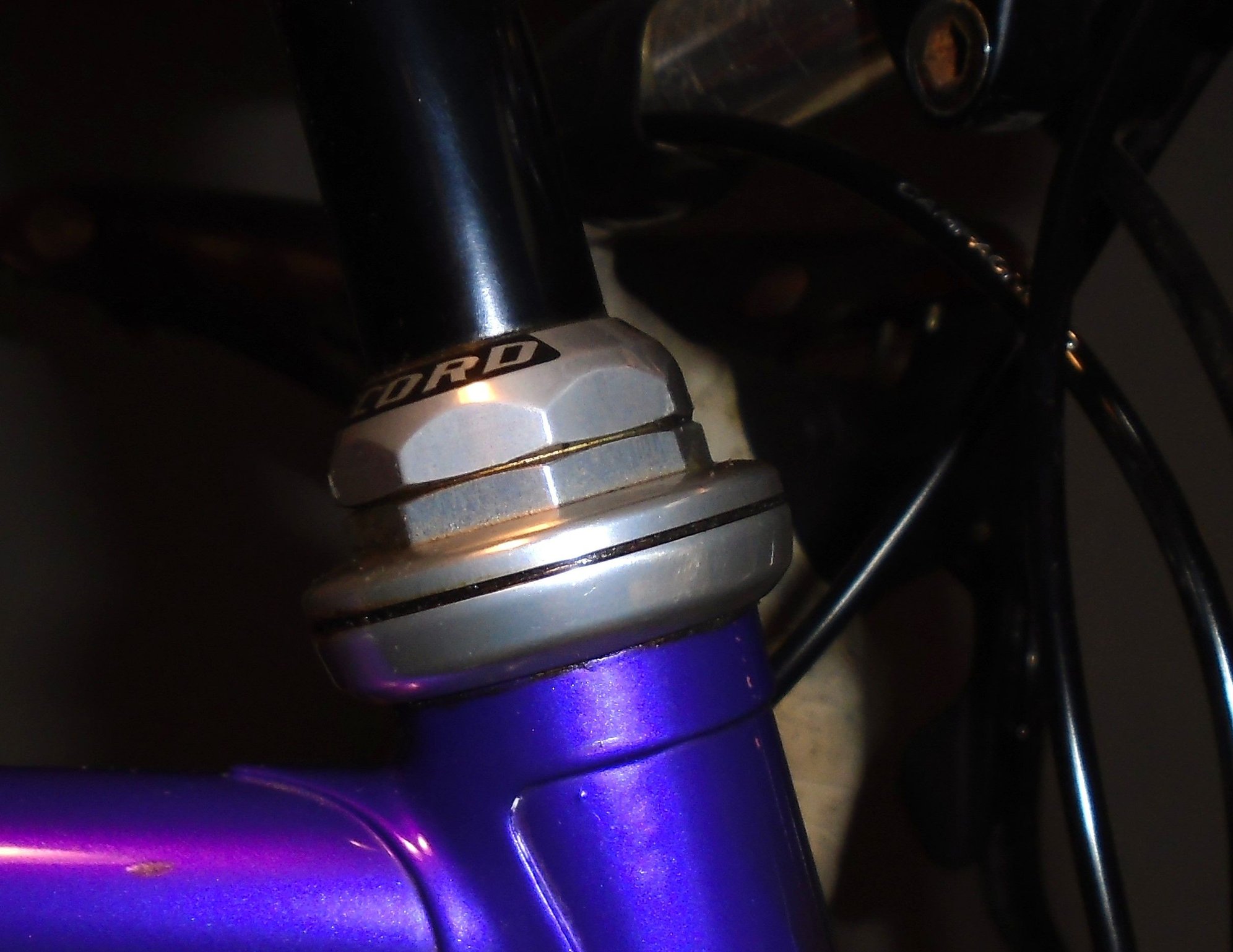

the attached pic does not show a washer under the top nut. that could account for the 2mm "discrepancy"
The only way to really know is to do a test installation on your bike. Like rim ERD, don't blindly follow the measurements you see on a website
your mileage may vary
/markp
The only way to really know is to do a test installation on your bike. Like rim ERD, don't blindly follow the measurements you see on a website
your mileage may vary
/markp
03-13-25 | 09:33 AM
#4
Senior Member
Joined: May 2009
Posts: 1,912
Likes: 1,476
From: A different place and time.
the attached pic does not show a washer under the top nut. that could account for the 2mm "discrepancy"
The only way to really know is to do a test installation on your bike. Like rim ERD, don't blindly follow the measurements you see on a website
your mileage may vary
/markp
The only way to really know is to do a test installation on your bike. Like rim ERD, don't blindly follow the measurements you see on a website
your mileage may vary
/markp
03-13-25 | 12:05 PM
#5
aged to perfection
Joined: Jun 2009
Posts: 2,242
Likes: 1,660
From: PacNW
Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc
03-16-25 | 02:02 PM
#6
Junior Member
Joined: Sep 2015
Posts: 144
Likes: 170
From: Breda, the Netherlands
Bikes: Several Gazelle Team steel bikes
Are these avaliable in a Chorus version as wel? I am still looking for a lower stack height headset for a project but it has to be Chorus but no type markings on the cups is fine as well.
