NBD, Dave Porter road bike....

Thread Tools

Search this Thread

Old 05-30-25 | 02:50 PM
  #1
Thread Starter
Senior Member
Titanium Club Membership

Joined: Jun 2021
Posts: 2,037
Likes: 2,029

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, 78 Raleigh Comp GS, ’80 Peugeot TH-8 tandem

NBD, Dave Porter road bike....

Too good (price-wise) to pass up. A little too small, don't need it, etc, etc, etc. Appears to be a Dave Porter, out of New Mexico. Mostly Dura-Ace 7401, TTT stem & bars, WTB King headset, ARR (?) carbon fiber seat post, Turbo saddle, Mavic rims. Seller said a relative who goes all-in on things (then abandons them) had it made, rode a little bit, then it hung in a garage. Got sent to the seller since he's a biker, but not his size/style and so it hung in his garage. A little grimy, but very little wear to the components, brake tracks, etc. Some nicks, bubbles in the paint here and there.
Dave Porter still has a website, though seems the newest stuff on it is 7 or so years old. I'm going to contact him to see if he can tell me anything more about the bike.








Last edited by ehcoplex; 07-24-25 at 07:17 AM.
Old 05-30-25 | 03:10 PM
  #2
Amateur Member
5 Anniversary

Joined: Mar 2021
Posts: 5,252
Likes: 8,718
From: SoCal

Bikes: Cuevas & Cimmaron are my full time riders, small MB-3 and large Competition GS are my sometimers

Glad you grabbed this, pretty great deal for that frame and parts, even cooler that it is from a small builder. Heck of a score at that price!
SoCaled is online now
Reply
Old 05-30-25 | 04:03 PM
  #3
velomateo's Avatar
Senior Member
15 Anniversary

Joined: Aug 2007
Posts: 1,055
Likes: 578
From: California

Bikes: '96 Moots VaMoots, Bertoni MAX, Eddy Merckx Grand Prix Team USA, ‘94 Merlin

Wow, nice find.

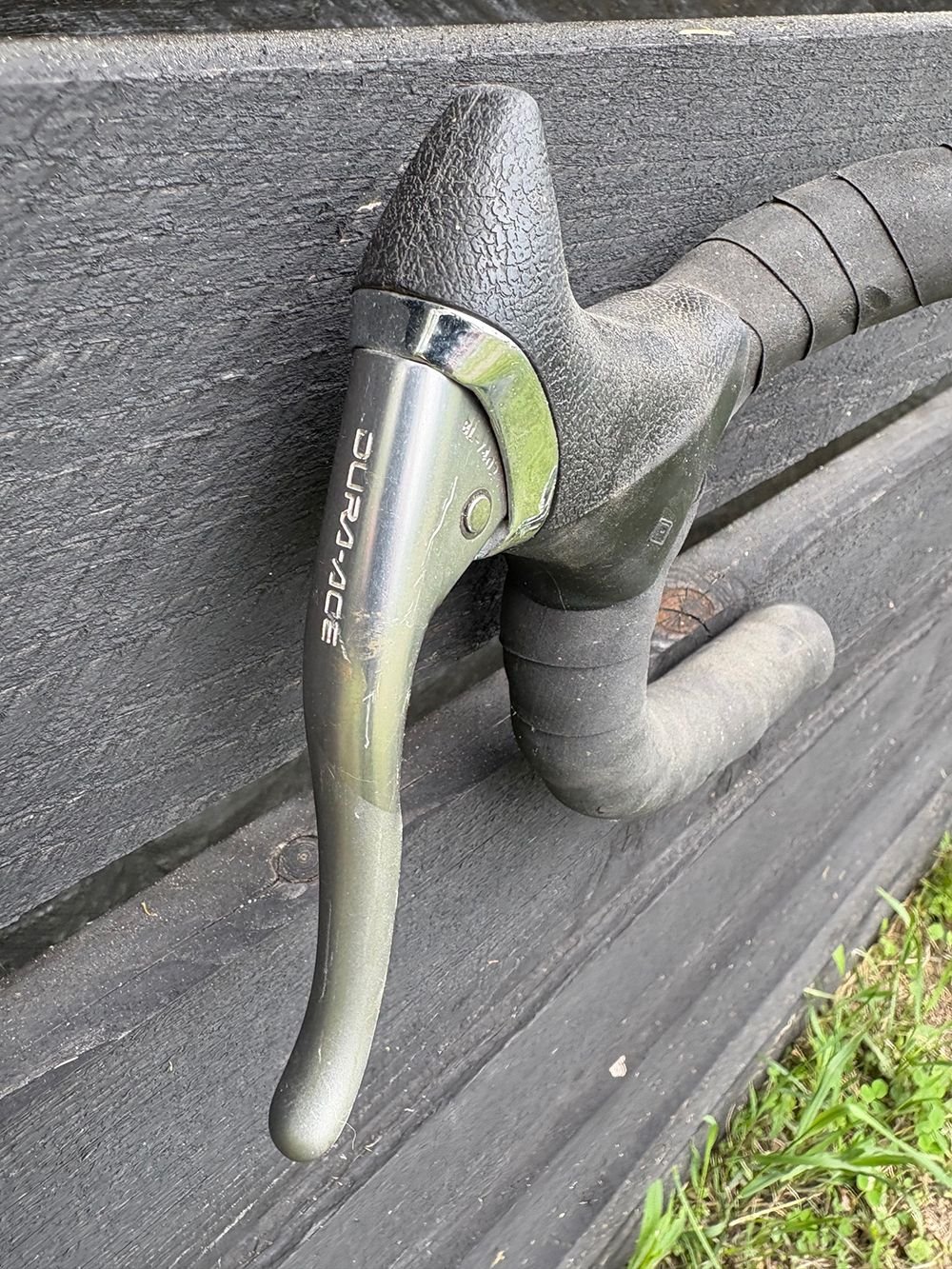

Those Dura Ace brake hoods look like NOS.
velomateo is offline
Reply
Old 05-30-25 | 08:47 PM
  #4
Thread Starter
Senior Member
Titanium Club Membership

Joined: Jun 2021
Posts: 2,037
Likes: 2,029

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, 78 Raleigh Comp GS, ’80 Peugeot TH-8 tandem

Yeah, this really was a score. It'll clean up nicely. There's practically no wear at all on the brake tracks, chainrings, etc. Wee bit of rash on one of the brake levers. The worst of it is paint chipping here and there on the frame. 23c tires.... uh un, that aint' gonna work (and they're toast, anyway). I think 30s or maybe even 32s could fit, which might make it workable for me, though the gearing is a no go for these aging knees on the local hills. Dunno really what I'm do with this- 90's is awfully modern for me... But I am glad I snagged it.















ehcoplex is offline
Reply
Old 05-30-25 | 10:17 PM
  #5
unworthy1's Avatar
Stop reading my posts!
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 14,029
Likes: 2,231
I'm glad you snagged it too and happy it was a Porter, hope he gets back to you with more history!
unworthy1 is offline
Reply
Old 06-01-25 | 06:04 PM
  #6
Thread Starter
Senior Member
Titanium Club Membership

Joined: Jun 2021
Posts: 2,037
Likes: 2,029

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, 78 Raleigh Comp GS, ’80 Peugeot TH-8 tandem

Dave Porter did get back to me to confirm it was one of his, but that's as far as the answers went (yeah, I get it, folks are busy and who really wants to deal with questions from some internet rando about something from 30 years ago....). Deconstructing is for a thorough clean, new cables, got to get some tires for it. The 3ttt bars and stem aren't a good fit for me, so I'll have to sort something out there. And with the gearing I'll definitely be limited in the local routes I can do on it.

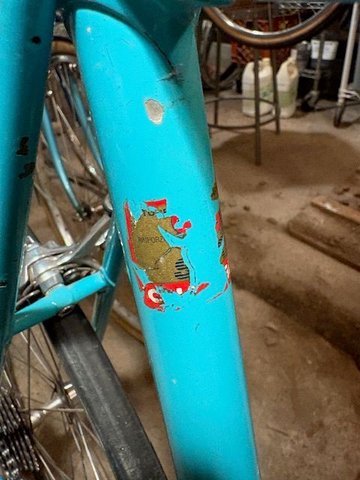

I'm pretty sure the Columbus label is SLX, which apparently is/was kinda nice (my first go with Italian steel...)- looking forward to a ride. My old joints need 'compliance', so I'm trying to figure out tires. Paselas are the 'right price', but I have to say I haven't found 'em all that comfortable on the bike I've got them on. Debating the splurge on Rene Herse (which really transformed the feel of the couple bikes I've got 'em on, but the narrowest has been 35c).


Last edited by ehcoplex; 06-01-25 at 06:15 PM.
ehcoplex is offline
Reply
Old 06-02-25 | 08:43 AM
  #7
Thread Starter
Senior Member
Titanium Club Membership

Joined: Jun 2021
Posts: 2,037
Likes: 2,029

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, 78 Raleigh Comp GS, ’80 Peugeot TH-8 tandem

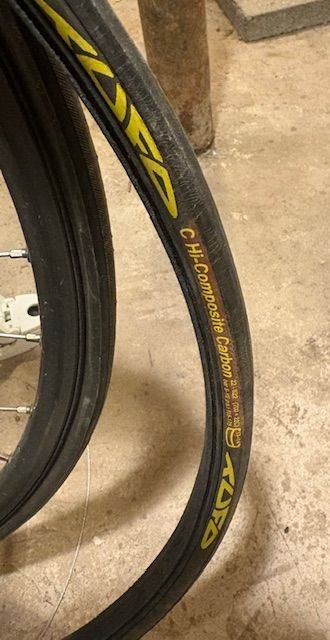

Well, this was a new one to me. Was having a heck of a time getting a tire lever under the bead to get these hard-as-a-rock tires off the rims..... Tufo 'tubular clinchers'.....??

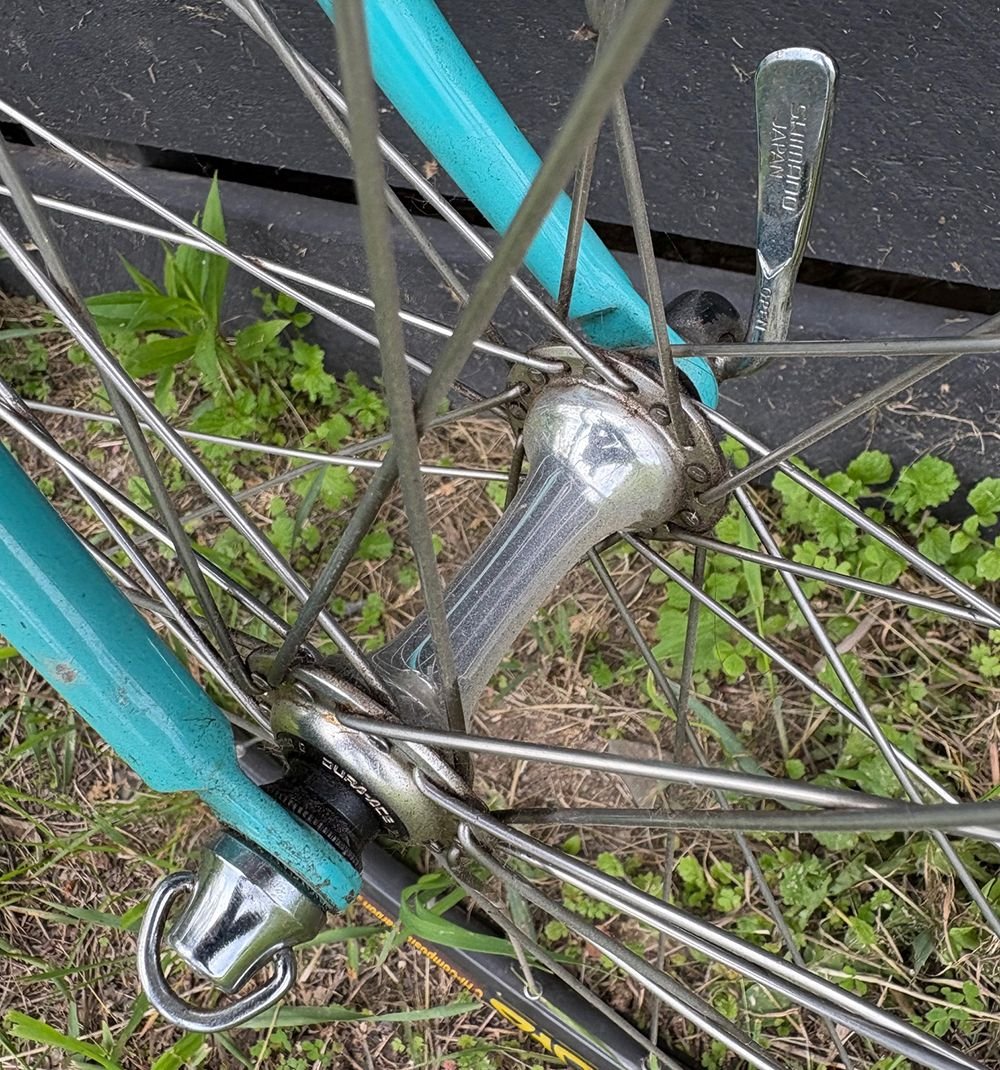

Sadly have determined that clearance at the rear brake bridge really limits tire size. If everything is perfectly aligned and the dropout screws are in pretty far (the Shimano rear dropouts are neither horizontal nor vertical, but sort of 'diagonal' with adjusters- searching hasn't come up with specifically what model they are......) 30c just barely clears. Little too close for comfort, so looks like 28c might be it. Unfortunately means it probably won't be a keeper- I need more cushion than 28c will provide.

Written on the rim tape is "built for Fred Gunckel 7.2.91 by Greg O Wilderness Centre 294 14ga SS"....
ehcoplex is offline
Reply
Old 06-02-25 | 11:40 AM
  #8
kroozer's Avatar
vintage motor
Titanium Club Membership
15 Anniversary

Joined: Sep 2008
Posts: 1,786
Likes: 349
From: Tepic, Nayarit, Mexico

Bikes: 48 Automoto, 49 Stallard, 50 Rotrax, 62 Jack Taylor, 67 Atala, 68 Lejeune, 72-74-75 Motobecanes, 73 RIH, 71 Zieleman, 74 Raleigh, 78 Windsor, 83 Messina (Villata), 84 Brazzo (Losa), 85 Davidson, 90 Diamondback, 92 Kestrel

This might be a good candidate for 650A or 650B wheels.
kroozer is offline
Reply
Old 06-02-25 | 11:51 AM
  #9
Randomhead

Joined: Aug 2008
Posts: 25,930
Likes: 4,825
From: Happy Valley, Pennsylvania
I was hoping it was one of his bikes with tubes through the chainstays For stiffness, supposedly.

unterhausen is offline
Reply
Old 06-02-25 | 01:20 PM
  #10
Thread Starter
Senior Member
Titanium Club Membership

Joined: Jun 2021
Posts: 2,037
Likes: 2,029

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, 78 Raleigh Comp GS, ’80 Peugeot TH-8 tandem

Originally Posted by kroozer
This might be a good candidate for 650A or 650B wheels.
Funny you should mention..... I tried a set of 650b wheels with 42c tires from one of the other bikes just to see.... Front turns, but is just a wee bit too-close-for-comfort, back is no-go at the chain-stays. 35mm would be a little tight, but do-able, though I don't think it's worth it for 35's. 38mmwould be, though. I've dimpled a couple frames & have a DIY jig for it. It isn't really like the frame (as nice as it is, though the paint has plenty of little chips) is an ultra-special, sought-after rarity, so maybe....
I was thinking earlier that I'd end up parting it out, maybe making a little bit of $ selling the Dura-Ace group, hang onto the frame 'for a rainy day'. But.... I do have a set of recessed-bolt Tektro 559 brakes in the bin, and a set of Soma Weymouth 650b rims waiting to be built into something... I could probably sell the 7402 brake set and make back about what I paid for the whole thing.... Could dismantle the wheels, sell the great-condition Mavic rims for a little bit of $ and build up the Dura-Ace hubs with the 650b rims.... I have to admit I've always had a bit of a bias against Shimano, but must say these Dura-Ace bits are like jewelry.... decisions, decisions...
ehcoplex is offline
Reply
Old 06-02-25 | 03:38 PM
  #11
georges1's Avatar
Steel is real
10 Anniversary
Community Builder
Community Influencer

Joined: Mar 2013
Posts: 4,554
Likes: 2,633
From: Not far from Paris

Bikes: 93GiantTourer,92MeridaAlbon,96Scapin,98KonaKilaueua,93Peugeot Prestige,05CasatiClipper,98Jamis Dragon,95Tange Prestige(to be built),98VettaTeam,95Coppi,93Grandis,Daccordi x3(in build),98Piton(in build),99Trek SLR2300

Very nice bike and with the great Dura Ace 7401
georges1 is offline
Reply
Old 06-02-25 | 04:35 PM
  #12
Thread Starter
Senior Member
Titanium Club Membership

Joined: Jun 2021
Posts: 2,037
Likes: 2,029

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, 78 Raleigh Comp GS, ’80 Peugeot TH-8 tandem

No shortage of lessons/surprises on this one (for me, at least)..... like, oooof, the freehub requires a special, apparently rare, and expensive tool. The grease in everything is congealed to a near-solid state, so this thing definitely needs servicing. Unlikely, but I'm going to hold onto hope that maybe one of the (2...) shops within an hour has one.
Then there's the WTB King Grease Guard headset... also quite congealed. Apparently Wilderness Trail Bikes modified Chris King headsets so one could shoot grease into them through a tiny hole in a machined groove hidden by an o-ring. Apparently serviceable, but definitely quite different from the loose-ball headsets I'm accustomed to!
And finally (so far...) is the very ugly A.R.R. carbon fiber seatpost..... I though, 'well, maybe it's really light!', but just compared to a Ritchie seatpost of similar (long) length that I've got in my bin and they're pretty much the same...

ehcoplex is offline
Reply
Old 06-02-25 | 06:57 PM
  #13
bulgie's Avatar
Senior Member
Titanium Club Membership
15 Anniversary
Community Builder
Community Influencer

Joined: Apr 2009
Posts: 3,785
Likes: 5,636
From: Seattle
Originally Posted by ehcoplex
Sadly have determined that clearance at the rear brake bridge really limits tire size. If everything is perfectly aligned and the dropout screws are in pretty far (the Shimano rear dropouts are neither horizontal nor vertical, but sort of 'diagonal' with adjusters- searching hasn't come up with specifically what model they are......)
Those are model UF. There's also a knockoff made in Italy, Gipiemme I think, and also a Taiwanese one, so close they're hard to tell from a Shimano, without removing the wheel to see the name stamped in the faces.
They were also sold in retail packaging with a hang tag that says Dura-Ace, so in that sense they're DA dropouts.

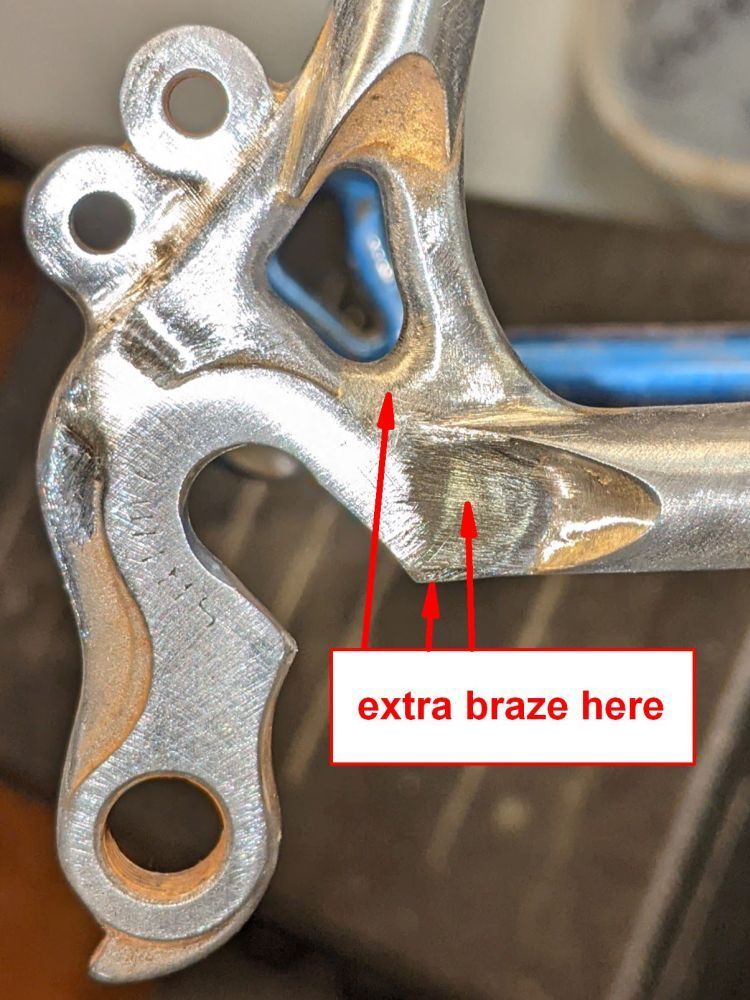

I've used a number of them including on my wife's road racer, but I never could figure out what the adjusters were for, so I fill the hole with braze.

They're also a bit weak in the load-path from the chainstay to the axle — fairly common to see fatigue cracking there. They made the window come down too low; the dropouts could have been bombproof if they'd just made the window not come down so low. Here's one where I repaired the crack by brazing, and I filled up the lower part of the window with strong nickel alloy braze filler, that's about as strong as the steel. Easy repair, if yours ever cracks there, but of course it ruins the paint locally.



bulgie is offline
Reply
Old 06-02-25 | 08:43 PM
  #14
Thread Starter
Senior Member
Titanium Club Membership

Joined: Jun 2021
Posts: 2,037
Likes: 2,029

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, 78 Raleigh Comp GS, ’80 Peugeot TH-8 tandem

Originally Posted by bulgie
Those are model UF. There's also a knockoff made in Italy, Gipiemme I think, and also a Taiwanese one, so close they're hard to tell from a Shimano, without removing the wheel to see the name stamped in the faces.
They were also sold in retail packaging with a hang tag that says Dura-Ace, so in that sense they're DA dropouts.

I've used a number of them including on my wife's road racer, but I never could figure out what the adjusters were for, so I fill the hole with braze.

They're also a bit weak in the load-path from the chainstay to the axle — fairly common to see fatigue cracking there. They made the window come down too low; the dropouts could have been bombproof if they'd just made the window not come down so low. Here's one where I repaired the crack by brazing, and I filled up the lower part of the window with strong nickel alloy braze filler, that's about as strong as the steel. Easy repair, if yours ever cracks there, but of course it ruins the paint locally.
Well I'll be... there IS a section on velobase for dropouts! I looked, but didn't see the 'frame parts' area and they didn't come up under just a Shimano search. Jeeze, if nothing else this Porter bike has learned me a bunch of interesting stuff. Yeah, the dropout adjusters.... well, I can say that in trying a bunch of wheels with different size tires they do have a not insignificant effect on the clearance at the brake bridge when things are tight! I'll have to make a close inspection for cracks in the window... "semi-horizontal"..... lol
ehcoplex is offline
Reply
