Help identifying my father's frame brand?

Search
Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Help identifying my father's frame brand?

Thread Tools

Search this Thread

Old 07-29-25 | 09:49 AM
  #1
WilliamHaven's Avatar
Thread Starter
Newbie

Joined: Jul 2025
Posts: 5
Likes: 4
Help identifying my father's frame brand?

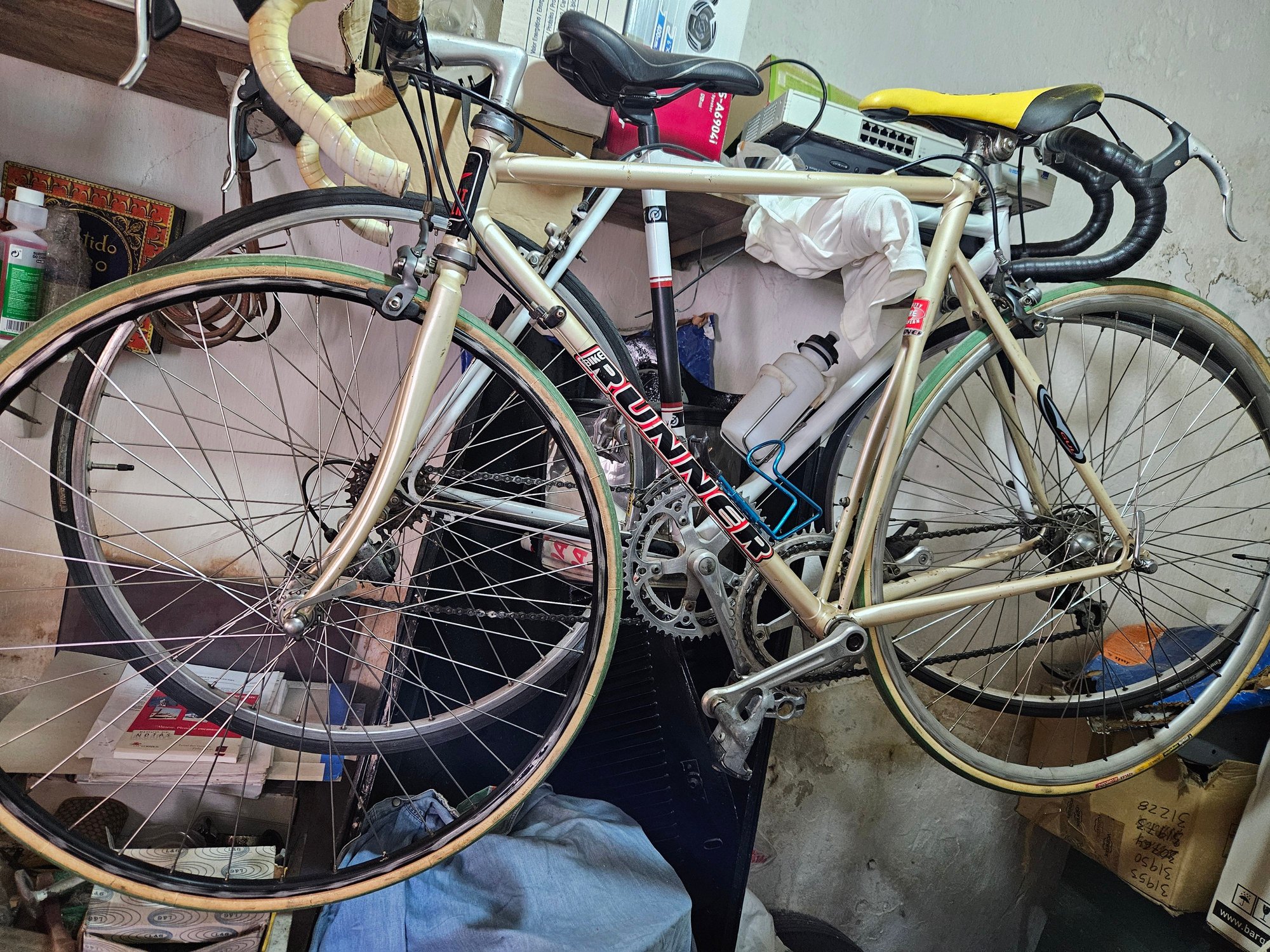

Hi guys. This is my father's bike.
Can anyone recognize or give any hint on the brand of this frame?
Stickers seem to be offbrand. Paint work appears original. Located in Europe. Probably 80's ou early 90's?




WilliamHaven is offline
Reply
Old 07-29-25 | 10:13 AM
  #2
Pedal to the medal
Titanium Club Membership
10 Anniversary

Joined: Sep 2012
Posts: 1,444
Likes: 331
From: The Arsenal of Democracy

Bikes: 1991 Team Miyata Track, 1992 Lemond Alpe d'Huez, 19?? Schwinn High Serra, 1982 Trek 614, 198X Raleigh Alyeska

The split downtube is certainly unique. I've seen one or two frames like that, though their names escape me. I'm confident someone more knowledgeable than me will come along shortly. Good looking bike!
romperrr is offline
Reply
Old 07-29-25 | 10:16 AM
  #3
Reynolds's Avatar
Passista
Titanium Club Membership
20 Anniversary

Joined: Jul 2005
Posts: 8,258
Likes: 1,218

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Paletti had some split seat tube frames, but they used a different setup IIRC.
Reynolds is offline
Reply
Old 07-29-25 | 10:32 AM
  #4
Amateur Member
5 Anniversary

Joined: Mar 2021
Posts: 5,251
Likes: 8,717
From: SoCal

Bikes: Cuevas & Cimmaron are my full time riders, small MB-3 and large Competition GS are my sometimers

None of the others I have seen have the dropped seat stay attachment - Saxon, Rigi, Paletti, Mecacycle

Edit: Could the stamp on the BB be from Racord Gargette Freres?
"RGF" French bottom bracket shell?

Last edited by SoCaled; 07-29-25 at 10:41 AM.
SoCaled is offline
Reply
Old 07-29-25 | 11:37 AM
  #5
WilliamHaven's Avatar
Thread Starter
Newbie

Joined: Jul 2025
Posts: 5
Likes: 4
Originally Posted by SoCaled
None of the others I have seen have the dropped seat stay attachment - Saxon, Rigi, Paletti, Mecacycle

Edit: Could the stamp on the BB be from Racord Gargette Freres?
You're right. It's the same logo!

WilliamHaven is offline
Reply
Old 07-29-25 | 11:57 AM
  #6
noobinsf's Avatar
Senior Member
20 Anniversary

Joined: Sep 2005
Posts: 3,487
Likes: 1,553
From: Oakland, CA

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Puch had the Mistral Bergmaschine, but that one also was missing the dropped seat stay treatment. Never seen one like this. Cool bike!
noobinsf is offline
Reply
Old 07-29-25 | 12:12 PM
  #7
Darth Lefty's Avatar
Disco Infiltrator
Titanium Club Membership
10 Anniversary
Community Builder
Active Streak: 30 Days

Joined: May 2013
Posts: 15,345
Likes: 3,542
From: Folsom CA

Bikes: Stormchaser, Paramount, Tilt, Samba tandem

Crazy build on a crazy frame! Parts bin build or gradually updated over many years. Mismatched wheels. Controls and seat are newer. Crankset looks age appropriate. Check out the single bolt style seat post, which is - just totally out of left field, usually found on cheap bikes or antiques.

If I had that frame I'd try to do anything I could afford with it too, it's really cool
__________________
Genesis 49:16-17
"Well, well!" said Holmes, impatiently. "A good cyclist does not need a high road. The moor is intersected with paths and the moon is at the full."
Darth Lefty is offline
Reply
Old 07-29-25 | 12:15 PM
  #8
unworthy1's Avatar
Stop reading my posts!
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 14,029
Likes: 2,231
yep it's unlike any other "twin seat tube" I ever saw!
Curious to see how the FD is mounted as well as other details (like the DOs and fork ends. brake bridge, etc.) some things are sort of "earlier" like the RGF BB shell and fishmouth stay details, but I think both brakes are recessed Allen-head bolts plus the WB bosses and cable routing are a "bit later" in fashion. Might even be a custom one-off frame

I wonder if the seat tube was reinforced with a shim (something I'd want to see with those "shot-in" seat stays!) and if so maybe required a smaller size seat post?

Last edited by unworthy1; 07-29-25 at 12:18 PM.
unworthy1 is offline
Reply
Old 07-29-25 | 12:34 PM
  #9
jdawginsc's Avatar
Edumacator
Titanium Club Membership
5 Anniversary
Community Builder
Active Streak: 30 Days

Joined: Jan 2018
Posts: 9,691
Likes: 5,175
From: Goose Creek, SC

Bikes: More than the people who ride them...oy.

Threading in the BB would narrow it down. Maybe something offbeat and Swiss?
__________________
1987 Crest C'dale, 1987 Basso Gap, 1992 Rossin EL, 1990 Van Tuyl, 1985 Trek 670, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Isoard, 1987 Nishiki Tri-A, 1981 Faggin, 1996 C'dale M500, 1984 Mercian Pro, 1982 AD SuperLeicht, 1985 Massi ?, 1988 Daccordi Griffe , 1989 Fauxsin MTB, 1981 Ciocc Mockba, 1992 Bianchi Giro, 1977 Colnago Super, 1971 Raleigh Internat'l, 1998 Corratec U+D, 1991 Peugeot Slimestone, 1987 Bianchi Volpe, 1995 Trek 750




















jdawginsc is online now
Reply
Old 07-29-25 | 01:00 PM
  #10
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,401
Likes: 5,333
From: Appleton WI

Bikes: Several, mostly not name brands.

Originally Posted by jdawginsc
Threading in the BB would narrow it down. Maybe something offbeat and Swiss?

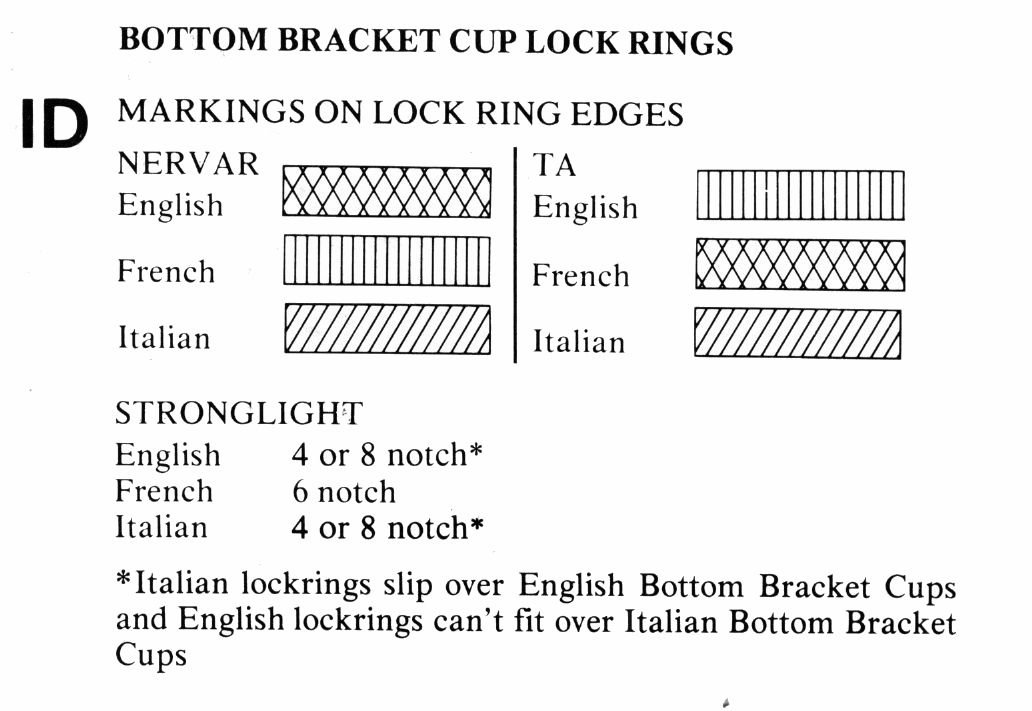

The knurling on the lockring may indicate thread spec. While the crank arm is Campagnolo, the lockring is not, as Campagnolo did not knurl their lockrings. If it's a TA lockring, that knurling pattern would indicate English thread. But if it's a Nervar lockring, it would indicate French thread.

From Sutherland's 4th Edition.


Last edited by JohnDThompson; 07-29-25 at 01:05 PM.
JohnDThompson is offline
Reply
Old 07-29-25 | 01:04 PM
  #11
Newbie

Joined: Apr 2023
Posts: 66
Likes: 67
From: SF Bay Area

Bikes: A bunch.

I believe Freschi also made some split seat tube bikes. The one below also has dropped seat stay attachment; but a different style than the subject bike. If yours was a Freschi, though, I can't imagine it wouldn't have engraved "F"s on it in several places.

More photos of this Freschi here: https://cicli-berlinetta.com/product...oad-bike-58cm/


Last edited by kr_bennett; 07-29-25 at 01:09 PM.
kr_bennett is offline
Reply
Old 07-29-25 | 02:30 PM
  #12
thumpism's Avatar
Bikes are okay, I guess.
Titanium Club Membership
10 Anniversary
Community Builder

Joined: Jan 2015
Posts: 8,029
Likes: 3,792
From: Richmond, Virginia

Bikes: Waterford Paramount Touring, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT, Jeunet mixte

Rigi made frames like that, probably the best known.

Das RiGi Bici Corta ist der Renner der Woche auf Rennrad-News
thumpism is offline
Reply
Old 07-31-25 | 09:37 AM
  #13
WilliamHaven's Avatar
Thread Starter
Newbie

Joined: Jul 2025
Posts: 5
Likes: 4

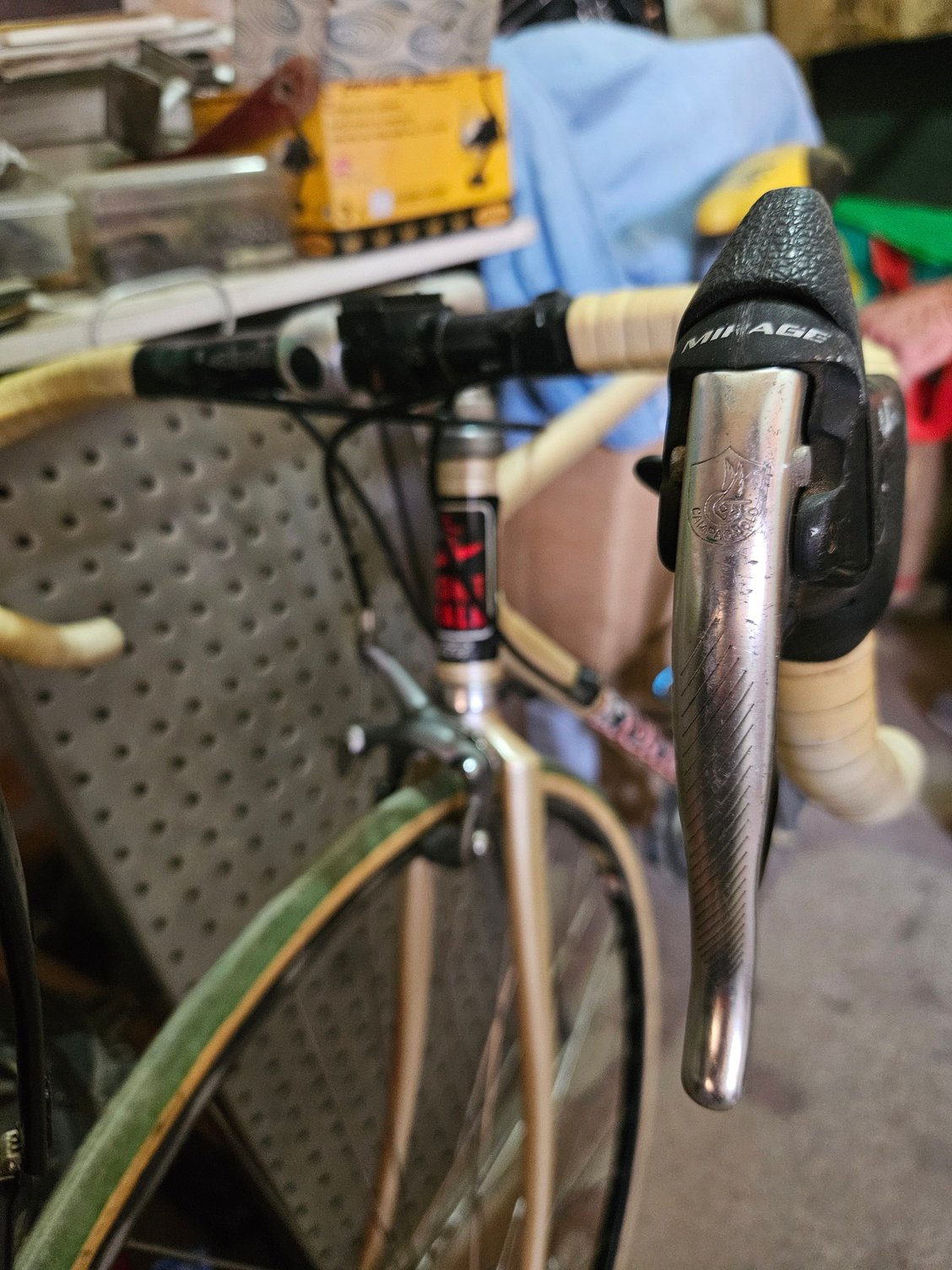

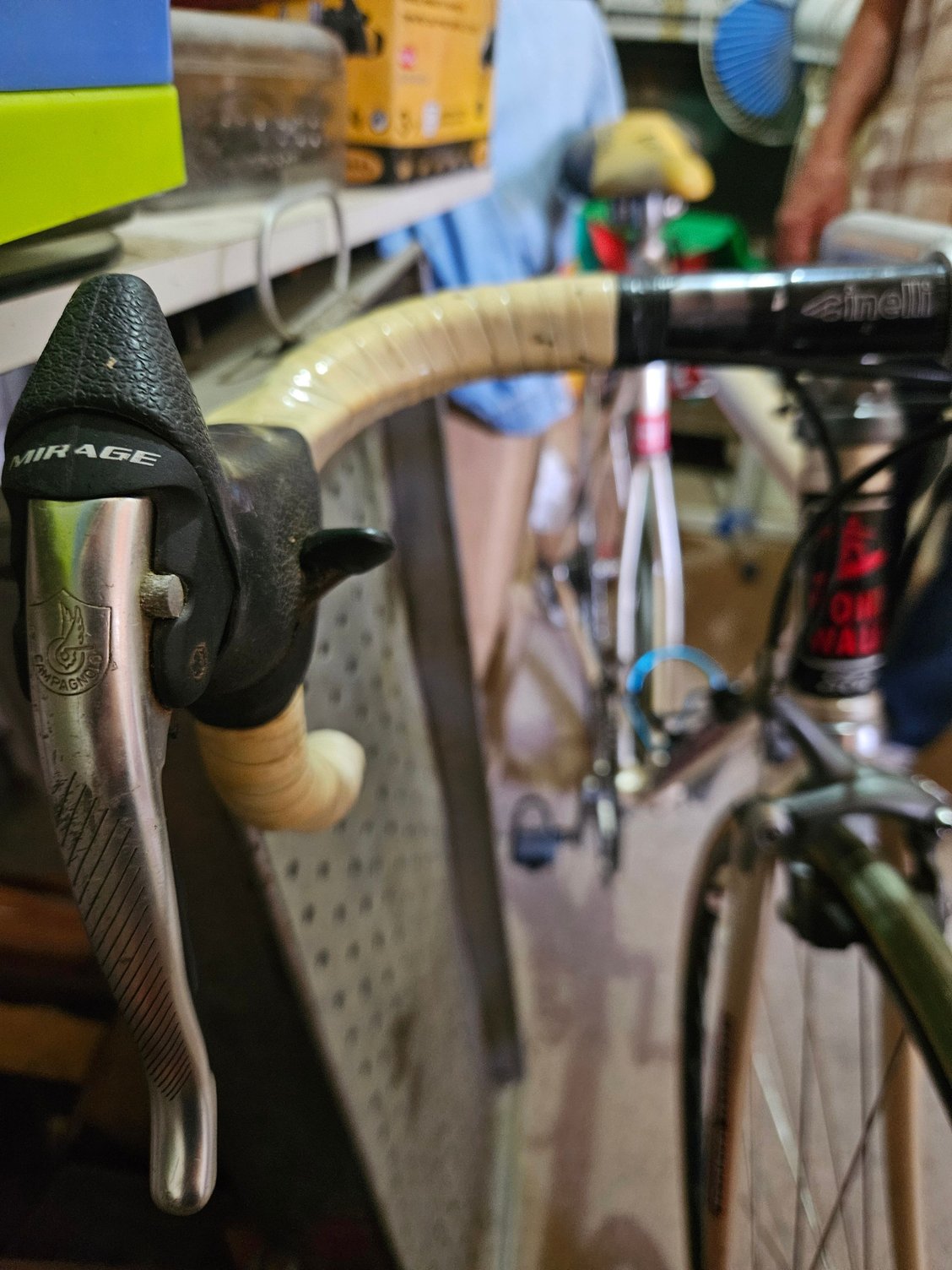

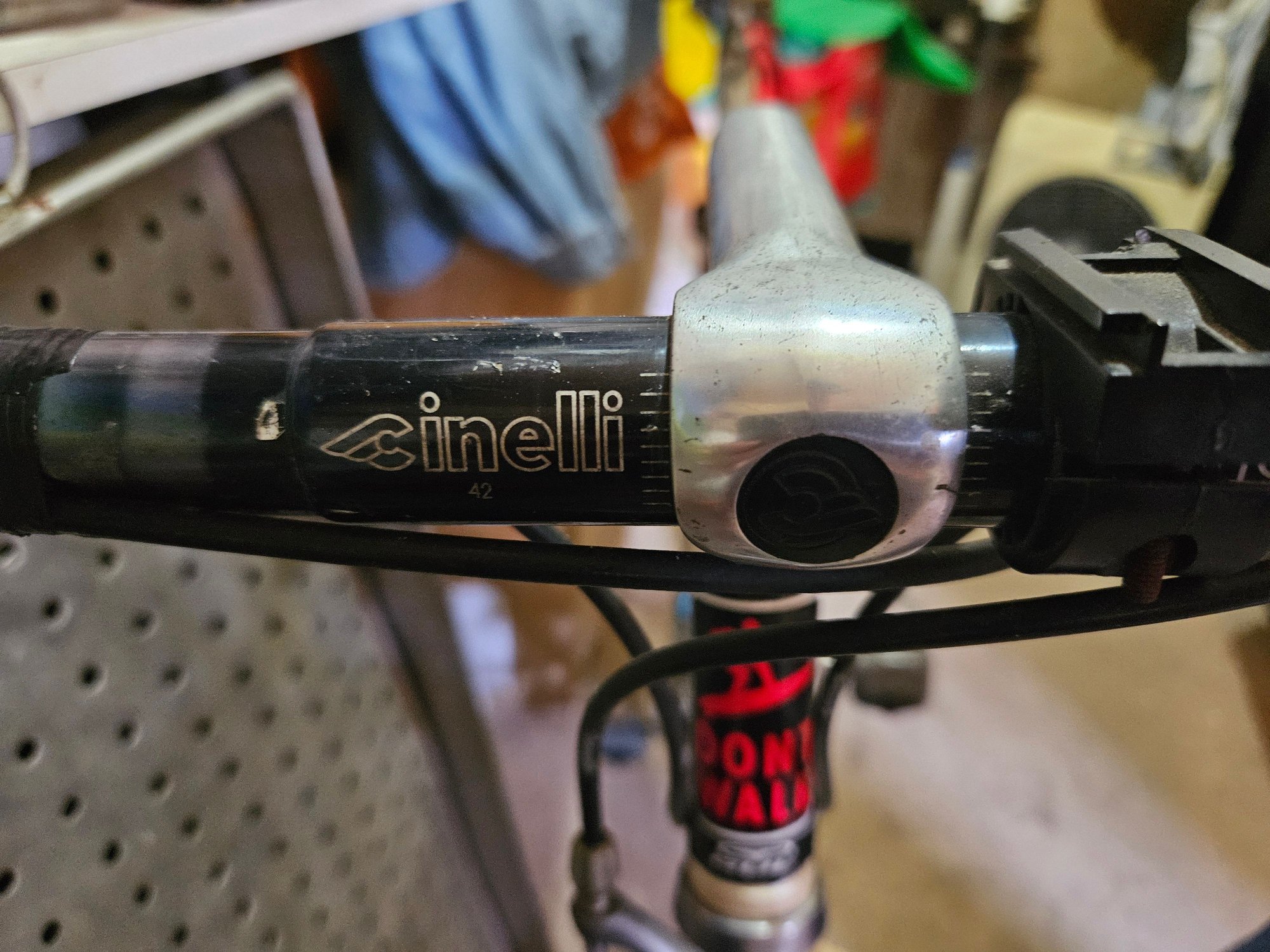

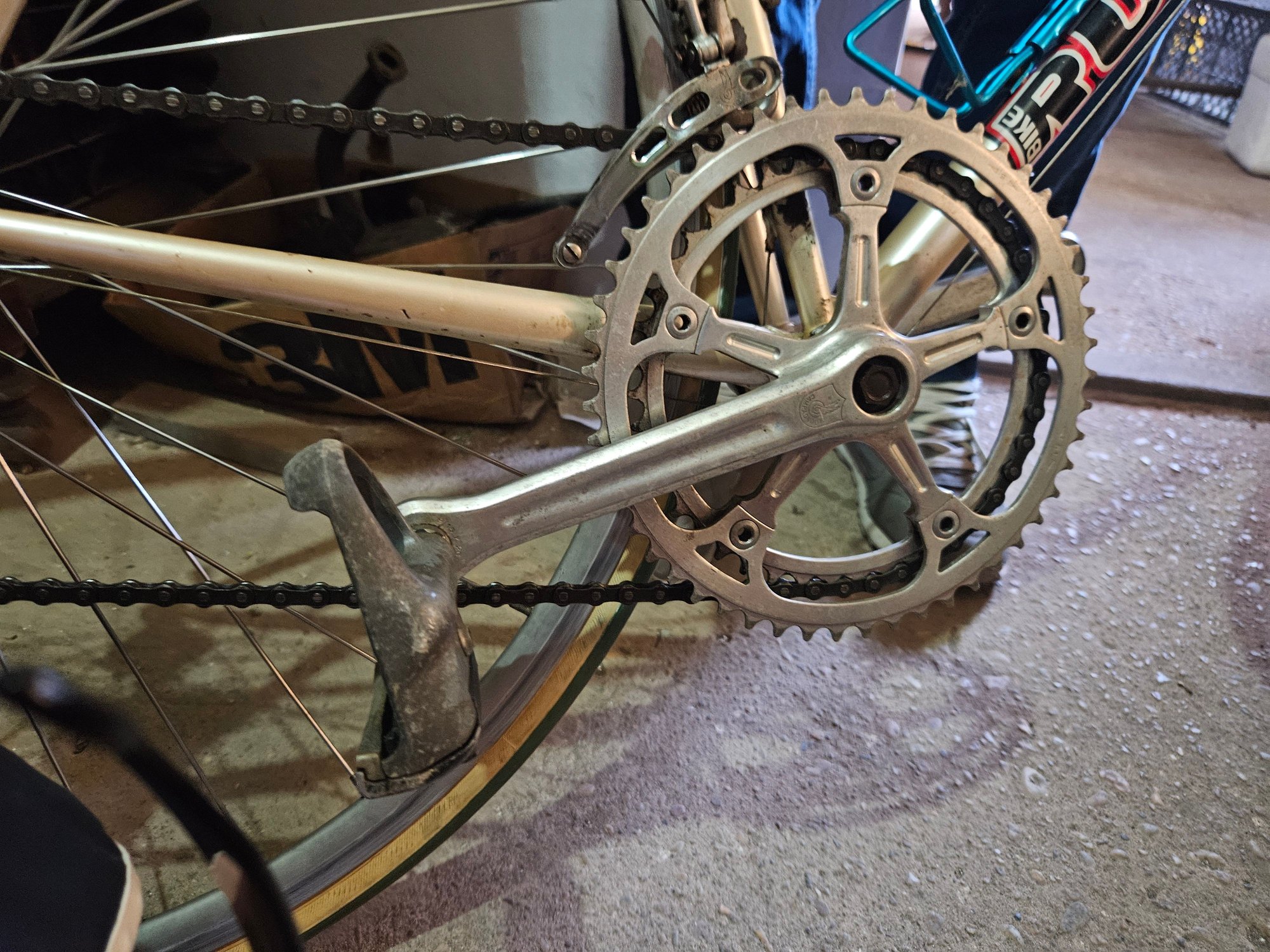

A couple more photos. Can't find any imprint on the frame...









WilliamHaven is offline
Reply
Old 07-31-25 | 12:27 PM
  #14
unworthy1's Avatar
Stop reading my posts!
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 14,029
Likes: 2,231

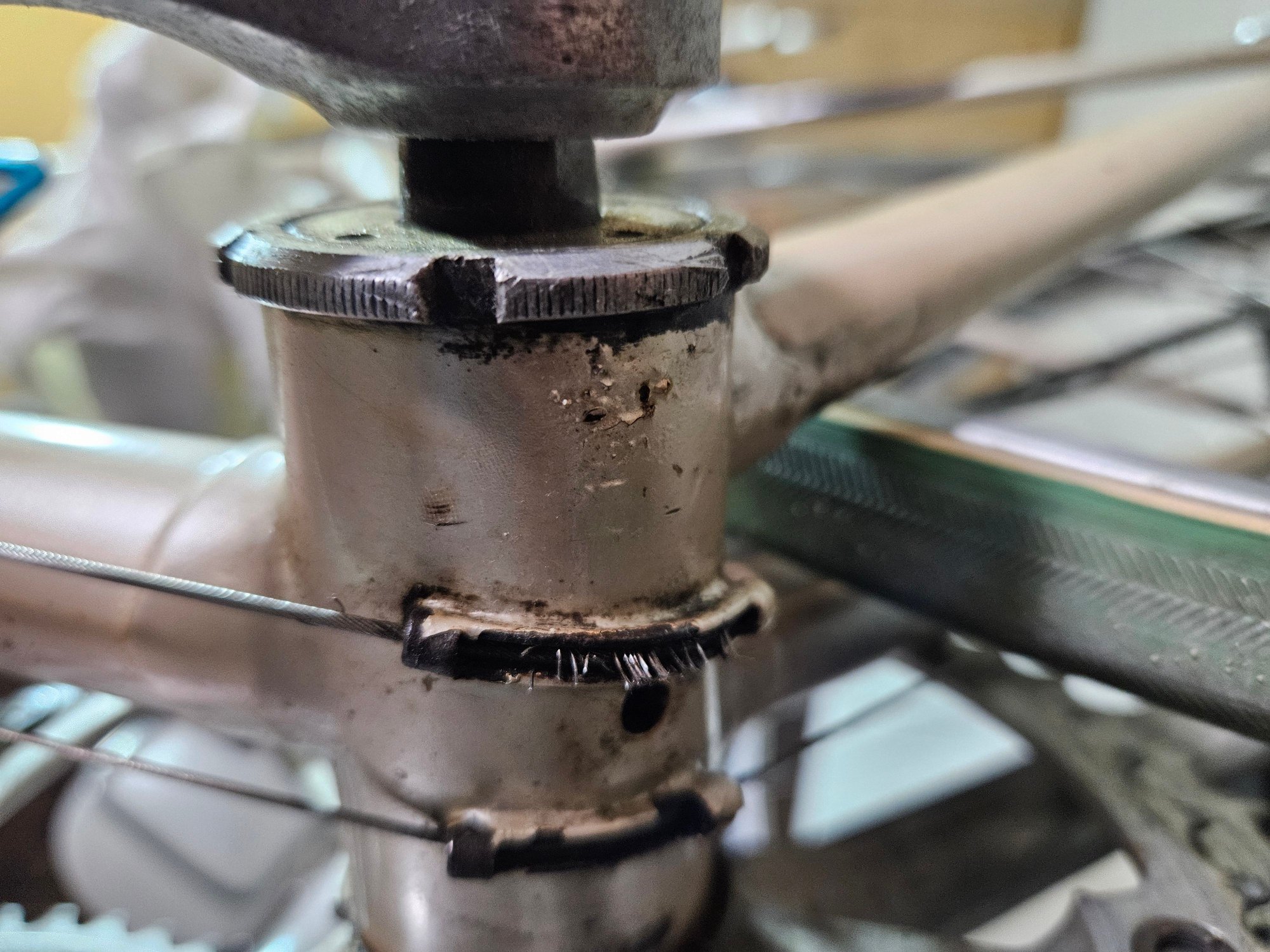

pix of the components are not so helpful, but what ARE is that the BB is a Stronglight and appears to have 6 notches in the lock-ring, so you could read the rest of the markings and find out if it's (as likely to be ) French threading.
The other detail is the dropout, which I think (and JDT can confirm, cause he knows his DOs!) may be a Shimano "UF" semi-vertical?

You can take the QR nut off and see if there are Brand stampings on the face of that DO

Last edited by unworthy1; 07-31-25 at 12:33 PM.
unworthy1 is offline
Reply
Old 07-31-25 | 04:03 PM
  #15
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,401
Likes: 5,333
From: Appleton WI

Bikes: Several, mostly not name brands.

Originally Posted by unworthy1
The other detail is the dropout, which I think (and JDT can confirm, cause he knows his DOs!) may be a Shimano "UF" semi-vertical?
The rear dropouts are either Shimano UF or Gipiemme 1800AX. The differences are subtle, and not obvious in the OP's picture, but I'm leaning toward Shimano UF.
Shimano UF:


Gipiemme 1800AX:
JohnDThompson is offline
Reply
Old 07-31-25 | 04:42 PM
  #16
Senior Member
Titanium Club Membership
5 Anniversary
Community Builder

Joined: Feb 2020
Posts: 4,035
Likes: 2,356
Of the two, the UF has this bit:


oneclick is offline
Reply
Old 07-31-25 | 05:00 PM
  #17
Senior Member
Titanium Club Membership
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Jul 2022
Posts: 3,962
Likes: 3,981
From: Pac NW

Bikes: several Eddy Merz (ride like Eddy, braze like Jim!)

Can I get a close up on how the front derailleur attaches to the skinny seat tube?

I know there is a single hole facing outward
__________________
"Leave the gun. Take the Colnagos."
Robvolz is offline
Reply
Old 08-01-25 | 11:44 AM
  #18
Senior Member
Titanium Club Membership
10 Anniversary
Community Builder
Community Influencer

Joined: Jan 2014
Posts: 511
Likes: 411
From: San Francisco - it used to be nice

Bikes: 1970 Alex Singer, 63 Hetchins, 75 Motobecane Townie, more . . .

Mairag out of Switzerland ??

Polcholpek (? spelling) out of France ??

I think both of those small companies made this style of bike. It was always a freakshow of a design intended to catch the novices eye and pocketbook. Ultra-short wheelbases provide no real advantages and after the initial honeymoon, most everyone moves on to a more "regular" design.
vintage cellar is offline
Reply
Old 08-02-25 | 04:47 AM
  #19
WilliamHaven's Avatar
Thread Starter
Newbie

Joined: Jul 2025
Posts: 5
Likes: 4
Originally Posted by Robvolz

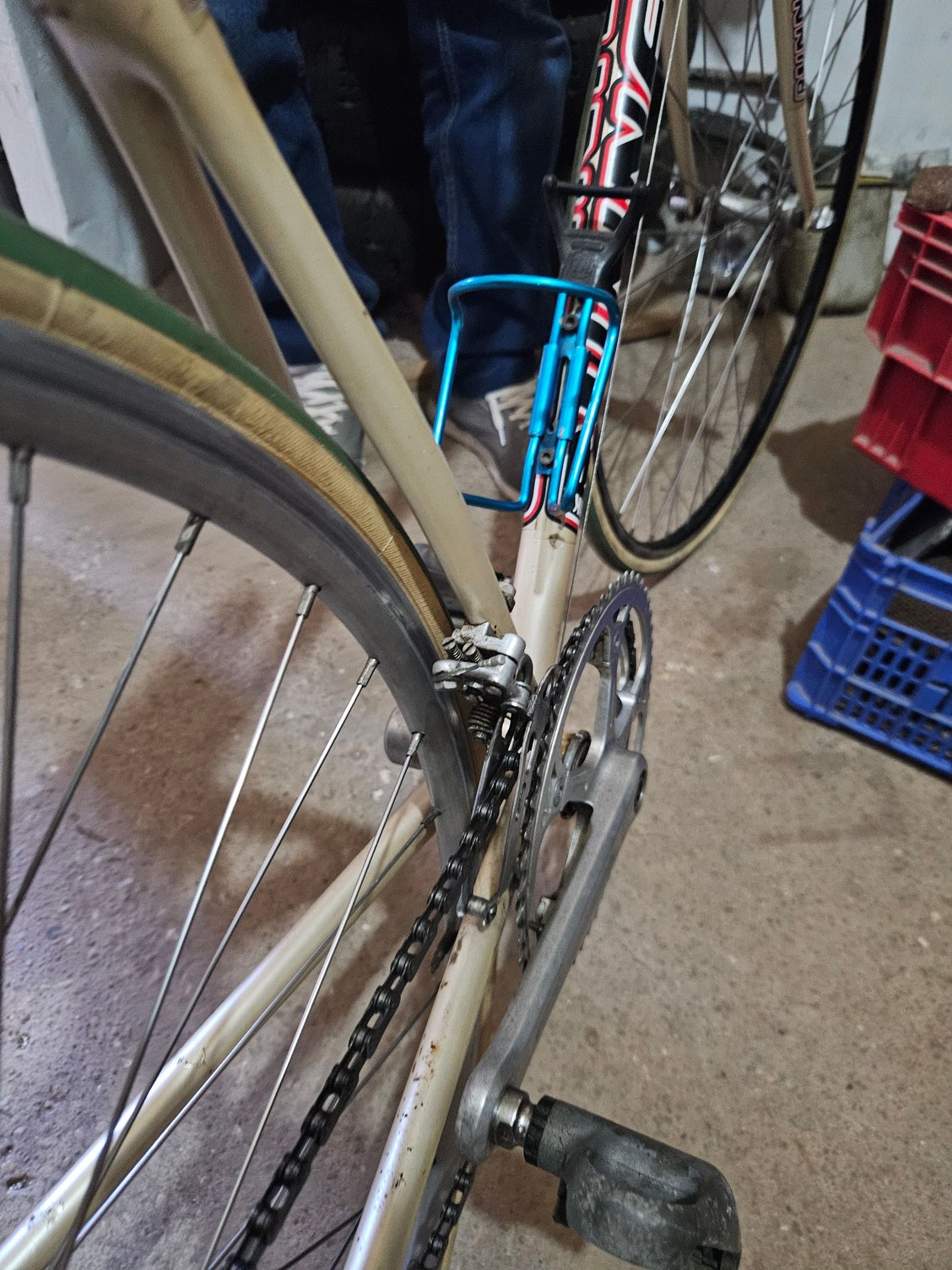

Can I get a close up on how the front derailleur attaches to the skinny seat tube?

I know there is a single hole facing outward

WilliamHaven is offline
Reply
Old 08-02-25 | 04:49 AM
  #20
WilliamHaven's Avatar
Thread Starter
Newbie

Joined: Jul 2025
Posts: 5
Likes: 4
Originally Posted by JohnDThompson
The rear dropouts are either Shimano UF or Gipiemme 1800AX. The differences are subtle, and not obvious in the OP's picture, but I'm leaning toward Shimano UF.
Shimano UF:


Gipiemme 1800AX:

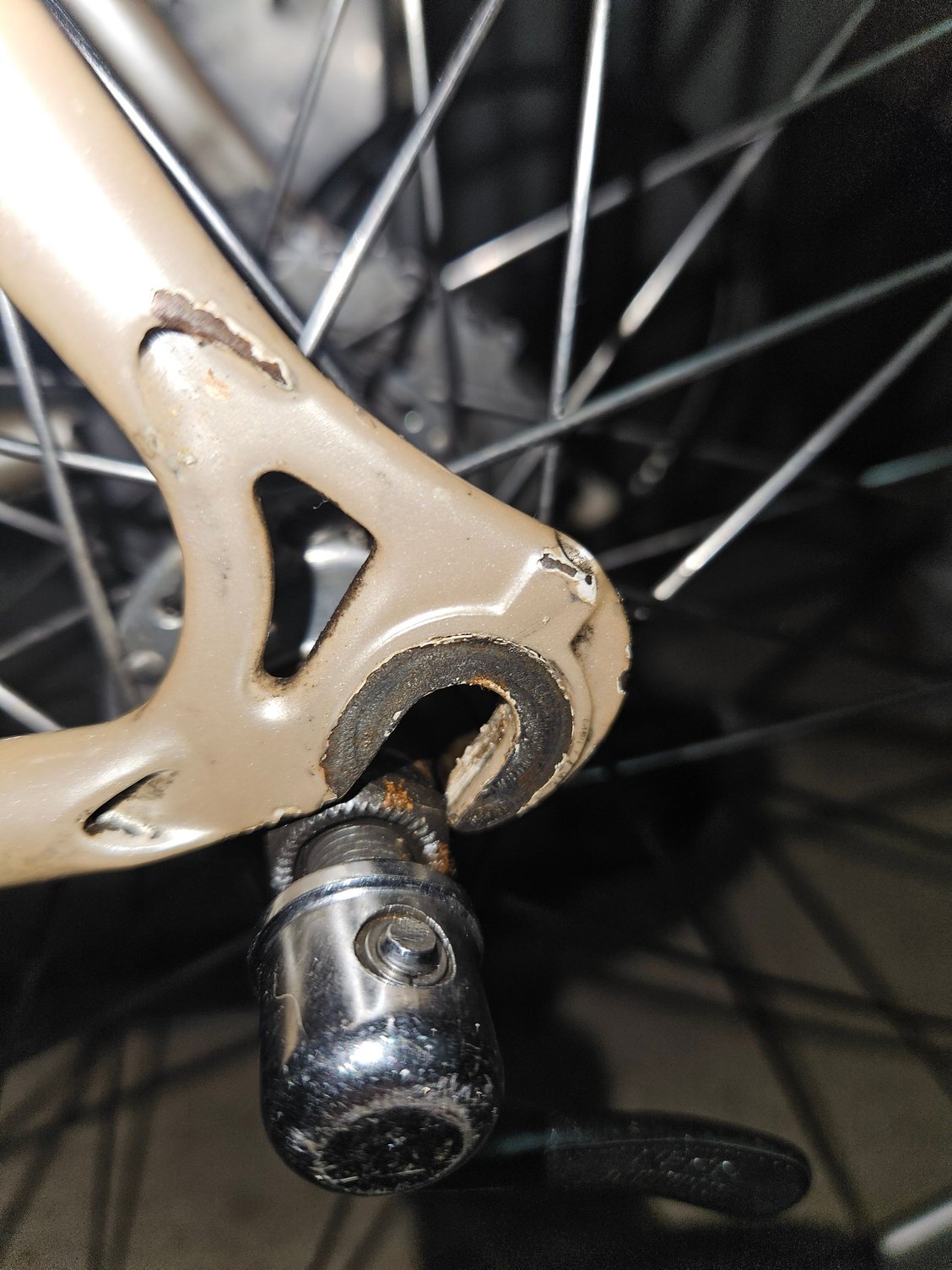

Can't read anything...
WilliamHaven is offline
Reply
Old 08-02-25 | 12:47 PM
  #21
unworthy1's Avatar
Stop reading my posts!
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 14,029
Likes: 2,231
Originally Posted by WilliamHaven
Huh! So the FD mounting bolt goes right through the RH seat tube? Not sure if I like that since there's not a lot of material in either of those skinny twin tubes, but if it hasn't failed so far...
Also hard to judge from this pic but perhaps the places the FD close enough to the rear wheel that you could experience some rubbing, from normal flexing. Another thing that wouldn't be "nice" if it got serious!
unworthy1 is offline
Reply
Old 08-02-25 | 05:12 PM
  #22
PhilFo's Avatar
Tinker-er
Titanium Club Membership
15 Anniversary
Community Builder

Joined: Oct 2007
Posts: 1,626
Likes: 1,579
From: Mid-Atlantic

Bikes: 1956 Rudge; 1981 Miyata; 1994 Breezer; 1987 Raleigh Mtn Trials; 1952 R.O. Harrison; 1994 Concorde; 1949 Rotrax; 1964 A.S. Gillott; Early 60s Frejus; ~1979 RRB track; Unknown Interwar track

Due to its color, I want to call it the Huffy Aero Criterium. No such animal actually exists, but it could...
Phil
PhilFo is offline
Reply
Old 08-02-25 | 07:52 PM
  #23
Hummer's Avatar
Senior Member
15 Anniversary

Joined: Sep 2010
Posts: 1,410
Likes: 282
From: Rupert's Land

Bikes: 1981 Raleigh GP, 1985 Norco Bush Pilot, . . .

It might be a Fowler or an America.



Hummer is offline
Reply
Old 08-04-25 | 03:42 PM
  #24
Chombi1's Avatar
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Nov 2015
Posts: 4,900
Likes: 1,125
I was going to say that it could be a rebranded "Mecacycle Turbo" bike, which were made in France in the late 80's. It being their top of the line "Turbo" bike, had the split seat tube like that, but I think all the Turbo bikes had lugless fillet brazed joint construction (Made with very lightweight Supervitus 980 tubing.). Not lugged, like the OP's subject bike.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Reply
