Mudguards and Vertical Brake Post
I'm making progress on the PL-8 I mentioned in the On the Road Again thread - On the Road Again

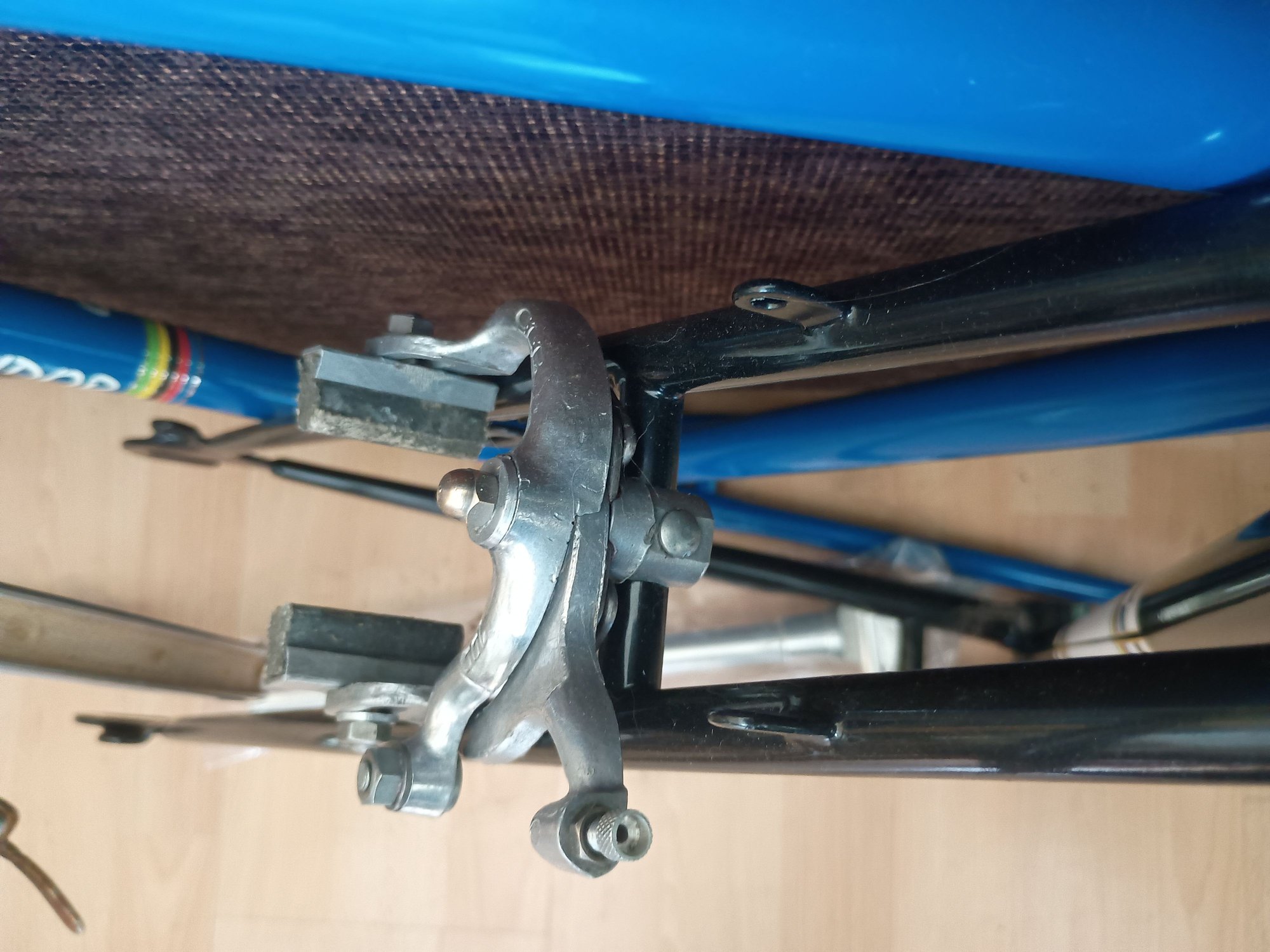

Intention is to use it as an Audax bike, so I've bought a pair of mudguards. I'm not sure on the best way to fix them though, with the vertical brake post. Initial thought is an L shaped bracket, attaching to the existing bracket on the mudguard then to the bolt on the top of the brake bridge.
It's not an especially elegant solution though - has anyone any better ideas, or experience? Photos if possible would be appreciated.
Intention is to use it as an Audax bike, so I've bought a pair of mudguards. I'm not sure on the best way to fix them though, with the vertical brake post. Initial thought is an L shaped bracket, attaching to the existing bracket on the mudguard then to the bolt on the top of the brake bridge.
It's not an especially elegant solution though - has anyone any better ideas, or experience? Photos if possible would be appreciated.
08-10-25 | 07:13 AM
#2
Bikes are okay, I guess.
Joined: Jan 2015
Posts: 8,042
Likes: 3,803
From: Richmond, Virginia
Bikes: Waterford Paramount Touring, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT, Jeunet mixte
That appears to be the first thing to try and will probably work.
08-10-25 | 07:21 AM
#3
Not so New
Joined: Oct 2007
Posts: 504
Likes: 410
From: Libertyville, IL.
Bikes: I haven't counted lately
How about an m6 coupling nut, used like a Drama bolt straight though the fender eliminating the bracket altogether.
Last edited by John D; 08-10-25 at 07:22 AM. Reason: typo
08-10-25 | 09:36 AM
#4
Senior Member
Joined: Apr 2009
Posts: 3,798
Likes: 5,664
From: Seattle
Aren't those brakes and bridges intended for use with a fender, that just has a hole in it (no bracket at all)? The nut that secures the brake underneath should also be able to tighten on the underside of the fender. Apologies if that plan has some flaw I'm not seeing. A pic of the bottom side of the bridge and brake might help.
08-10-25 | 10:05 AM
#5
Vintage Trek Black Hole
Joined: Sep 2013
Posts: 1,425
Likes: 1,389
From: Portland, Cascadia
Bikes: 1976 Merz' Tourer, 1984 Strawberry, 1978 Trek 910, 1982 Trek 950, 1982 Trek 720, 1981 Trek 510
Aren't those brakes and bridges intended for use with a fender, that just has a hole in it (no bracket at all)? The nut that secures the brake underneath should also be able to tighten on the underside of the fender. Apologies if that plan has some flaw I'm not seeing. A pic of the bottom side of the bridge and brake might help.
08-10-25 | 10:42 AM
#6
Francophile
Joined: Nov 2015
Posts: 4,830
Likes: 2,150
From: Seattle
Bikes: Lots
Aren't those brakes and bridges intended for use with a fender, that just has a hole in it (no bracket at all)? The nut that secures the brake underneath should also be able to tighten on the underside of the fender. Apologies if that plan has some flaw I'm not seeing. A pic of the bottom side of the bridge and brake might help.
__________________
Keeping Seattle’s bike shops in business since 1978
Keeping Seattle’s bike shops in business since 1978
08-10-25 | 10:50 AM
#7
Francophile
Joined: Nov 2015
Posts: 4,830
Likes: 2,150
From: Seattle
Bikes: Lots
Don't need an L bracket -- a hole in the fender is all that is required.
