Freewheel Remover - 1970s Maillard

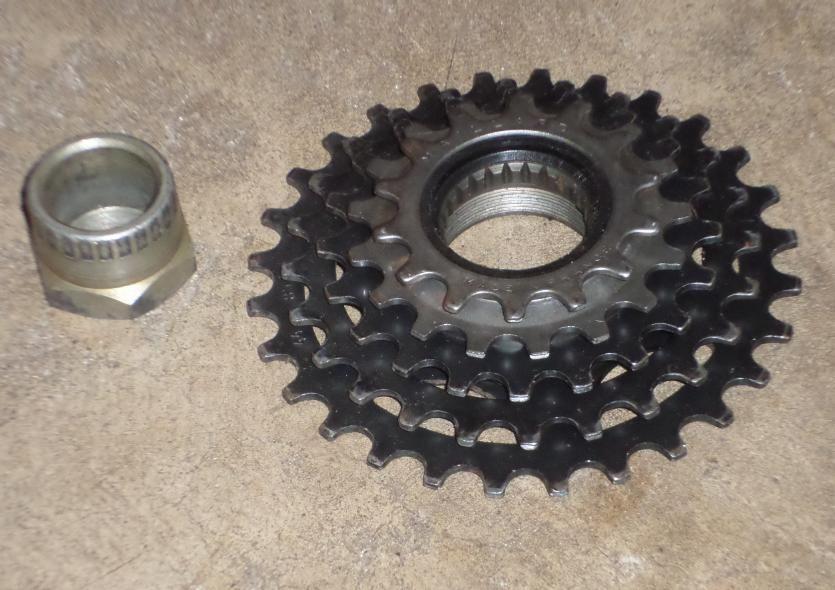

Hello to all, this is from an early or mid 70s Peugeot Mixte which I’m responsible for servicing. Can anyone point me in the right direction for purchasing? Cheers.
10-31-25 | 10:50 PM
#2
Senior Member
Joined: Mar 2007
Posts: 9,212
Likes: 5,422
From: SF Bay Area, East bay
Bikes: Miyata 618 GT, Marinoni, Kestral 200, Soma double cross 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Mondia Special, Univega Alpina, Miyata team Ti, Santa Cruz Highball, Waterford rs11
10-31-25 | 10:59 PM
#3
not sure how this might work for you in AUS, but it's quite reasonable for a VAR product (IMO). However the seller is in USA so if they ship it could be $$$ and a wait.
Hmmmm...this link does not take you to the tool itself, you may have to drive thru their website to find it, but they don't have too many VAR tools so it's not a huge slog.
Aside from that annoyance they appear to call everything a "cassette lockring or extractor tool" despite selling a lot of familiar tools for FREEWHEEL removal, but apparently the copywriter (who may be Chat AI) doesn't know the difference
https://www.tradeinn.com/bikeinn/en/...ool/137736263/
Hmmmm...this link does not take you to the tool itself, you may have to drive thru their website to find it, but they don't have too many VAR tools so it's not a huge slog.
Aside from that annoyance they appear to call everything a "cassette lockring or extractor tool" despite selling a lot of familiar tools for FREEWHEEL removal, but apparently the copywriter (who may be Chat AI) doesn't know the difference
https://www.tradeinn.com/bikeinn/en/...ool/137736263/
Last edited by unworthy1; 10-31-25 at 11:09 PM.
11-01-25 | 02:21 AM
#4
Senior Member
Joined: Apr 2007
Posts: 12,567
Likes: 2,740
From: Thunder Bay, Ontario, Canada - burrrrr!
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma
I have the freewheel and two remover tools. Will look when I go to the lake cottage (possible this weekend) to see if there is one there...
If not, with great care, a pair of plyers will remove the hold on nut.
If not, with great care, a pair of plyers will remove the hold on nut.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
11-01-25 | 05:58 AM
#5
Mike J
Joined: Sep 2020
Posts: 296
Likes: 491
From: Jacksonville Florida
Bikes: 1974 Peugeot UO-8 1962 Peugeot PL-10, 1974 Motobecane Grand Record
11-01-25 | 06:06 AM
#6
Freewheel Medic
Joined: Oct 2005
Posts: 13,572
Likes: 3,315
From: An Island on the Coast of GA!
Bikes: Snazzy* Schwinns, Classy Cannondales & a Super Pro Aero Lotus (* Ed.)
A couple of observations:

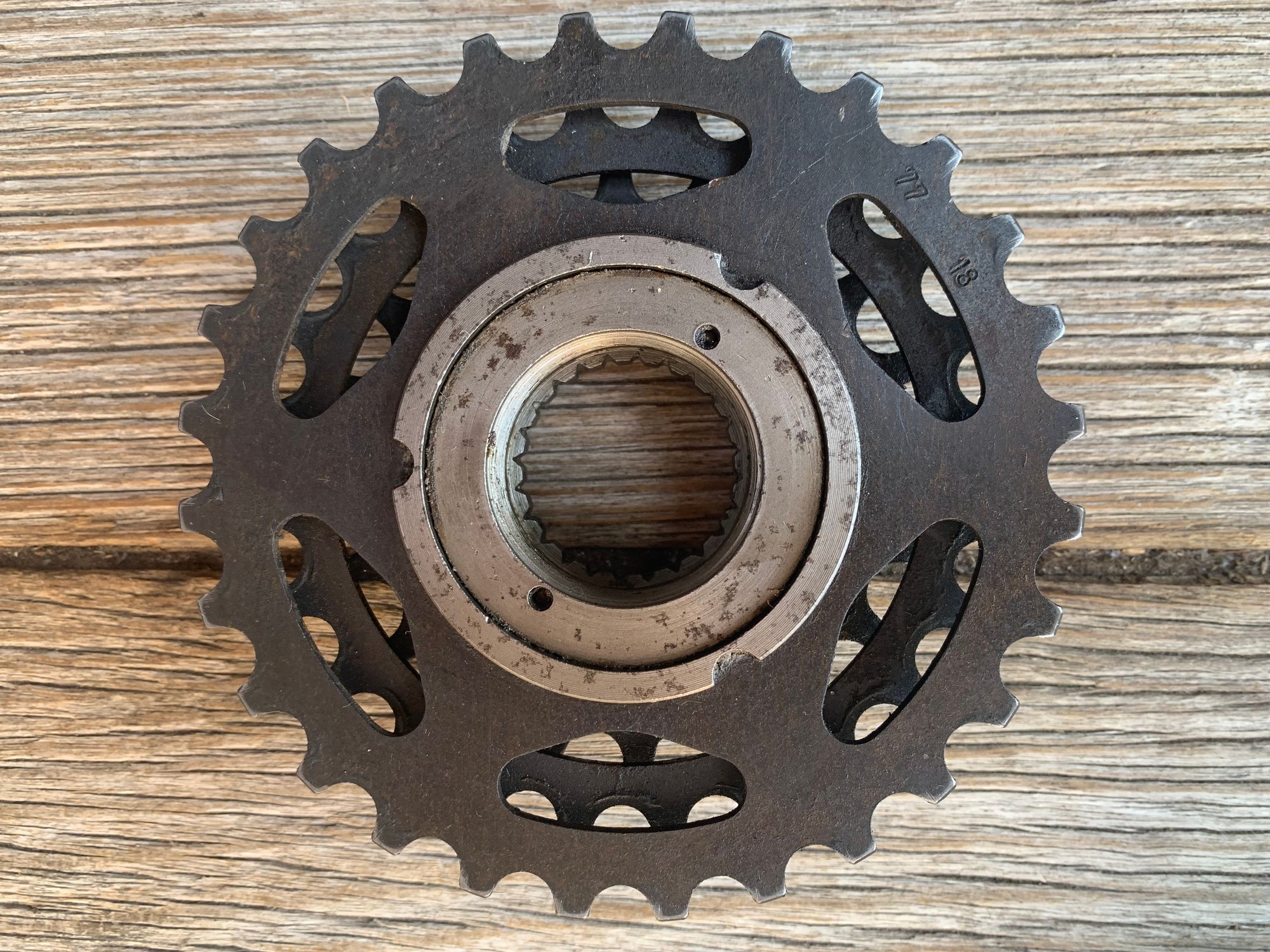

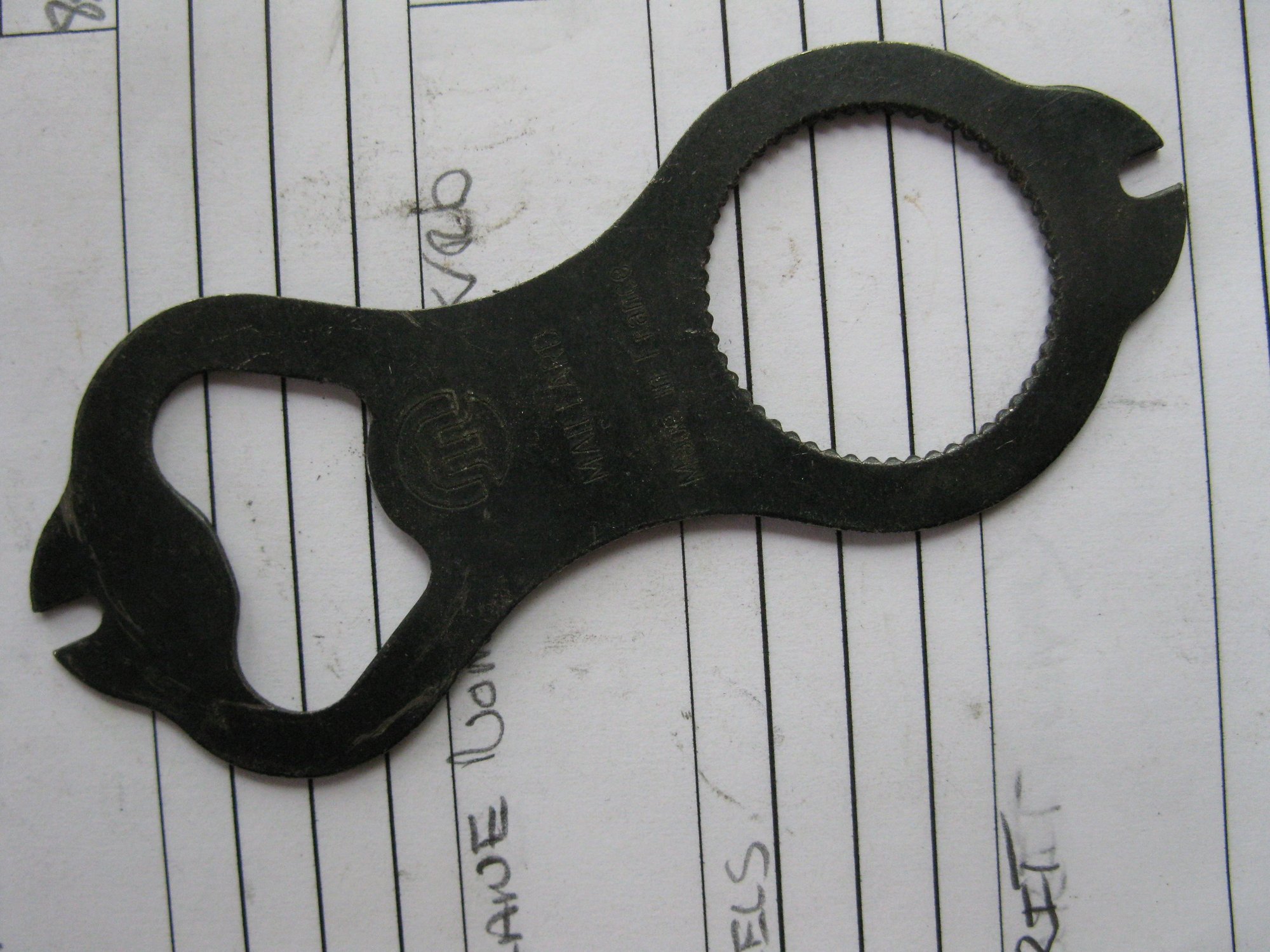

Randy's pictured tool is for the Maillard Helicomatic freewheel system and not for the Maillard standard freewheel pictured by the OP.
The tool used in the video is the correct tool for the OP's freewheel. There are several variants of the tool. The VAR is one version. Here is the Maillard version. The video mentions that it has 24 teeth. That is what you are looking for.
However, generally, the cones, axel, and bearings don't need to be removed from the hub prior to removing the freewheel. The fellow in the video didn't need to remove the hub guts prior to removing the freewheel.
I would have liked to see the freewheel serviced and reassembled in the video.
Randy's pictured tool is for the Maillard Helicomatic freewheel system and not for the Maillard standard freewheel pictured by the OP.
The tool used in the video is the correct tool for the OP's freewheel. There are several variants of the tool. The VAR is one version. Here is the Maillard version. The video mentions that it has 24 teeth. That is what you are looking for.
However, generally, the cones, axel, and bearings don't need to be removed from the hub prior to removing the freewheel. The fellow in the video didn't need to remove the hub guts prior to removing the freewheel.
I would have liked to see the freewheel serviced and reassembled in the video.
__________________
Bob
Enjoying the GA coast all year long!
Thanks for visiting my website: www.freewheelspa.com
Bob
Enjoying the GA coast all year long!
Thanks for visiting my website: www.freewheelspa.com
11-01-25 | 10:34 PM
#7
Thread Starter
Senior Member
Joined: Jun 2015
Posts: 779
Likes: 47
From: Melbourne, Australia
Bikes: 1974 Copper Raleigh International, 1975 Olive Green Raleigh Grand Prix, 1974 Raleigh Europa Custom
Thankyou to all for your educated responses. Much appreciated all your time and expertise.
