I understand that this is for a vintage mountain bike with cantilever brakes....but what brand is this? Thank you.




jdawginsc
Edumacator
close
- Join DateJan 2018
- LocationGoose Creek, SC
- Posts:9,608
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:588
-
Liked:5,103 Times in 3,090 Posts
I appreciate the gecko on that stem! As one with a similar love of geckofication of bikes that’s a cool one.
As for the stem, I assume it is steel. I always thought mine was a Kalloy.
As for the stem, I assume it is steel. I always thought mine was a Kalloy.
merziac
Senior Member
close
- Join DateOct 2015
- LocationPDX
- Posts:16,082
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:15,324
-
Liked:9,440 Times in 5,191 Posts
Quote:

Cane Creek Originally Posted by Jicafold
I understand that this is for a vintage mountain bike with cantilever brakes....but what brand is this? Thank you.

https://www.ebay.com/itm/157468023799?_skw=Vintage+Cane+Creek+quill+stem&itmmeta=01KAVS2T127XH06HC41XHKG80T&hash=item24a9d35b f7:g:fOMAAeSwVy9pGM1F&itmprp=enc%3AAQAKAAABAFkggFvd1GGDu0w3yXCmi1egVKBfeV0kgq8Ge5Uxkclp%2FdZZoxHeKdG gpxc3rNXsbnOAJFQkxzgRNtUwlLAFoofL8KRaDPgqypyp8gMvBkK5dcsDTckJz6gcEqZzcbQKJsZ6nQiOg%2FagjypdHXk1%2Fpl IPOjp1Y3Uq7GLWuUXVdcwgVm40CFMsewGmKlCrHPFQ5Z%2F%2BVGp0KUKFsibZN7xmcHncq5%2BNEBA0pqwzU2B78fSgCafa8q6V HS9UnlW5QqDKs5LEC73OeU4ApOip1IOskSFMke7YMQFPoikGtSteTcjQRj8qf6pL9ER5NuYeslIEq6u4G6FQc3w8cfNsgb5eLk%3 D%7Ctkp%3ABk9SR9Sgi_nWZg
Or maybe not.
Quote:
Or could it have come off of this?Originally Posted by Jicafold
Ahh....thank you.

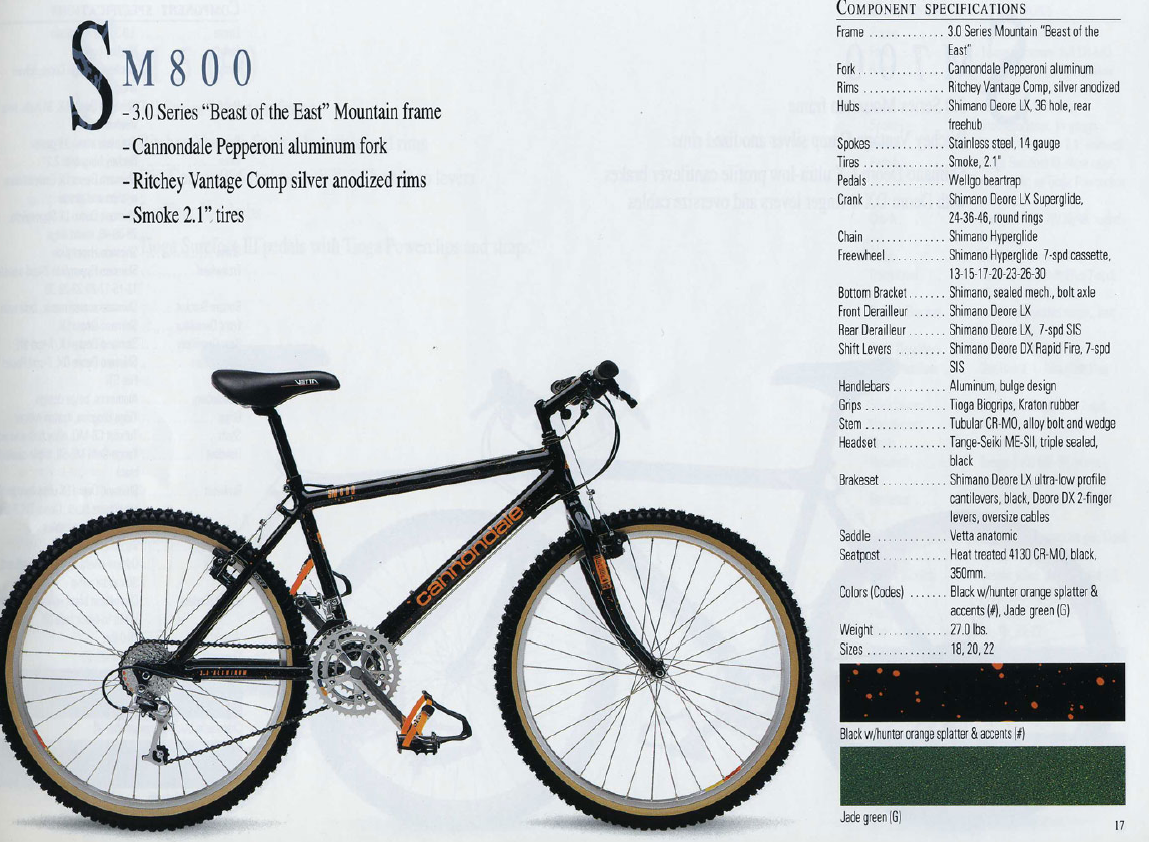

'91 CDale. The prior year with green splatters was called Chameleon lime.

I Talk To My Haircut
hazetguy
I Talk To My Haircut
close
- Join DateNov 2004
- Posts:134
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:0
-
Liked:3,008 Times in 1,221 Posts
not a cane creek stem.
look for a name around the markings on the quill. might be HL or Sameness
came on certain ~1991ish Cannondale mtb
look for a name around the markings on the quill. might be HL or Sameness
came on certain ~1991ish Cannondale mtb
bulgie
Senior Member
close
- Join DateApr 2009
- LocationSeattle
- Posts:3,703
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:2,551
-
Liked:5,485 Times in 2,182 Posts
Quote:
look for a name around the markings on the quill. might be HL or Sameness
came on certain ~1991ish Cannondale mtb
HL = Hsin Lun, aka "hissing lung". Taiwan I believe. Not lightweight, but good reliability, never saw one break. Not high-zoot, a commodity item.Originally Posted by hazetguy
not a cane creek stem.look for a name around the markings on the quill. might be HL or Sameness
came on certain ~1991ish Cannondale mtb
Note, that pulley is too small, the curvature is constantly bending and unbending the cable as you pull and release the brake, so the cable will inevitably start to fray there. If you don't notice and keep riding, eventually the cable will snap and that usually leads to Very Bad Things.
When cables like these, called wire rope in industry, are run over pulleys, they can have practically infinite fatigue life if the pulley is larger, like 50 times the diameter of the cable. They even get used for control surfaces in airplanes, hidden inside the wing where you can't inspect for fraying, because they're known to be safe. For a 1.8 mm bike brake cable, 50x means the pulley needs to be 90 mm (3.5"), which no one would ever use on a bicycle. But the pulleys on those old bike stems are definitely too small. A compromise somewhere short of 90 mm might be OK since the cable isn't hidden inside a wing. But if you have one of those little ones, inspect frequently and/or replace the cable pre-emptively.
Same is true for Travel Agents, those adaptors to let you use regular-pull hand levers with V-brakes. I've seen those fray the cable, with my own eyes, it's not just theoretical. I know why they didn't make them twice as large, but they should have, it's not a place to compromise on safety.
