Tires
#1
Thread Starter
Senior Member
Joined: Apr 2005
Posts: 234
Likes: 0
Tires
How do I tell if I have tubulars on my rim? There is no identifacation on the existing tires. They are 700 x 20's, about the size of your thumb! and are holding air real good. I intend to replace them with 700 x 28's. The alloy rims have nipple inserts. Yeah I know , take 'em off and see!!! Then the question do I have to stick with tubulars. Thanks guys
#2
Unique Vintage Steel



Joined: May 2005
Posts: 11,591
Likes: 287
From: Allen, TX
Bikes: Kirk Frameworks JKS-C, Serotta Nova, Gazelle AB-Frame, Fuji Team Issue, Surly Straggler
If the current wheelset is built for tubulars, then yes, you have to stick with tubulars (or get a different wheelset). Taking the air out of the tires and pushing on the bead should tell you pretty quick which you're working with.
#3
Senior Member


Joined: Dec 2001
Posts: 17,687
Likes: 12
From: n.w. superdrome
Bikes: 1 trek, serotta, rih, de Reus, Pogliaghi and finally a Zieleman! and got a DeRosa
and do the pushing around the valve hole, alot of times there is no glue
applied there anyhow.
before you do that, if you look at the tire is it shaped like an O cross section or an upside down U ?
O would be tubular, U would be clincher.
As Cuda said, if they are tubular rims clinchers will not work on them.
marty
applied there anyhow.
before you do that, if you look at the tire is it shaped like an O cross section or an upside down U ?
O would be tubular, U would be clincher.
As Cuda said, if they are tubular rims clinchers will not work on them.
marty
__________________
Sono più lento di quel che sembra.
Odio la gente, tutti.
Want to upgrade your membership? Click Here.
Sono più lento di quel che sembra.
Odio la gente, tutti.
Want to upgrade your membership? Click Here.
#4
Decrepit Member
Joined: Aug 2005
Posts: 10,488
Likes: 92
From: Santa Rosa, California
Bikes: Waterford 953 RS-22, several Paramounts

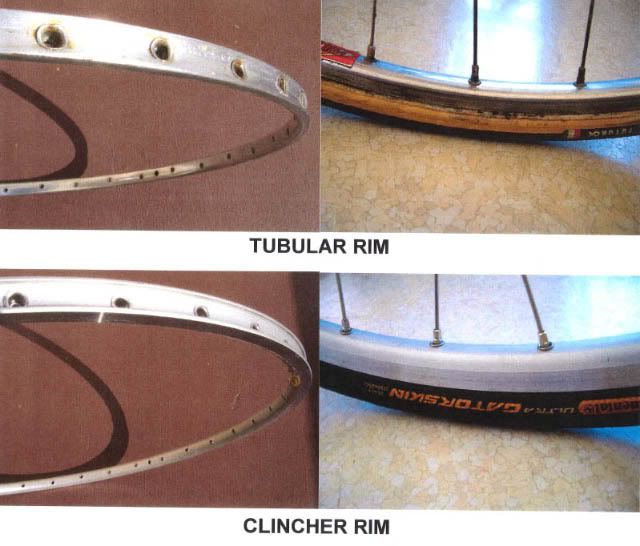

Here's an illustration I put together a while back that may help. The top photos show a tubular rim and a tubular tire glued to it. Notice that the surface of the rim where the tire sits is nothing more than a concave curve. The glue, which is clearly visible in the photo, is the only thing (besides air pressure in the tire) that keeps the tire from simply rolling off the rim.
The bottom photos show a clincher rim with hooks on the both edges to grab the bead of the clincher tire.
The bottom photos show a clincher rim with hooks on the both edges to grab the bead of the clincher tire.
Last edited by Scooper; 10-25-06 at 04:40 PM.
#6
feros ferio

Joined: Jul 2000
Posts: 22,397
Likes: 1,864
From: www.ci.encinitas.ca.us
Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;
Make sure you have enough frame clearance for the size tires you want. Also, note that not all 700Cx28s are equal in width; my Continental Ultra 2000s are about the size of 700Cx25s from Specialized.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
#7
Senior Member


Joined: Dec 2005
Posts: 4,429
Likes: 257
From: Ashland, VA
Bikes: The keepers: 1969 Magneet Sprint, 1971 Gitane Tour de France, 1973 Raleigh Twenty, 3 - 1986 Rossins.
Originally Posted by oglala_1927
Whew! I let the air out of a tire and to my good luck, it's a regular tire. I was pretty sure it was a regular tire after using the sight method, ie round or like an inverted u.Thanks guys!!
You really appreciate them when you get a puncture 35 miles from home . . . .
__________________
Syke
“No one in this world, so far as I know — and I have searched the records for years, and employed agents to help me — has ever lost money by underestimating the intelligence of the great masses of the plain people. Nor has anyone ever lost public office thereby.”
H.L. Mencken, (1926)
Syke
“No one in this world, so far as I know — and I have searched the records for years, and employed agents to help me — has ever lost money by underestimating the intelligence of the great masses of the plain people. Nor has anyone ever lost public office thereby.”
H.L. Mencken, (1926)
#8
Originally Posted by oglala_1927
Whew! I let the air out of a tire and to my good luck, it's a regular tire.
Seriously, it's easy to tell the difference. If you look at the pictures Scooper posted, you'll see the edge of the base tape on the tubular. Often it's peeling back and has loose hanging threads when it gets older. The sidewalls also look messy after a while with smears of glue. You won't see a brand new bike with tubulars in a bike shop these days, but the tires would look flat all the way around when there's no air in them, which would be about a week after they've been inflated. Nevertheless, tubulars must still hold a slight performance edge over the lightest and fastest clinchers, because many racers still use them.
#9
Thread Starter
Senior Member
Joined: Apr 2005
Posts: 234
Likes: 0
After Oldyelers comment about base tape showing and getting sorta hairy, I checked the tires again and lo and behold tape was showing just above the rim edge. Yikes said I and proceded to let the air out and check again. Not really a clincher rim, straight sides. The tire did have tape on the sides just above the bead. Why I don't know. The tires are not tubular anyway. After much surfing the pros and cons of tubulars, I understand the reasoning for traditionists to prefer tubulars. For once in a while riders, clinchers are fine!!!!
Thanks again guys.
Thanks again guys.
#10
Well, if they are clinchers, you should be able to push the bead inwards when deflated and expose the tube. A tubular will take a lot more pushing to break the glue and roll the tire off the rim and you won't see the tube.
#11
Thread Starter
Senior Member
Joined: Apr 2005
Posts: 234
Likes: 0
Why would a tubular be used in a rim that is not concave to fit the contour of the tubular tire? My rims look sorta like l l cross section. Gad zooks! I did expose about 3 inches of the tire and saw the bead but
\____/
no tube. When all the air is out, flat on the bottom, the rest of the tire retains a round shape. Tomorrow I'll see if I can lift the bead and see a tube. No evidence of glue on the inside of the rim. I can say one thing, you just can't "roll" the tire off the rim, I'll have to use tire tools!
\____/
no tube. When all the air is out, flat on the bottom, the rest of the tire retains a round shape. Tomorrow I'll see if I can lift the bead and see a tube. No evidence of glue on the inside of the rim. I can say one thing, you just can't "roll" the tire off the rim, I'll have to use tire tools!
#15
Thread Starter
Senior Member
Joined: Apr 2005
Posts: 234
Likes: 0
Everything is cool! Changed a tire today. The rims are definately clinchers. The tire I took off was glued in several places and had tape on the side walls. Weird. I learned a lot from this experience, know a lot more about tubulars. Oh, yes, I did repack the bearings!!! Good riding, Frank
