73 Paramount seatpost size help please
#1
Thread Starter
Senior Member
Joined: Sep 2005
Posts: 2,116
Likes: 14
73 Paramount seatpost size help please
Would this bike have a 27.0 or a 27.2 post. It appears the 27.2 post can be installed but feels a bit tight to me...Before I do any serious damage I'd like to know. I think it is a p13 model I am not sure. I see on the Sheldon Seatpost database that the 72 Paramount track is 27.2
I am hoping that it is going to be okay.
I am hoping that it is going to be okay.
#2
Decrepit Member
Joined: Aug 2005
Posts: 10,488
Likes: 94
From: Santa Rosa, California
Bikes: Waterford 953 RS-22, several Paramounts
It's 27.2.
The seatpost end of the 28.6 O.D. 531 seat tube has a 0.6 mm wall thickness. 2x0.6mm = 1.2mm, which, when subtracted from 28.6mm, yields an I.D. of 27.4mm. However, the tolerance on the wall thickness and roundness of the seat tube made it so that you rarely could fit a 27.4mm post inside, even before brazing. And then, the seat tube always got distorted during brazing, making it even less possible to fit a 27.4mm in there, but a 27.2mm fit nicely.
The same goes for why a 27.0mm seat-post was often used on the bigger sizes, which were made out of Columbus SP or SPX, whose seat tubes had 1.0 X 0.7mm wall thicknesses. Because of tolerances, the predicted 27.2mm post (28.6 – 2x0.7 = 27.2mm) never fit, but a 27.0mm fit nicely.
The seatpost end of the 28.6 O.D. 531 seat tube has a 0.6 mm wall thickness. 2x0.6mm = 1.2mm, which, when subtracted from 28.6mm, yields an I.D. of 27.4mm. However, the tolerance on the wall thickness and roundness of the seat tube made it so that you rarely could fit a 27.4mm post inside, even before brazing. And then, the seat tube always got distorted during brazing, making it even less possible to fit a 27.4mm in there, but a 27.2mm fit nicely.
The same goes for why a 27.0mm seat-post was often used on the bigger sizes, which were made out of Columbus SP or SPX, whose seat tubes had 1.0 X 0.7mm wall thicknesses. Because of tolerances, the predicted 27.2mm post (28.6 – 2x0.7 = 27.2mm) never fit, but a 27.0mm fit nicely.
Last edited by Scooper; 05-17-08 at 12:35 PM.
#3
Decrepit Member
Joined: Aug 2005
Posts: 10,488
Likes: 94
From: Santa Rosa, California
Bikes: Waterford 953 RS-22, several Paramounts

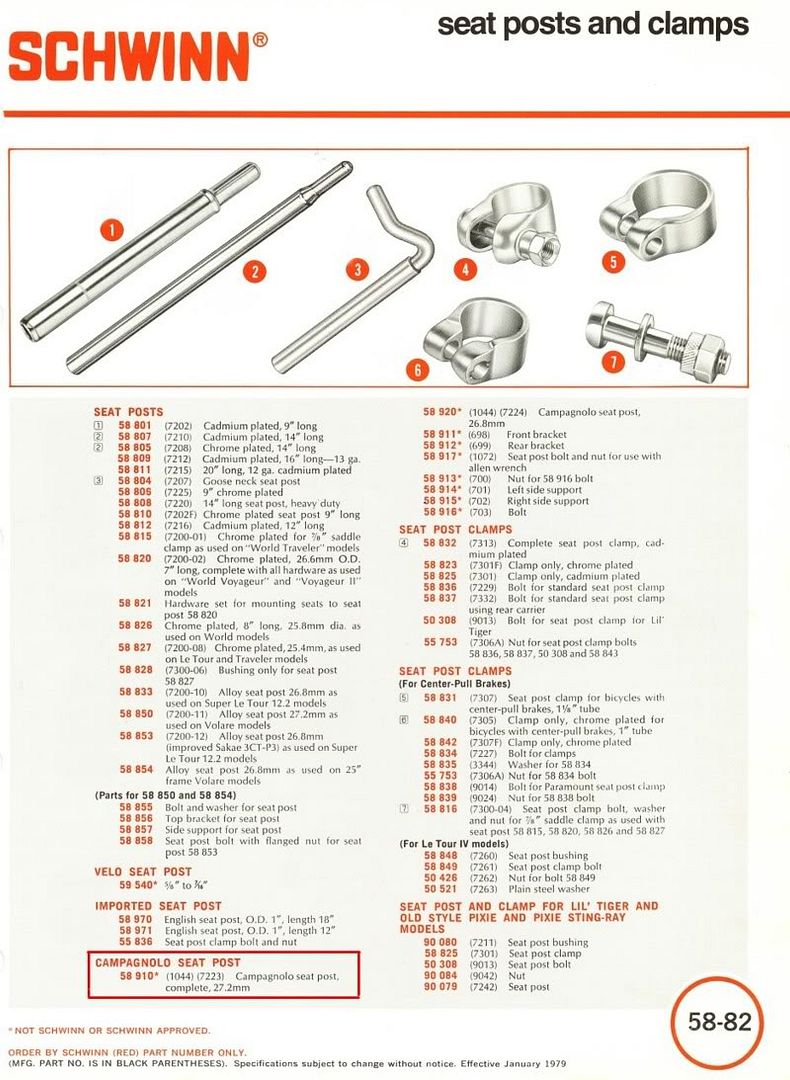

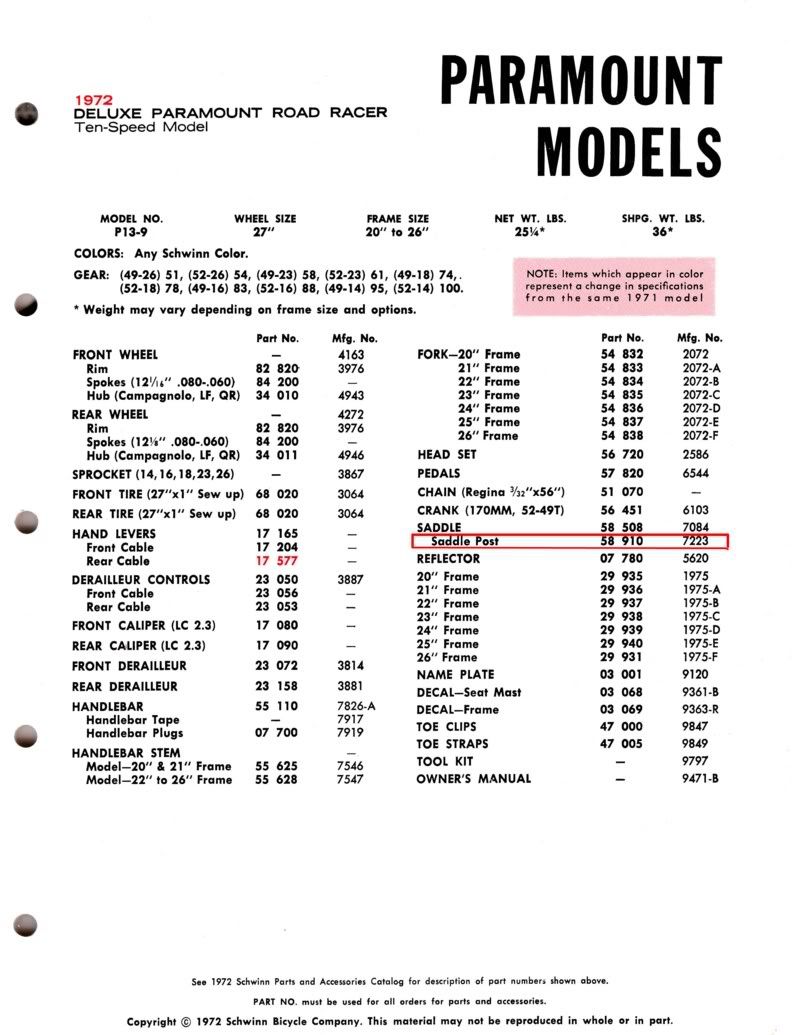

The 1972 P13-9 Specifications Sheet shows the Part Number for the seat post is 58 910, and there was no change between the 1972 and 1973 P13-9 seat posts. The Parts and Accessories Catalog describes P/N 58 910 as "Campagnolo seat post, complete, 27.2 mm"
