Durkopp 3 speed cruiser

I went on a little rescue mission yesterday out to Long Island to pick up a Durkopp

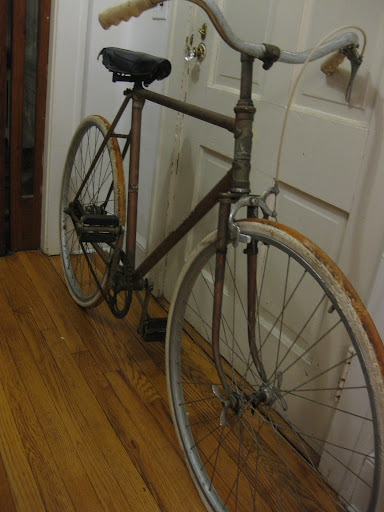

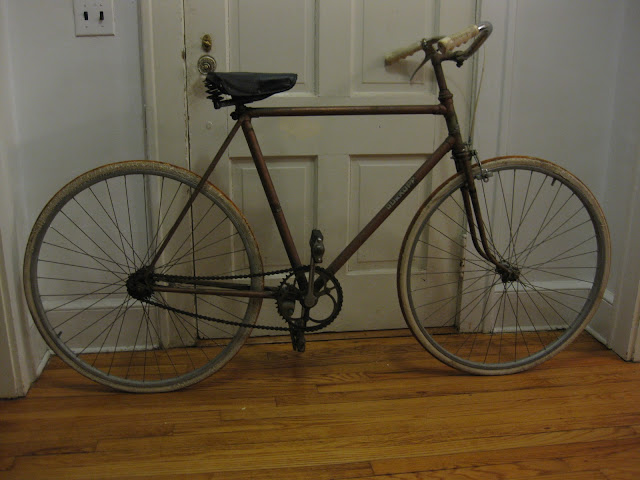

here's what I ended up with for 65 bux










Not pictured are a set of fenders with some super cool headlights and taillights w/ a bottle generator, and a chainguard.

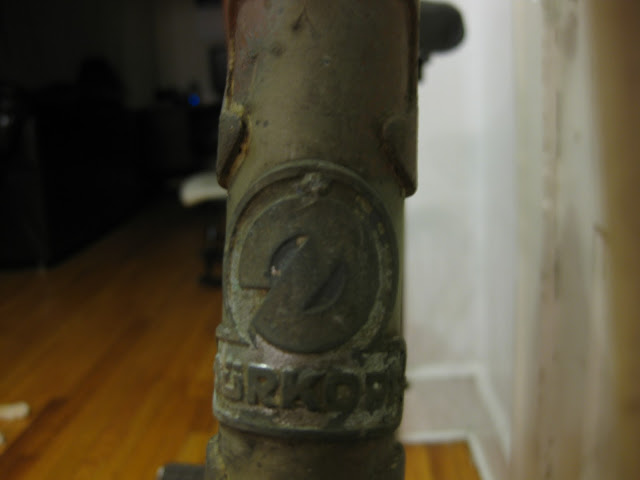

Its got some neat little bits on it....oil ports on both the front and rear hub and also on the Bottom bracket. The ports themselves are really neat all metal bits with flip-up caps.

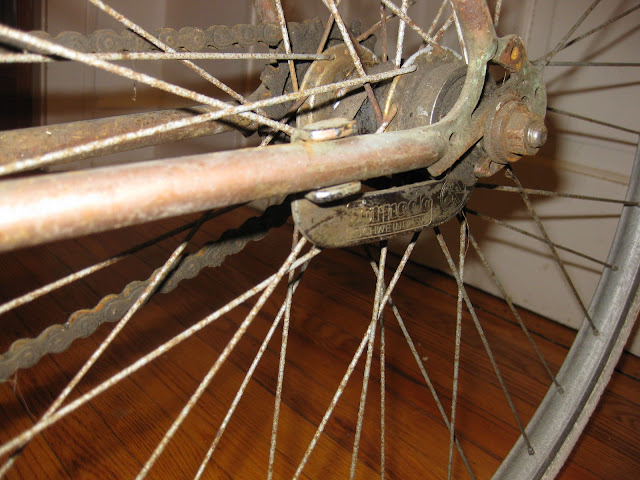

The rear wheel is a total mystery to me. Its a 3 speed, but not internal gears...its a 3 speed freewheel cassette and its got a coaster brake. It didn't come with any derailleurs or anything, so I'm not really sure how I'm supposed to change gears. The rear hub is labeled "F&S Torpedo" and has the number "51" and the letter "M" stamped on it. Tires are labeled "700x32C MICHELIN 28x 1 5/8 x 1 1/4" (2 sizes on the sidewall of the same tire...what the heck?@!). The rear wheel spins, pedals and brakes properly..i just have no clue how I'm meant to shift gears without a derailleur (or what the heck derailleur is made for a 3 speed). I'm kind of guessing the "51' on the rear hub is the Year.

The frame itself is solid, and surprisingly lightweight but was rattlecanned like a million years ago... they sprayed the headset and the stem too. I think i'm gonna try to use a little scotchbrite on the paint and see if i can get down to the original but honestly it seems like a paintjob is gonna be in order for this mess. The rims are painted (by an ape with a brush) silver, and a magnet doesn't stick to them...i'm guessing its just a really thick coat of paint. Whoever rattlecanned the frame had the foresight or whatever to tape off the DURKOPP downtube logos and the "Made in Germany" decal. Dropouts are stamped. and there's like 5 holes around the rear dropouts for whatever reason. The Seatpost is a straight pin style, not like a '7' shaped lookin one.

Its the most screwed up bike I've attempted to work on so far, so any tips or thoughts on how to proceed are much appreciated.
Zaphod Beeblebrox is offline
Reply With Quote
Old 04-09-10, 07:38 PM
  #2
David Newton
Wood

David Newton's Avatar

Join Date: Jun 2009
Location: Beaumont, Tx
Posts: 2,300

Bikes: Raleigh Sports: hers. Vianelli Professional & Bridgestone 300: mine

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
If I had that, I wouldn't do anything but re-grease all the bearings and chain, being careful not to clean any crud off of it.
I would love to roll up to my friends on their shiny carbon bikes and sniff at them!

Of course you'll want to get the brakes working well, but maybe you can just replace the inner cable and leave the dirty outer.
It may not be a 3 speed, it may be that you loosen the wheel and shift the chain over, basically you get 3 ratios to choose from, but not while riding.

Pretty soon the spokes are going to destruct, but not all at once, just don't do any fast downhills.
David Newton is offline
Reply With Quote
Old 04-09-10, 07:46 PM
  #3
Zaphod Beeblebrox
PanGalacticGargleBlaster
Thread Starter

Zaphod Beeblebrox's Avatar

Join Date: Apr 2009
Location: Smugglers Notch, Vermont
Posts: 7,535

Bikes: Upright and Recumbent....too many to list, mostly Vintage.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Originally Posted by David Newton View Post
It may not be a 3 speed, it may be that you loosen the wheel and shift the chain over, basically you get 3 ratios to choose from, but not while riding.
that possibility occured to me as well although I would have expected to see wingnuts on the rear sorta like the front if the rear was meant to come off and be changed with any frequency
Zaphod Beeblebrox is offline
Reply With Quote
Old 04-09-10, 10:46 PM
  #4
sailorbenjamin
26 tpi nut.

sailorbenjamin's Avatar

Join Date: Mar 2008
Location: Rhode Island (an obscure suburb of Connecticut)
Posts: 5,703

Bikes: one of each

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
IF THOU LIFT UP THY TOOL UPON IT, THOU HAST POLLUTED IT!!!
Exodus 20:25
__________________
I have spoken.
sailorbenjamin is offline
Reply With Quote
Old 04-09-10, 10:52 PM
  #5
sailorbenjamin
26 tpi nut.

sailorbenjamin's Avatar

Join Date: Mar 2008
Location: Rhode Island (an obscure suburb of Connecticut)
Posts: 5,703

Bikes: one of each

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Sheldon says that size is just a fat 700. I see a decent set of alloys on a fat IGH. Hang those wheels on the wall for wall art and get some wacky red and white modern tire to replace it.
Are the dropouts long enough to support the Kmart Cambio Corso theory? Are the 5 hole for an alignment peg on the hub?
Clean carefully. I wonder how the paint is under all that paint.
I'm glad to see you got this bike. I was tempted but I had to buy a Raleigh instead.
I did just pick up a dead old sears/puch. If there's anything that fits that you could use, let me know (bearings, etc)
__________________
I have spoken.
sailorbenjamin is offline
Reply With Quote
Old 04-10-10, 12:24 AM
  #6
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 22,947

Bikes: http://www.theheadbadge.com

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by sailorbenjamin View Post
Are the dropouts long enough to support the Kmart Cambio Corso theory?
K-Mart Cambio Corsa? That's hilarious.

-Kurt
__________________
cudak888 is offline
Reply With Quote
Old 04-10-10, 04:00 AM
  #7
Mos6502
Elitest Murray Owner

Mos6502's Avatar

Join Date: Apr 2006
Posts: 2,660

Bikes: 1972 Columbia Tourist Expert III, Columbia Roadster

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Originally Posted by David Newton View Post
It may not be a 3 speed, it may be that you loosen the wheel and shift the chain over, basically you get 3 ratios to choose from, but not while riding.
Considering the way the reaction arm is "fixed" to the frame, that idea does make sense. If it was meant to have the wheel stay put they would have used the typical clamp instead of a U shaped bracket.
Mos6502 is offline
Reply With Quote
Old 04-10-10, 04:54 AM
  #8
javal
Senior Member

javal's Avatar

Join Date: Oct 2008
Location: Örebro, Sweden
Posts: 1,318

Bikes: Monark sportser 1970, Monark sportser 1970ish, Monark folder, Mustand 1985, Monark Tempo 1999, Monark 318 1975, Crescent 319 1979, Crescent 325 c:a 1965, Crescent Starren 2002 (hybrid/sport), Nordstjernan 1960`s cruiser.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
two nice Dürkopp´s from c:a -37. Models 115 & 116. Commercial leaflet.
Attached Images
File Type: jpg
javal is offline
Reply With Quote
Old 04-10-10, 04:55 AM
  #9
Esteban32696
Senior Member

Join Date: Feb 2007
Posts: 1,153
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
A little info ;

http://oldbike.wordpress.com/1948-52-durkopp-herrenrad/
Esteban32696 is offline
Reply With Quote
Old 04-10-10, 08:25 AM
  #10
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 22,947

Bikes: http://www.theheadbadge.com

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by javal View Post
two nice Dürkopp´s from c:a -37. Models 115 & 116. Commercial leaflet.
Where did that flyer come from? Any singlespeeds in it?

-Kurt
__________________
cudak888 is offline
Reply With Quote
Old 04-10-10, 10:54 AM
  #11
buck mulligan
I'm shovel-ready!

buck mulligan's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 136

Bikes: Raleigh Sports All-Gold

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by Zaphod Beeblebrox View Post
The rear wheel is a total mystery to me. Its a 3 speed, but not internal gears...its a 3 speed freewheel cassette and its got a coaster brake. It didn't come with any derailleurs or anything, so I'm not really sure how I'm supposed to change gears. The rear hub is labeled "F&S Torpedo" and has the number "51" and the letter "M" stamped on it. Tires are labeled "700x32C MICHELIN 28x 1 5/8 x 1 1/4" (2 sizes on the sidewall of the same tire...what the heck?@!). The rear wheel spins, pedals and brakes properly..i just have no clue how I'm meant to shift gears without a derailleur (or what the heck derailleur is made for a 3 speed). I'm kind of guessing the "51' on the rear hub is the Year.
I wonder if something like this might work for you:

http://cgi.ebay.com/Early-Cyclo-3-sp...item335bf0e729
buck mulligan is offline
Reply With Quote
Old 04-10-10, 11:14 AM
  #12
Andrew F
Senior Member

Andrew F's Avatar

Join Date: Feb 2010
Location: New Jersey
Posts: 904
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Glad you got it! I wonder if the wing-nuts were moved from the rear to the front at some point? I wonder if there is enough travel in the drop-outs to take up the chain-slack as you move from gear to gear?
Andrew F is offline
Reply With Quote
Old 04-10-10, 07:00 PM
  #13
Zaphod Beeblebrox
PanGalacticGargleBlaster
Thread Starter

Zaphod Beeblebrox's Avatar

Join Date: Apr 2009
Location: Smugglers Notch, Vermont
Posts: 7,535

Bikes: Upright and Recumbent....too many to list, mostly Vintage.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Originally Posted by sailorbenjamin View Post
Are the dropouts long enough to support the Kmart Cambio Corso theory?
OK, clue me in....whats that?
Zaphod Beeblebrox is offline
Reply With Quote
Old 04-10-10, 09:12 PM
  #14
sailorbenjamin
26 tpi nut.

sailorbenjamin's Avatar

Join Date: Mar 2008
Location: Rhode Island (an obscure suburb of Connecticut)
Posts: 5,703

Bikes: one of each

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Cambio Corso was one of the first derailler systems. They hadn't figured out jockey wheels and cages yet so they had a lever device that slid the whole axle up and down the dropout to take up the slack while you were riding. Not really made for coaster brakes, though.
I wonder if they'd work with a fixed hub.
__________________
I have spoken.
sailorbenjamin is offline
Reply With Quote
Old 04-10-10, 09:22 PM
  #15
sailorbenjamin
26 tpi nut.

sailorbenjamin's Avatar

Join Date: Mar 2008
Location: Rhode Island (an obscure suburb of Connecticut)
Posts: 5,703

Bikes: one of each

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Uh, it's Cambio Corsa. Italian, not Spanish;
http://bikeville.blogspot.com/2009/0...a-bicycle.html
__________________
I have spoken.
sailorbenjamin is offline
Reply With Quote
Old 04-11-10, 06:52 AM
  #16
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 5,624

Bikes: 1980 Mike Melton, 1982 Stumpjumper, 1982 Santana, 1984 Alex Moulton AM, 2007 Cannondale Capo, 2008 BikeFriday tikit T-11, 2010 Dawes Briercliffe, 2017 Dahon Curl i3

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 418 Post(s)
Originally Posted by sailorbenjamin View Post
Cambio Corso was one of the first derailler systems. They hadn't figured out jockey wheels and cages yet ...
There had been jockey wheels and cages for over three decades by the time the Cambio Corsa was introduced. It was actually a bizarre attempt by Campagnolo to leverage their quick release manufacturing into a gear change system.

tcs
tcs is offline
Reply With Quote
Old 04-11-10, 11:19 AM
  #17
tatfiend
Gear Hub fan

Join Date: Nov 2008
Location: Reno, NV
Posts: 2,829

Bikes: Civia Hyland Rohloff, Swobo Dixon, Colnago, Univega

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I suspect that some parts are missing. Cyclo made 2 and 3 speed rear sprocket clusters that could be installed on Sturmey Archer and Sachs 3 speed hubs. They also might well fit old Sachs coaster brake single speed hubs. They also made a plunger type derailleur and mounting bracket to work with their sprocket clusters.

Sachs themselves did make derailleurs to work with some multi sprocket coaster brake hubs. They included an upper chain guide to retain the chain when reverse pedalling to operate the coaster brake. IIRC that setup is shown in the third edition of Frank Berto's book "The Dancing Chain". BTW it is an excellent reference on many oddball bicycle gear change systems that have been used.

From what I have read German city riders demanded that their bikes have a coaster brake hub and Sachs built derailleur and coaster brake setups to meet the demand.
__________________
Gear Hubs Owned: Rohloff disc brake, SRAM iM9 disc brake, SRAM P5 freewheel, Sachs Torpedo 3 speed freewheel, NuVinci CVT, Shimano Alfine SG S-501, Sturmey Archer S5-2 Alloy. Other: 83 Colnago Super Record, Univega Via De Oro

Visit and join the Yahoo Geared Hub Bikes group for support and links.
http://groups.yahoo.com/group/Geared_hub_bikes/
tatfiend is offline
Reply With Quote
Old 04-12-10, 07:52 AM
  #18
Zaphod Beeblebrox
PanGalacticGargleBlaster
Thread Starter

Zaphod Beeblebrox's Avatar

Join Date: Apr 2009
Location: Smugglers Notch, Vermont
Posts: 7,535

Bikes: Upright and Recumbent....too many to list, mostly Vintage.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
thanks for the info, These hubs are made by "F&S" is that related to Sachs?
Zaphod Beeblebrox is offline
Reply With Quote
Old 04-12-10, 08:12 AM
  #19
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 18,885

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 409 Post(s)
Tagged: 0 Thread(s)
Quoted: 1435 Post(s)
F&S is Fichtel und Sachs, so yes, that's the same Sachs.

Check out: www.hubstripping.com, website devoted to IGH's. Somewhere on that website is an explanation --or a link to and explanation-- of the F&S date codes. Yes, there is a date; but it's probably in the form of a letter, not a number.

I'm glad you got the bike! It looks pretty cool.

What do I know, but I'm kinda doubting there was ever any kind of gear change mechanism on this bike. Derailleurs and coaster brakes don't get along well, but it would be easy to loosen the axle nuts, put the chain on the desired cog, and tighten 'em up again. Come for a ride with me out on Long Island this summer, and you'll see: put it in the small cog to ride to Montauk (tail wind), then the big cog to ride back (head wind).

Edit:
Here we go, a page on dating F&S hubs (it says yours is a '69)

There's also this page at Hubstripping.com from which I quote:

Dating a Fichtel & Sachs hub:
When you have a look on th hub shell of old Fichtel & Sachs Torpedo hubs you´ll find a letter on it. They started in the year 1958 with the letter “A” and went with each year forward. The “I” and the “Q” was not used to prevent a mix-up with the “J” and the “O”. In 1975 the letters moved on the brake lever. On the brake lever you´ll find two letters. The lower on represents the production year. The upper letter the production month.
A = 1958 D = 1961 G = 1964 K = 1967 N = 1970 R = 1973 B = 1959 E = 1962 H = 1965 L = 1968 O = 1971 S = 1974 C = 1960 F = 1963 J = 1966 M = 1969 P = 1972 T = 1975 U = 1976 W = 1978 Y = 1980 A = 1982 C = 1984 E = 1986 V = 1977 X = 1979 Z= 1981 B = 1983

Last edited by rhm; 04-12-10 at 08:44 AM.
rhm is offline
Reply With Quote
Old 04-12-10, 09:32 AM
  #20
Zaphod Beeblebrox
PanGalacticGargleBlaster
Thread Starter

Zaphod Beeblebrox's Avatar

Join Date: Apr 2009
Location: Smugglers Notch, Vermont
Posts: 7,535

Bikes: Upright and Recumbent....too many to list, mostly Vintage.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Well if thats the case, then a 1969 made hub can't be Original Equipment. Everything I've read says Durkopp stopped making Bicycles in 1960.

here's something else I found off that hubstripping link

Until 1957, under the emblem is on the left of F & S (the famous eagle), the date and right a letter. Starting in 1958, the left is only a letter that specifies the year. It began with "A" and then went alphabetically each year a further letter.

My hub looks a lot like the one in the pic (except with 3 cogs instead of 1, the oil port is identical to mine) and has codes stamped in the locations shown in that picture. According to that it could be a '51 although they fail to mention what the "M" would indicate.

That same page recommends looking at the stem and the BB spindle for date codes as well, so I'll probably pull that apart tonight.


rhm, do you think mine is a duo-matic hub with a 3 speed cassette on it or simply a regular coaster brake hub?
Attached Images
File Type: jpg

Last edited by Zaphod Beeblebrox; 04-12-10 at 09:52 AM.
Zaphod Beeblebrox is offline
Reply With Quote
Old 04-12-10, 09:37 AM
  #21
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 36,484

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 387 Post(s)
Tagged: 0 Thread(s)
Quoted: 5036 Post(s)
Wow, this is cool.

How many teeth on the chainwheel and sprockets?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Reply With Quote
Old 04-12-10, 09:53 AM
  #22
Zaphod Beeblebrox
PanGalacticGargleBlaster
Thread Starter

Zaphod Beeblebrox's Avatar

Join Date: Apr 2009
Location: Smugglers Notch, Vermont
Posts: 7,535

Bikes: Upright and Recumbent....too many to list, mostly Vintage.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Not sure, I'll count when I get home but the rear looks like it might be 11-14-16 or something like that.

I'll post pics of the Fenders and Chainguard as well tonight, they are super cool.
Zaphod Beeblebrox is offline
Reply With Quote
Old 04-12-10, 09:59 AM
  #23
Mos6502
Elitest Murray Owner

Mos6502's Avatar

Join Date: Apr 2006
Posts: 2,660

Bikes: 1972 Columbia Tourist Expert III, Columbia Roadster

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
The duomatic wasn't introduced until 1964, and the hub shell has a completely different appearance than the picture you posted. So it's pretty much a certainty that yours is the plain coaster brake.
Mos6502 is offline
Reply With Quote
Old 04-12-10, 10:24 AM
  #24
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 18,885

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 409 Post(s)
Tagged: 0 Thread(s)
Quoted: 1435 Post(s)
Zaphod, I don't know, but I'm guessing you have a coaster brake hub. Have you told us all the writing on it? I got F&S, Torpedo, Schweinfurt, 51, M. Is that all?

I'm guessing 51 is a model number.

I'm guessing anything fancy will have a model name-- Dreigang for three speed; Duomatic etc. Lacking those, it's probably a coaster brake.


Here's a link to a simple coaster brake hub.

Check out this photo I found on someone's Flickr page:
Looks familiar, eh?

And here's another one, different flickr user:

Note that's a Reichenbach hub; the main F&S plant was at Schweinfurt. Reichenbach isn't even in Germany any more.

I suspect the oil port style tells you something about the date of the hub. Your bike has three of them, right? All the same style? That might tell you what's original, what's not.

And an ebay listing of coaster brake hubs.

Here's a page on Fichtel & Sachs generally.
rhm is offline
Reply With Quote
Old 04-12-10, 10:38 AM
  #25
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,505

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Originally Posted by rhm View Post
I'm glad you got the bike! It looks pretty cool.
+1, I'm glad someone ended up with it. I made an attempt for it but never heard back from the seller after initially contacting him followed by three emails. It was hard to tell what kind of condition it was in so it's better that you got to see it in person first. Are the rims and fenders aluminum?
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
