Mafac caliper question

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Mafac caliper question

Old 10-31-11, 04:13 AM
  #1
auchencrow
Senior Member
Thread Starter

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 15 Times in 13 Posts
Mafac caliper question

Can anyone elaborate on the differences between the several variants of Mafac brake calipers? Do their names denote something more than mere cosmetics?

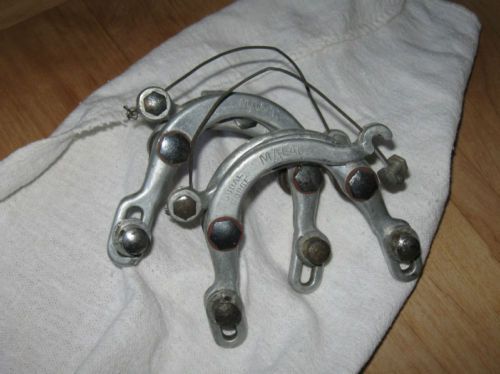

Dural Forge


Racer

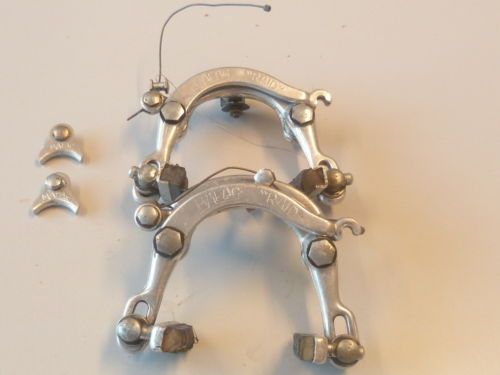

Raid

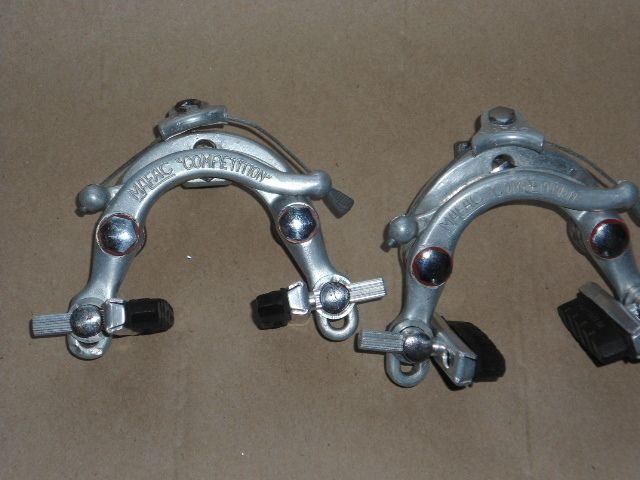

Competition (early)

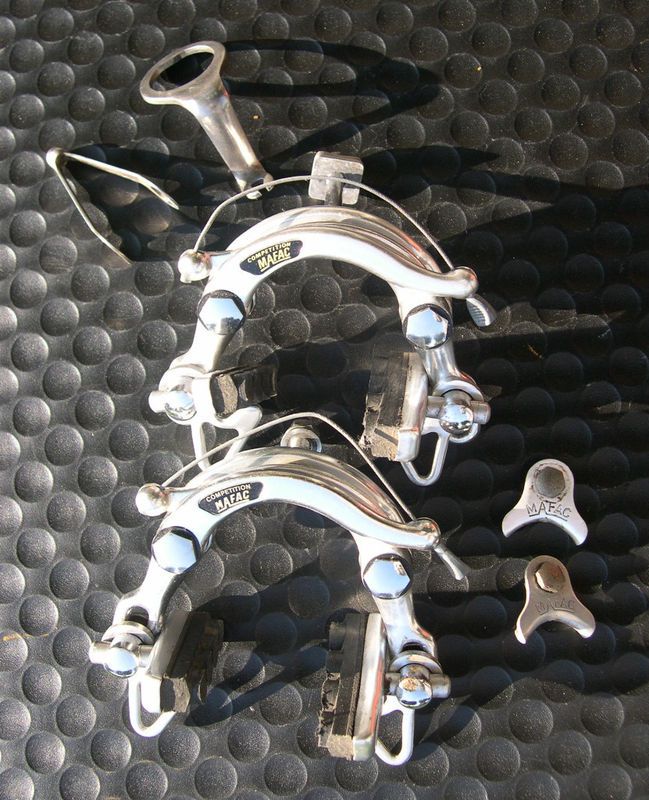

Competition (late)
__________________
- Auchen
auchencrow is offline
Old 10-31-11, 05:16 AM
  #2
hagen2456
Senior Member

Join Date: Oct 2011
Location: Copenhagen
Posts: 1,832

Bikes: A load of ancient, old and semi-vintage bikes of divers sorts

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I don't know, really, but this https://en.wikipedia.org/wiki/Mafac may be of some help, perhaps.

I love the old MAFAC "Racer" brakes.
hagen2456 is offline
Old 10-31-11, 07:00 AM
  #3
Chris W.
Senior Member

Chris W.'s Avatar

Join Date: Jul 2008
Location: Nampa Idaho
Posts: 1,084

Bikes: 76' Centrurion Pro-Tour, 86' Specialized Rock Hopper, 88' Centurion Iron Man, 89' Bruce Gordon "Hikari", 95' Rock Hopper Ultra.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
This chart may help

https://ruedatropical.com/2009/01/maf...l-brake-specs/

Cheers,
Chris
Chris W. is offline
Old 10-31-11, 07:04 AM
  #4
jstewse
Senior Member

jstewse's Avatar

Join Date: Aug 2009
Posts: 218
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I just sold a set of the early competitions, and the arms were thicker and overall looked more well made than the run-of-the-mill racers.
jstewse is offline
Old 10-31-11, 07:39 AM
  #5
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,462

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Motobecane(2), Greg Lemond, Andre Bertin, Schwinn Paramount

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Likes: 0
Liked 511 Times in 247 Posts
The RAID model is a long reach model. I believe they have the longest reach of any MAFAC brakes. I have a set on my Lejeune tandem.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 10-31-11, 08:03 AM
  #6
auchencrow
Senior Member
Thread Starter

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 15 Times in 13 Posts
Originally Posted by hagen2456 View Post
I don't know, really, but this https://en.wikipedia.org/wiki/Mafac may be of some help, perhaps.

I love the old MAFAC "Racer" brakes.

In loving old Racers, you have plenty of company hagen2456!
- But until now you were one of the few who knew MAFAC stood for Manufacture Arvernoise de Freins et Accessoires pour Cycles !
__________________
- Auchen
auchencrow is offline
Old 10-31-11, 08:06 AM
  #7
auchencrow
Senior Member
Thread Starter

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 15 Times in 13 Posts
Originally Posted by Chris W. View Post
Thank you Chris - This is really a very helpful chart. The differences are more than cosmetic and the chart tells why!
__________________
- Auchen
auchencrow is offline
Old 10-31-11, 08:23 AM
  #8
auchencrow
Senior Member
Thread Starter

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 15 Times in 13 Posts
Originally Posted by CV-6 View Post
The RAID model is a long reach model. I believe they have the longest reach of any MAFAC brakes. I have a set on my Lejeune tandem.
- And the chart confirms it, CV-6. They have tremendous (80mm) reach but probably stiffer than other brands, if they are anything like the Racer & Competition.
__________________
- Auchen
auchencrow is offline
Old 10-31-11, 08:28 AM
  #9
auchencrow
Senior Member
Thread Starter

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 15 Times in 13 Posts
Originally Posted by jstewse View Post
I just sold a set of the early competitions, and the arms were thicker and overall looked more well made than the run-of-the-mill racers.
That's good to know, jstewse, because my late Competitions have a more modern "look" and don't provide for a good visual comparison. It would make sense that the Comps were a little better since they did appear on the better bikes. (That's not to say that the Racers aren't great calipers).
__________________
- Auchen
auchencrow is offline
Old 10-31-11, 08:29 AM
  #10
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Posts: 17,415
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 441 Post(s)
Likes: 0
Liked 13 Times in 13 Posts
I prefer the early Competitions myself. I think they're better looking than the Racers and they have brass bushings.

MAFAC is an acronym, that's why it's correctly written in all caps.
Grand Bois is offline
Old 10-31-11, 09:14 AM
  #11
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 8,685

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 599 Post(s)
Liked 696 Times in 334 Posts
I don't have much experience with all of the models I know the Racers work great and are a far better brake than their look would leave one to believe.
zukahn1 is offline
Old 10-31-11, 09:56 AM
  #12
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,755
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 123 Times in 72 Posts
Making
All
French
Accessories
Cuestionable'

:>

Love my Competitions. A very good question Auchen. I too was interested in this topic.

Last edited by rootboy; 10-31-11 at 01:12 PM.
rootboy is offline
Old 10-31-11, 10:05 AM
  #13
CMAW
Pining for the fjords

CMAW's Avatar

Join Date: Feb 2011
Location: Brussels
Posts: 609
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 277 Times in 95 Posts
Become a MAFAC specialist in 2 easy lessons! Amaze your cycling friends or... that attractive girl passing by on her mixte! No French language skills required.
Disclaimer: additional toe in skills may be required.


https://www.classiclightweights.co.uk...fac1-comp.html
CMAW is offline
Old 10-31-11, 12:07 PM
  #14
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,650

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3003 Post(s)
Liked 2,110 Times in 1,255 Posts
"Dural forge" simply means "forged aluminum" ("Dural" being a trade name for an aluminum alloy) and is found on older MAFAC calipers. Later calipers had model designations on the calipers, e.g. "Racer," "Raid," "Competition," etc.
JohnDThompson is offline
Old 10-31-11, 12:16 PM
  #15
dbakl
Senior Member

Join Date: Nov 2005
Posts: 5,770

Bikes: Cinelli, Paramount, Raleigh, Carlton, Zeus, Gemniani, Frejus, Legnano, Pinarello, Falcon

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
I believe Dural Forge were the earlier versions of the Racers; Competitions somewhat different, don't know Raid but there were also Tigers and...?
dbakl is offline
Old 10-31-11, 01:11 PM
  #16
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,755
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 123 Times in 72 Posts
and "Kathy" ? never heard of that one before the Wiki link.
rootboy is offline
Old 10-31-11, 01:28 PM
  #17
auchencrow
Senior Member
Thread Starter

auchencrow's Avatar

Join Date: Apr 2009
Location: Detroit
Posts: 10,327
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 15 Times in 13 Posts
I've never seen a Mafac Tiger, but it would be cool to have them.

"What kind of brakes does your bike have?"

"Oh, they're Tigers!"

__________________
- Auchen
auchencrow is offline
Old 10-31-11, 01:37 PM
  #18
lotek
Senior Member

lotek's Avatar

Join Date: Dec 2001
Location: n.w. superdrome
Posts: 17,688

Bikes: 1 trek, serotta, rih, de Reus, Pogliaghi and finally a Zieleman! and got a DeRosa

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
MAFAC Top63. really cool old brakes but expect to pay at least $500 for them.

__________________
Sono più lento di quel che sembra.
Odio la gente, tutti.


Want to upgrade your membership? Click Here.
lotek is offline
Old 10-31-11, 02:20 PM
  #19
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,334 Times in 842 Posts
I have MAFAC cantilevers on the frame I made in the 70's..

Brake adjustment took place in where the bosses are mounted in the first place.
fietsbob is offline
Old 10-31-11, 04:04 PM
  #20
hagen2456
Senior Member

Join Date: Oct 2011
Location: Copenhagen
Posts: 1,832

Bikes: A load of ancient, old and semi-vintage bikes of divers sorts

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I wonder if anyone could tell me how the cantilever MAFACs on classical French touring bikes perform?
hagen2456 is offline
Old 10-31-11, 04:46 PM
  #21
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,992
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Liked 215 Times in 136 Posts
I've got images of some Mafac posters, one of which has a lot of technical information on it. Can't remember where I snarfed them from.
I've uploaded them to a Flickr set, for anyone who's interested.
https://www.flickr.com/photos/1317574...7628023244738/
Charles Wahl is offline
Old 10-31-11, 05:05 PM
  #22
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,250

Bikes: Yes, please.

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 1892 Post(s)
Liked 2,693 Times in 1,176 Posts
Thanks! A very informative thread on what are quickly becoming my favorite brakes.
non-fixie is offline
Old 10-31-11, 06:02 PM
  #23
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,755
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Likes: 0
Liked 123 Times in 72 Posts
Originally Posted by Charles Wahl View Post
I've got images of some Mafac posters, one of which has a lot of technical information on it. Can't remember where I snarfed them from.
I've uploaded them to a Flickr set, for anyone who's interested.
https://www.flickr.com/photos/1317574...7628023244738/
Those are really neat Charles. Thanks. I'm wondering if they can be viewed somehow in better definition. Can't decipher any detail of those schematics.
rootboy is offline
Old 10-31-11, 07:04 PM
  #24
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,992
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Liked 215 Times in 136 Posts
Originally Posted by rootboy View Post
Those are really neat Charles. Thanks. I'm wondering if they can be viewed somehow in better definition. Can't decipher any detail of those schematics.
They're actually at pretty high resolution. Click on the image you want, then right-click on the image that appears, and choose "Original" for the size.
Charles Wahl is offline
Old 10-31-11, 08:20 PM
  #25
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,422

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Liked 104 Times in 64 Posts
appropos of not very much:

old's'cool is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
ilikebikes
Classic & Vintage
18
08-26-19 07:41 PM
Metricoclock
Classic & Vintage
18
06-15-19 03:39 AM
acoffin
Classic and Vintage Sales
7
09-18-18 05:26 PM
lesterp66
Classic and Vintage Sales
8
08-11-18 03:44 PM
ilikebikes
Singlespeed & Fixed Gear
11
06-11-10 12:38 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
