steerer tube markings
12-27-11 | 06:54 PM
#1
Thread Starter
What??? Only 2 wheels?
Joined: Apr 2010
Posts: 13,501
Likes: 995
From: Boston-ish, MA
Bikes: 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PF10
steerer tube markings
Fork crown race inner diameter 26.4mm, standard ISO. The steerer tube is stamped, very lightly.
On the front "REYNOLDS 531". That much is obvious.
On the rear <mumble>, perhaps nothing, followed by "LT 16/13".
What is the 16/13? And does the LT mean Light, or something totally different?
The frame is Italian. The threads fit an ISO 1" headset but I can't tell if they are cut as Italian or ISO. Given the 26.4mm diameter above I would expect ISO.
On the front "REYNOLDS 531". That much is obvious.
On the rear <mumble>, perhaps nothing, followed by "LT 16/13".
What is the 16/13? And does the LT mean Light, or something totally different?
The frame is Italian. The threads fit an ISO 1" headset but I can't tell if they are cut as Italian or ISO. Given the 26.4mm diameter above I would expect ISO.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
12-27-11 | 08:02 PM
#2
Decrepit Member
Joined: Aug 2005
Posts: 10,488
Likes: 94
From: Santa Rosa, California
Bikes: Waterford 953 RS-22, several Paramounts

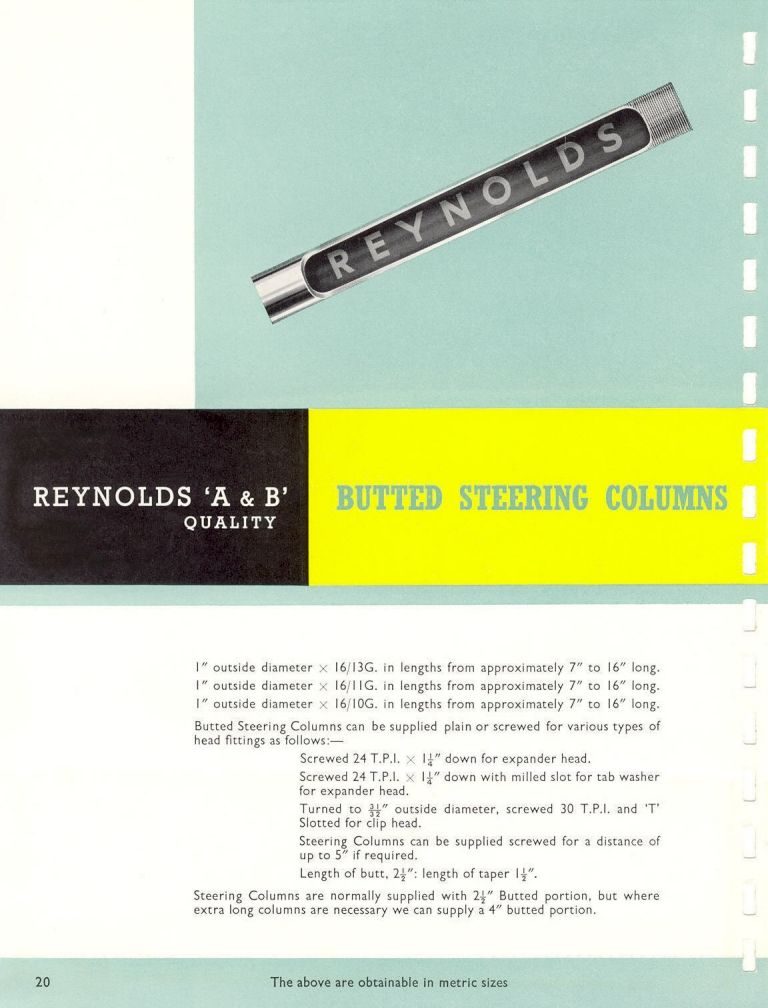

The 16/13 is the gauge, or wall thickness, of the non-butted and butted ends of the steerer tube.
