brake reach question
05-29-12 | 07:56 AM
#1
Thread Starter
Senior Member
Joined: Apr 2012
Posts: 59
Likes: 0
Bikes: peugeot u010, giant scr4, raleigh road bike
brake reach question
is there any way to tell before i buy shimano 600 try colour brakes if they have enough reach for 700c.
The brake reach is 39-49mm and the frame they will be going on is a raleigh but I'm not sure of the model.
Thanks
The brake reach is 39-49mm and the frame they will be going on is a raleigh but I'm not sure of the model.
Thanks
05-29-12 | 11:25 AM
#3
Senior Member
Joined: Nov 2010
Posts: 15,315
Likes: 903
From: Tixkokob, Yucatán, México
Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5
In my extremely limited experience, the front has never been an issue. Can't speak to the rear, though 49mm sounds short to me.
05-29-12 | 12:18 PM
#4
Bianchi Goddess
Joined: Apr 2009
Posts: 28,967
Likes: 4,236
From: Shady Pines Retirement Fort Wayne, In
Bikes: Too many to list here check my signature.
What year is your Raleigh? The simpliest way is to simply measure your bike with the wheels you intend to use. I would moint the wheel sans tire and measure from the mounting hole to the bottom of the rim where the spoke holes are. That would be within a MM or two of the max reach a brakeset would have to be.
__________________
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
05-29-12 | 02:17 PM
#5
CL Addict
Joined: Oct 2007
Posts: 1,096
Likes: 152
From: Evanston, IL
Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirrus
__________________
05-30-12 | 05:06 PM
#6
Bianchi Goddess
Joined: Apr 2009
Posts: 28,967
Likes: 4,236
From: Shady Pines Retirement Fort Wayne, In
Bikes: Too many to list here check my signature.
I don't think those brakes will fit that bike

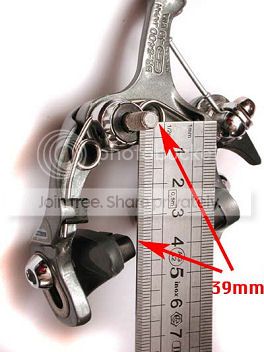

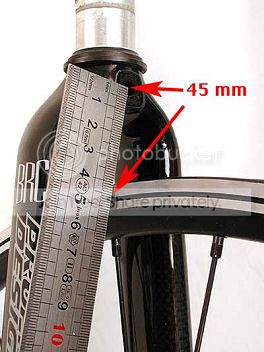

So you measure on an angle?
__________________
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
05-30-12 | 05:15 PM
#7
CL Addict
Joined: Oct 2007
Posts: 1,096
Likes: 152
From: Evanston, IL
Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirrus
05-30-12 | 07:04 PM
#8
Cottered Crank
Joined: Aug 2010
Posts: 3,401
Likes: 15
From: Chicago
Bikes: 1954 Raleigh Sports 1974 Raleigh Competition 1969 Raleigh Twenty 1964 Raleigh LTD-3
You measure at an angle because the brakes work at an angle. The reach for any particular setup has a little to do with rim width as well as how far down the rim is.
