Rear fender install issues.

Rear fender install issues.

So I am trying to install these fenders on my wife’s Mixte and am looking for feedback on solving a clearance problem.

The front fender went in without much fiddling, but the rear fender is giving me some problems.

The problem is that there is very little clearance between the tire and the seat stay brake bridge – only about 7mm before installing the fender. Since this is a Mixte, this bridge does not carry the brakes (they are mounted on bridge between the stays running from the head tube to the rear drop out).

I reamed out the fender’s L-bracket with a dremel so that I can mount the fender as high a possible and did a little bit of fiddling to make the fender fit without rubbing, but it is just too close for comfort. If the smallest object gets in there or the fender settles a bit then it will surely rub.

Here are a couple of solutions I am considering. Let me know what you think.

Use a different tire: Right now the bike has 700c x 35 Paselas. If I move down to a 32’s, will that increase the clearance? I should probably switch to smaller tires anyway since there is very little tire clearance between the chain stays up by the bridge. Plenty of room in front of the tire, but not a lot between the stays. I am not sure if going to a 700c x 32 tire will increase the clearance.

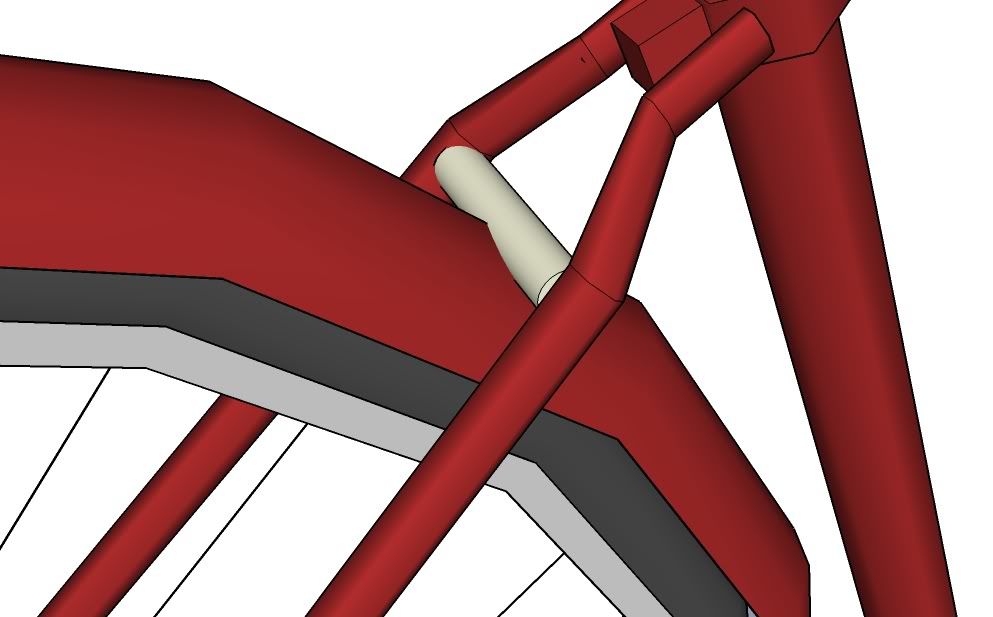

More fiddling: The other idea is to cut out part of the fender so I can mount it a little higher. Using a dremel, I can cut out the part of the fender that bumps up against the bridge allowing the fender to be potentially mounted higher. I would then use something like a coated tube clamp or pipe hanger to mount the fender to the bridge. This seems like a lot of fiddling but is very doable for me. As an alternate to this method, I could dimple the fender rather than making the cut. Here is my simplified attempt to draw this set up (not e that this does not show the clamp).



Looking for feedback and/or other ideas.

Also, I have seen set ups where the fender has been cut in half at the bridge and mounted using an L-bracket on either side. This has never looked clean enough for me.
delvxe is offline
Old 03-16-09, 03:36 PM
  #2
CliftonGK1
Senior Member

CliftonGK1's Avatar

Join Date: Jul 2006
Location: Columbus, OH
Posts: 11,375

Bikes: '08 Surly Cross-Check, 2011 Redline Conquest Pro, 2012 Spesh FSR Comp EVO, 2015 Trek Domane 6.2 disc

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I'd start by dropping down to a 32mm tire before busting out the power tools.
__________________
"I feel like my world was classier before I found cyclocross."
- Mandi M.
CliftonGK1 is offline
Old 03-16-09, 04:02 PM
  #3
mattm
**** that

mattm's Avatar

Join Date: Dec 2006
Location: CALI
Posts: 15,398
Mentioned: 151 Post(s)
Tagged: 0 Thread(s)
Quoted: 1095 Post(s)
Liked 86 Times in 28 Posts
Originally Posted by CliftonGK1 View Post
I'd start by dropping down to a 32mm tire before busting out the power tools.
+1, maybe even 30's
__________________
cat 1.

my race videos
mattm is offline
Old 03-16-09, 04:08 PM
  #4
AsanaCycles
Bicycle Lifestyle

AsanaCycles's Avatar

Join Date: Jan 2008
Location: Pacific Grove, Ca
Posts: 1,737

Bikes: Neil Pryde Diablo, VeloVie Vitesse400, Hunter29er, Surly Big Dummy

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
+2 for the change in tyres.
once you cut something there is no going back.

perhaps you could possibly, mount the rear fender above, mentioned bridge
and cut a gap in the sides of the fender.
so rather than go below the bridge
try up high?

pics of the actual bike may help
along with some mock ups of how you're thinking of mounting the fender.
fenders are almost always a trial and error method.

you could get some cheap plastic fenders, and experiment with cutting and mounting.
AsanaCycles is offline
Old 03-16-09, 04:40 PM
  #5
delvxe
Junior Member
Thread Starter

Join Date: Aug 2008
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Alright, I hear a consensus will give the tire change a chance. I really should do it anyway given the tight clearance between the chain stays.

AsanaCycles, thanks for the idea. I don't know why it didn't occur to me to trim the edges and bring the fender down from the top. This would would make mounting the fender easier. The downside would be that I would be cutting the rolled edge of the fender and compromising its rigidity.


Terry
Seattle, WA
delvxe is offline
Old 03-16-09, 05:53 PM
  #6
fender1
Senior Member

fender1's Avatar

Join Date: Jan 2006
Location: Berwyn PA
Posts: 6,149

Bikes: I hate bikes!

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Liked 248 Times in 82 Posts
I did a Nexus 7 speed conversion to a Raleigh Mixte for my wife. I went w/32mm (700c) Schwalbe tires and full metal fenders. No problems. FWIW, I run fenders on most of my bikes and have found that for most older 27" wheeled, non- touring specific bikes, 32mm w/ (700c wheels) and fenders is about the max you can get away with. The one odd exception is my 1972 Schwinn Paramount which can easily run 35mm studded tires w/ full fenders. It was the "touring" verison so it probably has more clearance.

I also have had to trim metal fenders from VO to make them fit. Just make sure to file the edges after you trim them.
fender1 is offline
Old 03-16-09, 06:13 PM
  #7
rogerstg
Fred-ish

rogerstg's Avatar

Join Date: Aug 2007
Location: Rhode Island
Posts: 1,800
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
With a small L bracket you should be able to mount the fender right against the bridge, costing maybe 1-2mm of the 7mm clearance that you have. Would that be enough?
rogerstg is offline
Old 03-16-09, 09:42 PM
  #8
AsanaCycles
Bicycle Lifestyle

AsanaCycles's Avatar

Join Date: Jan 2008
Location: Pacific Grove, Ca
Posts: 1,737

Bikes: Neil Pryde Diablo, VeloVie Vitesse400, Hunter29er, Surly Big Dummy

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've got a couple of pairs of plastic fenders, that i've cut up over the years.
they've become the "mock set up" pair.
that is... its the pair that i try out on any particular bike, then when i've got the set up exactly how i want it, ride around with it, etc... and work out all the bugs, then i buy a new set and make the mods

that way... the install is all nice and clean, no screw ups, etc...

as i've come to learn thru experience...
there are only a few basic methods to use.

now that the mock up set of fenders have been cut up a bunch of times, often they fit right into place on most bikes.

i just use planet bike plastic ones

its one of those things, that i've come to remember, that a lot of the time, especially as winter would settle in, that if i'm going to order fenders, with the large item shipping, its often a good idea to order two sets.

i've sold old fenders plenty of times on Craigslist, and often times, i get to sell an install job too.

its one of those things, that when you become familiar with it, it can pay... a little.
AsanaCycles is offline
Old 03-16-09, 10:44 PM
  #9
jgrant75
gridlock junky

jgrant75's Avatar

Join Date: Dec 2006
Location: Los Angeles
Posts: 201

Bikes: 1944 JC Higgens Cruiser, 1988 Univega Aero Speed, 1993 GT Ricochet, 2005 Electra Cruiser, 2006 Cervelo Dual, 2007 IRO Mark V

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
if you take this concept and apply it to your situation it will work without having to switch tires


https://www.bikecommuters.com/2008/06...hackliterally/

(oops sorry, i see you already know of this solution...)

you do not want that fender to catch and grab! it happened to me last weekend after i went up 1/4" on my rear tire, forgot to reset the fender and went and loaded 150lbs on the back... i hit a bad bump and ended up with a mangled fender (i use hardcore freddy fenders). remarkably i was able to bend everything back straight! i highly recommend them.
jgrant75 is offline
Old 03-17-09, 02:56 AM
  #10
xenologer
Senior Member

Join Date: Aug 2008
Posts: 2,589
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
I say keep your tires and cut away at the fender.

Thats just me though, I don't like tossing perfectly good tires, and my fenders are used plastic ones so I have no qualms about chopping them up and making custom mounting brackets out of scrap metal... priority over savings and resources and utility than style and prettiness.
xenologer is offline
Old 03-23-09, 07:22 AM
  #11
dwilbur3
Freewheelin' Fred

dwilbur3's Avatar

Join Date: Nov 2008
Location: Sacramento
Posts: 742

Bikes: Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've got a similar problem, when I moved from 23s to 28s my rear fender doesn't fit any more (even tho it's supposed to take 35s). I'm going to hack on it. I want a fender, but I want the wider tires just as much.
dwilbur3 is offline
Old 03-23-09, 07:36 AM
  #12
2manybikes
Senior Member

Join Date: Jun 2003
Posts: 18,007

Bikes: 2 many

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1220 Post(s)
Liked 235 Times in 113 Posts
There's no reason you can't go over the bridge. I've done it before, it works great. Cutting the fender and using the brackets shown works too. If you have black plastic fenders you can fill in the open cracks with black tape and make it look ok.

There is a big difference between Pasela 35's and 32's. No one can know for sure if it is enough for your bike to fix the problem.
2manybikes is offline
Old 03-23-09, 07:44 AM
  #13
gear
Senior Member

gear's Avatar

Join Date: Sep 2004
Location: North shore of Mass.
Posts: 2,131
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 2 Times in 1 Post
I had the same exact situation and I solved it by cutting out part of the fender.

I then made a clip that I pop riveted to the top of the fender, it goes over the seat stay bridge (not attached to it) to keep the fender up tight against the bridge.
gear is offline
Old 03-23-09, 08:30 AM
  #14
jack002
Senior Member

jack002's Avatar

Join Date: Feb 2009
Location: Southwest MO
Posts: 786

Bikes: (2) 1994 Cannondale R900, red, Silver Trek hybrid

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 4 Times in 4 Posts
You seem to just need like 2mm more clearance at the one seat stay bridge? Would it be an option to take a big hammer and hit it from inside to bend it a little?
jack002 is offline
Old 03-24-09, 12:48 PM
  #15
MichaelW
Senior Member

Join Date: Feb 2001
Location: England
Posts: 12,948
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
I fixed the lower section of my SKS fenders to the chainstay bridge with a small hold and a small zip-tie. If your seatstay bridge lacks a brake hole you may be able to rig someting. Zip ties last for years in this role, longer than the steel brackets which seem to snap after 3-4 years.
MichaelW is offline
Old 03-24-09, 06:44 PM
  #16
slcbob
bored of "Senior Member"

Join Date: Oct 2007
Location: MD / metro DC
Posts: 2,157

Bikes: Cross-Check/Nexus commuter. Several others for various forms of play.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 422 Post(s)
Liked 221 Times in 178 Posts
If you want to buy new tires, have at it.

I like the way you're thinking with your sketch, but first maybe try losing the L clamp. If you just put two little holes in the fender and zip-tied through them and around the bridge (maybe with a rubber washer in btwn the fender and bridge to reduce rattle), you'd probably gain a few mm better than the L bracket, though less than the cutout scheme.

If you still have to cut out, I would look at dimpling the fenders before cutting them. I have VO fenders and needed to "shape" them a bit on my front fork to fully fit up into the bottom of the crown. It worked. You can always cut out the dimple if it still falls short and you have to go all the way to cutout or split the fender.
slcbob is offline
Old 03-29-09, 10:47 AM
  #17
slcbob
bored of "Senior Member"

Join Date: Oct 2007
Location: MD / metro DC
Posts: 2,157

Bikes: Cross-Check/Nexus commuter. Several others for various forms of play.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 422 Post(s)
Liked 221 Times in 178 Posts
Did you solve your problem? How?
slcbob is offline
Old 03-31-09, 11:11 AM
  #18
delvxe
Junior Member
Thread Starter

Join Date: Aug 2008
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Update

I haven't had a whole lot of time to fiddle with it. I have rigged something up but am still not completely satisfied.

I tossed the bridge that came with the fender as it was simply too bulky to be useful. I cut a hole in the fender and mounted an L bracket from below. Also,m using a mallet, I dimpled the part of the fender that hits the bridge.


It is still not quite snug enough against the bridge, so I will probably get the dremel out again and go back to my original plan of cutting out part of the fender the hits the bridge. I will have to fugure out how I am going to reuse the hole I drilled for the L bracket.

I will update once I have made progress. Thanks for the suggestions.
