Gear shifter with throttle...

Notices
Electric Bikes Here's a place to discuss ebikes, from home grown to high-tech.

Gear shifter with throttle...

Old 11-08-19, 05:41 PM
  #1
pierce
S'Cruzer
Thread Starter

pierce's Avatar

Join Date: Jun 2010
Location: 122W 37N
Posts: 2,443

Bikes: too many

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 18 Times in 16 Posts
Gear shifter with throttle...

how do you setup a shifter combined with a trigger throttle ? I had a heck of a time integrating those on the mid drive I did for my brother, he really wanted the throttle, but it pushed the shimano 8-speed trigger shifter and brake lever so far inboard they are hard to reach.

pierce is offline
Old 11-09-19, 02:10 AM
  #2
pierce
S'Cruzer
Thread Starter

pierce's Avatar

Join Date: Jun 2010
Location: 122W 37N
Posts: 2,443

Bikes: too many

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 18 Times in 16 Posts
oh, and what are some old school long mountain bike brake levers ? everything now is 2-finger, which normally I love, but with the offset on both sides from the e-controls, they are not that comfortable to reach, and my bro wants something much longer...


hmmm, maybe I should hit up one of the local bike recyclers, who fix up old bikes and resell them... see if I can get some 80s/90s brake levers. no easy answer :-/



edit: ok, crap, those old long brake levers were for cantilever or sidepulls... I already know from experience they don't work that great with v-brakes, ugh. and trying to use cantilevers on a suspension fork kinda sucks, you need a bridge piece as a cable anchor..

Last edited by pierce; 11-09-19 at 03:43 AM.
pierce is offline
Old 11-09-19, 08:15 AM
  #3
Doc_Wui
Senior Member

Doc_Wui's Avatar

Join Date: Jul 2015
Location: Chicago Suburbs
Posts: 1,269

Bikes: GT Transeo & a half dozen ebike conversions.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 312 Post(s)
Liked 177 Times in 128 Posts

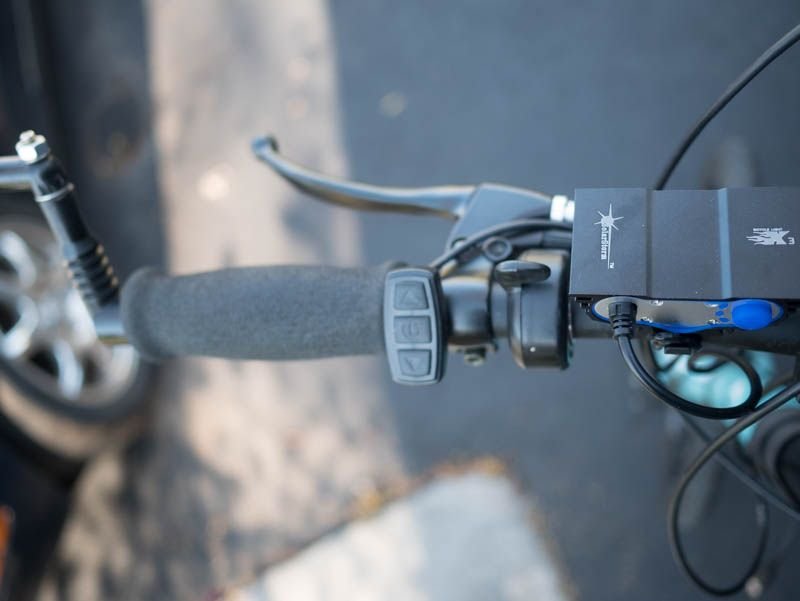

This is one of mine. The throttle is way inboard.


This is another one. The right side grip is 1" shorter.



The half twist throttle is probably your best bet.
https://www.ebay.com/itm/Electric-Bi....c100005.m1851
Doc_Wui is offline
Old 11-09-19, 08:18 AM
  #4
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 3,423
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked 466 Times in 355 Posts
Why not change to a thumb throttle? That's what I use anyway because I like it much better. And if you need long levers which work with linear brakes just get some of the cheap ones that come with Chinese kits (brand is Wuxing AFAIK).
2old is offline
Old 11-09-19, 05:24 PM
  #5
PreacherG
Member

Join Date: Oct 2019
Location: West Kentucky
Posts: 41

Bikes: GenZe 102 e bike, 70'S Moosburg 3 sp touring bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 2 Times in 2 Posts
My vote is a shorter grip.
PreacherG is offline
Old 11-13-19, 05:00 AM
  #6
MikeyMK
Cycleway town

MikeyMK's Avatar

Join Date: Jul 2014
Location: Milton Keynes, England
Posts: 1,402

Bikes: 2.6kw GT LTS e-tandem, 250w Voodoo, 250w solar recumbent trike, 3-speed shopper, Merlin ol/skl mtb, 80cc Ellswick

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 169 Times in 117 Posts

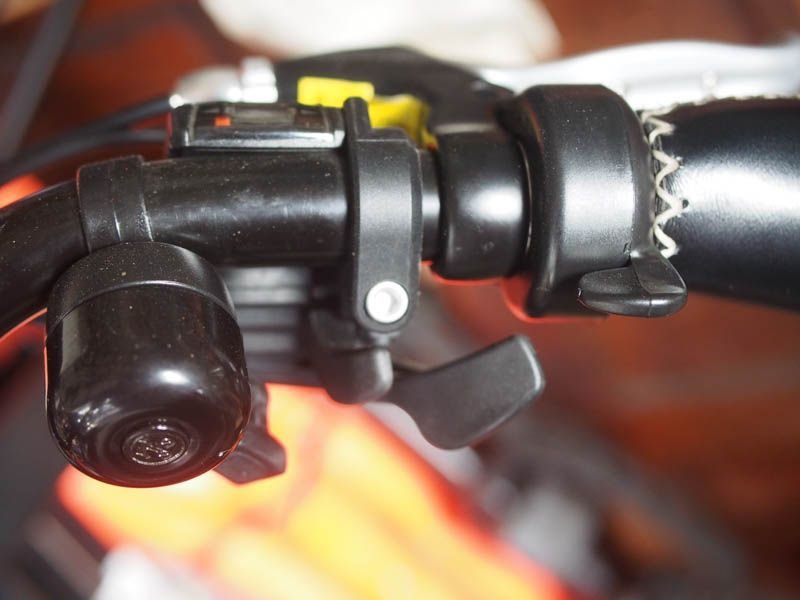

B-series Shimano shifters. They bolt to my brake levers. This means I was able to drop them low enough to clear my thumb shift. So both throttle and shifter are right where I need them.

Throttle on the left could go closer, but it's where it's most comfortable. Thing with the hole on the right was the horn button, but it's missing there as it broke..

MikeyMK is offline
Old 11-13-19, 12:32 PM
  #7
pierce
S'Cruzer
Thread Starter

pierce's Avatar

Join Date: Jun 2010
Location: 122W 37N
Posts: 2,443

Bikes: too many

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 18 Times in 16 Posts
hmm, never seen those shifters. are they available for 8 speed ? whats a specific model number for a 8 speed rear/right shifter in this series?
pierce is offline
Old 11-13-19, 12:40 PM
  #8
pierce
S'Cruzer
Thread Starter

pierce's Avatar

Join Date: Jun 2010
Location: 122W 37N
Posts: 2,443

Bikes: too many

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 18 Times in 16 Posts
Originally Posted by Doc_Wui View Post
This is one of mine. The throttle is way inboard.


...
do you use that throttle much? doesn't look very easy to reach.
pierce is offline
Old 11-14-19, 01:05 PM
  #9
MNebiker
Senior Member

Join Date: Jul 2018
Location: MN
Posts: 227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked 143 Times in 76 Posts
I have Shimano 3x8 RapidFire shifters with a twist type throttle and a short grip on the right side. Everything lines up perfect, just like the left side. I think if I did it over again I would just omit the the throttle as I ride in PAS mode and don't use the throttle.
MNebiker is offline
Old 11-14-19, 01:53 PM
  #10
Doc_Wui
Senior Member

Doc_Wui's Avatar

Join Date: Jul 2015
Location: Chicago Suburbs
Posts: 1,269

Bikes: GT Transeo & a half dozen ebike conversions.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 312 Post(s)
Liked 177 Times in 128 Posts
Originally Posted by pierce View Post
do you use that throttle much? doesn't look very easy to reach.
Had to use it like that. Quick setup to run 2 motors on my fatbike and too cold to do something more.elegant in the garage Only had throttle for the front motor and it was always needed to get rolling in snow,, I felt it worked fine,

Here's another one of mine where it looks too far from the grips, but works fine.


But you can't go wrong with MNebiker's advice. A Shimano trigger shifter fits well with any brake lever. Then go with a thumb throttle and cut down the grip. Or use a half twist throttle and they come with a short grip.

Last edited by Doc_Wui; 11-14-19 at 02:08 PM.
Doc_Wui is offline
Old 11-17-19, 09:32 PM
  #11
MikeyMK
Cycleway town

MikeyMK's Avatar

Join Date: Jul 2014
Location: Milton Keynes, England
Posts: 1,402

Bikes: 2.6kw GT LTS e-tandem, 250w Voodoo, 250w solar recumbent trike, 3-speed shopper, Merlin ol/skl mtb, 80cc Ellswick

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 169 Times in 117 Posts
Originally Posted by pierce View Post
hmm, never seen those shifters. are they available for 8 speed ? whats a specific model number for a 8 speed rear/right shifter in this series?
These are 2/3x10 but Shimano have a multitude of other shifters/levers in the range.

I only got these so I could use an 11-36t cassette, I'd use a 6-speed cassette if I could find one with a broad enough range of ratios!

I liked Shimano's button shifters in both Tourney 6-speed and Nexus 8-speed the ability to shift just by tapping a drinks bottle on the button was amusing, but the 6 worked with the throttle because it was based on an over-shifter design.

Manual bikes need flashy gears but e-bikes just don't. We don't need close ratios, or many. It's disappointing that we still seem to be stuck with equipment for manual bikes.
If I had my way I'd have a 1x6 set up with a 10-50t rear cassette...
MikeyMK is offline
