Help identify controller wires
#1
Thread Starter
Junior Member
Joined: Sep 2014
Posts: 145
Likes: 2
Help identify controller wires
My cheap AliExpress controller died I was given this one I think it's from a proprietary bike.
I know it will not work with my LCD as long as I can get it to work with a switch or something.
My geared hub wheel has 8 HAL wires.
The 3 Phase wires are easy to identify not sure about the rest.
48 Volt Battery, bottom picture is LCD






I know it will not work with my LCD as long as I can get it to work with a switch or something.
My geared hub wheel has 8 HAL wires.
The 3 Phase wires are easy to identify not sure about the rest.
48 Volt Battery, bottom picture is LCD






Last edited by Bigbadjohn; 04-03-21 at 07:18 PM.
#2
Senior Member

Joined: Jul 2015
Posts: 1,587
Likes: 391
From: Chicago Suburbs
Bikes: GT Transeo & a half dozen ebike conversions.
Big Bad John, You're doing it to yourself again.
I believe the orange connector with five wires is your phase wire connector,
The rest is yikes. I would suppose the white connector with thick red/black and a thine red is the plus/minus battery connector, The thin red is likely strapped to the positive to power up the controller.
A display will need a 4 or 5 pin connector, and there are none? So no display and then there would be a power level switch, which I know nothing about. Two wire connectors are either brakes or lights. Three wire connectors could be throttle or pedal assist or that power setting. Happy guessing.
If the controller powers up, you should find out which wire in those three pin connectors is ground and then get the voltages on the other two, That might tell you what connector is for throttle.
I believe the orange connector with five wires is your phase wire connector,
The rest is yikes. I would suppose the white connector with thick red/black and a thine red is the plus/minus battery connector, The thin red is likely strapped to the positive to power up the controller.
A display will need a 4 or 5 pin connector, and there are none? So no display and then there would be a power level switch, which I know nothing about. Two wire connectors are either brakes or lights. Three wire connectors could be throttle or pedal assist or that power setting. Happy guessing.
If the controller powers up, you should find out which wire in those three pin connectors is ground and then get the voltages on the other two, That might tell you what connector is for throttle.
#3
Thread Starter
Junior Member
Joined: Sep 2014
Posts: 145
Likes: 2
I know I am a glutton for punishment.
Thanks again Doc_Wui what would I do without you , I did it again plugged in the battery wrong polarity I guess most controller are not fused.
I have been trying to find a controller that will work with my LCD not having any success. In the meantime would like to get this one working.
That's actually all I want full power all the time with a simple switch to turn it on, I only have a twist throttle no peddle.

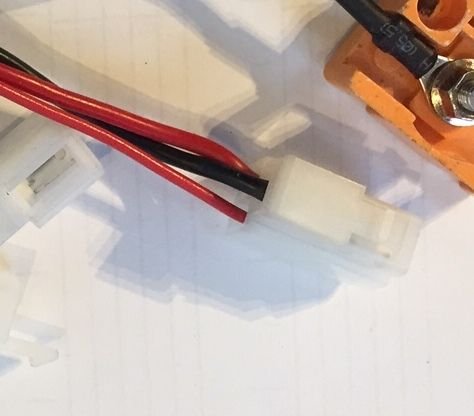

So there are 3 wires on the power plug 2 red and a black when I connect the 2 reds together it powers on, so I would need a switch to do that is that how it works?
"The thin red is likely strapped to the positive to power up the controller." I have a switch on my battery I could use to turn on with 2 reds connected.
It looks like the 5 wire red connector is the HAL
is my LCD standard as I can't find a controller to accept it I dont want to buy another combo I already have 3 LCD's
Your help is greatly appreciated
John
Thanks again Doc_Wui what would I do without you , I did it again plugged in the battery wrong polarity I guess most controller are not fused.
I have been trying to find a controller that will work with my LCD not having any success. In the meantime would like to get this one working.
That's actually all I want full power all the time with a simple switch to turn it on, I only have a twist throttle no peddle.
So there are 3 wires on the power plug 2 red and a black when I connect the 2 reds together it powers on, so I would need a switch to do that is that how it works?
"The thin red is likely strapped to the positive to power up the controller." I have a switch on my battery I could use to turn on with 2 reds connected.
It looks like the 5 wire red connector is the HAL
is my LCD standard as I can't find a controller to accept it I dont want to buy another combo I already have 3 LCD's
Your help is greatly appreciated
John
Last edited by Bigbadjohn; 04-03-21 at 09:37 PM.
#4
Senior Member

Joined: Jul 2014
Posts: 5,053
Likes: 1,283
From: socal
Bikes: DIY
Aren't there relatively inexpensive, self-learning controllers that can be connected, power administered, then the "learning" wire cut and the system is operational I've never needed to explore since I purchased kits.
#6
Senior Member

Joined: Jul 2014
Posts: 5,053
Likes: 1,283
From: socal
Bikes: DIY
Maybe you could purchase one in which the LCD area is identified. Then, when you set everything up, you could connect the LCD. Shouldn't be dangerous if you get it wrong (IDT, but I'm a Chemist so could be very wrong) since it draws only five or so amps. If the wires are wrong, try a different combination. Just a guess since I've never done it. DW is the expert.
#8
Senior Member

Joined: Jul 2014
Posts: 5,053
Likes: 1,283
From: socal
Bikes: DIY
I'm out of my element now, and wouldn't recommend that. If DW can't help, you might try endless sphere. There are individuals there who do all sorts of conversions.
#9
Thread Starter
Junior Member
Joined: Sep 2014
Posts: 145
Likes: 2
Thanks I am sure you are correct, I saw a YouTube a few months ago and that's how they did it
there are so many controllers and all are different.
When you think about it there are only 3 wires, and you know what would happen if you connected the red and black 48V, so it must be the 2 reds.
Very good video
there are so many controllers and all are different.
When you think about it there are only 3 wires, and you know what would happen if you connected the red and black 48V, so it must be the 2 reds.
Very good video
Last edited by Bigbadjohn; 04-05-21 at 08:21 PM.
#10
Thread Starter
Junior Member
Joined: Sep 2014
Posts: 145
Likes: 2
I hooked up the unidentified controller wires t matched up good the only thing I could not determine throttle so left it, tried one got sparks
I connected original one not the same one I plugged backwards thats as dead as a DoDo
could not get it to work motor made different noises for different HAL configuration.
I unplugged all the HAL wires and bike works, so maybe one of the HAL wire connections was not making contact. I will check and try again
I don't think it does any hard without
it worked lifting the wheel up when I took it for a ride it made clunky noise I connected HAL again now it runs smooth.
Was riding up a long steep hill yesterday with headwind blew everything BMS, Controller, hopefully not the motor
I connected original one not the same one I plugged backwards thats as dead as a DoDo
could not get it to work motor made different noises for different HAL configuration.
I unplugged all the HAL wires and bike works, so maybe one of the HAL wire connections was not making contact. I will check and try again
I don't think it does any hard without
it worked lifting the wheel up when I took it for a ride it made clunky noise I connected HAL again now it runs smooth.
Was riding up a long steep hill yesterday with headwind blew everything BMS, Controller, hopefully not the motor
