Handle bar conversion questions.
08-19-25 | 09:53 AM
#1
Thread Starter
Pedal Pusher
Joined: Jun 2020
Posts: 156
Likes: 363
From: Blaine, WA
Bikes: 1970 Peugeot PX-10 single speed - 1992 Ibis Cousin It Tandem - Zizzo Liberte’ Folding Bike
Handle bar conversion questions.
I have a Lectric 3.0 step-over…
I want to install drop bars… The challenge seems to be finding road brake levers with brake sensors.
My bike has now hydraulic brakes and I think I will need to go to cable actuated.
Relocating the display, the power switch seem easy… The shifter too… The throttle I can probably live without…
Your thoughts please…

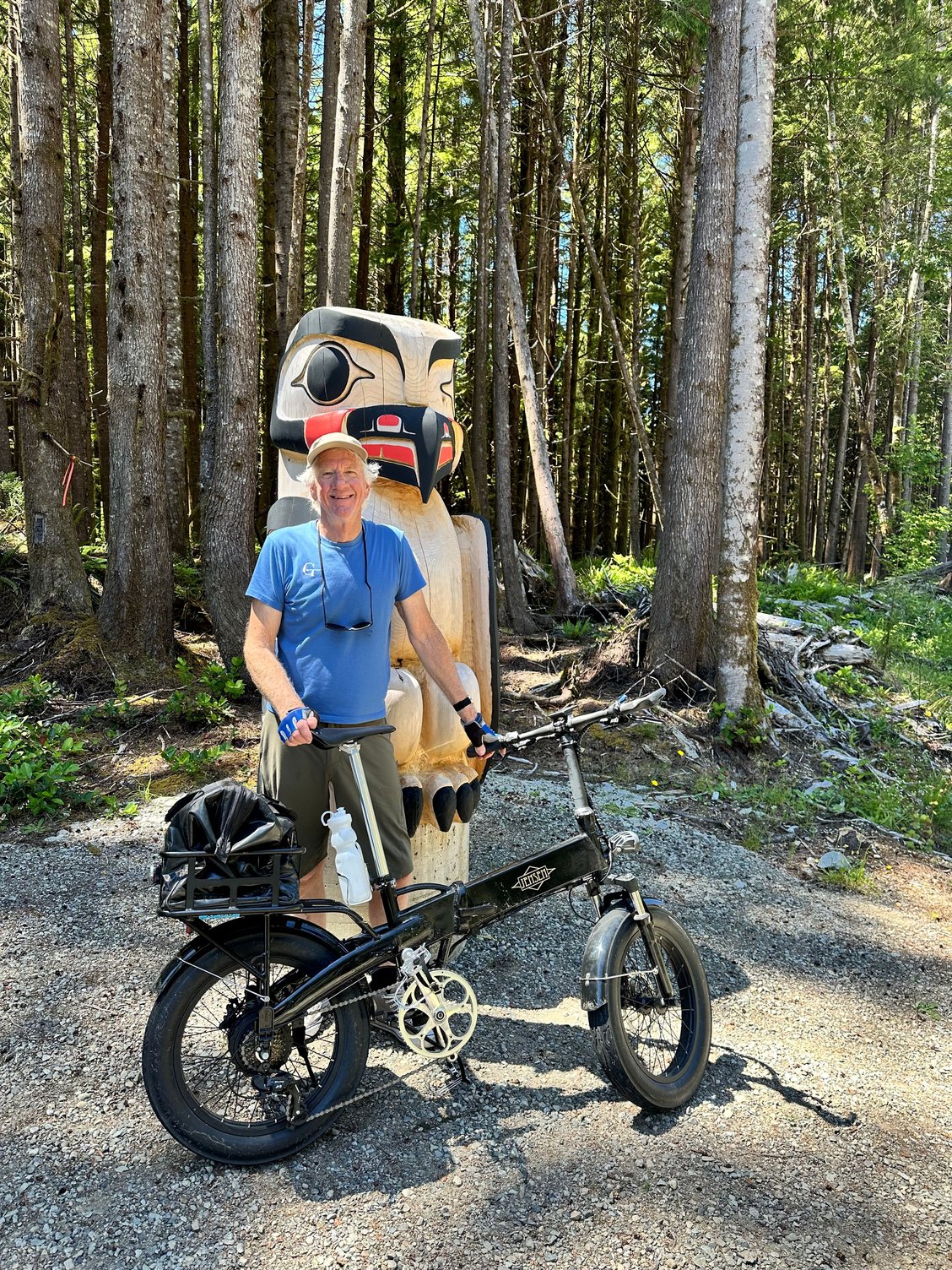

How it’s set up now.

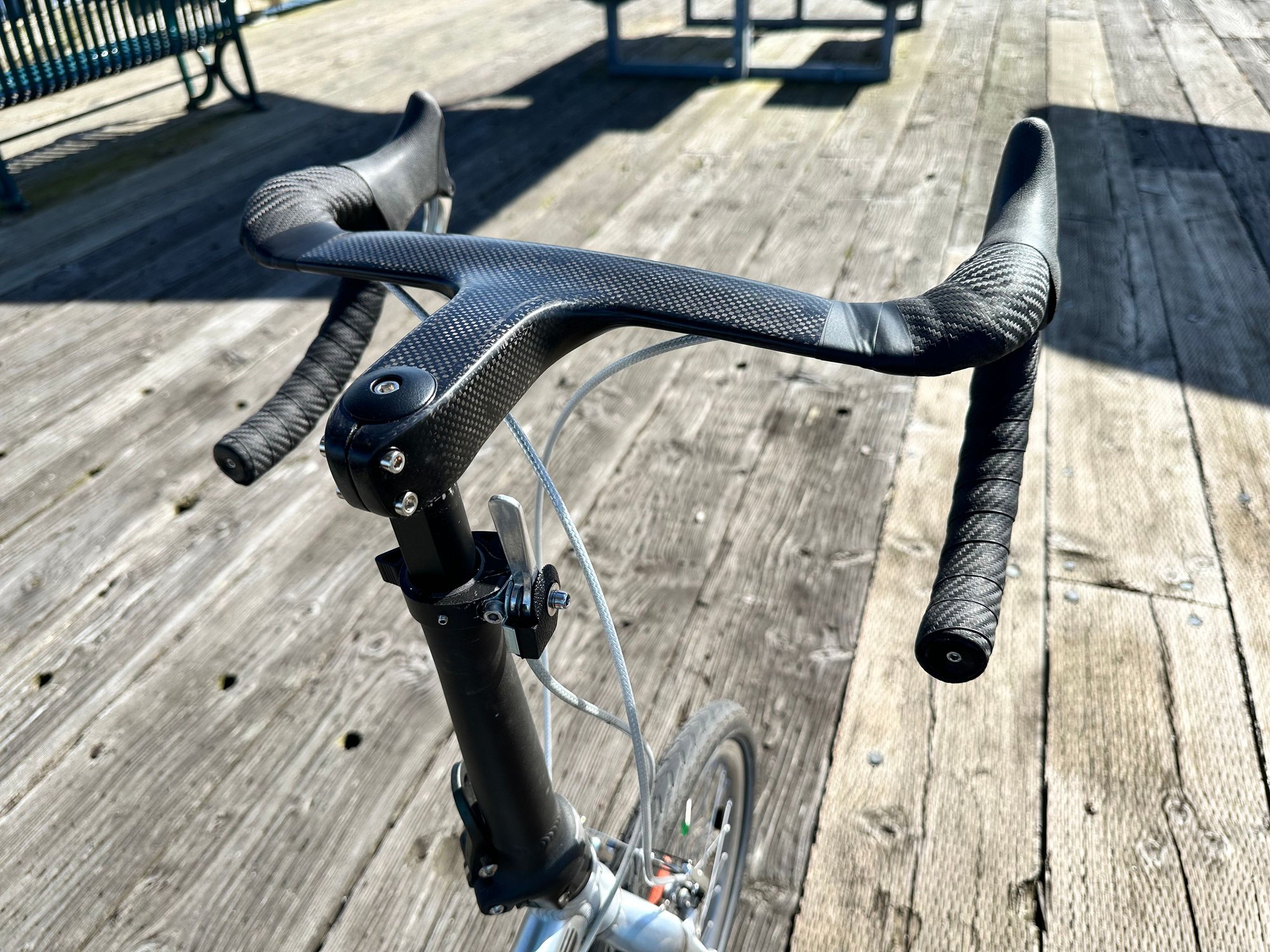

I have these bars on two of my bikes…
I want to install drop bars… The challenge seems to be finding road brake levers with brake sensors.
My bike has now hydraulic brakes and I think I will need to go to cable actuated.
Relocating the display, the power switch seem easy… The shifter too… The throttle I can probably live without…
Your thoughts please…
How it’s set up now.
I have these bars on two of my bikes…
08-19-25 | 10:40 AM
#2
Clark W. Griswold
Joined: Mar 2014
Posts: 18,248
Likes: 6,624
From: ,location, location
Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), R+M Supercharger2 Rohloff, Habanero Ti 26
I would ride this as is and get an electric road bike, trying to port everything over to a bike like that is going to be tough I don't think they make drop bar stuff for e-mopeds and the cheaper tourney stuff is not hydraulic.
You could go with a Velo Orange Crazy Bar if you really wanted to put money towards this and that will get you the position at the top of the drops as well as a nice comfortable swept back position.
You could go with a Velo Orange Crazy Bar if you really wanted to put money towards this and that will get you the position at the top of the drops as well as a nice comfortable swept back position.
08-19-25 | 09:32 PM
#4
Senior Member
Joined: Jul 2015
Posts: 1,587
Likes: 391
From: Chicago Suburbs
Bikes: GT Transeo & a half dozen ebike conversions.
You're using an index shifter? Wow.
I own three folders, and never liked the idea of putting a lot of weight on those flexing folding stems. Drop bars will do that.

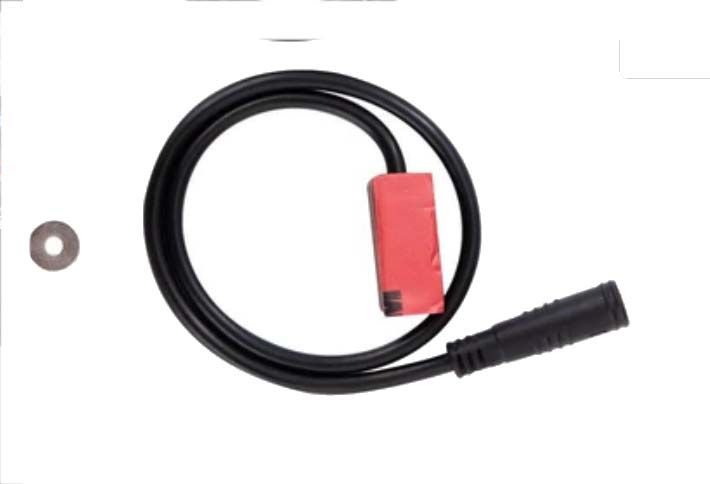

Mount a magnetic sensor on one of the levers.If you're a good fabber, you can make it look good. I haven't looked inside the sensor packages, but I bet it's mostly air inside those rectangular boxes. I've used these on regular brake levers. I put them on the bittom where they're not seen, but on your levers, you'll want to hide them better.
I own three folders, and never liked the idea of putting a lot of weight on those flexing folding stems. Drop bars will do that.
Mount a magnetic sensor on one of the levers.If you're a good fabber, you can make it look good. I haven't looked inside the sensor packages, but I bet it's mostly air inside those rectangular boxes. I've used these on regular brake levers. I put them on the bittom where they're not seen, but on your levers, you'll want to hide them better.
Last edited by Doc_Wui; 08-19-25 at 09:43 PM.
08-20-25 | 07:04 AM
#5
-
Joined: Mar 2020
Posts: 41
Likes: 22
From: ATL
Bikes: Jamis Coda Sport '17, Ride1Up 700 ebike, Felt VR40W, Priority Start 20", Giant XtC Jr Lite 24", Guardian 20", Burley Piccolo tag-along, Frog 62
I'll play the Devil's advocate here and question if you really need brake sensors. Sure, they cut off the motor when you're braking, but how often is the motor running when you're braking? Are you pedaling and braking at the same time, or hitting the throttle (if present) and the brakes simultaneously?
08-20-25 | 09:00 AM
#6
Senior Member
Joined: Jul 2014
Posts: 5,057
Likes: 1,283
From: socal
Bikes: DIY
Agree with above as I've eschewed them on my "e's". The only time they were of use for me was when I was testing BH's dual motor bike and (apparently, according to their engineer) the bike had a problem with the torque sensor and the motor would shut off only with the brakes. I had a really exciting ride up an 8 mile, 30000' ascent and exhausted the entire 600wh or so battery.
