Using a flashlight as a bike headlight?

Electronics, Lighting, & Gadgets HRM, GPS, MP3, HID. Whether it's got an acronym or not, here's where you'll find discussions on all sorts of tools, toys and gadgets.

Using a flashlight as a bike headlight?

Reply

Old 12-04-18, 07:31 AM
  #26
wombat_alex
Member

Join Date: Mar 2018
Location: Chicago, IL
Posts: 26

Bikes: 2018 Cannondale Quick 4

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Why even going through all this trouble when there is a bunch of inexpensive designated bike lights? Looks like an additional mount isn't a concern here. If it were - there are bike lights with strap mounts, really quick and easy to install and remove the entire unit (e.g. Niterider Swift series).
Remember, just because you can make a mount out of a soft drink bottle, doesn't mean you should (that was fun to watch though).

To answer the original question:

Pros: you'll still be probably seen, potential savings of $20.
Cons: time loss, lower quality light for the purpose (difference in optics), a headache of the potential do-it-all-over-again.
wombat_alex is offline
Reply With Quote
Old 12-04-18, 01:05 PM
  #27
no motor?
Senior Member

no motor?'s Avatar

Join Date: Dec 2005
Location: Chicagoland
Posts: 5,797

Bikes: Specialized Hardrock

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 721 Post(s)
Originally Posted by noisebeam View Post
I have been using a Fexix LD10 and LD20 flashlight for perhaps a decade. Mounted on bike with a twofish linked above.
It works for seeing the road in total darkness even on winding hilly roads when racing friends.
I put in a fresh charged NiMH A or 2xAA before ever ride and if the ride is over 3hrs I carry a 2nd set of batteries.
I can aim it level to slightly down for use on road or tilted down more for rare use on MUP.
Flash mode during the day.
My original "good" flashlight for bicycle use is a Fenix L2D from back when it was the light to have. It still works, but it's been used as a flashlight around the house for years. It's the light that showed me the benefit of using a flashing light during the day as well as where I was going at night!
no motor? is offline
Reply With Quote
Old 12-04-18, 01:52 PM
  #28
noisebeam
Al

noisebeam's Avatar

Join Date: Jun 2004
Location: AZ
Posts: 14,557

Bikes: Cannondale SuperSix, Lemond Poprad. Retired: Jamis Sputnik, Centurion LeMans Fixed, Diamond Back ascent ex

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2922 Post(s)
Actually it is the L1D (1xAA) and L2D (2xAA) I still use - I have two bodies for each length, but use the same head. I also have a LD20 which is the improved model, but the threads are different so it doesn't fit with the LxD bodies.

When on extended night rides I use both the L2D and LD20 set up below bars on each side of stem. Usually I use one at a time and switch over when one runs out of battery, but use both when I want more light.

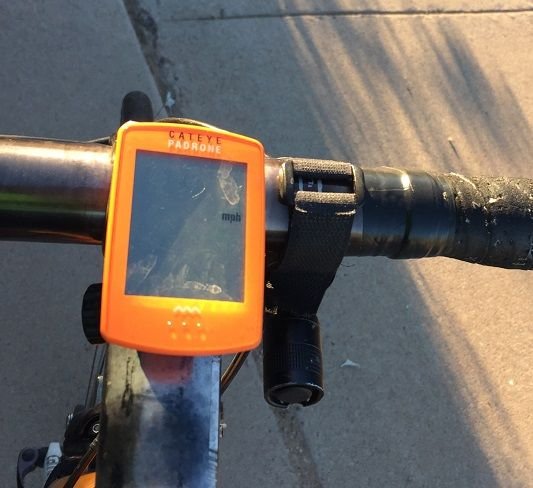

Here is the L1D on commuter:
noisebeam is offline
Reply With Quote
Old 12-04-18, 03:02 PM
  #29
angerdan
Senior Member

Join Date: Sep 2011
Location: Europe
Posts: 382
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
I'd like to put some ideas into this thread:
Originally Posted by angerdan View Post
If $50 is the definition of cheap in this thread, whats the definition of good, effective and bright?

There are several evolutions of bike lamps:
  1. flashlight body with mount for use on handlebar
  2. offroad mtb lamp with round shaped reflector and low luminous flux (<200lm)
  3. offroad mtb lamp with round shaped reflector and medium luminous flux (200 - <900lm)
  4. offroad mtb lamp with round shaped reflector and high luminous flux (900 - 4500lm) examples: YinDing, Lupine
  5. bicycle lamp with reflector optics/cut-off beam and low illuminance (<40lx) examples: B&M Ixon, Cateye HL-EL500
  6. bicycle lamp with reflector optics/cut-off beam and medium illuminance (50-100lx) examples: B&M Ixon IQ Premium, Cateye Volt 80
  7. bicycle lamp with reflector optics/dual beam and high illuminance (150-380lx) examples: B&M Ixon Space, Supernova M99 series

The difference between headlamp and headlight can be told as follows:
"headlamp is the term for the device itself, while headlight properly refers to the beam of light produced and distributed by the device"
wikipedia.org/wiki/Headlamp

So for class 5/6 there are now even chinese designed lamps without brand:
banggood.com/XANES-SFL04-750LM-T6-LED-German-Standard-Smart-Induction-Bicycle-Light-IPX4-USB-Rechargeable-Large-F-p-1217023.html
banggood.com/XANES-1500-Lumens-Led-Bicycle-Lights-MTB-Cycling-Front-Head-Lamps-Safety-Usb-Charge-Cycling-Light-p-1216450.html
The best headlights under $50 thread
angerdan is offline
Reply With Quote
Old 12-04-18, 04:57 PM
  #30
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 7,644

Bikes: Univega Via Carisma, Globe Carmel, Centurion Ironman Expert

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 2252 Post(s)
Some purpose made bike headlights also have features not usually found on flashlights. Some headlights have side ports or lenses to increase visibility from the sides. That includes most Light & Motion Urban and similar L&M lights; many Serfas lights; and several generic headlights sold under many brands for $20 or less.

Some bike headlights -- not all, unfortunately -- include built-in hoods or lens/reflector designs that shape the beam with a cutoff similar to motor vehicle headlights to avoid blinding oncoming cyclists and pedestrians on narrow multi-use paths. Some Serfas and Nite Rider headlights have built in hoods that physically cut off part of the beam to minimize spill. I've homebrewed hoods for my Light & Motion Urban light to do the same thing more effectively. And Busch & Muller and a few other headlights have lenses and reflectors designed to mimic the beam patterns of motor vehicles -- defined cutoffs, plenty of light on the road with minimal spill.

Occasionally I prefer the broad circular beam of the unmodified Light & Motion Urban so I'll remove the homebrewed hood. On rural roads at night I want to see everything in case a deer or other critter darts out. I also want to see into the trees to watch for owls and hawks -- when startled some bird, even smaller mockingbirds and jays, will swoop down to defend their nests or go after anything they consider prey. This is so common with a hawk found in Texas and Oklahoma I've called 'em Great Speckled Hood Swoopers. There's a theory that the hawks are actually after any flying prey driven ahead of a speeding vehicle or bike, which our headlights help illuminate for the hawks.
canklecat is offline
Reply With Quote
Old 12-06-18, 10:29 AM
  #31
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 5,239

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1000 Post(s)
Originally Posted by angerdan View Post
I'd like to put some ideas into this thread:

The best headlights under $50 thread
In your list I was not sure where the transition from incandescent to LED was? Between 1 and 2?

I have been using a vintage D Lumotec dyno powered headlamp on my rando bike. Two days ago I ordered a new B&M IQ-XS to replace it.
https://www.bumm.de/de/produkte/dyna...di-silber.html
Tourist in MSN is offline
Reply With Quote
Old 12-06-18, 10:41 AM
  #32
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 35,901

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 376 Post(s)
Tagged: 0 Thread(s)
Quoted: 4697 Post(s)
Originally Posted by Tourist in MSN View Post
I have been using a vintage D Lumotec dyno powered headlamp on my rando bike. Two days ago I ordered a new B&M IQ-XS to replace it.
https://www.bumm.de/de/produkte/dyna...di-silber.html
That looks very good and not terribly expensive. I've been using several B&M dynamo powered headlights for a few years and am very impressed with all of them. This IQ-XS looks like an incremental improvement, but it is still welcome, and it doesn't seem to add to the 80€ price.

My regular light for commuting is a Lumotec IQ Fly-T. I don't remember how many Lux it is rated at, maybe 50 or 60. It's not super bright, but I'm not super demanding about brightness.
__________________
Tom Reingold, [email protected]
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Reply With Quote
Old 12-06-18, 11:08 AM
  #33
angerdan
Senior Member

Join Date: Sep 2011
Location: Europe
Posts: 382
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Lightbulb

Originally Posted by Tourist in MSN View Post
In your list I was not sure where the transition from incandescent to LED was? Between 1 and 2?

I have been using a vintage D Lumotec dyno powered headlamp on my rando bike. Two days ago I ordered a new B&M IQ-XS to replace it.
bumm.de/de/produkte/dynamo-scheinwerfer/parent/167/produkt/167rtsndi-01-schwarz-167rtsndi-silber.html
My list isn't related to the light source - but of course it's only relevant with LEDs. The transition to LED started 2006 and ended around 2009.
lupine-shop.com/en/accessoires-and-parts/upgrade/

The IQ-XS is good, but why didn't you take the IQ-X ?
bumm.de/en/products/dynamo-scheinwerfer/parent/164/produkt/164rtsndi-01-schwarz-164rtsndi-silber.html
angerdan is offline
Reply With Quote
Old 12-06-18, 11:15 AM
  #34
wphamilton
Senior Member

wphamilton's Avatar

Join Date: Apr 2011
Location: Alpharetta, GA
Posts: 13,986

Bikes: Nashbar Road

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 2237 Post(s)
I've used flashlights, it works fine except for narrow beam, more hassle recharging, and seems like in the way a little more. I've never had a mount fail or even slip, but my DIY on that is a little more robust than the commercial ones.

The flip side is that the cheap bike lights are less expensive, more convenient and cast a broader beam so my only use now for the flashlight is as a backup.
wphamilton is offline
Reply With Quote
Old 12-06-18, 11:42 AM
  #35
Tourist in MSN
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 5,239

Bikes: 1961 Ideor, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, Perfekt 3 Speed -age unknown, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1000 Post(s)
Originally Posted by angerdan View Post
$ (my keyboard does not have a Euro symbol, so I had to substitute).

I ordered it from Germany. Since I was already ordering something else which was covering the shipping cost for that order, the light was essentially free of shipping cost. At the time I ordered it, $1.13 USD was about 1.00 Euros. Price was a bit under 39 Euros. Price of IQ-X would have been over 50 percent more. I did not think it was worth the additional cost.

But the old light I am replacing is quite old (in photo) and overdue for an upgrade now that the newer lights are so much better.





It is my understanding that the XS has a beam pattern very similar to the Luxos B. On a different bike I have the Luxos U, which I assume (but could be wrong) that the low power setting on the Luxos U is the same beam pattern as the Luxos B. And I am quite content with that beam pattern, did not think I have any need the extra power for the extra cost.
Tourist in MSN is offline
Reply With Quote
Old 12-06-18, 01:22 PM
  #36
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 7,644

Bikes: Univega Via Carisma, Globe Carmel, Centurion Ironman Expert

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 2252 Post(s)
The Light & Motion Urban 350 is down to around $30-35 now. Hard to beat that value with any farm rigged flashlight and mount.

Even better, for folks who need more runtime per charge. the upgraded L&M Urban 500 is now available in a Rando version with double the runtime over the original: 3 hours on high, 6 on medium, 12 on low and a full day or longer on pulse. About $65 on Amazon.

No need to fuss with extra batteries -- which I've done with my Serfas SL-255, which uses a pair of AA batteries. That light isn't a bad value for $20 or less, which includes an excellent mount. Maximum output is 255 lumens, adequate for some purposes. Main problem is the narrow beam, which I actually prefer for the MUP at night to avoid blinding oncoming cyclists and pedestrians. But it's a bit narrow for rural rides. I might buy another if the price drops to the lowest I've seen, around $14.
canklecat is offline
Reply With Quote
Old 12-07-18, 02:02 PM
  #37
Milton Keynes
Senior Member

Milton Keynes's Avatar

Join Date: May 2016
Posts: 2,290

Bikes: Two-wheeled human-powered vehicles, but that's not important right now

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 954 Post(s)
On my beater mountain bike, it had a front white reflector mounted on a bracket attached to the brake calipers. I simply removed the reflector, bent part of the bracket horizontally, and mounted a bright LED flashlight to it using a hose clamp. It does look a bit ghetto but it works, and this bike I rarely ride after dark anyway, just wanted something just in case I did get caught out after dark on it.
Milton Keynes is offline
Reply With Quote
