Can I re-bundle e-gadgets for a different battery?
09-20-25 | 05:36 PM
#1
Thread Starter
Newbie
Joined: Jun 2012
Posts: 60
Likes: 0
From: Sudden Valley, WA
Bikes: Catrike Speed, Cervello S2, Bacchetta Giro
Can I re-bundle e-gadgets for a different battery?
Edit to clarify that I'm not keeping the GoSwiss motor. Any new battery would be just for the lights and brakes.
I bought a 2014 HP Velotechnik Scorpion FS26+ with a GoSwiss motor. My plan was to replace the defunct hub motor with a regular wheel and call it good. I've since discovered that the trike has internal wiring for front and back lights as well as Tektro e-twin hydraulic front disc brakes. All systems were designed to plug into a battery that I don't have and which is no longer made. Is it possible to re-harness the wires to plug into a different battery?
I bought a 2014 HP Velotechnik Scorpion FS26+ with a GoSwiss motor. My plan was to replace the defunct hub motor with a regular wheel and call it good. I've since discovered that the trike has internal wiring for front and back lights as well as Tektro e-twin hydraulic front disc brakes. All systems were designed to plug into a battery that I don't have and which is no longer made. Is it possible to re-harness the wires to plug into a different battery?
Last edited by ldarlee; 09-21-25 at 09:33 AM. Reason: Clarification
09-21-25 | 09:32 AM
#2
Thread Starter
Newbie
Joined: Jun 2012
Posts: 60
Likes: 0
From: Sudden Valley, WA
Bikes: Catrike Speed, Cervello S2, Bacchetta Giro
I bought a 2014 HP Velotechnik Scorpion FS26+ with a GoSwiss motor. My plan was to replace the defunct hub motor with a regular wheel and call it good. I've since discovered that the trike has internal wiring for front and back lights as well as Tektro e-twin hydraulic front disc brakes. All systems were designed to plug into a battery that I don't have and which is no longer made. Is it possible to re-harness the wires to plug into a different battery?
09-23-25 | 07:06 AM
#3
Senior Member
Joined: Feb 2008
Posts: 5,305
Likes: 4,801
From: Peoria, IL
Without a lot of detailed info on the bike, I doubt that anyone can give you a simple answer like "go buy this battery and plug it in".

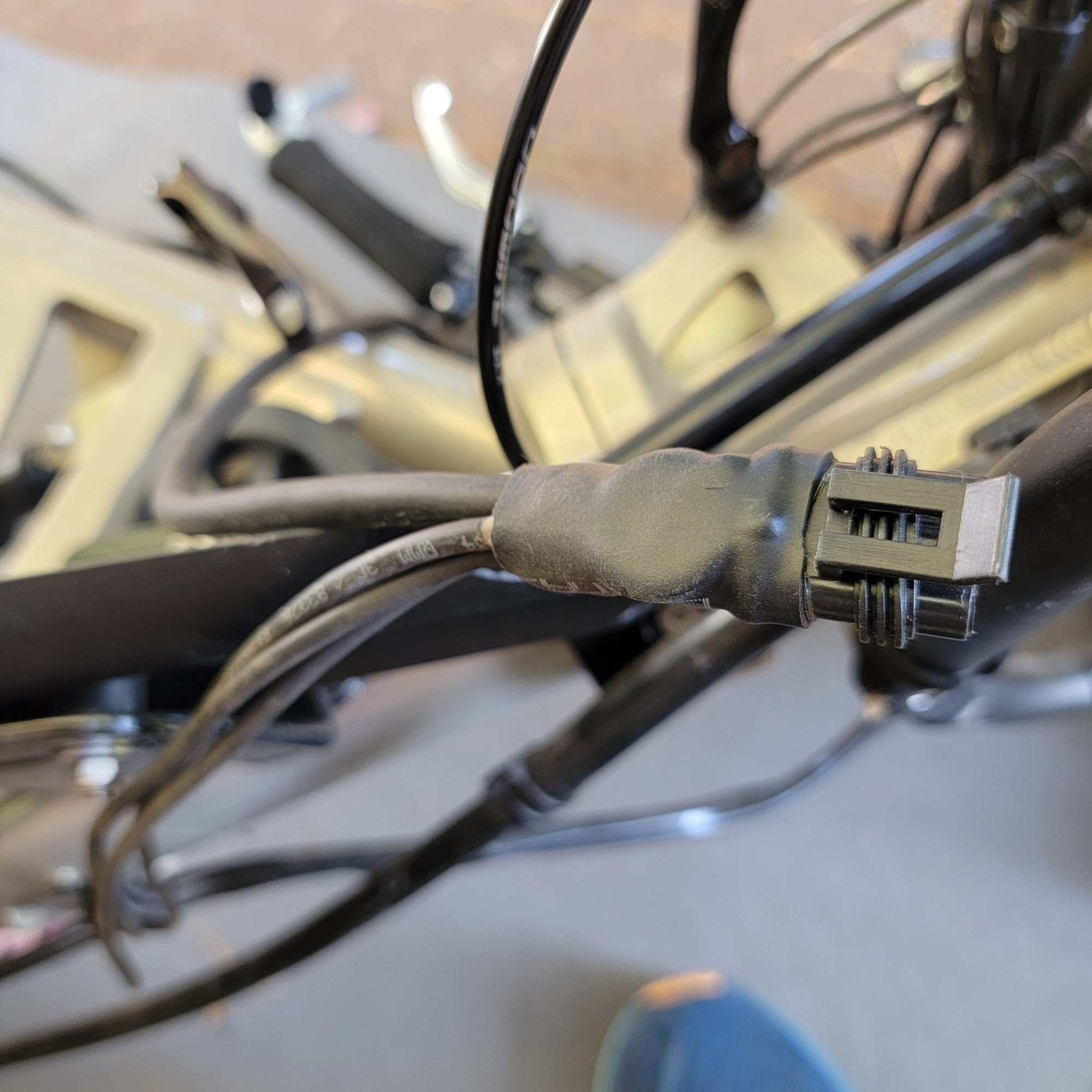

In principle, you should be able to build a battery pack of the appropriate voltage and connect it. It looks like it has a fairly standard automotive connector on the bike, so you could buy a mating connector from an auto supply store. I get the feeling that you may not have the technical skills for all of these activities, though.
It might be easier to just remove the lights and install new ones.
As for the brakes... I'm not familiar with brakes that need electric power. Is that just to activate a brake light, or is it more complicated?
Steve in Peoria
In principle, you should be able to build a battery pack of the appropriate voltage and connect it. It looks like it has a fairly standard automotive connector on the bike, so you could buy a mating connector from an auto supply store. I get the feeling that you may not have the technical skills for all of these activities, though.
It might be easier to just remove the lights and install new ones.
As for the brakes... I'm not familiar with brakes that need electric power. Is that just to activate a brake light, or is it more complicated?
Steve in Peoria
09-23-25 | 07:54 AM
#4
Disco Infiltrator
Joined: May 2013
Posts: 15,324
Likes: 3,516
From: Folsom CA
Bikes: Stormchaser, Paramount, Tilt, Samba tandem
The brake lever "power cut-off sensor" according to the Tektro site is a normally-open switch. If it's not running a brake light, you don't need to plug it in to anything. I found some documentation that implies this controller does not have a low voltage take-off so it would be full battery voltage for accessories. But that's 36V. Which is a big number to be wrong about. Some lights that take high voltage then have a lower voltage take-off from the headlight to do lower voltage tail lights. Can you figure out the brands or models of the lights? Do the lights plug into the controller with controls from the head unit? Or did they plug into the battery with their own switch?
__________________
Genesis 49:16-17
"Well, well!" said Holmes, impatiently. "A good cyclist does not need a high road. The moor is intersected with paths and the moon is at the full."
Genesis 49:16-17
"Well, well!" said Holmes, impatiently. "A good cyclist does not need a high road. The moor is intersected with paths and the moon is at the full."
Last edited by Darth Lefty; 09-23-25 at 08:40 AM.
