Stack/reach comparison on two totally different bikes?

Old 12-30-19, 07:47 PM
  #1
cormacf
Senior Member
Thread Starter

Join Date: May 2015
Location: Newcastle, WA
Posts: 298

Bikes: Lynskey Sportive Disc, Giant Omnium, Felt Breed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 33 Times in 10 Posts
Stack/reach comparison on two totally different bikes?

Hi. I was wondering--is it possible to use stack and reach numbers from two very different bikes (in this case, Endurance and Loaded Touring) to determine an appropriately-sized frame?

Lynskey is having a special with $200 off their clearance frames, which means I could pick up a Backroad frame for $900. The Backroad's geo is here:

That's super-stacky and not very reachy, which is fine for a "ride all day with a load, kind of upright" deal. The problem is I'm not sure whether I want a M or a ML.

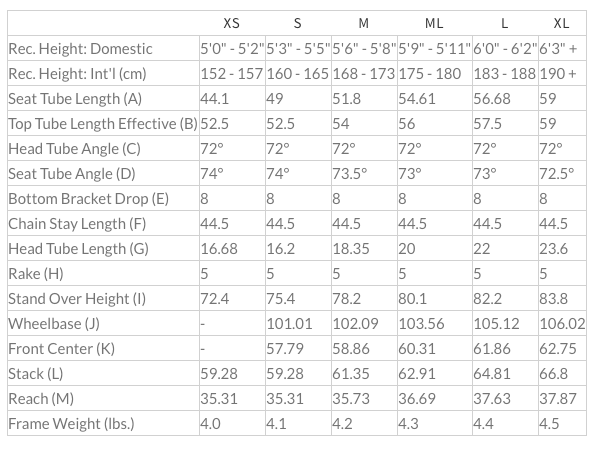

I currently have a Lynskey Sportive Disc in ML that I love and have dialed in with no weirdo parts. The Sportive's geo:


Much more traditional. Is there any way to map one set of numbers from the Sportive to the Backroad to determine which size is right?

I will say, all else being equal, the steeper ST angle and the shorter standover of the M appeal to me. I have very short femurs.
cormacf is offline
Old 01-08-20, 06:11 PM
  #2
tangerineowl
Senior Member

Join Date: Apr 2013
Location: Oz
Posts: 798

Bikes: Curve Grovel v2 ti

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 210 Post(s)
Liked 43 Times in 38 Posts
You wouldn't get the Backroad to work for you, in my mind. Geo too far different across all sizes.

One ti frame that would work is the Planet-X Tempest v3, size M.
Price is pretty good, but not sure what you'd get hit up for with import/freight.

Reach is the same as your Sportive. Stack is 15mm taller, so you could run less spacers below the stem.
74degree seat tube angle.
A good gravel geo for you in my opinion.

Planet-X also sells carbon gravel forks to suit.
tangerineowl is offline
Old 01-12-20, 06:55 PM
  #3
cormacf
Senior Member
Thread Starter

Join Date: May 2015
Location: Newcastle, WA
Posts: 298

Bikes: Lynskey Sportive Disc, Giant Omnium, Felt Breed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 33 Times in 10 Posts
Thanks! The angles look really spot-on. I also discovered something called the Bootzipper that I'd never heard of. It kind of reminds me of a Rawland Ulv. It's cheap, too, although I'd wind up replacing the brakes (hydros) and shifters, as well as the crankset (165), so maybe it wouldn't save me much in the long run...

I've never heard of Selcof forks before. I'm guessing it's the PlantX house brand and they're just as relaible as any other rebadged import fork? The price on them is great, particularly with the current exchange rate.


Originally Posted by tangerineowl View Post
You wouldn't get the Backroad to work for you, in my mind. Geo too far different across all sizes.

One ti frame that would work is the Planet-X Tempest v3, size M.
Price is pretty good, but not sure what you'd get hit up for with import/freight.

Reach is the same as your Sportive. Stack is 15mm taller, so you could run less spacers below the stem.
74degree seat tube angle.
A good gravel geo for you in my opinion.

Planet-X also sells carbon gravel forks to suit.
cormacf is offline
Old 11-26-20, 09:58 PM
  #4
Jrasero
Senior Member

Join Date: Feb 2014
Posts: 136

Bikes: Canyon Ultimate CF SL Disc 8.0, PLANET X TEMPEST SRAM RIVAL 1 Titanium

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 37 Times in 27 Posts
I am in-between sizes with Lynksey bikes otherwise I would have gotten their gravel bike, instead I found a great deal on a lightly used Planet X Tempest V3, just replaced the brake pads and changes the tires out of preference. With this being said you would be in charge of paying VAT and dealing with customer service overseas is never fun, but even when new the Tempest V3 is quite the value. If you do look at the bike know the first thing that should go are the stock tires and to change the seat post.
Jrasero is offline
Old 01-09-21, 10:48 PM
  #5
Moisture
Drip, Drip.

Moisture's Avatar

Join Date: Oct 2020
Posts: 986
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 651 Post(s)
Liked 103 Times in 85 Posts
Mostly yes, but not entirely. Top tube length and stem length must also be considered.
Moisture is offline
