Pimping my Dahon Espresso

Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

Pimping my Dahon Espresso

Reply

Old 04-25-18, 01:38 AM
  #1
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Pimping my Dahon Espresso

I picked up an Espresso for a song recently in the UK, and have been using it a lot as work has taken me round France and Germany.

It's bloody heavy though and as it's the only bike I actually have to pick up and move, rather than roll around it seems that a bit of light upgrading might be in order!

It runs 3x7 Tourney, shifts nicely, the original Dahon wheelset and tyres are solid but heavy, the rear rack is budget, the pedals are cheap folding ones, etc etc.

I'm thinking:

-new drivetrain. 2x10 105 with Tiagra flatbar shifters, CX70 top-pull double FD. What would be the max chainring I can run without it bottoming out on the ground when folded? Will I need a BB spacer for the chainline...?
-lightweight Syntace stem and bar
-Ergon grips - gotta have those on a flatbar
-those posh MKS 7 folding pedals, surely lighter than what's on there now
-Tubus Fly rear rack (a rack of some sort is essential)
-I have a new wheelset ready to go on, Deore hubs
-Continental Sport Contact 1.2" tyres
-Thomson seatpost - it has the pump post which I never use

Any thoughts?

The existing drivetrain can go on my son's schoolrun MTB which is worn out.

I also have a set of Magura HS11 hydraulic rim brakes but I'm not sure if the hydro lines will enjoy being folded and unfolded, plus V-brakes are adequate. Are there any light and cheap V-brake calipers and levers out there I should consider?

Thanks all!

Simon
Barchettaman is offline
Reply With Quote
Old 04-25-18, 06:18 PM
  #2
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,257

Bikes: In service - FSIR Spin 3.0, Bannard Sunny minivelo, Dahon Dash Altena folder. Several others in construction or temporarily decommissioned.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 890 Post(s)
Well, in what direction do you want to take the bike? Road speedster, gravel king, touring demon, or city prowler? Have you thought of dispensinng with racks, and using instead bikepacking bags? What's your vision, man?

"...
-new drivetrain. 2x10 105 with Tiagra flatbar shifters
... "


The latest 105, series 5800, is 11-speed. The latest Tiagra, series 4700, is 10-speed, and has a cable pull that is not compatible with previous 10-speed road RDs. Caveat emptor. I would just go with Tiagra 4700 all around. Or, if you don't need a very high top end, a simple 36Tx11-36T MTB drivetrain giving you roughly a very respectable 25-82 gear-inches.

Are you sure you want a tire as narrow as 1.2"? I myself would mount the wider Schwalbe Kojaks or Marathon Supremes. If you want a little more style and cush, I'd mount a rubenesque Maxxis DTH 2.3" fatty with trick tan sidewalls. Like so...

Last edited by Abu Mahendra; 04-25-18 at 08:12 PM.
Abu Mahendra is offline
Reply With Quote
Old 04-26-18, 02:07 AM
  #3
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Stadtflitzer is the route I'll be going - a German word for 'city flyer'!

I've got to have a rack, I love my panniers and hate rucksacks, plus I know zilch about frame bags.

Drivetrain will be older 10-speed Tiagra flatbar shifters. 46-36 Cx70 crankset (10-speed), older 10-speed 105 long cage mech, Cx70 top pull FD and a 11/32 10-speed cassette. I bought an 11-speed FSA chain for £10 on closeout recently so will use that. Aprt from the FD I have everything in the parts bin.

I've just ordered the Continental Sport Speed Contact city tyres, 559/32, they should be pretty fast rolling and are bloody light.
Barchettaman is offline
Reply With Quote
Old 04-26-18, 02:09 AM
  #4
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
I do like my gears and do lots of hilly routes, so I reckon the gear spread I've selected will do the job nicely. Heck, the 3x7 on there now is OK, just very slightly undergeared at the top end.
Barchettaman is offline
Reply With Quote
Old 04-26-18, 03:03 AM
  #5
badmother
Senior Member

badmother's Avatar

Join Date: Nov 2007
Posts: 3,733
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
What is your plan with the rack? If you want to use panniers on the rear rack you need a tall rack or you`ll get heel strike. A tall rack is going to make the fold much bigger.

I would suggest a front rack, try to get hold of the Dahon front rack. You can put two full size panniers in the front, just be careful becouse they get wery close to the ground. On a folder most of the weight of the rider is on the rear wheel so luggage in front makes sense. Also makes the steering less twitchy.
badmother is offline
Reply With Quote
Old 04-26-18, 04:49 AM
  #6
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Ah ok, hadnít thought of that. Iíve never used a front rack.

The current rack has little legs that mount it up and away from the eyelets, I had planned to leave these on for the Tubus Fly. Also, I generally use smaller front panniers on the rear which are a bit shallower. I would agree that heelstrike is to be avoided!
Barchettaman is offline
Reply With Quote
Old 04-26-18, 05:07 AM
  #7
badmother
Senior Member

badmother's Avatar

Join Date: Nov 2007
Posts: 3,733
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Originally Posted by Barchettaman View Post
Ah ok, hadnít thought of that. Iíve never used a front rack.

The current rack has little legs that mount it up and away from the eyelets, I had planned to leave these on for the Tubus Fly. Also, I generally use smaller front panniers on the rear which are a bit shallower. I would agree that heelstrike is to be avoided!
This bike has got the Dahon front rack:

https://www.faltradxxs.de/dahon-daho...g-sram-x7.html

The tall rear rack on the same bike (or something similar) is what you need to carry full size panniers without heel strike.
badmother is offline
Reply With Quote
Old 04-26-18, 09:01 AM
  #8
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
It has 26Ē MTB rims and rides pretty stable with two panniers on the back.
Barchettaman is offline
Reply With Quote
Old 04-26-18, 06:28 PM
  #9
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,257

Bikes: In service - FSIR Spin 3.0, Bannard Sunny minivelo, Dahon Dash Altena folder. Several others in construction or temporarily decommissioned.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 890 Post(s)
Stadtflitzer, ha? Having used my MTB to bomb through town once, i liked to be able to go up and down sidewalks, and cruise throgh potholed bitumen (does that exist in the Bundesrepublik?) Its these rough sidestreets and detours that help you navigate the urban jungle with abandon. And for that you need fattish meat on the rims. Your riding style and needs may vary, though...

Originally Posted by Barchettaman View Post
Ah ok, hadnít thought of that. Iíve never used a front rack.

The current rack has little legs that mount it up and away from the eyelets, I had planned to leave these on for the Tubus Fly. Also, I generally use smaller front panniers on the rear which are a bit shallower. I would agree that heelstrike is to be avoided!
Abu Mahendra is offline
Reply With Quote
Old 04-27-18, 04:16 AM
  #10
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Well, Iím in Germany so get to ride reasonably smooth tarmaced bike routes and donít need to bunnyhop kerbs, so 32mm tyres and 32 spokes are normally OK.

Iím pretty good at truing wheels so if/when they go out of whack I can bring Ďem back into true.

A bit of research means that the MKR pedals (Ä40) are no longer on the build list. XLC folding pedals are lighter and a third the price (Ä12 delivered) so theyíre going on.

It looks like Iíll use a Syntace stem, handlebar and P6 seatpost. All v light and cheap. 20lbs/9kg is the goal.
Barchettaman is offline
Reply With Quote
Old 04-27-18, 02:27 PM
  #11
badmother
Senior Member

badmother's Avatar

Join Date: Nov 2007
Posts: 3,733
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Originally Posted by Barchettaman View Post
It has 26Ē MTB rims and rides pretty stable with two panniers on the back.
Ahh, I should have looked closer. To me a folding bike has 20" wheels or smaller so I just asumed you all think like me
badmother is offline
Reply With Quote
Old 04-27-18, 06:42 PM
  #12
tds101
Grumpy old man,...

tds101's Avatar

Join Date: Aug 2012
Location: Mastic Beach, NY
Posts: 2,749

Bikes: 9+,...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 512 Post(s)
Originally Posted by badmother View Post
Ahh, I should have looked closer. To me a folding bike has 20" wheels or smaller so I just asumed you all think like me

__________________
If it wasn't for you meddling kids,...
tds101 is offline
Reply With Quote
Old 04-28-18, 01:14 AM
  #13
badmother
Senior Member

badmother's Avatar

Join Date: Nov 2007
Posts: 3,733
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Originally Posted by tds101 View Post
Exactry what I expected after waking up

I would still be testing for heel strike becouse of low rear carrier. Maybe it can be adjusted.
badmother is offline
Reply With Quote
Old 04-28-18, 04:12 AM
  #14
gataddhin
Member

Join Date: Mar 2017
Posts: 27
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)



Can Tho, Vietnam


Bagan, Myanmar
gataddhin is offline
Reply With Quote
Old 04-28-18, 04:16 AM
  #15
gataddhin
Member

Join Date: Mar 2017
Posts: 27
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
I taped rubber tubes on rack as stoppers so that the panniers would not slide forward which may cause heel strike.
gataddhin is offline
Reply With Quote
Old 04-28-18, 04:28 AM
  #16
gataddhin
Member

Join Date: Mar 2017
Posts: 27
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
My weekend dirt rides



gataddhin is offline
Reply With Quote
Old 04-28-18, 11:03 AM
  #17
tds101
Grumpy old man,...

tds101's Avatar

Join Date: Aug 2012
Location: Mastic Beach, NY
Posts: 2,749

Bikes: 9+,...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 512 Post(s)
Originally Posted by badmother View Post
Exactry what I expected after waking up

I would still be testing for heel strike becouse of low rear carrier. Maybe it can be adjusted.
I think, the way I currently have the rack so low, there would be heel strike when using panniers. I'd just adjust the height of the rack a bit to compensate,...
__________________
If it wasn't for you meddling kids,...
tds101 is offline
Reply With Quote
Old 04-29-18, 02:29 PM
  #18
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Wow, that Dahon looks like it gets some serious use!

So, the build has begun - the Conti 559/32 tyres are mounted on the Rigida/Deore LX wheelset, with an 11-32 ten speed cassette.

I've given up on getting a Tubus Fly so have bought a Racktime ultralight rack.

The XLC pedals are on the way.

I will assemble next week, the bike as it is will be in use all this week!

cheers all

simon
Barchettaman is offline
Reply With Quote
Old 04-30-18, 01:16 AM
  #19
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)


here is the Dahon, in its natural habitat!
Barchettaman is offline
Reply With Quote
Old 06-20-18, 02:34 AM
  #20
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)

Magura hs11 hydraulic rim brakes.

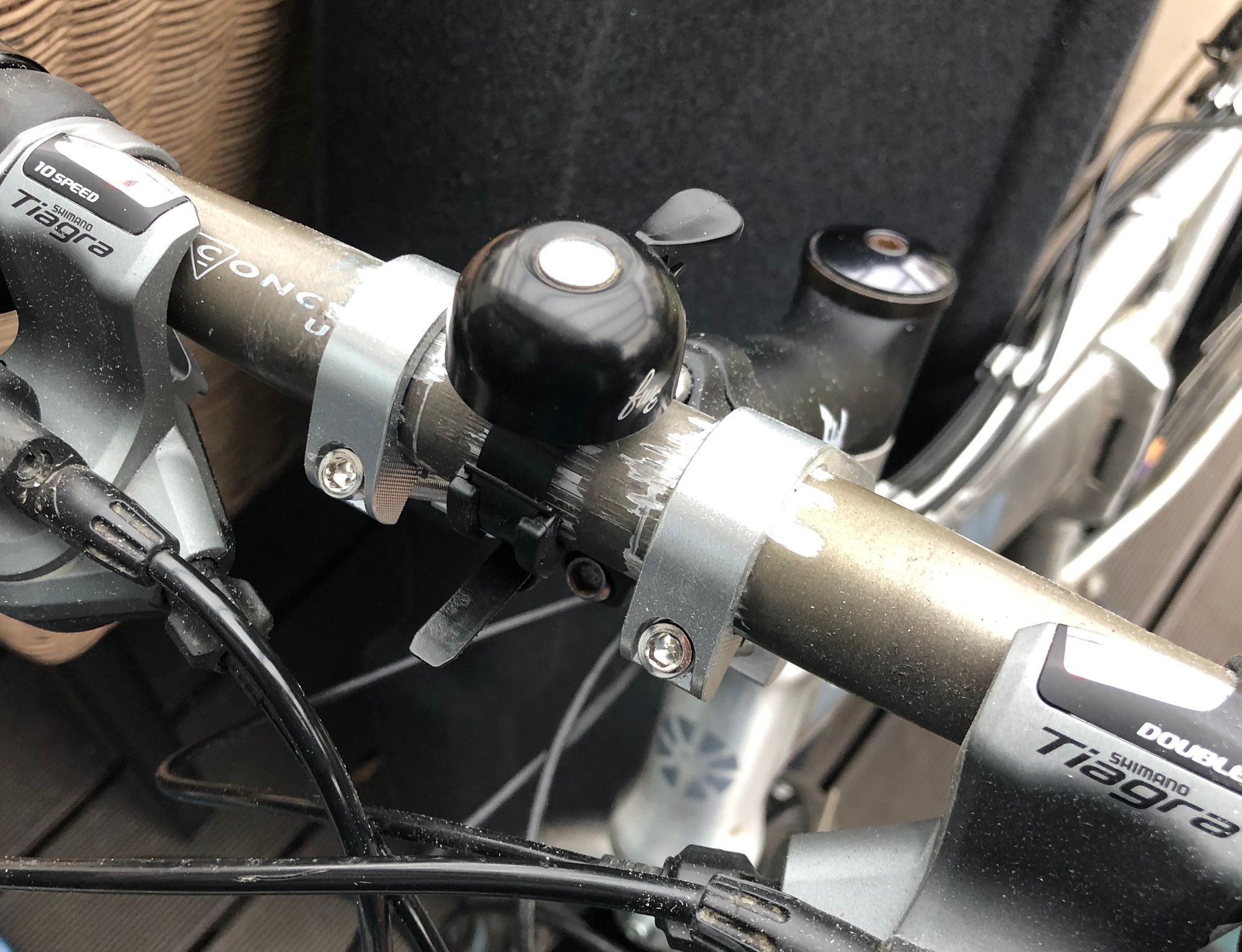

2x10 Tiagra flat bar shifters on bullhorns


FSA compact, 11-32 cassette, 105 rd, cX70 fd (top pull), 11-speed fsa chain.


The finished article!
Barchettaman is offline
Reply With Quote
Old 06-20-18, 02:34 AM
  #21
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
It really shifts, rides well, comfortable, weighs 11.2kg.
Barchettaman is offline
Reply With Quote
Old 06-20-18, 11:08 AM
  #22
tds101
Grumpy old man,...

tds101's Avatar

Join Date: Aug 2012
Location: Mastic Beach, NY
Posts: 2,749

Bikes: 9+,...

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 512 Post(s)
It looks fantastic,...well done!
__________________
If it wasn't for you meddling kids,...
tds101 is offline
Reply With Quote
Old 06-22-18, 05:36 PM
  #23
Rick Imby
Senior Member

Join Date: Sep 2015
Posts: 671
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Funny I forgot the espresso was 26" wheels.

Keep at it---your weight goal is still in sight...

I have contemplated pimping out a Montague for a full size wheel folding bike.
Rick Imby is offline
Reply With Quote
Old 01-23-19, 03:51 AM
  #24
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)


Barchettaman is offline
Reply With Quote
Old 01-23-19, 03:53 AM
  #25
Barchettaman
Senior Member
Thread Starter

Barchettaman's Avatar

Join Date: Oct 2008
Location: Frankfurt, Germany
Posts: 1,353

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
I was a bit cramped so fitted a cheap extender from China. Does the job!

Also, I wasnít getting on with the bullhorns so swapped in a cut down flat bar and some Ergon grips. Itís much better now.
Barchettaman is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
