Lockring for F&S toggle chain
07-30-18 | 10:03 AM
#1
Thread Starter
Senior Member
Joined: Mar 2009
Posts: 109
Likes: 16
From: Ramat-Gan, Israel
Bikes: '27 Selbach,'38 Schwinn Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...
Lockring for F&S toggle chain
My 2004 Brompton has a Fichtel & Sachs 3 speed hub.

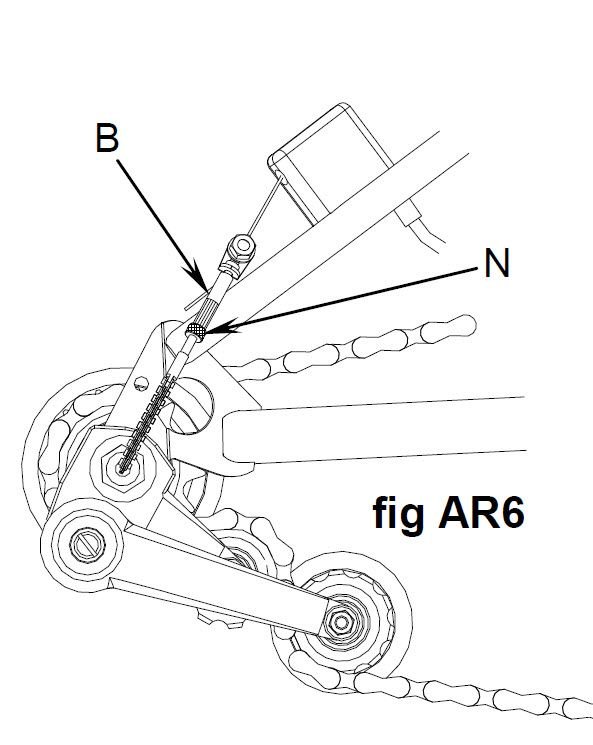

It is missing its locknut (N in the attached diagram), so adjustment is tricky.

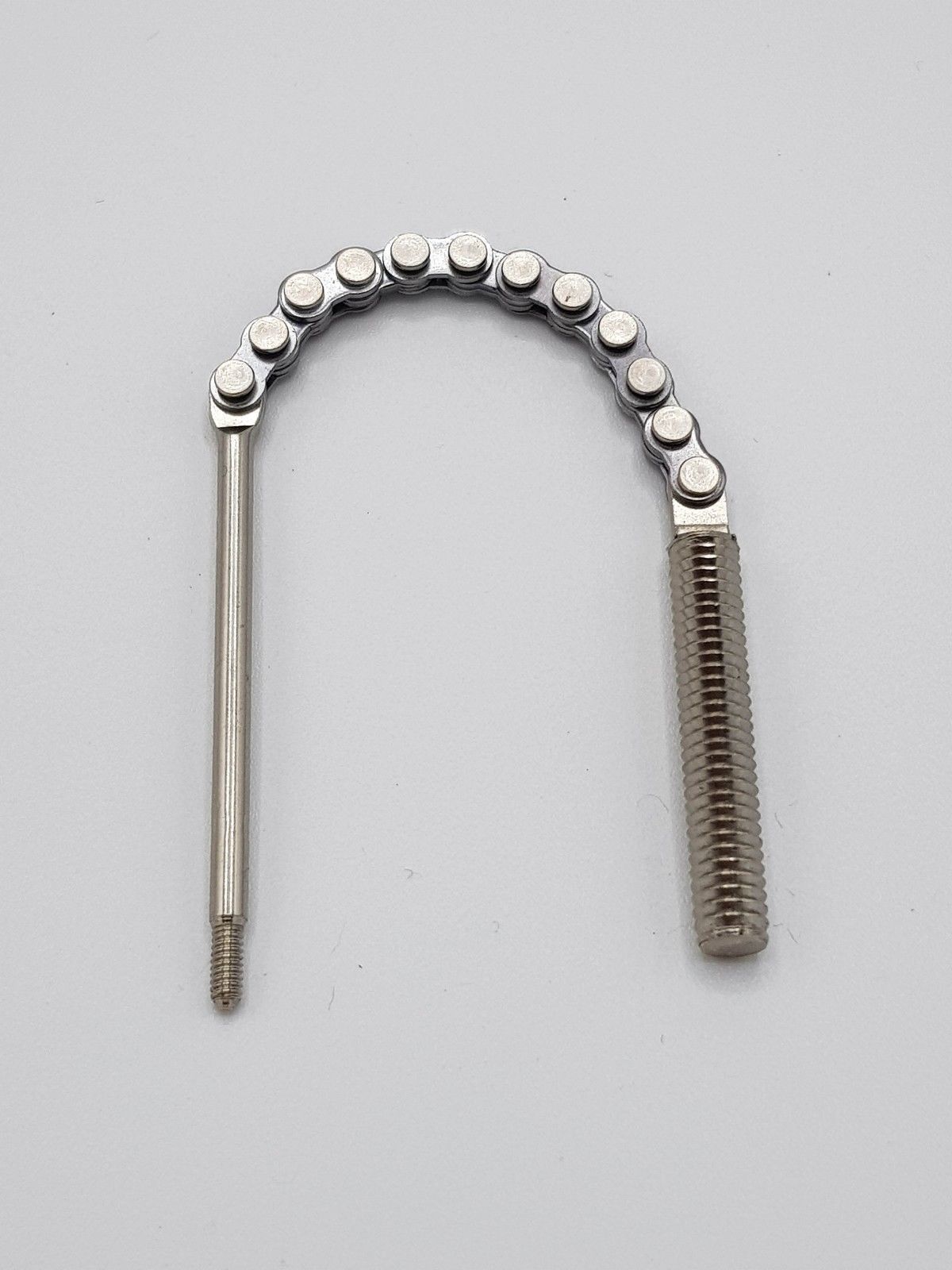

F&S toggle chains use a very odd 5mm x 0.70 threading.
Anybody know where I can find a locknut or toggle chain+locknut set.
Amir
It is missing its locknut (N in the attached diagram), so adjustment is tricky.
F&S toggle chains use a very odd 5mm x 0.70 threading.
Anybody know where I can find a locknut or toggle chain+locknut set.
Amir
08-01-18 | 09:31 AM
#3
Senior Member
Joined: Aug 2010
Posts: 12,748
Likes: 2,108
From: Madison, WI
Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.
Is that the same thread as older Sturmey Archer three speed hub gear chains.
08-01-18 | 11:14 AM
#4
Banned
Joined: Jun 2010
Posts: 43,586
Likes: 1,380
From: NW,Oregon Coast
Bikes: 8
Sram Bought out Sachs, so Fichtel & Sachs is dissolved..
Recently they, Sram, Dropped the internal gear sector entirely..
insufficiently profitable I suppose..
good luck with your search , ... it is now out of production..
might as well just get a new Brompton BSR wheel ..
their new directionally drilled rear rims are better too.
...
Recently they, Sram, Dropped the internal gear sector entirely..
insufficiently profitable I suppose..
good luck with your search , ... it is now out of production..
might as well just get a new Brompton BSR wheel ..
their new directionally drilled rear rims are better too.
...
08-01-18 | 08:45 PM
#5
Senior Member
Joined: Aug 2016
Posts: 336
Likes: 12
Do your adjustment, then measure with a ruler (or caliper) the distance, back it out 5mm and apply loctite. Then screw it back to whatever distance you measured. Next time you need to recalibrate, you need to weaken the loctite with a hair dryer. Maybe it will hold. (If not, then there is red loctite.)
08-05-18 | 10:39 PM
#6
Thread Starter
Senior Member
Joined: Mar 2009
Posts: 109
Likes: 16
From: Ramat-Gan, Israel
Bikes: '27 Selbach,'38 Schwinn Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...
no. S-A toggle bolt has a smaller diameter. They are not interchangeable
08-06-18 | 09:31 AM
#7
Banned
Joined: Jun 2010
Posts: 43,586
Likes: 1,380
From: NW,Oregon Coast
Bikes: 8
where have you tried to find Sachs,Sram parts , so far?
1.
2.
3.
It is mechanically possible, to tear down the hub and add a sleeve of metal in a larger hole
of that internal piece that does the shifting
then re thread it in the smaller thread standard of the remaining SA indicator chain ..
Likely less effort to do as I said above, Buy..
" might as well just get a new Brompton BSR wheel ..
Yes, their new directionally drilled rear rims are better too."
I found the new hub & shifter, Mk4, easier than the AW3/steel trigger in my prior Mk2..
...
1.
2.
3.
It is mechanically possible, to tear down the hub and add a sleeve of metal in a larger hole
of that internal piece that does the shifting
then re thread it in the smaller thread standard of the remaining SA indicator chain ..
Likely less effort to do as I said above, Buy..
" might as well just get a new Brompton BSR wheel ..
Yes, their new directionally drilled rear rims are better too."
I found the new hub & shifter, Mk4, easier than the AW3/steel trigger in my prior Mk2..
...
