Brompton handlebar Stem Question

So I have an opportunity to acquire a Brompton.. only thing is it has the M style bars.
I really want S style. If I put a mid rise bar like the Joseph Kousac one will that screw my geometry or is this a good solution without investing in a new stem.. Any opinions / experience / Tips ?? Oh it's a 2016 model.. ( I am not worried about adjusting cable lengths I have a fully equipped work bench..)

Thanks gang..
ukny is offline
Old 07-11-20, 03:14 PM
  #2
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,343 Times in 850 Posts
Steering geometry remains unchanged.. 72.4 for all
see chart. (Pre 2017) for bar height and the bend offset


fietsbob is offline
Old 07-11-20, 05:16 PM
  #3
ukny
Senior Member
Thread Starter

ukny's Avatar

Join Date: Sep 2010
Location: Brooklyn
Posts: 135

Bikes: IF TiCJ

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hmm yep but looking at that graphic the S stem results in a 31 mm longer virtual top tube... I guess setting the saddle back a bit could compensate... I wish I could find a real Geo chart for the Brompton. I might have to be the guinea pig on this one..
ukny is offline
Old 07-11-20, 05:25 PM
  #4
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,343 Times in 850 Posts
a few simple tools: angle finder @ builders supply & double scale tape- measure & you can DIY the info..

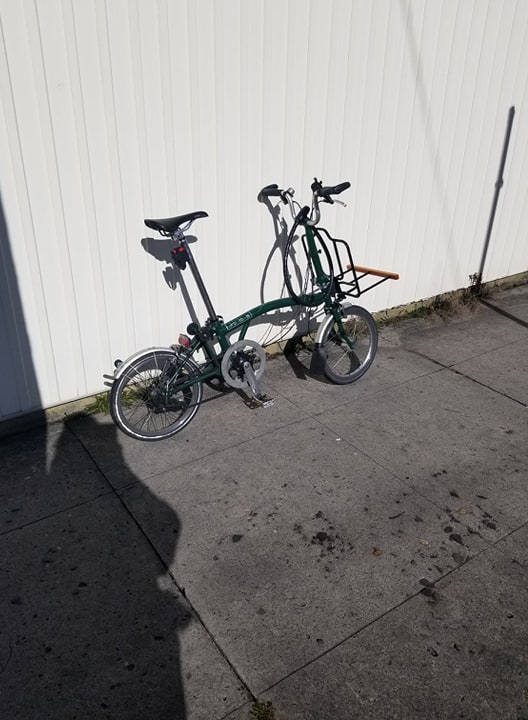

I've had 2 M3 R & L. green one is current ..


fietsbob is offline
Old 07-11-20, 06:00 PM
  #5
ukny
Senior Member
Thread Starter

ukny's Avatar

Join Date: Sep 2010
Location: Brooklyn
Posts: 135

Bikes: IF TiCJ

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
"a few simple tools: angle finder @ builders supply & double scale tape- measure & you can DIY the info.."

Er yeah but you have to have a Brompton to take the measurements from... If I had a Brompton I would not be asking about GEO on this forum,,,
ukny is offline
Old 07-12-20, 07:17 AM
  #6
Schwinnsta
Schwinnasaur

Schwinnsta's Avatar

Join Date: Dec 2006
Location: New Orleans, LA
Posts: 1,389
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Liked 109 Times in 74 Posts
I have not done this but you may need to change cable lengths. I changed an M to H and had to get new cables. I have heard that you won't need to do this online but cables are fussy when it comes to folding.
Schwinnsta is offline
Old 07-12-20, 09:27 PM
  #7
bike.gang.uk
Senior Member

bike.gang.uk's Avatar

Join Date: Jul 2014
Location: Newcastle upon Tyne, England
Posts: 288

Bikes: Brompton H3L, RAF, M3L, Dahon, Giant NRS, GT

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Liked 16 Times in 11 Posts
Originally Posted by ukny View Post
So I have an opportunity to acquire a Brompton.. .....
This is quite a popular application for Joseph Kuosac mid riser bar on Bromptons.

You got to keep the cables unchaged (can be a little bit longer for the perfectionist), a lower riding postion (might not be as low as S type) and a very large handlebar (can be 600mm fulll length uncut) for cockpit.

BTW, Joseph Kuosac also has carbon midriser handlebar and the soon to be released carbon ergonomic S handlebar too

This one is from older M to mid-riser Joseph Kuosac uncut

bike.gang.uk is offline
Old 07-12-20, 10:34 PM
  #8
ukny
Senior Member
Thread Starter

ukny's Avatar

Join Date: Sep 2010
Location: Brooklyn
Posts: 135

Bikes: IF TiCJ

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks thats exactly what I wanted to know.. I actually did a little guesstimating using the published bar heights and it looks like using a 60mm rise bar.. like a BMX bar would put me right at the same height as the S.. just with the shorter virtual TT
ukny is offline
Old 07-14-20, 02:24 AM
  #9
Fentuz
Senior Member

Join Date: Aug 2014
Location: UK
Posts: 529

Bikes: Dahon Jetstream p8 (sold), customized Dahon Helios P18, customized Dahon Smooth Hound P9,customized Dahon Hammerhead 8.0 D7, Planet X Free Ranger (mullet setup), Frog 52 9s and Frog 48 1s

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 169 Post(s)
Liked 166 Times in 123 Posts
Originally Posted by ukny View Post
Hmm yep but looking at that graphic the S stem results in a 31 mm longer virtual top tube... I guess setting the saddle back a bit could compensate... I wish I could find a real Geo chart for the Brompton. I might have to be the guinea pig on this one..
you could fit a syntace bar adaptor like dahons and terns. it would allow you some extension and rotational tuning
https://www.syntace.com/en_GB/produc....4-clamps?c=79

or a litepro copy
Fentuz is offline
Old 07-14-20, 02:43 AM
  #10
Fentuz
Senior Member

Join Date: Aug 2014
Location: UK
Posts: 529

Bikes: Dahon Jetstream p8 (sold), customized Dahon Helios P18, customized Dahon Smooth Hound P9,customized Dahon Hammerhead 8.0 D7, Planet X Free Ranger (mullet setup), Frog 52 9s and Frog 48 1s

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 169 Post(s)
Liked 166 Times in 123 Posts
Originally Posted by Schwinnsta View Post
I have not done this but you may need to change cable lengths. I changed an M to H and had to get new cables. I have heard that you won't need to do this online but cables are fussy when it comes to folding.
it makes sense as you went for something longer and you needed to restore clearances/play for the cable to fold
Fentuz is offline
Old 07-14-20, 06:51 AM
  #11
ukny
Senior Member
Thread Starter

ukny's Avatar

Join Date: Sep 2010
Location: Brooklyn
Posts: 135

Bikes: IF TiCJ

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Solved

I found these videos on YouTube that have the measurements.. so can work from there..

https://www.youtube.com/c/Bikesandli...y=measurements
ukny is offline
Old 07-14-20, 06:24 PM
  #12
Joe Remi
Senior Member

Join Date: Jan 2010
Location: NorCal
Posts: 1,352

Bikes: Haibike Sduro Trekking SL, Rivendell Appaloosa, Concinnity singlespeed, KHS mini velo (Japan market), Trident Spike trike

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 616 Post(s)
Liked 49 Times in 43 Posts
You got some oddly complex answers to your simple question. No there won't be a massive change, the bars will just be a bit lower.
