Tern Link, gearing success!

Search
Notices
Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

Tern Link, gearing success!

Thread Tools

Search this Thread

Old 05-21-26 | 04:36 AM
  #1
Barchettaman's Avatar
Thread Starter
Senior Member
15 Anniversary

Joined: Oct 2008
Posts: 1,619
Likes: 187
From: Frankfurt, Germany

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Tern Link, gearing success!

My (preowned) Tern Link came with a nice Litepro crankset but a 52t chainring. It rendered both ends of the gear range sub-optimal; I got stuck on hills and never used the smallest cassette sprockets.

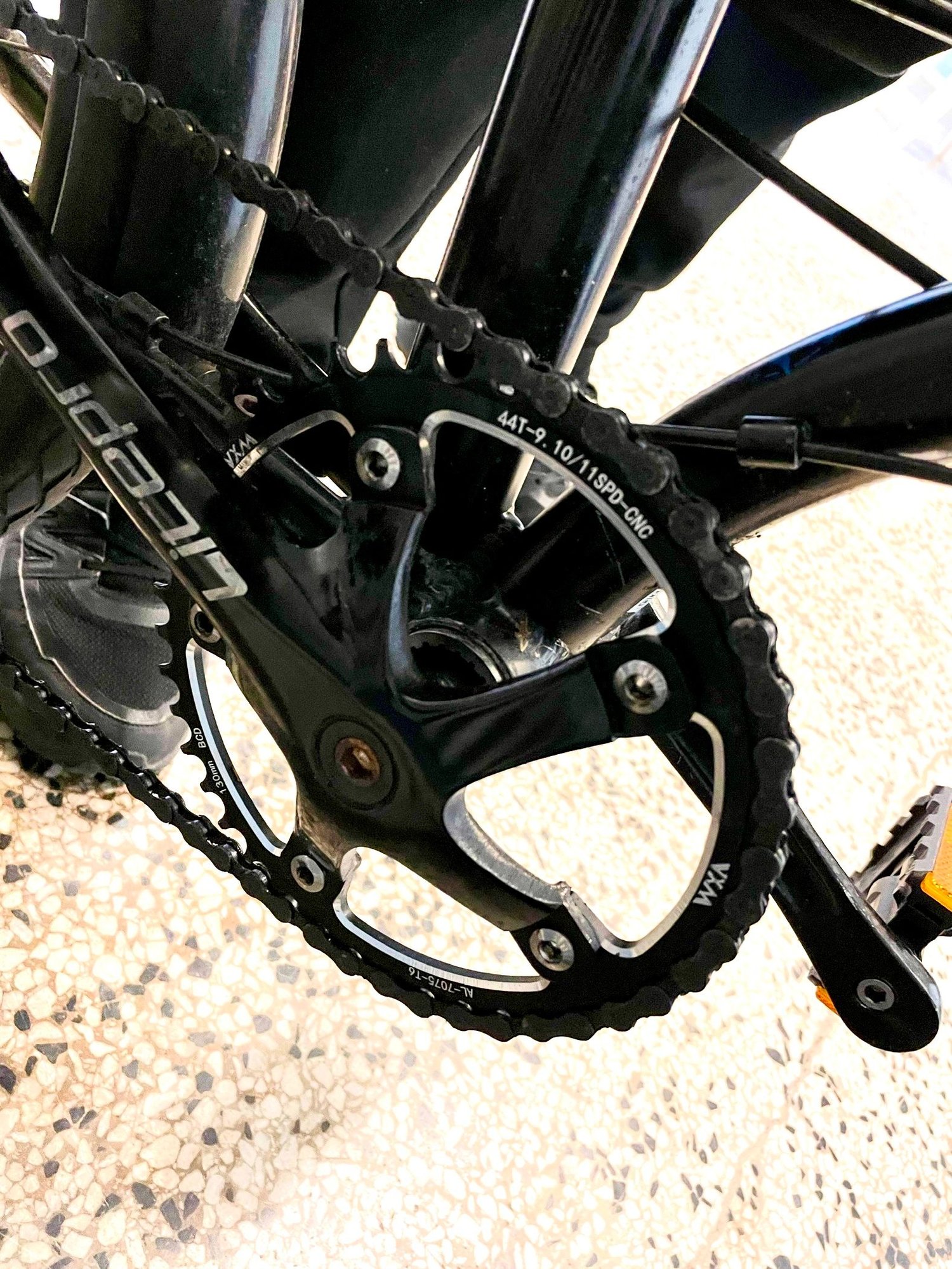

anyway, long story short. I swapped in a 44t narrow wide chainring (AliExpress, maybe €9?) and with the 9-speed 11-32 cassette the gearing is now absolutely perfect.

I don’t run out of gears in an urban setting and can pretty much get up anything local to me.

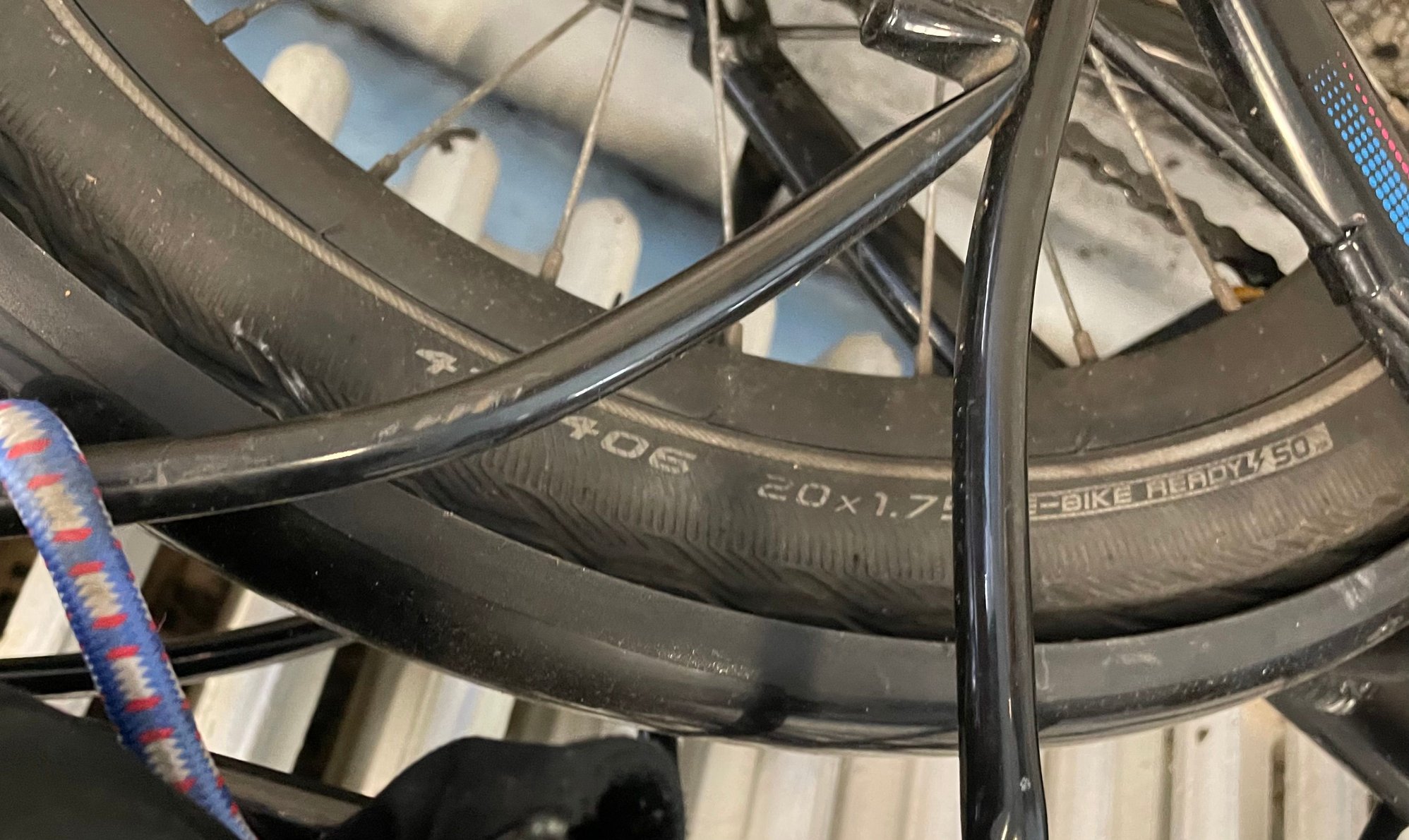

the bike is rolling on 1.75” Schwalbe Marathon tyres and has a 406 wheelset.

Anyway, this is by far the best 1x9 combination I have found for my needs. I know we’re all different but I thought I would share my joy!




Barchettaman is offline
Reply
Old 05-21-26 | 06:50 AM
  #2
Junior Member

Joined: Oct 2025
Posts: 168
Likes: 110
Nice mod. Adjust the gearing to whatever works best for you, and it’s definitely time to ditch that ugly dork disc.

A2022 is offline
Reply
Old 05-21-26 | 09:10 AM
  #3
Barchettaman's Avatar
Thread Starter
Senior Member
15 Anniversary

Joined: Oct 2008
Posts: 1,619
Likes: 187
From: Frankfurt, Germany

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

Originally Posted by A2022
Nice mod. Adjust the gearing to whatever works best for you, and it’s definitely time to ditch that ugly dork disc.
I‘m more than happy to continue to dork away.

With the amount of abuse this bike gets, not having to worry about a bent derailleur going into the spokes is reassuring to me.

I appreciate that we are all different and that some people get weirdly wound up about clear plastic spoke protection.
Barchettaman is offline
Reply
Old 05-21-26 | 03:41 PM
  #4
Clark W. Griswold
10 Anniversary
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Mar 2014
Posts: 18,379
Likes: 6,707
From: ,location, location

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), R+M Supercharger2 Rohloff, Habanero Ti 26

Originally Posted by Barchettaman
I‘m more than happy to continue to dork away.

With the amount of abuse this bike gets, not having to worry about a bent derailleur going into the spokes is reassuring to me.

I appreciate that we are all different and that some people get weirdly wound up about clear plastic spoke protection.
Hahaha that little bit of plastic won't stop much. If you have a decent derailleur and keep it properly tuned you don't really have to worry about it going over or anything. If it does get bad enough the brittle plastic will likely just shatter and still damage the derailleur. If you don't abuse bikes they will also last longer obviously commuting and travel can take their toll but simple maintenance will go a long way.
veganbikes is offline
Reply
Old 05-22-26 | 12:32 AM
  #5
Barchettaman's Avatar
Thread Starter
Senior Member
15 Anniversary

Joined: Oct 2008
Posts: 1,619
Likes: 187
From: Frankfurt, Germany

Bikes: Focus trash find commuter, Eddy Merckx Corsa, BP Stealth TT bike, Leader 720 TT bike, Boardman Comp Hybrid drop bar conversion, Quantec CX budget cyclocross build, SerottaNOS frameset ready to build up!

If, unbeknownst to me, the rear derailleur has taken a whack somewhere, that spoke protector would definitely stop the top pulley going into the spokes.

It’s pretty pliable plastic.
Barchettaman is offline
Reply
Old 05-22-26 | 03:01 AM
  #6
Highly Enriched Driftium
5 Anniversary
Community Builder
Community Influencer

Joined: Apr 2017
Posts: 6,879
Likes: 2,240
Always good to see folders modded for improvement.

I modded my folder for 400% range gearing, and I need every bit of it, but I live in a place with longish hills.

Keep the spoke protector disc. My Dahon early in its life had the poor Dahon RD mounted well forward so more lateral chain flex there, and the chain dropped between the cassette and spokes and tore up a couple, and all eventually failed there. I can't recall if I removed it or it never had. I always used to remove them. But I put a plastic mostly-clear new one on, it had faint rings on the surface, and on every one of my bikes I service now. Most especially on a Litespeed that I brought back to new, with special wheels with PBO spokes, would be an expensive fix for those, I found a completely clear protector to mount; Most protector discs clip to the spokes, but I didn't want to risk abrasion to those softer spokes, so this disc fit on the freehub body behind the cassette, perfect.



Last edited by Duragrouch; 05-22-26 at 03:10 AM.
Duragrouch is offline
