Speaking of Twenty's and longer rides. There were two of us at the 2009 ABCE in Minneapolis/St. Pauls a few weeks ago.

We did a ~40 mile ramble around the Twin Cities. One Twenty is my mildly modified one, the other was a pretty much OEM shaggy dog. It was a 1968 model and had painted fenders vs the chrome ones that they used later.

There were a couple of other Twenty's there but they weren't ridden on the longer ride. One was a coffee brown 1974 that was up for sale and the other a fixed frame "Shopper" with the 451 wheels.

Aaron

__________________
Webshots is bailing out, if you find any of my posts with corrupt picture files and want to see them corrected please let me know. :(

ISO: A late 1980's Giant Iguana MTB frameset (or complete bike) 23" Red with yellow graphics.

"Cycling should be a way of life, not a hobby.
RIDE, YOU FOOL, RIDE!"_Nicodemus

"Steel: nearly a thousand years of metallurgical development
Aluminum: barely a hundred
Which one would you rather have under your butt at 30mph?"_krazygluon

10-03-09 | 06:25 PM

#27

Schwinnsta

Schwinnasaur

Joined: Dec 2006

Posts: 1,943

Likes: 354

From: New Orleans, LA

Thank you Mr Sixty-Fiver.

10-03-09 | 10:56 PM

#28

DVC45

Senior Member

Joined: Dec 2006

Posts: 3,335

Likes: 15

Quote:

Originally Posted by social suicide

When you have 500 bucks in the bike start to ride it. Within 2 minutes you'll start to think about how to spend the next 500. My 20 just got a brand spankin new Brooks b66!

That's what I'm afraid of.
There's one in decent shape, in my local CL for $120 last week.....I passed (with a great deal of hesitation). Maybe someday.

10-04-09 | 04:50 AM

#29

stevegor

Senior Member

Joined: Dec 2006

Posts: 2,117

Likes: 2

From: Oz

Bikes: lots... even a Raleigh twenty !!!

Quote:

Originally Posted by Sixty Fiver

Brilliant idea for a drop bolt !

The day of the ride was sunny and warm with 40km winds so I opted to take my geared touring bike which was most welcome on the ride back which was all done straight into the aforementioned wind.

The Twenty will see it's first century... I am presently building up a new wheelset for it as my swanky new front wheel went on my daughter's 20 inch Saffron and I have been wanting to build a new rear wheel for some time.

]May go with 451's for better performance and mebbe a new S3X hub to make it a 3 speed fixed... Sheldon Brown would have loved to see this new hub that many wanted to be named after him.

[/B]

I have 3 R20 non folders, my wife's bike is Magenta with subtle mods like Velocity 451 rims, Stelvios and SA 8 spd hub, and Avid brake levers. My black R20 was modded with Velocity 451 wheels, but I've changed them for 406s with the SS hub. This bike is waiting for a conversion back to 451 with a Sachs 3x7 hub. The third bike is in pieces and will take the 406 rims and hopefully a 58/48 front and 7 spd rear.

IMHO, the 451 size are fast and handle better, but the 406 with Conti slicks are not far behind.

10-06-09 | 09:01 PM

#30

MnHPVA Guy

Senior Member

Joined: Aug 2005

Posts: 799

Likes: 29

From: Minneapolis, MN

Speaking of Twenty's and longer rides, I used mine on the 3 Speed Tour of Lake Pepin this spring. For me, 50 miles followed by another 35 the next day is just as epic as back to back centuries were 30 years ago.

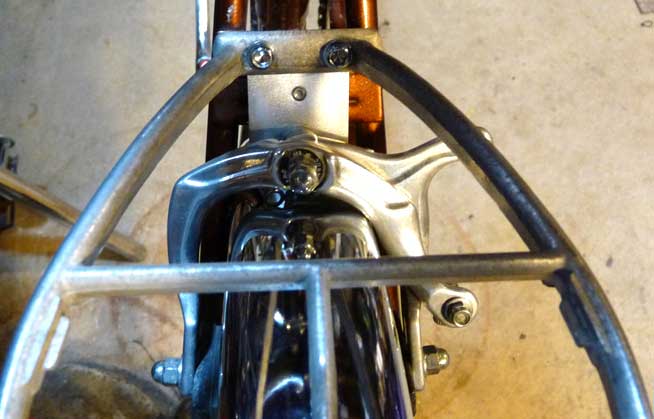

For better braking I replaced the rims with Rhyno Lites, added braze-ons for Shimano cantilevers to my fork and made a drop plate for a shorter reach, beefier sidepull on the rear. I have a spare fork so I can always make it original if needed.

Designed for a 451, there is an abundance of clearance under the rear fender, even with a 1.95" tire, as shown in this earlier photo.

The small screw is to support the rear fender.

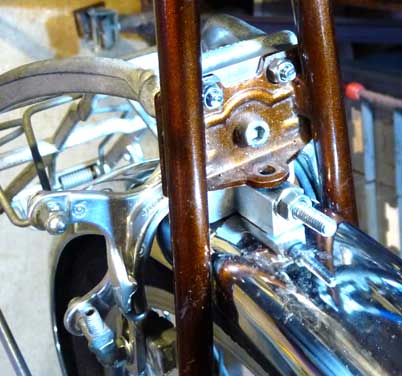

As you can see, the new brake pivot bolt sits about 22mm closer to the rim than before.

Two 5mm hex bolts do double duty securing both the Pletcher and the top of the drop plate.

10-06-09 | 10:10 PM

#31

Sixty Fiver

Bicycle Repair Man !!!

Joined: Sep 2007

Posts: 27,266

Likes: 150

From: YEG

Bikes: See my sig...

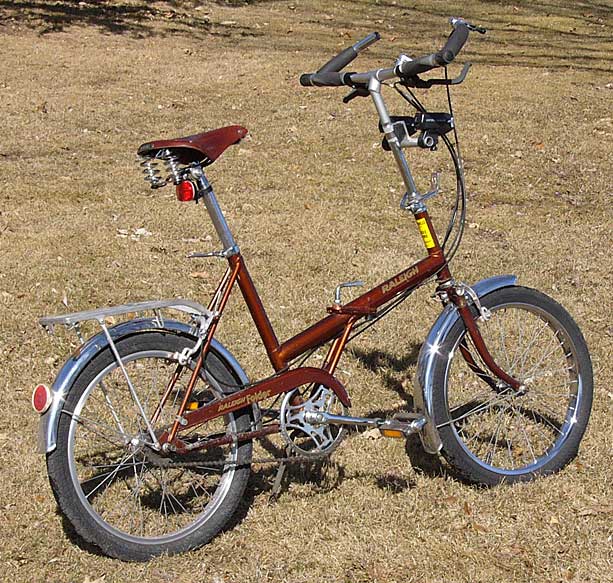

Here is the most heavily modified 20 I ever built up...

"Grace"

Re-threaded the bb to standard and fitted a Shimano 600 crank, built / bought alloy wheels, replaced the stock fork with a suspension model and installed a real headset, added a drop bolt to the rear (not shown), added a Nitto technomic stem , drop bars and v-brake compatible levers... and then added a rear rack so she could do some commuting and errands.

Sold her to a friend... he loves her.

With the three speed and nearly full on road gearing she is pretty fast and eats up bad roads like they aren't even there... the v-brake up front addressed the poor braking issue.
