removable tikit dropouts

Search
Notices
Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

removable tikit dropouts

Thread Tools

Search this Thread

Old 05-19-10 | 10:45 AM
  #1
chucky's Avatar
Thread Starter
It's got electrolytes!

Joined: Aug 2009
Posts: 1,388
Likes: 0

Bikes: Self-designed carbon fiber highracer, BikesDirect Kilo WT5, Pacific Cycles Carryme, Dahon Boardwalk with custom Sturmey Archer wheelset

removable tikit dropouts

I don't understand why you need a special frame for these. Why can't you just drill some holes in the existing dropouts and bolt the new ones on?
chucky is offline
Reply
Old 05-19-10 | 12:13 PM
  #2
vik's Avatar
vik
cyclopath

Joined: Apr 2006
Posts: 5,264
Likes: 6
From: Victoria, BC

Bikes: Surly Krampus, Surly Straggler, Pivot Mach 6, Bike Friday Tikit, Bike Friday Tandem, Santa Cruz Nomad



This is a Tikit with standard vertical dropouts...where do you propose you drill some extra holes to bolt in the modular dropouts shown below?

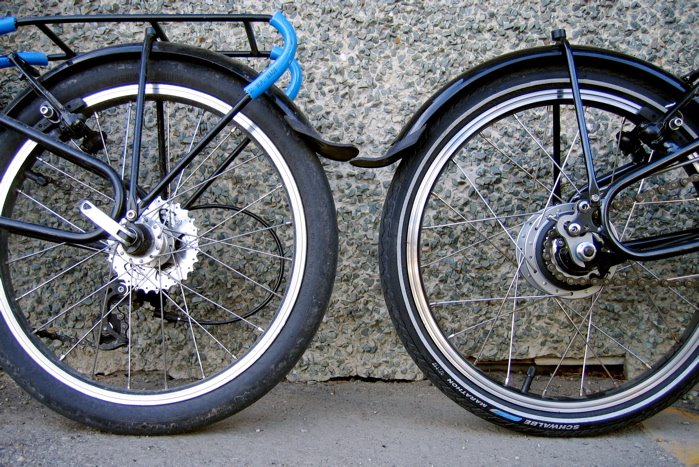

Here is a side by side of a Season Tikit and a derailleur Tikit.



If you want modular dropouts you need to order them when you buy your Tikit...or I assume you could have them added after the fact by BF.
__________________
safe riding - Vik
VikApproved
vik is offline
Reply
Old 05-19-10 | 03:45 PM
  #3
chucky's Avatar
Thread Starter
It's got electrolytes!

Joined: Aug 2009
Posts: 1,388
Likes: 0

Bikes: Self-designed carbon fiber highracer, BikesDirect Kilo WT5, Pacific Cycles Carryme, Dahon Boardwalk with custom Sturmey Archer wheelset

In those pics it looks like there's plenty of metal to drill holes of appropriate size and spacing. In fact, it seems you could bolt these dropouts onto the dropouts of almost any bike.

I think maybe BF doesn't endorse it because the width wouldn't be correct if the modular dropouts were bolted to the regular dropouts. In other words the special dropout holes seem to be offset laterally so the boltons are 135mm apart when bolted on. But surely there are plenty of ways to solve this like adding spacers if the boltons are too wide or just squeezing the hub in if the boltons are too narrow, right?

Last edited by chucky; 05-19-10 at 03:53 PM.
chucky is offline
Reply
Old 05-19-10 | 04:45 PM
  #4
vik's Avatar
vik
cyclopath

Joined: Apr 2006
Posts: 5,264
Likes: 6
From: Victoria, BC

Bikes: Surly Krampus, Surly Straggler, Pivot Mach 6, Bike Friday Tikit, Bike Friday Tandem, Santa Cruz Nomad

Originally Posted by chucky
In those pics it looks like there's plenty of metal to drill holes of appropriate size and spacing. In fact, it seems you could bolt these dropouts onto the dropouts of almost any bike.

I think maybe BF doesn't endorse it because the width wouldn't be correct if the modular dropouts were bolted to the regular dropouts. In other words the special dropout holes seem to be offset laterally so the boltons are 135mm apart when bolted on. But surely there are plenty of ways to solve this like adding spacers if the boltons are too wide or just squeezing the hub in if the boltons are too narrow, right?


I sure don't see the adequate material to drill two additional bolts that would support a rear axle, but you are right the dropout width would be too narrow regardless.
__________________
safe riding - Vik
VikApproved

Last edited by vik; 05-19-10 at 05:03 PM.
vik is offline
Reply
