Old 05-28-26 | 10:57 AM
  #26
Junior Member
10 Anniversary

Joined: Oct 2011
Posts: 157
Likes: 83
From: Dallas, TX
Originally Posted by 79pmooney
I'd bet the seattube will have to be reamed after welding to get good seatpost fit even if the weld does not go all the way through. (Distortion due to the heat.) If this welder isn't a framebuilder he probably does not have the appropriate reamer. A regular steel and softer metals bike mechanic might be unwilling to sacrifice his tools on the much harder titanium. I'd call a titanium framebuilder and ask his advice. Or just get it welded and try the seatpost. That crack is close enough to the the top of the seattube that the inside is accessible and visible so careful hand filing should work. Not recommended but there are probably more than a few steel frames out there with the same treatment.
Titanium is softer than steel, so there is no problem regarding tool wear.
hayden52 is offline
Reply
Old 05-28-26 | 11:17 AM
  #27
Kontact's Avatar
Senior Member
15 Anniversary
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Apr 2011
Posts: 12,760
Likes: 4,873
Originally Posted by hayden52
Titanium is softer than steel, so there is no problem regarding tool wear.
As far as bikes go, you're wrong. You can't use a standard facing tool on a Ti BB shell, for instance.
Kontact is offline
Reply
Old 05-28-26 | 04:01 PM
  #28
bulgie's Avatar
Senior Member
Titanium Club Membership
15 Anniversary
Community Builder
Community Influencer

Joined: Apr 2009
Posts: 3,798
Likes: 5,661
From: Seattle



I hate when that happens!

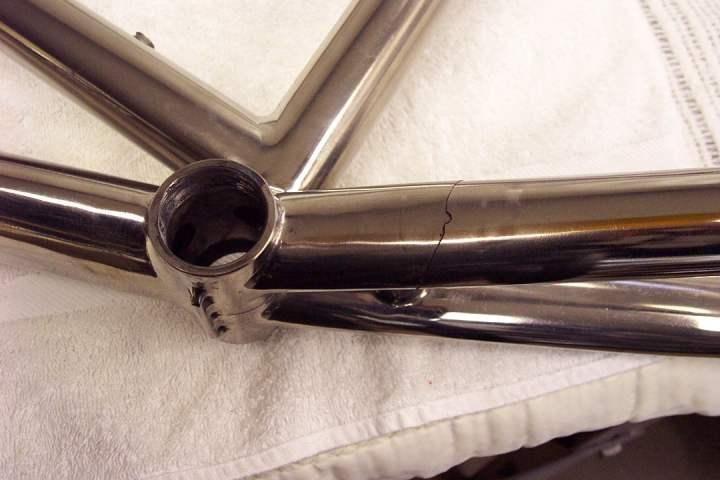

I'm avoiding a chore, so instead I'll post some more fun Ti pics:







bulgie is offline
Reply
Old 05-28-26 | 04:27 PM
  #29
sweeks's Avatar
Thread Starter
Senior Member
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 3,334
Likes: 1,070
From: Chicago area

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Originally Posted by 3Roch
How tall are you?
5' 9"
Thanks for the suggestion. I've been looking at Ti frame failures and think I'm not likely to get a used frame. Besides, I would like to re-use as many of the existing components as possible. I'm thinking of looking into a new steel frame with compatible dimensions. But at this point, I'm not rushing into anything. I still have an aluminum hard-tail mountain bike, ironically older than my Airborne and a veteran of a lot of miles including the Ore-to-Shore Mountain Bike Epic, that's not cracked, a nice old steel 10-speed and a couple folding bikes. These will keep me on two wheels while I think about the Airborne's fate.
sweeks is offline
Reply
Old 05-28-26 | 04:32 PM
  #30
sweeks's Avatar
Thread Starter
Senior Member
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 3,334
Likes: 1,070
From: Chicago area

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Originally Posted by bulgie
I'm avoiding a chore, so instead I'll post some more fun Ti pics:
Heh... yeah, I've been looking at those, and it pretty much cured me of the desire to buy a used Ti frame.
sweeks is offline
Reply
Old 05-29-26 | 08:36 AM
  #31
PromptCritical's Avatar
Senior Member

Joined: Mar 2024
Posts: 1,949
Likes: 784
From: San Diego

Bikes: Columbine, Lynskey GR300, Paramount Track Bike, Colnago Super (4), Santana Tandems (1995 & 2007), Gary Fisher Piranha (retired), Bianchi Track Bike, a couple of Honda mountain bikes

Originally Posted by sweeks
I found Ti Cycles HERE. Looks promising, though I will have to find out the logistics of shipping the frame anywhere. I don't yet know if my local guy knows about bike frames, but it's good to have a lead on someone who does. Thanks!
Dave does great work. We had him build a titanium tandem for us. Spectacular bike! Give him a call.
PromptCritical is offline
Reply
Old 05-29-26 | 12:54 PM
  #32
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Aug 2012
Posts: 683
Likes: 283
From: Seattle
Originally Posted by hayden52
Titanium is softer than steel, so there is no problem regarding tool wear.
Maybe it's superstition but framebuilders don't use Ti tools on Steel or vice versa. Wear is part of it. I think the alloys used in bike making are harder than steels or at least wear tools more. I think there is also contamination of materials. You don't want steel embedded in Ti. I'm saying this based on what I have seen others with more experience than I, do; not based on study or training. Having machined brass and cast iron, I can say they wear drill bits and other tools pretty fast for something that is pretty soft.
__________________
https://www.flickr.com/photos/54319503@N05/
https://www.draper-cycles.com
duanedr is offline
Reply
Old 05-29-26 | 01:31 PM
  #33
bulgie's Avatar
Senior Member
Titanium Club Membership
15 Anniversary
Community Builder
Community Influencer

Joined: Apr 2009
Posts: 3,798
Likes: 5,661
From: Seattle
Originally Posted by duanedr
Maybe it's superstition but framebuilders don't use Ti tools on Steel or vice versa. Wear is part of it. I think the alloys used in bike making are harder than steels or at least wear tools more. I think there is also contamination of materials. You don't want steel embedded in Ti. I'm saying this based on what I have seen others with more experience than I, do; not based on study or training. Having machined brass and cast iron, I can say they wear drill bits and other tools pretty fast for something that is pretty soft.
No, FBs use steel cutting tools on Ti all the time. Reamers, facers, taps, hole saws etc. They do need to be extra-sharp though, and if you have the luxury of a custom grind, you want an edge with more rake even though it leaves the tip less supported, you need it it cut and not rub. The flexibility of Ti is part of the problem, a seat tube for example can "flex out of the way" as a reamer blade goes by, just rubbing not making a chip. Then it springs back and you haven't actually accomplished anything but wear on the reamer.

The cutter resharpener we used knew how to shape the cutting teeth for Ti.

There is no contamination issue that I know of. Any place that's going to get welded on is well cleaned before welding. I'd worry more about the cutting oil that any transfer of steel onto the Ti. Anyway some strong Ti alloys have a little Fe in them (on purpose), it's not a dangerous contaminant.
bulgie is offline
Reply
Old 05-29-26 | 07:55 PM
  #34
sweeks's Avatar
Thread Starter
Senior Member
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 3,334
Likes: 1,070
From: Chicago area

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Originally Posted by PromptCritical
Dave does great work. We had him build a titanium tandem for us. Spectacular bike! Give him a call.
I made a request for an estimate, and I'm waiting for a response.
sweeks is offline
Reply
Old 05-29-26 | 08:23 PM
  #35
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Aug 2012
Posts: 683
Likes: 283
From: Seattle
Originally Posted by bulgie
No, FBs use steel cutting tools on Ti all the time.
Well, it's a sample size of one but Bill was worried Max would get mad at him for using his Ti cutters on my steel frame. Maybe he was being dramatic.

__________________
https://www.flickr.com/photos/54319503@N05/
https://www.draper-cycles.com
duanedr is offline
Reply
Old 05-30-26 | 02:28 AM
  #36
bulgie's Avatar
Senior Member
Titanium Club Membership
15 Anniversary
Community Builder
Community Influencer

Joined: Apr 2009
Posts: 3,798
Likes: 5,661
From: Seattle
Originally Posted by duanedr
Well, it's a sample size of one but Bill was worried Max would get mad at him for using his Ti cutters on my steel frame. Maybe he was being dramatic.
Oh that I can believe. By "Ti cutters" he means cutters made of steel that are for use on Ti frames. With that sharper rake on the cutting edges, less support for the cutting point, faster wear when used on steel. So definitely keep your "Ti cutters" sharp and away from steel.
bulgie is offline
Reply
