Fork_dimension

Hi all,

I am new here. I want to fit my bike with a suspension fork. I am very confused on what dimensions I should be looking at to make sure that the fork I am getting will actually fit my bike (I am looking at the classifieds and won't be buying new). My bike is Merida Crossway Urban 20D. General info on the necessary mm will be fine - I will then look into the local offerings and bow to your advise.
Jaaniic is offline
Old 08-04-21, 01:22 PM
  #2
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 9,218

Bikes: '20 Tarmac Disc Comp '91, '78 Raleigh Competition GS

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 3675 Post(s)
Liked 2,255 Times in 1,579 Posts
your advise.
Don't.

Get another bike that is made for suspension forks and already comes with one.
Iride01 is offline
Likes For Iride01:
Old 08-04-21, 01:24 PM
  #3
Jaaniic
Newbie
Thread Starter

Join Date: Aug 2021
Location: Riga
Posts: 4
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
What if I am not in a position to get a new bike? I'm not rich in any way...
Jaaniic is offline
Old 08-04-21, 01:29 PM
  #4
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 12,484

Bikes: Stormchaser, Paramount, Timberjack, Expert TG, Samba tandem

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 2570 Post(s)
Liked 1,357 Times in 886 Posts
You need to first accept that you are voiding the warranty.

Very likely candidates for you are Rock Shox Paragon and Suntour N__ models. Other than those you are likely getting into money to replace some other parts to match.

Make sure that the following match.
  • Since you are buying a used fork, the steerer will be cut to length. It needs to be as long as the steerer on your existing fork.
  • The headset needs to match size. Some forks have straight 1-1/8" steerers and some have tapered steerers that are 1-1/2" on the bottom.
  • The fork needs to be made for your wheel size. Your bike is for 700c commuter/trekking/touring wheels (sometimes called 28") but would also tolerate a fork for 27.5" mountain bikes.
  • The dropouts need to match your wheel hub. Most forks have 15mm thru axles, and are now mostly 110 mm wide. Older or cheaper ones will have 9mm quick release and 100mm wide.
  • The fork needs to match your brake style. Most forks now are for post-mount disc brakes. Older ones may have IS disk mounts and/or posts further up for rim brakes.
  • If some of these don't match you can change the brakes, or the wheel, or so on.
__________________
Genesis 49:16-17
Darth Lefty is offline
Old 08-04-21, 01:44 PM
  #5
Jaaniic
Newbie
Thread Starter

Join Date: Aug 2021
Location: Riga
Posts: 4
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
You are GOLD!!! Thank you. This is exactly what I was looking for (and I weren't expecting to get such a swift reply)!!! I bow to you, Dear Sir.
Jaaniic is offline
Old 08-04-21, 02:28 PM
  #6
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,340
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,899 Times in 1,353 Posts
I'm confident that bike was not designed to take a suspension fork. https://www.merida-bikes.com/en/bike...way-urban-20-d
So it's not possible to make it handle well. You are much better off getting a suspension stem or suspension seat post. I have heard good things about the redshift stem
unterhausen is offline
Likes For unterhausen:
Old 08-04-21, 05:01 PM
  #7
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 2,476

Bikes: lots

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1166 Post(s)
Liked 1,560 Times in 855 Posts
That bike is not designed for a suspension fork. It will void the warranty, and mess up the way the bike handles.
cxwrench is offline
Likes For cxwrench:
Old 08-04-21, 08:38 PM
  #8
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,619

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 613 Post(s)
Liked 400 Times in 253 Posts
Originally Posted by Jaaniic View Post
My bike is Merida Crossway Urban 20D.
I don't mean to pile on, but that bike isn't meant for a suspension fork. It's more of a 'fitness hybrid' or 'flat-bar road bike' It might have a straight handlebar and disk brakes, but it's more of a road bike than an MTB or even a trekking bike.

The 'best' fork for your bike would be something like the Suntour NEX, which is intended for '28" hybrids and trekking bikes; However, it's not really found on the kinds of bikes people upgrade a lot, so it might not be easy to find used (although, it's pretty inexpensive new)

The biggest thing you'll find is that when adding a suspension fork onto a rigid bike, it will typically raise the front end of the bike an amount equal or more than the forks' travel; 50-63mm for the NEX, and 100+ mm for a typical MTB fork. This will change the way you fit on the bike, and also change the way the bike handles. This was something we learned in the 1990's when the first forks appeared in MTB, and it accounts for why 90's 'NORBA' bikes don't look like anything that came before or after them.

I actually like a suspension stem on a road bike-based 'path bike' Redshift and KINEKT are the two best options right now. The Redshift is lighter, and less obvious, but the KINEKT has more travel and better tuning options.

Last edited by Ironfish653; 08-05-21 at 08:53 AM.
Ironfish653 is offline
Old 08-04-21, 09:24 PM
  #9
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 12,484

Bikes: Stormchaser, Paramount, Timberjack, Expert TG, Samba tandem

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 2570 Post(s)
Liked 1,357 Times in 886 Posts
Originally Posted by Ironfish653 View Post
I actually like a suspension stem on a road bike-based 'path bike' Redshift and KINEKT are the two best options right now. The Redshift is lighter, and less obvious, but the KINEKT has more travel and better tuning options.
@Jaaniic this is a good idea
__________________
Genesis 49:16-17
Darth Lefty is offline
Old 08-04-21, 09:36 PM
  #10
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 9,139

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 2576 Post(s)
Liked 1,646 Times in 1,099 Posts
Don't do it. That bike was not designed for it and you will screw up the whole geometry of the bike which will throw a lot of things off in a bad way. Plus you would void the warranty which you may not have anyway but still. If you are really desperate for more comfort try to fit wider more supple tires run them at lower pressures, find a compatible carbon fork (which will be expensive and not worth it on a heavily Tourney equipped bike) and look at things like the Kinekt seatpost or stem or Redshift ShockStop Stem (however not both stem and seatpost as it will lead to poor fit and really odd riding).

Also I would not even if the bike were suspension ready look at used stuff if you are so unsure because you could be dealing with a lot of sellers who are also unsure and that could lead to a ton of expensive mistakes. The only time I really want a suspension fork is if I am mountain biking or riding generally at higher speeds on a heavy e-bike. I don't want the weight or the energy lose on the road

In the future I would look at a good steel frame or titanium frame which will help smooth out roads. Aluminum on aluminum tends to lead to a stiffer ride and more transfer of vibrations to the rider. Carbon can also be nice depending on how it was constructed some bikes are designed to be super stiff and others designed with a bit of compliance however steel and titanium will generally last forever and some steel can be a little less costly plus I can mount racks and such to steel and titanium whereas with carbon not so much generally.
,.
veganbikes is offline
Likes For veganbikes:
Old 08-05-21, 08:33 AM
  #11
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 4,702
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1243 Post(s)
Liked 736 Times in 467 Posts
The bike comes with inexpensive wire bead tires. If comfort is the goal, a slightly wider higher quality tire will be a far better, solution. Also, look into tire pressure, you may be riding at the highest recommended pressure for your tires when you should set the pressure 10 - 20 psi lower. This option costs nothing to try
alcjphil is offline
Likes For alcjphil:
Old 08-05-21, 08:42 AM
  #12
Phil_gretz
Zip tie Karen

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Fair Oaks Ranch, TX
Posts: 7,001

Bikes: '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022, '21 Tsunami SNM-100

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1456 Post(s)
Liked 1,520 Times in 800 Posts
^ this. The widest, highest volume tire that you can fit within the fork and rear stays, run at the lowest pressure that works for your weight and the terrain. That's your answer right there.
Phil_gretz is offline
Likes For Phil_gretz:
Old 08-05-21, 10:15 AM
  #13
Jaaniic
Newbie
Thread Starter

Join Date: Aug 2021
Location: Riga
Posts: 4
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Ironfish653 View Post
I don't mean to pile on, but that bike isn't meant for a suspension fork. It's more of a 'fitness hybrid' or 'flat-bar road bike' It might have a straight handlebar and disk brakes, but it's more of a road bike than an MTB or even a trekking bike.

The 'best' fork for your bike would be something like the Suntour NEX, which is intended for '28" hybrids and trekking bikes; However, it's not really found on the kinds of bikes people upgrade a lot, so it might not be easy to find used (although, it's pretty inexpensive new)

The biggest thing you'll find is that when adding a suspension fork onto a rigid bike, it will typically raise the front end of the bike an amount equal or more than the forks' travel; 50-63mm for the NEX, and 100+ mm for a typical MTB fork. This will change the way you fit on the bike, and also change the way the bike handles. This was something we learned in the 1990's when the first forks appeared in MTB, and it accounts for why 90's 'NORBA' bikes don't look like anything that came before or after them.

I actually like a suspension stem on a road bike-based 'path bike' Redshift and KINEKT are the two best options right now. The Redshift is lighter, and less obvious, but the KINEKT has more travel and better tuning options.
Thanks. I know it is not intended for a suspension fork and that it may make my bike handle worse, but if I do the change and it is very bad - I can always switch back and resell the fork (one of the reasons I don't want to buy new). I was looking at the Suntour NEX myself....that is what Merida fits on their tourism series like standard crossway 20d. My fork extension seems to be 240mm. Can't add photos as a newbie, but the distance from where the fork goes in the frame to the top of the steering wheel. Should be +/- correct
Jaaniic is offline
Old 08-05-21, 11:03 AM
  #14
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 4,310

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1366 Post(s)
Liked 1,261 Times in 794 Posts
I am not professing you should add a few lbs to the front of your bike just to smooth out the ride. But what you need to know is the axle-crown measurement of your current rigid fork.

However, it may be simpler for you to just contact Merida and find out the frame geometry specs for the Crossway Trekking and the Crossway Urban.

Merida touts the Crossway Trekking as “A perfect blend of comfort, enjoyment and all-round functionality, suitable for fitness training, commuting and leisurely rides through forests and on trails.”

Not to discount the NORBA references but I can’t recall the phrase, “leisurely rides through forests and on trails” in any of their race documentation.

I’m betting both frames are the same.

John
70sSanO is offline
Old 08-05-21, 11:24 AM
  #15
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 12,484

Bikes: Stormchaser, Paramount, Timberjack, Expert TG, Samba tandem

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 2570 Post(s)
Liked 1,357 Times in 886 Posts
I love advice that goes "run a giant tire at low pressure but don't do a suspension fork, they are heavy and lossy"

I still like the suspension stem idea here.
__________________
Genesis 49:16-17
Darth Lefty is offline
Old 08-05-21, 11:28 AM
  #16
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 4,702
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1243 Post(s)
Liked 736 Times in 467 Posts
Originally Posted by Darth Lefty View Post
I love advice that goes "run a giant tire at low pressure but don't do a suspension fork, they are heavy and lossy"

I still like the suspension stem idea here.
I suggested a slightly wider, better quality tire. We have no idea what sort of tire pressure the OP is using, it may be so high that they can feel every ripple in the road
Still, the suspension stem is an interesting idea as well
alcjphil is offline
Old 08-05-21, 11:40 AM
  #17
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 12,484

Bikes: Stormchaser, Paramount, Timberjack, Expert TG, Samba tandem

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 2570 Post(s)
Liked 1,357 Times in 886 Posts
The suspension and non-suspension versions of the bike are not the same frame, the suspension version has far less head tube but still nevertheless more stack and less reach - due to the fork.

I really think the fork idea is going to be moot in the end. OP is never going to find a used one with a long enough steerer. It could only come from a comfort bike and who replaces the fork on those? That NEX fork isn't all that great either. My wife's bike is one of those comfort bikes and has one... it's one of the inexpensive and heavy variety, with steel stanchions and a coil spring. Neither of which is dysfunctional, but they do weigh pounds more than aluminum and air. The HLO cartridge is only a lockout, it does not provide any damping. There is a much nicer Suntour fork in this form factor but I can't recall the acronym and don't really care enough to look it up right now, OP won't find it used or want to pay for it new.
__________________
Genesis 49:16-17
Darth Lefty is offline
Old 08-05-21, 02:45 PM
  #18
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,340
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,899 Times in 1,353 Posts
if anyone replaces a fork on a bike like this, it's one that came with a suspension fork. Usually they go rigid, but sometimes the old one fails.
unterhausen is offline
Old 08-05-21, 08:43 PM
  #19
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,619

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 613 Post(s)
Liked 400 Times in 253 Posts
Originally Posted by 70sSanO View Post
Not to discount the NORBA references but I can’t recall the phrase, “leisurely rides through forests and on trails” in any of their race documentation.
I was thinking more about the long-and-low stems that were de rigueur for early 90's hard tails to keep the front ends down, even with the early 50mm forks, like the 150mm-0* ATAC on my Tomac, or the 140mm (-7*) on my Cannondale.
Nothing leisurely about those bikes, though
Ironfish653 is offline
Likes For Ironfish653:
Old 08-05-21, 09:10 PM
  #20
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,332
Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 15099 Post(s)
Liked 2,748 Times in 2,037 Posts
@Jaaniic's Album:

https://www.bikeforums.net/g/user/543138
https://www.bikeforums.net/g/album/22105570

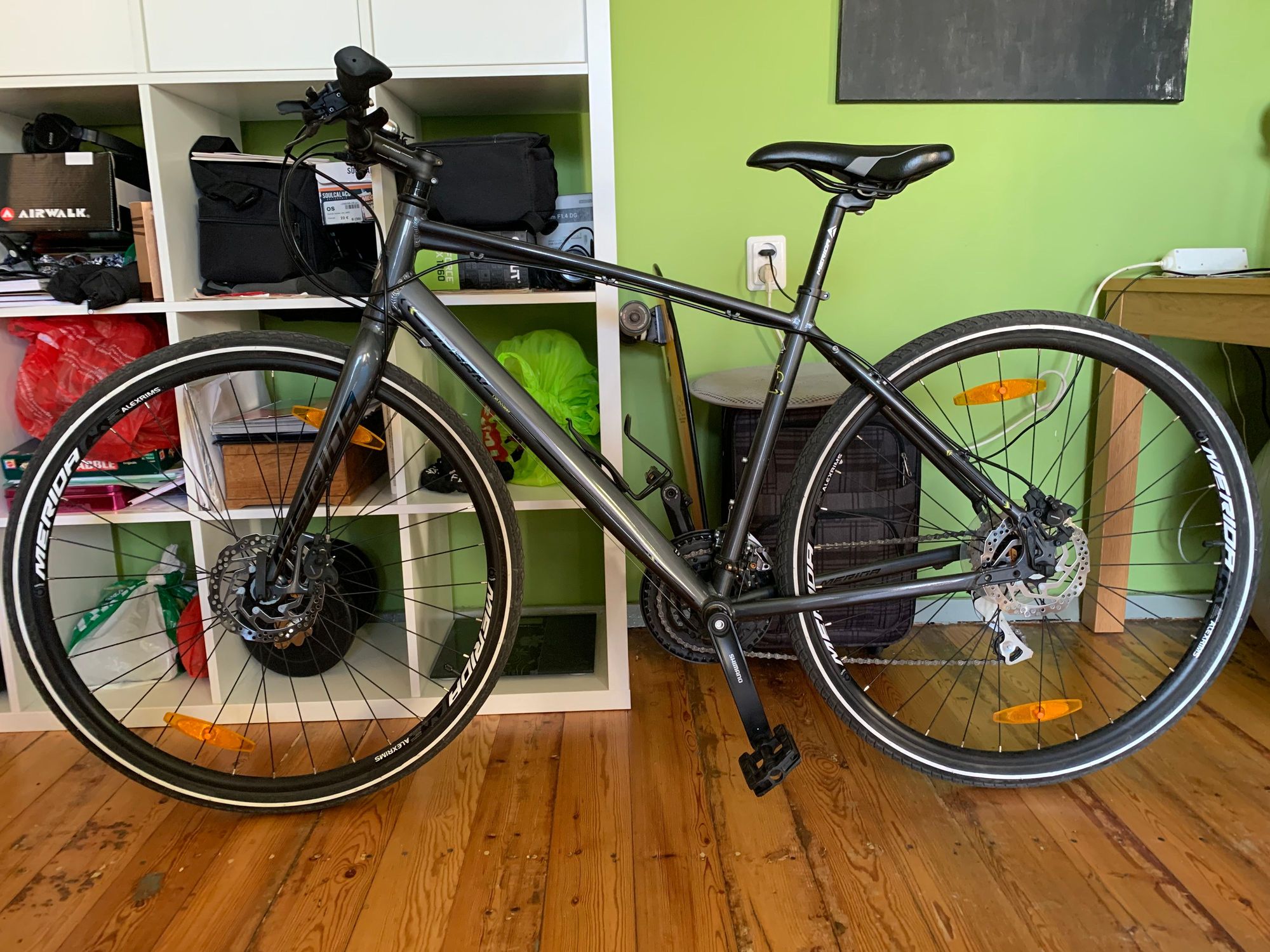

I presume this is the bike in question.
CliffordK is offline
Old 08-05-21, 09:29 PM
  #21
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,332
Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 15099 Post(s)
Liked 2,748 Times in 2,037 Posts
The first thing I'd do on the bike is to remove the old fork, and measure the steer tube diameter at the crown race, as well as at the handlebar stem.

I'm wondering if that fork is "tapered", perhaps 1 1/8" at the stem, and 1 1/2" at the crown race.

If it was me, I'd probably try a headshock on that bike.

https://rstsuspension.com/en/forks/c...le-shock/ss-a7
https://rstsuspension.com/en/forks/c...ck/ss-m7-ss-m6



Now, I think the RST forks are only straight tube 1 1/8". If you have a tapered steer tube, you should be able to get away with an adapter for city use.
CliffordK is offline
Old 08-05-21, 11:16 PM
  #22
Gonzo Bob
cycles per second

Gonzo Bob's Avatar

Join Date: Oct 2003
Location: Minnesota
Posts: 1,911

Bikes: Early 1980's Ishiwata 022 steel sport/touring, 1986 Vitus 979, 1988 DiamondBack Apex, 1997 Softride PowerWing 700, 2001 Trek OCLV 110

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 66 Times in 44 Posts
1) I know nothing about your bike. 2) Most bikes with rigid forks should not be converted to suspension forks - they aren't designed for it. Only convert bikes with forks described as suspension-corrected. 3) Why do you want a suspension fork? Do you ride a lot of bumpy single-track? Maybe a bike designed for your use is a better solution. 4) As others have opined, a suspension stem may be an adequate solution. That's what I did with my MTB. I bought my mid-level MTB in 1988 just before the advent of suspension forks. Sure, the high-end MTBs at the time had them, but mid-line and lower-end bikes did not. I rode that bike for a long time. In fact, I still ride it. In 2005, I did an off-road triathlon on it. The bike leg took about 1 hour but the terrain was so bumpy and uneven that I could hardly hold onto the handlebars by the end of the ride. But I enjoyed that race so much that I thought about upgrading my bike. But I didn't want to upgrade by buying a new bike. I have 4 road bikes and probably do >90% of my riding on them. MTB for me is a diversion. So I researched susp. forks and came to the conclusion that they were not going to work for my bike. Somewhere in my research I stumbled on susp. stems. I ended up buying a used Softride suspension stem on eBay and I do not regret it.
Gonzo Bob is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
