should I remove washers from pedals?

Search
Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

should I remove washers from pedals?

Thread Tools

Search this Thread

Old 08-11-21 | 12:13 AM
  #1
Thread Starter
Junior Member

Joined: Feb 2012
Posts: 168
Likes: 4

Bikes: Merida x-fit 2010;

should I remove washers from pedals?

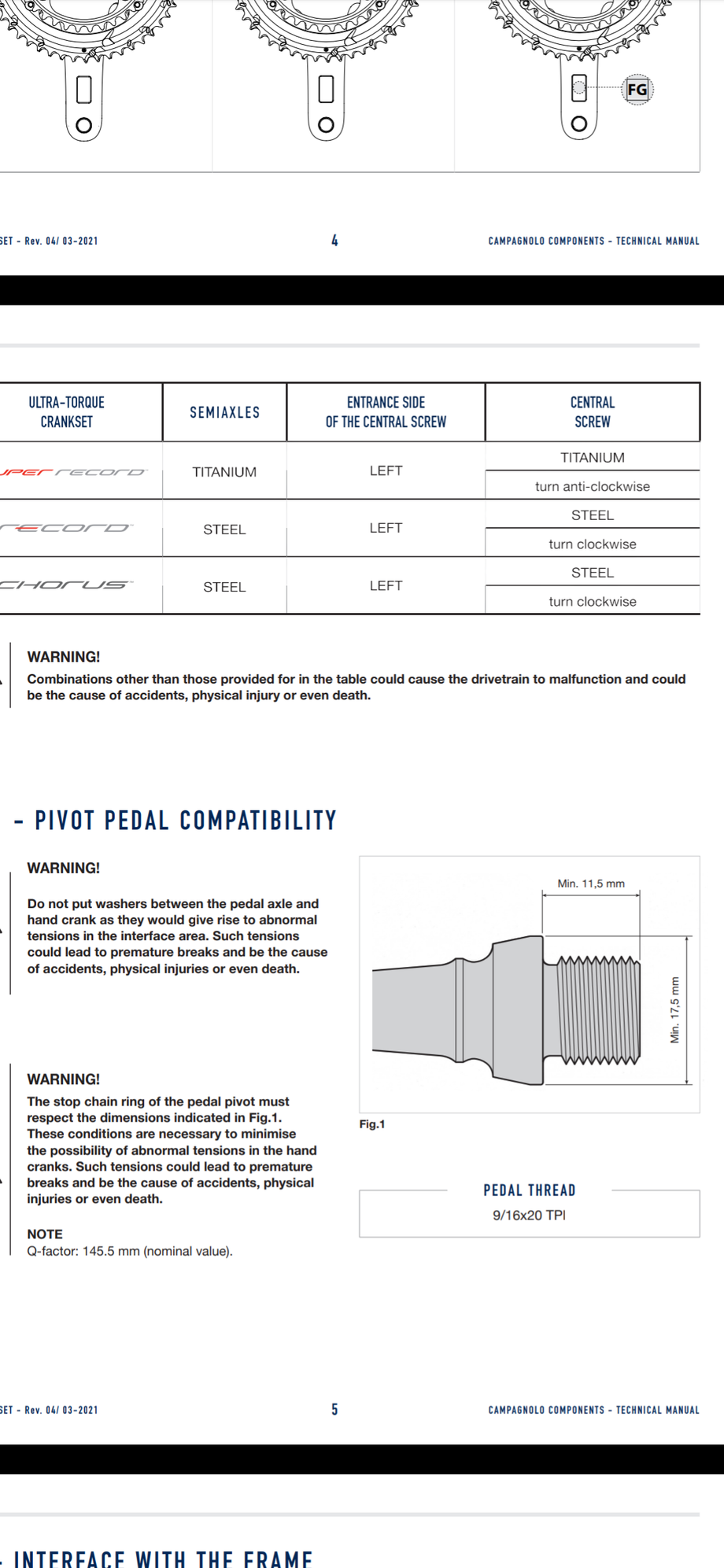

According to campagnolo super record technology instruction,should I remove washers from pedals?if removed,will pedal destroy crank during riding?


cycling2012 is offline
Reply
Old 08-11-21 | 08:30 AM
  #2
Senior Member
10 Anniversary

Joined: Dec 2013
Posts: 2,091
Likes: 350
Yes, do what Campagnolo says.

Some history on the subject. In days of yore it was steel pedal axles fitting to steel crank arms. There was no problem. About 90 years back aluminum cranks arrived. Pedals that had been good enough would cut, scar, possibly fracture the aluminum. This was mostly resolved by making pedals with flat and accurate faces to engage the crank arm. Campagnolo was the first to do this with complete reliability but it is really not that hard to accomplish. All modern pedals have flat and accurate faces. The only exceptions I have seen personally would be on very inexpensive bikes from India. Which still used steel cranks.

Those of us who use antique French bikes still use pedal washers. It is good engineering for the purpose. But even in that use case it is not really necessary.

Pedal washers have made a sort of comeback. I think it is bizarre. Some of it is connected to carbon fiber cranks. Fashion? Maybe someone with more recent shop experience will check in and discuss carbon cranks that have problems without washers. If that happens it should only be with El Cheapo cranks in early production runs. Campagnolo is telling you it does not apply to them.

Having two interfaces rather than one (crank to washer, washer to pedal) is imaginably problematic. In theory it could start to move. In olden days the crank was soft, the washer was soft, you wrenched hard, there was no problem. Now it is all more precise. Do what Campy says
63rickert is offline
Reply
Old 08-11-21 | 09:57 AM
  #3
Senior Member

Joined: Apr 2009
Posts: 64
Likes: 6
Just out of curiosity, what do people with this setup (using manufacturer recommendations) do if they wanted to widen their pedal stroke width profile by say 4mms on each side? Just buy the +4mm pedals rather than add 4mms of washers?
Berge20 is offline
Reply
Old 08-11-21 | 11:22 AM
  #4
Senior Member
10 Anniversary

Joined: Dec 2013
Posts: 2,091
Likes: 350
Originally Posted by Berge20
Just out of curiosity, what do people with this setup (using manufacturer recommendations) do if they wanted to widen their pedal stroke width profile by say 4mms on each side? Just buy the +4mm pedals rather than add 4mms of washers?
In that case try to find 4mm spacers. A single spacer each side. A stack of thin washers is not a good idea. Few people want to do this, few even know how wide their pedals sit. But some want different spacing and do just as you say. It counts as a kludge.
63rickert is offline
Reply
Old 08-11-21 | 11:57 AM
  #5
terrymorse's Avatar
climber has-been
Titanium Club Membership
20 Anniversary
Community Builder
Community Influencer

Joined: Dec 2004
Posts: 9,169
Likes: 6,061
From: Palo Alto, CA

Bikes: Scott Addict RC Pro & R1, Felt Z1

The reason why Campagnolo doesn't want you to install a washer is because it would reduce the number of threads that are engaged, causing additional stress on the engaged threads, possibly leading to failure. This is also why Campagnolo calls out a minimum length for the pedal's threaded section.

The reason why you might want to use a washer: because the interface between the pedal and the crank is a fretting joint, which can produce cracks in the crank. Fretting damage to a washer is far less problematic than it is to a crank.

But you should only use a washer when the crank will accommodate it without reducing the engaged thread count.
__________________
Ride, Rest, Repeat. ROUVY: terrymorse


terrymorse is offline
Reply
Old 08-11-21 | 03:54 PM
  #6
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,402
Likes: 5,333
From: Appleton WI

Bikes: Several, mostly not name brands.

Originally Posted by Berge20
Just out of curiosity, what do people with this setup (using manufacturer recommendations) do if they wanted to widen their pedal stroke width profile by say 4mms on each side? Just buy the +4mm pedals rather than add 4mms of washers?
Pedal extenders:

JohnDThompson is offline
Reply
Old 08-12-21 | 10:11 PM
  #7
Newbie

Joined: Aug 2021
Posts: 2
Likes: 0
Nice, thank you for sharing. Just like to ask if the extender a universal for all types of bikes like the hybrids or trail bikes?
Ries is offline
Reply
Old 08-13-21 | 07:35 AM
  #8
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,402
Likes: 5,333
From: Appleton WI

Bikes: Several, mostly not name brands.

Originally Posted by Ries
Just like to ask if the extender a universal for all types of bikes like the hybrids or trail bikes?
They work with any standard thread pedals (9/16" x 20tpi). I believe there are some that can adapt standard pedals to fit 1/2" x 20tpi crank arms, and perhaps the other way around as well.
JohnDThompson is offline
