Saddle bag fell off
#1
Thread Starter
Full Member

Joined: Nov 2020
Posts: 335
Likes: 31
Saddle bag fell off

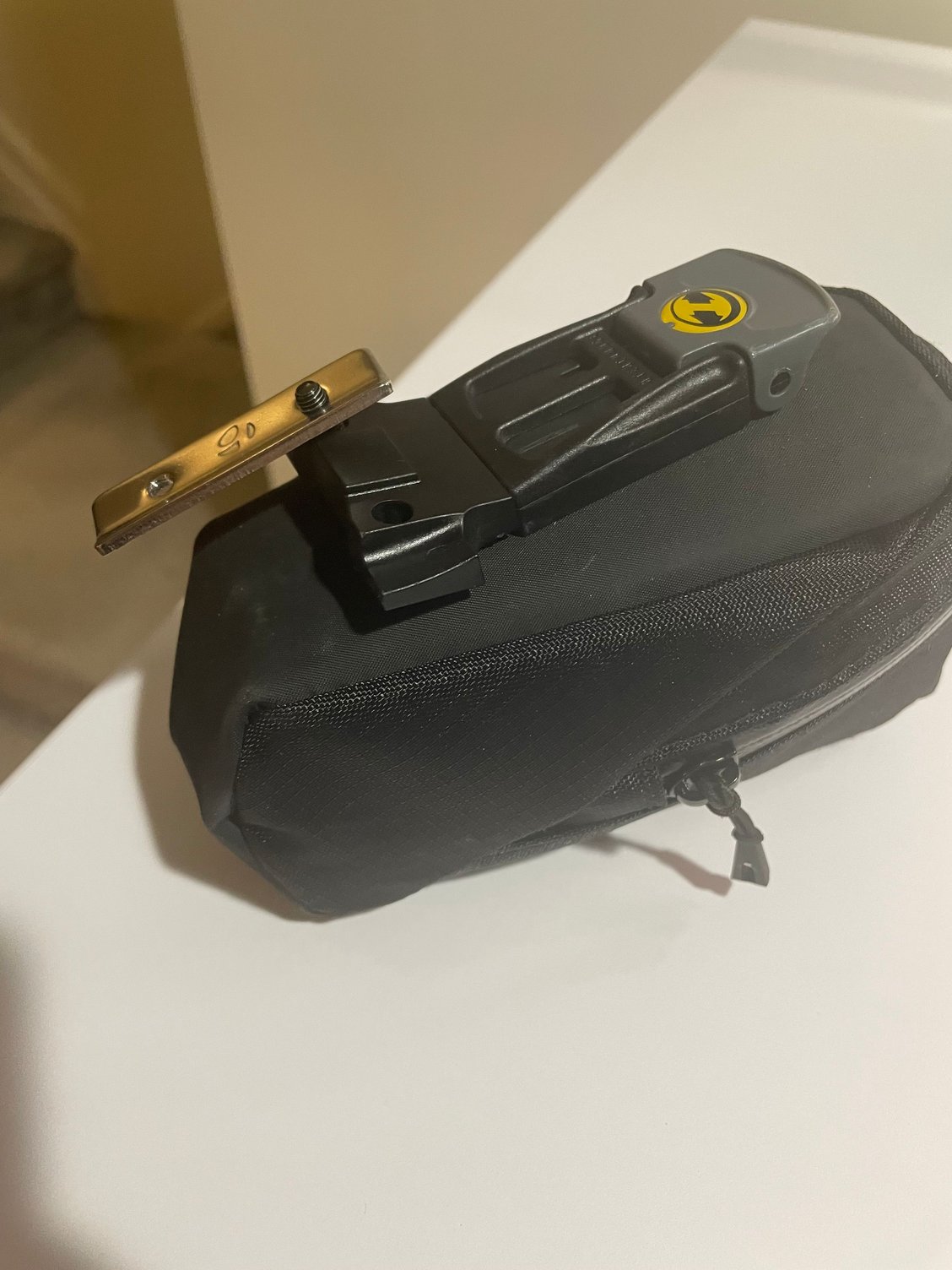

I switched my saddle yesterday, and reinstalled my saddle bag. It is mbag that clips to the saddle using a doc attached to the saddle rails, with two screws. I have had it for a while, and actually do like it. When I picked up the bag from the road, one screw was missing, on the doc. I.m not sure if it came lose or broke are such saddle bags unsafe, since there is a single point of failure ? Should I get something else ? What do you recommend ?
I choose this design, bc it is easier to detach and attach, since I travel with my back using a bike rack, for my rides, and I remove all accessories from the bike during transit. Below is the saddle bag link, which broke yesterday.
https://www.trekbikes.com/us/en_US/e...pack/p/552240/
I choose this design, bc it is easier to detach and attach, since I travel with my back using a bike rack, for my rides, and I remove all accessories from the bike during transit. Below is the saddle bag link, which broke yesterday.
https://www.trekbikes.com/us/en_US/e...pack/p/552240/
#4
Senior Member

Joined: Dec 2010
Posts: 9,684
Likes: 2,602
From: northern Deep South
Bikes: Fuji Touring, Novara Randonee
I don't see anything broken in that picture, just one screw missing and one unscrewed. I'd call that user error, didn't screw the mount on tight enough. Alternatively, you might want to use some Loc-Tite on the screws.
#5
Thread Starter
Full Member

Joined: Nov 2020
Posts: 335
Likes: 31
loc tite ? I could google, but could you provide a link, just so I’m looking at same thing ?
#6
Thread Starter
Full Member

Joined: Nov 2020
Posts: 335
Likes: 31
#7
Senior Member

Joined: Nov 2012
Posts: 5,175
Likes: 1,929
I have used a Presto seat bag for 15+ years without any issues, however it has a more thought out clamp arrangement than the Trek bag. Instead of simply threading into the backing plate, the backing plate, which is fiber reinforced plastic, has nylock nuts inserted in it. These typically do not loosen.
The way Trek does it is flawed in that there is no safeguard to prevent the bolt from backing out of the backing plate, whereas the Presto bag does. Just add a dab of blue Lock-tite to the threads of the bolts and all will be well.
The way Trek does it is flawed in that there is no safeguard to prevent the bolt from backing out of the backing plate, whereas the Presto bag does. Just add a dab of blue Lock-tite to the threads of the bolts and all will be well.
#8
Thread Starter
Full Member

Joined: Nov 2020
Posts: 335
Likes: 31
I have used a Presto seat bag for 15+ years without any issues, however it has a more thought out clamp arrangement than the Trek bag. Instead of simply threading into the backing plate, the backing plate, which is fiber reinforced plastic, has nylock nuts inserted in it. These typically do not loosen.
The way Trek does it is flawed in that there is no safeguard to prevent the bolt from backing out of the backing plate, whereas the Presto bag does. Just add a dab of blue Lock-tite to the threads of the bolts and all will be well.
The way Trek does it is flawed in that there is no safeguard to prevent the bolt from backing out of the backing plate, whereas the Presto bag does. Just add a dab of blue Lock-tite to the threads of the bolts and all will be well.
#9
Facts just confuse people




Joined: Jul 2017
Posts: 19,268
Likes: 7,024
From: Mississippi
Bikes: Tarmac Disc Comp Di2 - 2020
No draw backs for me. Unless you mean how I have to double the strap back through the saddle rails because it's too long. I suppose the only drawback will be that you have to get used to doing something else. And certainly the Velcro straps probably take a little more time to swap the bag between bikes than just having a clip to fasten into on each bike.
#11
Senior Member

Joined: Jan 2007
Posts: 1,971
Likes: 763
From: Eastern VA
Bikes: 2022 Fuel EX 8, 2021 Domane SL6, Black Beta (Nashbar frame), 2004 Trek 1000C for the trainer
Looks like the screw backed out and is lost. Go to a hardware store and get a new screw. May be was not tight enough. Loctite or any medium strength removeable threadlocker will help.
https://www.google.com/search?q=medi...hrome&ie=UTF-8
https://www.amazon.com/Loctite-Heavy...435179578&th=1
https://www.google.com/search?q=medi...hrome&ie=UTF-8
https://www.amazon.com/Loctite-Heavy...435179578&th=1
#12
Klaatu..Verata..Necktie?




Joined: May 2007
Posts: 23,552
Likes: 17,032
From: SF Bay Area
Bikes: Litespeed Ultimate, Ultegra; Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace
I still use that saddlebag, but I cinch it up to the bottom of the saddle with an old toe strap.
__________________
"Don't take life so serious-it ain't nohow permanent."
"Everybody's gotta be somewhere." - Eccles
"Don't take life so serious-it ain't nohow permanent."
"Everybody's gotta be somewhere." - Eccles
#13
Klaatu..Verata..Necktie?




Joined: May 2007
Posts: 23,552
Likes: 17,032
From: SF Bay Area
Bikes: Litespeed Ultimate, Ultegra; Canyon Endurace, 105; Battaglin MAX, Chorus; Bianchi 928 Veloce; Ritchey Road Logic, Dura Ace; Cannondale R500 RX100; Schwinn Circuit, Sante; Lotus Supreme, Dura Ace
Not unless you found part of a screw someplace. It's a lot easier for a screw to back out when subjected to vibrations for a while than for a screw as big as that to break. (I'm assuming it was the same size as the one that's still there.
__________________
"Don't take life so serious-it ain't nohow permanent."
"Everybody's gotta be somewhere." - Eccles
"Don't take life so serious-it ain't nohow permanent."
"Everybody's gotta be somewhere." - Eccles
#14
Old fart



Joined: Nov 2004
Posts: 26,318
Likes: 5,226
From: Appleton WI
Bikes: Several, mostly not name brands.
#15
Senior Member

Joined: Dec 2010
Posts: 9,684
Likes: 2,602
From: northern Deep South
Bikes: Fuji Touring, Novara Randonee
Possible, as in Schrodinger's cat may have slept here. Unlikely. First, no corrosion (rust) is visible, so it wasn't weakened. Second, you mentioned the bag had been mounted on another bike; if it were a case of infant mortality (i.e. the bolt was flawed at manufacture) I'd expect it would have broken previously. Occam's Razor-inspired conclusion is that the bolt unscrewed, probably due to vibrations while riding. That's why I suspect it wasn't screwed in tight enough; that's what torque values on bolts prevent if applied during assembly. And a thread-locker might hold a bolt on that wasn't screwed in tight enough, but it's best to torque the bolt during assembly.
#17
Amateur Member

Joined: Mar 2021
Posts: 5,112
Likes: 8,486
From: SoCal
Bikes: Cuevas & Cimmaron are my full time riders, small MB-3 and large Competition GS are my sometimers
Agree with everyone above screw did not break, it came loose and fell out. Nothing wrong with the attachment system just needs some help. As suggested above Loctite on the threads of the screws will do the job. Link below this blue version is removable.
https://www.homedepot.com/pep/Loctit...728/100371826?

Since one screw is missing and will need to be replaced, when you go to the hardware store you might want to pick up a couple of these Nylon lock nuts as TiHabanero mentioned above. Link below is just a sample, you will need to get one that matches the threads on your screws. It looks like there is enough length on existing screw(s) they could just be added, but if not you could get the screws a 1/4" longer. Either Loctite or nylon lock nut should do the job, use both and you will have a redundant back-up.
https://www.homedepot.com/p/Everbilt...274148#overlay
https://www.homedepot.com/pep/Loctit...728/100371826?

Since one screw is missing and will need to be replaced, when you go to the hardware store you might want to pick up a couple of these Nylon lock nuts as TiHabanero mentioned above. Link below is just a sample, you will need to get one that matches the threads on your screws. It looks like there is enough length on existing screw(s) they could just be added, but if not you could get the screws a 1/4" longer. Either Loctite or nylon lock nut should do the job, use both and you will have a redundant back-up.
https://www.homedepot.com/p/Everbilt...274148#overlay
#19
Full Member

Joined: Jun 2008
Posts: 479
Likes: 138
From: SW Ohio
Bikes: 2025 Surly Orge, 2026 Trek Verve 3
Possible, as in Schrodinger's cat may have slept here. Unlikely. First, no corrosion (rust) is visible, so it wasn't weakened. Second, you mentioned the bag had been mounted on another bike; if it were a case of infant mortality (i.e. the bolt was flawed at manufacture) I'd expect it would have broken previously. Occam's Razor-inspired conclusion is that the bolt unscrewed, probably due to vibrations while riding. That's why I suspect it wasn't screwed in tight enough; that's what torque values on bolts prevent if applied during assembly. And a thread-locker might hold a bolt on that wasn't screwed in tight enough, but it's best to torque the bolt during assembly.
#20
Thread Starter
Full Member

Joined: Nov 2020
Posts: 335
Likes: 31
Agree with everyone above screw did not break, it came loose and fell out. Nothing wrong with the attachment system just needs some help. As suggested above Loctite on the threads of the screws will do the job. Link below this blue version is removable.
https://www.homedepot.com/pep/Loctit...728/100371826?

Since one screw is missing and will need to be replaced, when you go to the hardware store you might want to pick up a couple of these Nylon lock nuts as TiHabanero mentioned above. Link below is just a sample, you will need to get one that matches the threads on your screws. It looks like there is enough length on existing screw(s) they could just be added, but if not you could get the screws a 1/4" longer. Either Loctite or nylon lock nut should do the job, use both and you will have a redundant back-up.
https://www.homedepot.com/p/Everbilt...274148#overlay

https://www.homedepot.com/pep/Loctit...728/100371826?

Since one screw is missing and will need to be replaced, when you go to the hardware store you might want to pick up a couple of these Nylon lock nuts as TiHabanero mentioned above. Link below is just a sample, you will need to get one that matches the threads on your screws. It looks like there is enough length on existing screw(s) they could just be added, but if not you could get the screws a 1/4" longer. Either Loctite or nylon lock nut should do the job, use both and you will have a redundant back-up.
https://www.homedepot.com/p/Everbilt...274148#overlay

this loctite, there is two versions on Amazon, permanent one and non permanent one, which would you recommend?
#21
#22
Old fart



Joined: Nov 2004
Posts: 26,318
Likes: 5,226
From: Appleton WI
Bikes: Several, mostly not name brands.
#23
Thread Starter
Full Member

Joined: Nov 2020
Posts: 335
Likes: 31
I have used a Presto seat bag for 15+ years without any issues, however it has a more thought out clamp arrangement than the Trek bag. Instead of simply threading into the backing plate, the backing plate, which is fiber reinforced plastic, has nylock nuts inserted in it. These typically do not loosen.
The way Trek does it is flawed in that there is no safeguard to prevent the bolt from backing out of the backing plate, whereas the Presto bag does. Just add a dab of blue Lock-tite to the threads of the bolts and all will be well.
The way Trek does it is flawed in that there is no safeguard to prevent the bolt from backing out of the backing plate, whereas the Presto bag does. Just add a dab of blue Lock-tite to the threads of the bolts and all will be well.

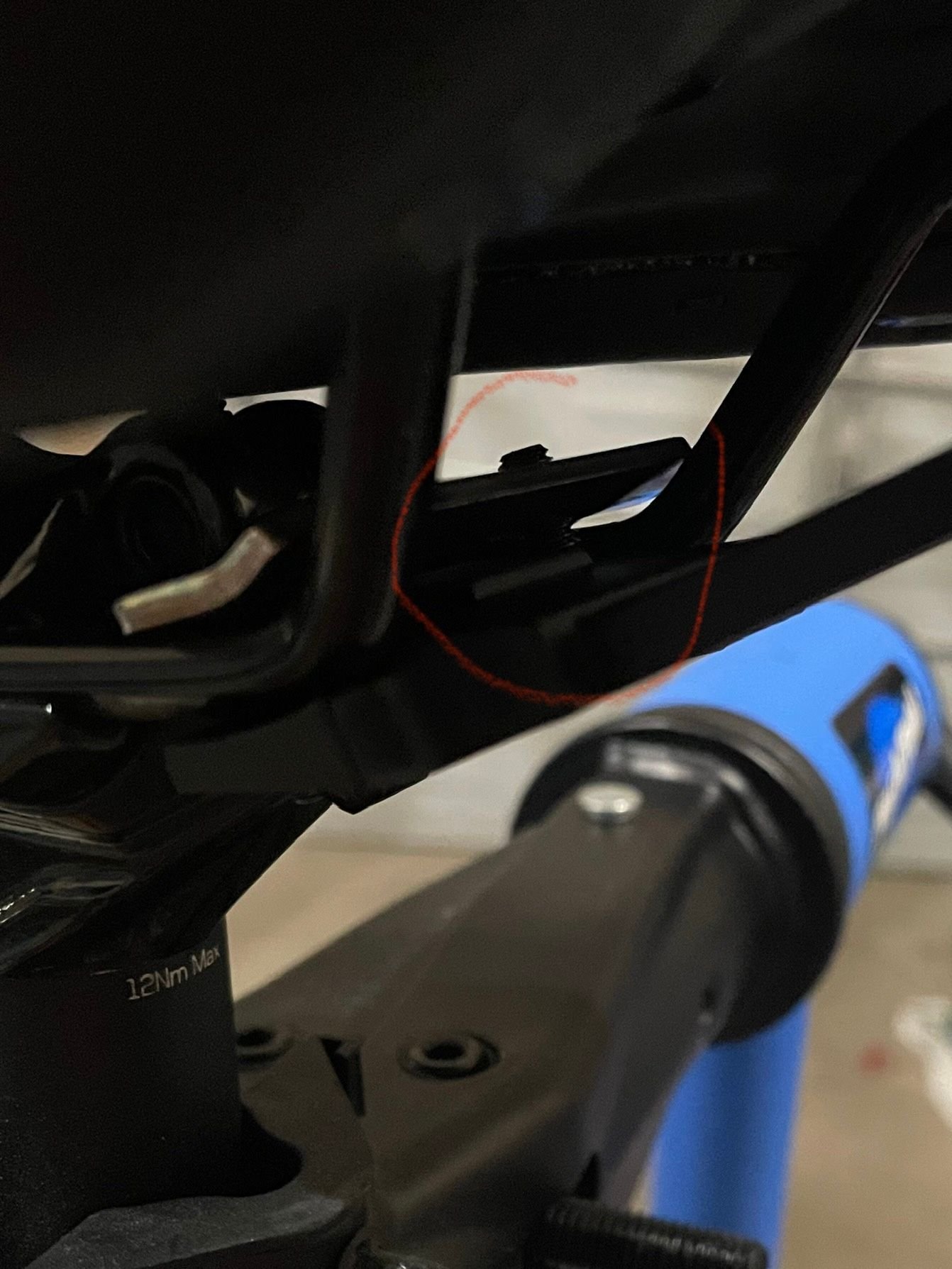

one thing I will say, the clamps don’t sit flush with the seat rails with them even being at center .

#24
Senior Member

Joined: Mar 2012
Posts: 1,438
Likes: 974






You reference Schrodinger & Occam (both of whom Ive never heard of before)!
