Custom wheels?
#1
Custom wheels?
Do you guys recommend custom built wheels?
In the future, I would like to make a set of mavic open rims accompanied by chris king hubs, any performance spokes will do.
Is this a good idea or is sticking with prebuilt wheels a better way to go?
In the future, I would like to make a set of mavic open rims accompanied by chris king hubs, any performance spokes will do.
Is this a good idea or is sticking with prebuilt wheels a better way to go?
#2
Decrepit Member
Joined: Aug 2005
Posts: 10,488
Likes: 92
From: Santa Rosa, California
Bikes: Waterford 953 RS-22, several Paramounts
It's a great idea, but the big downside is cost; whether you have somebody build them or build them yourself, it'll cost you more than buying prebuilt, but if you build them yourself you'll learn a new skill, you'll have the satisfaction of riding on wheels you've built yourself, and you'll have the rim/hub/spokes combination you want.

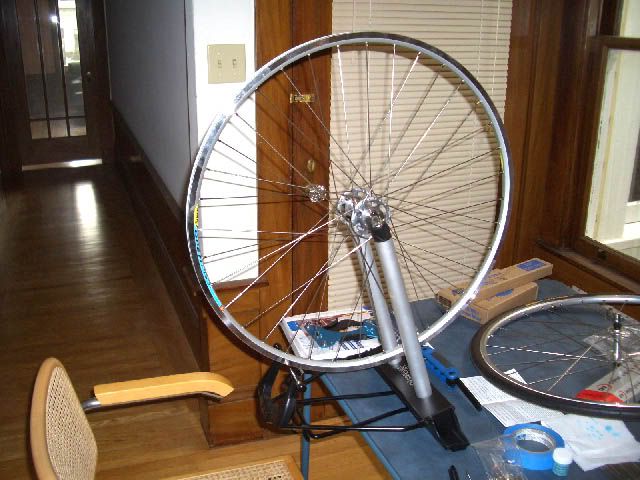

Open Pros, Campy high flange hubs, DT Swiss double-butted "Competition" stainless spokes:
Open Pros, Campy high flange hubs, DT Swiss double-butted "Competition" stainless spokes:
#4
On the other hand, when you get into lighter clincher wheelsets, its cheaper to build your own. For example, this year I built up a pair with White Industries hubs, sapim cxrays, and niobium 30 rims for about $570. Total weight (with 28 spoke in the rear and 24 in the front) was around 1450 grams. You can't buy many (if any) new prebuilt wheelset at that weight for anything near that price.
If you plan on having more than 1 custom wheelset in your lifetime its worth learning to DIY. After two wheelset, the tools (truing stand, tensiometer, spoke wrench) will have more than paid for themselves by eliminating labor costs. In addition to eliminating labor for the build, you eliminate labor for periodic truing, tensioning.
Last edited by mihlbach; 12-08-07 at 08:00 AM.
#5
Making a kilometer blurry
Joined: May 2006
Posts: 26,170
Likes: 93
From: Austin (near TX)
Bikes: rkwaki's porn collection
Yeah, build them yourself. The experience and pride alone are worth it. It seems complex, but I don't know anyone who came out of a wheelbuild with anything other than great wheels.
If you're going custom, get more creative than an Open Pro rim. They're expensive and nothing special (not particularly light or durable). Using Aerohead/Aerohead OC, you'll have a slightly lighter and more durable wheelset, and it will cost you about $60 less. Niobiums would be another good choice for a really light AL clincher for less money.
The DT rims are also popular choices, but I'd choose an Aerohead over a 1.1. If you want a deeper rim, the 1.2 is a little lighter (and less durable) than the Velocity Deep-V.
If you really want to save money, use Tiagra Hubs, and just upgrade the bearings for $6. They'll last forever and only weigh a couple grams more than Ultegra -- for $50/pr!
If you're going custom, get more creative than an Open Pro rim. They're expensive and nothing special (not particularly light or durable). Using Aerohead/Aerohead OC, you'll have a slightly lighter and more durable wheelset, and it will cost you about $60 less. Niobiums would be another good choice for a really light AL clincher for less money.
The DT rims are also popular choices, but I'd choose an Aerohead over a 1.1. If you want a deeper rim, the 1.2 is a little lighter (and less durable) than the Velocity Deep-V.
If you really want to save money, use Tiagra Hubs, and just upgrade the bearings for $6. They'll last forever and only weigh a couple grams more than Ultegra -- for $50/pr!
#6
Senior Member



Joined: Jul 2006
Posts: 7,691
Likes: 2,572
From: Jacksonville, FL
Bikes: Trek Checkmate, Lynskey Elysium, Trek FX 5 Sport
I am a bigger rider and I just had a set of Velocity Deep V's\Ultegra built. They only cost a few dollars more than the machine built Mavics the LBS was trying to sell me. They are very strong and very stiff wheels, I am very happy.
#7
#8
Senior Member

Joined: Jan 2007
Posts: 1,971
Likes: 763
From: Eastern VA
Bikes: 2022 Fuel EX 8, 2021 Domane SL6, Black Beta (Nashbar frame), 2004 Trek 1000C for the trainer
Con: If they go out of true you have no one to blame but yourself.
Pro: If they go out of true you have no one to blame but yourself.
Pro: If they go out of true you have no one to blame but yourself.
#9
Semper Fidelis
Joined: Apr 2006
Posts: 3,000
Likes: 7
Bikes: Tiemeyer Road Bike & Ridley Domicles
They spin up great and not much weight difference between the C/K hubs and the D/A that was on thier before.
I am planning on doing the samething too another bike that I have but this time instead of black c/K hubs I will use the polished chrome
the rear hub makes a buzzing sound when coasting /not peadaling, it is not too loud but it may bother some people.
Last edited by HAMMER MAN; 12-08-07 at 06:16 PM.
#11
#12
I have a pair of Open Pro's built up with C/K hubs 32 rear/28 front,DT swiss spokes 14/15 gauage
They spin up great and not much weight difference between the C/K hubs and the D/A that was on thier before.
I am planning on doing the samething too another bike that I have but this time instead of black c/K hubs I will use the polished chrome
the rear hub makes a buzzing sound when coasting /not peadalling, it is not too loud but it may bother some people.
They spin up great and not much weight difference between the C/K hubs and the D/A that was on thier before.
I am planning on doing the samething too another bike that I have but this time instead of black c/K hubs I will use the polished chrome
the rear hub makes a buzzing sound when coasting /not peadalling, it is not too loud but it may bother some people.
#13
Time for a change.

Joined: Jan 2004
Posts: 19,913
Likes: 7
From: 6 miles inland from the coast of Sussex, in the South East of England
Bikes: Dale MT2000. Bianchi FS920 Kona Explosif. Giant TCR C. Boreas Ignis. Pinarello Fp Uno.
And his wheels are superb.Better than any stock wheel sitting on the shelf within the same price range.
__________________
How long was I in the army? Five foot seven.
Spike Milligan
How long was I in the army? Five foot seven.
Spike Milligan
#14
Curious about the final weight. If I go with Velocity Aerohead rims which weigh at 405 grams and Chris king hubs which weigh at 107 front and 247 rear. How much will a complete rim weigh, how much do spokes weigh? Is there anyway to get spokes like the Mavic flat spokes?
After doing some calculations, it seems like each custom built wheel will weigh in about 700 - 800grams, does this seem right?
After doing some calculations, it seems like each custom built wheel will weigh in about 700 - 800grams, does this seem right?
#15
Senior Member
Joined: Feb 2007
Posts: 751
Likes: 0
From: San Francisco, CA
Bikes: 2006 Lemond Etape 105/Tiagra
Curious about the final weight. If I go with Velocity Aerohead rims which weigh at 405 grams and Chris king hubs which weigh at 107 front and 247 rear. How much will a complete rim weigh, how much do spokes weigh? Is there anyway to get spokes like the Mavic flat spokes?
After doing some calculations, it seems like each custom built wheel will weigh in about 700 - 800grams, does this seem right?
After doing some calculations, it seems like each custom built wheel will weigh in about 700 - 800grams, does this seem right?
As for bladed spokes...they are usually hub specific, for example you wouldn't be able to get the bladed Ksyrium spokes through the standard drillings you see, but there are some bladed spokes available that have the same or similar diameter as the thickest spoke you'd be able to fit.
#18
Making a kilometer blurry
Joined: May 2006
Posts: 26,170
Likes: 93
From: Austin (near TX)
Bikes: rkwaki's porn collection
24h/28h spokes will weigh 319g with aluminum nips (both wheels)
Rim tape will be 36g (pr, Velox)
So, these would be about 1519g. Nice and light.
The Aerohead OC rear will be stronger than an Open Pro rear. So, good rim choice there.
Rim tape will be 36g (pr, Velox)
So, these would be about 1519g. Nice and light.
The Aerohead OC rear will be stronger than an Open Pro rear. So, good rim choice there.
#19
What the difference on the amount of spokes? The more spokes the stronger the wheel? From researching online, front wheels accumulates less spokes than the rear. Could I have both wheels having the same spokes, such as 28 spokes? I think thats the least that Chris King offers.
#20
You can do them both the same, sure. Front wheels aren't stressed to the amount the rears are (on my bike, ~70% of the weight is on the rear wheel), so you're really over-building the front, but if you don't mind that, you don't have a problem.
__________________
ElJamoquio didn't hate the world, per se; he was just constantly disappointed by humanity.
#21
Have bike. Will travel.
Joined: Oct 2004
Posts: 2,157
Likes: 0
From: -=Toronto=-
Bikes: '06 Orbea Orca, '03 Rocky Mountain Vertex 70, '05 Surly Steamroller, '06 Fetish Fixation
Customs can sometimes cost you a bit more, but if done by someone that knows what they are doing, will likely be as good, if not way better than factory wheels.
#22
Senior Member

Joined: Jul 2002
Posts: 40,863
Likes: 3,115
From: Sacramento, California, USA
Bikes: Specialized Tarmac, Canyon Exceed, Specialized Transition, Ellsworth Roots, Ridley Excalibur
There's a guy I see on the local weekly training ride with wheels like this. He's a big guy himself and the road is pretty rough. I think he's pretty happy with these. Plus, you can get Deep Vs in a variety of colors (his blue rims look good on his blue/orange Giant), if that sort of thing is important to you.
#23
i have 2 sets, both are great:
record 07 hubs 32 spoke f&r, niobium rims, sapim spokes 1480 grams
Tune hubs 28r/24f, niobium rims, sapin cx spokes 1279 grams
both are bombproof wheel, ligero wheelworks (troy watson) is the f"n man.... order now if you want them for spring though.
record 07 hubs 32 spoke f&r, niobium rims, sapim spokes 1480 grams
Tune hubs 28r/24f, niobium rims, sapin cx spokes 1279 grams
both are bombproof wheel, ligero wheelworks (troy watson) is the f"n man.... order now if you want them for spring though.
