Touring Have a dream to ride a bike across your state, across the country, or around the world? Self-contained or fully supported? Trade ideas, adventures, and more in our bicycle touring forum.

Front Rack - Suspension Forks - No Braze Ons

Old 03-20-24, 08:55 PM
  #1
Senior Member
Thread Starter

Aushiker's Avatar

Join Date: Jun 2007
Location: Walyalup, Australia
Posts: 1,413

Bikes: Surly Long Haul Trucker, Salsa Mukluk, Riese & Muller Supercharger GT Rohloff (Forthcoming)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 38 Times in 31 Posts
Front Rack - Suspension Forks - No Braze Ons

I am tossing up the option of carrying panniers on the front of my forthcoming Reise and Muller Supercharger 2. This is just one option; I may stick to getting mounts to mount my Salsa Anything Cages.

In the meantime, I am considering the various options, including a front rack.

In days long past, I used a Tubus Swing on a mountain bike, which worked okay, but Tubus no longer makes them.

I have come across a couple of options. Have I missed any other options?

[1] Topeak Tetrarack M1. I am not keen on using velcro, but I believe they can be swapped out for hose clamps. The load rating is 10 kg.

[2] Zefal Raider Front - uses four hose clamps to mount it. It is lighter. The load rating is 2 x 9 kg (complying with ISO 11243:2016 standard). It's way more than I need, but it speaks to the rack's strength.

[3] Old Man Mountain Elkhorn - very expensive to purchase and import to Australia.

Thoughts on these racks or others?
Aushiker is offline
Old 03-20-24, 09:11 PM
  #2
Senior Member

Join Date: Feb 2007
Posts: 1,491
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 643 Post(s)
Likes: 0
Liked 411 Times in 281 Posts
The Old Man Mountain Divide is available with a hardware kit that will work With full size panniers. The Elkhorn is for bike packing.
Rick is offline
Likes For Rick:
Old 03-20-24, 10:18 PM
  #3
Bike Sorceress

Arrowana's Avatar

Join Date: Apr 2008
Location: MPLS
Posts: 770

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 121 Times in 70 Posts
Old Man Mountain Divide is very sturdy, it is worth the price.

Haven't heard of the Tubus Swing before, but I am very intrigued by it. Attaching a rack to the fork crown sounds like better idea than attaching it to the lowers. I might have to find one, or learn how to make racks to make something similar.
Arrowana is offline
Old 03-20-24, 10:42 PM
  #4
Senior Member
Thread Starter

Aushiker's Avatar

Join Date: Jun 2007
Location: Walyalup, Australia
Posts: 1,413

Bikes: Surly Long Haul Trucker, Salsa Mukluk, Riese & Muller Supercharger GT Rohloff (Forthcoming)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 38 Times in 31 Posts
Originally Posted by Arrowana
Old Man Mountain Divide is very sturdy, it is worth the price.
The price to me is US$339.43 ... that hurts.
Aushiker is offline
Old 03-20-24, 11:10 PM
  #5
Senior Member

MarcusT's Avatar

Join Date: Apr 2017
Location: NE Italy
Posts: 1,635
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 772 Post(s)
Liked 629 Times in 352 Posts
Originally Posted by aushiker
the price to me is us$339.43 ... That hurts.
ouch!
MarcusT is offline
Old 03-20-24, 11:31 PM
  #6
Bike Sorceress

Arrowana's Avatar

Join Date: Apr 2008
Location: MPLS
Posts: 770

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 121 Times in 70 Posts
That is quite expensive. Which version is it? The USA made one is more expensive than the one made in Taiwan, though both are plenty sturdy. If you want sturdy, it might be worth it anyways. Otherwise, maybe there is someone in Australia who could make a custom rack for less money.

If you don't need it to be really sturdy, then the Zefal and Topeak racks will probably do their job well enough, though I don't have personal experience with either one.
Arrowana is offline
Old 03-21-24, 12:24 AM
  #7
Senior Member

Join Date: Feb 2007
Posts: 1,491
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 643 Post(s)
Likes: 0
Liked 411 Times in 281 Posts
Aushiker: I'm guessing by the price you quoted that you live somewhere other than the USA. I was looking around and found an Axiom front rack that might work.
Rick is offline
Old 03-21-24, 01:50 AM
  #8
Senior Member
Thread Starter

Aushiker's Avatar

Join Date: Jun 2007
Location: Walyalup, Australia
Posts: 1,413

Bikes: Surly Long Haul Trucker, Salsa Mukluk, Riese & Muller Supercharger GT Rohloff (Forthcoming)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 38 Times in 31 Posts
Originally Posted by Arrowana
That is quite expensive. Which version is it? The USA made one is more expensive than the one made in Taiwan, though both are plenty sturdy. If you want sturdy, it might be worth it anyways. Otherwise, maybe there is someone in Australia who could make a custom rack for less money.

If you don't need it to be sturdy, then the Zefal and Topeak racks will probably do their job well enough, though I don't have personal experience with either one.
I was not aware of different versions. I just went to the Old Man Mountain website and calculated the costs. Is there another source?

Just googling then, I found Australian retailers which I had missed before. The rack is AU$290 plus $150 for the axle kit so US$292 which is still expensive but cheaper than buying it directly.
Aushiker is offline
Old 03-21-24, 02:06 AM
  #9
Senior Member
Thread Starter

Aushiker's Avatar

Join Date: Jun 2007
Location: Walyalup, Australia
Posts: 1,413

Bikes: Surly Long Haul Trucker, Salsa Mukluk, Riese & Muller Supercharger GT Rohloff (Forthcoming)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 38 Times in 31 Posts
Yes in Australia. Thanks for the link.
Aushiker is offline
Old 03-21-24, 04:39 AM
  #10
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 11,316

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 3515 Post(s)
Liked 1,492 Times in 1,165 Posts
The Minoura if your bike uses skewers. Not sure if it would work with through axle.
MT-4000SF | MINOURA JAPAN
Tourist in MSN is offline
Old 03-21-24, 04:47 AM
  #11
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 11,316

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 3515 Post(s)
Liked 1,492 Times in 1,165 Posts
Originally Posted by Arrowana
...
Haven't heard of the Tubus Swing before, but I am very intrigued by it. Attaching a rack to the fork crown sounds like better idea than attaching it to the lowers. I might have to find one, or learn how to make racks to make something similar.
Has been out of production for over a decade.

That design solved the problem of the pannier weight being unsprung weight.

I have only seen one once, the gal I met at a campground a decade ago said that because it was no longer made, she had to keep getting her rack repaired. Photo below, but unfortunately I did not get a close up of just the rack on the bike. this is the best photo I have of it. The panniers were mounted way up high.

Tourist in MSN is offline
Old 03-21-24, 06:10 AM
  #12
Senior Member
Thread Starter

Aushiker's Avatar

Join Date: Jun 2007
Location: Walyalup, Australia
Posts: 1,413

Bikes: Surly Long Haul Trucker, Salsa Mukluk, Riese & Muller Supercharger GT Rohloff (Forthcoming)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 38 Times in 31 Posts
Originally Posted by Tourist in MSN
The Minoura if your bike uses skewers. Not sure if it would work with through axle.
MT-4000SF | MINOURA JAPAN
Thanks but the bike is coming with a thru axle.
Aushiker is offline
Old 03-21-24, 06:27 AM
  #13
Senior Member
Thread Starter

Aushiker's Avatar

Join Date: Jun 2007
Location: Walyalup, Australia
Posts: 1,413

Bikes: Surly Long Haul Trucker, Salsa Mukluk, Riese & Muller Supercharger GT Rohloff (Forthcoming)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 38 Times in 31 Posts
I have dragged out of the archives a few photos of the swing which I attached to my Giant XTC 2 in 2012 or thereabouts.













I have some more detailed shots of the mounts if anyone wants those.

Last edited by Aushiker; 03-21-24 at 06:33 AM.
Aushiker is offline
Likes For Aushiker:
Old 03-21-24, 06:39 AM
  #14
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 13,251
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 2750 Post(s)
Liked 979 Times in 801 Posts
hi Aus,
I have a similar rack to the zefal, in fact it might be the older version of it. Bought it ages ago, close to 10 years ago and had it on my front suspension bike for a while.
Been hanging on my garage wall since I took it off the bike. Kept it just because it is unique and one day could be useful.
It is ok, but the 4 connection points using that slotted part, with washers and bolts, is not super super inspiring looking. My thoughts always were that they could easily loosen just because there isnt a ton of meat of contact point with the washers and bolts. I bought it thinking I might use that bike for more Latin American trips, but in the end went with a diff bike and a strong lowrider.

the topeak one looks interesting, and solid.

depending on what you want to carry, have you considered some good fork leg cages? You could easily put some 5-8L bags on each side, and the whole thing will be possibly lighter than a front rack setup--to me lighter is always going to be better for a front suspension, suspended weight and all that. These would be a lot less expensive (I hope) than the OMM rack.

your thoughts?

ps, I have some Topeak stuff, a 10L seat bag, some fork cages, and the quality is all good stuff. As you say, you could work around the velcro thing if you didnt find it sturdy enough.

Last edited by djb; 03-21-24 at 06:44 AM.
djb is offline
Old 03-21-24, 06:42 AM
  #15
Senior Member
Thread Starter

Aushiker's Avatar

Join Date: Jun 2007
Location: Walyalup, Australia
Posts: 1,413

Bikes: Surly Long Haul Trucker, Salsa Mukluk, Riese & Muller Supercharger GT Rohloff (Forthcoming)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 38 Times in 31 Posts

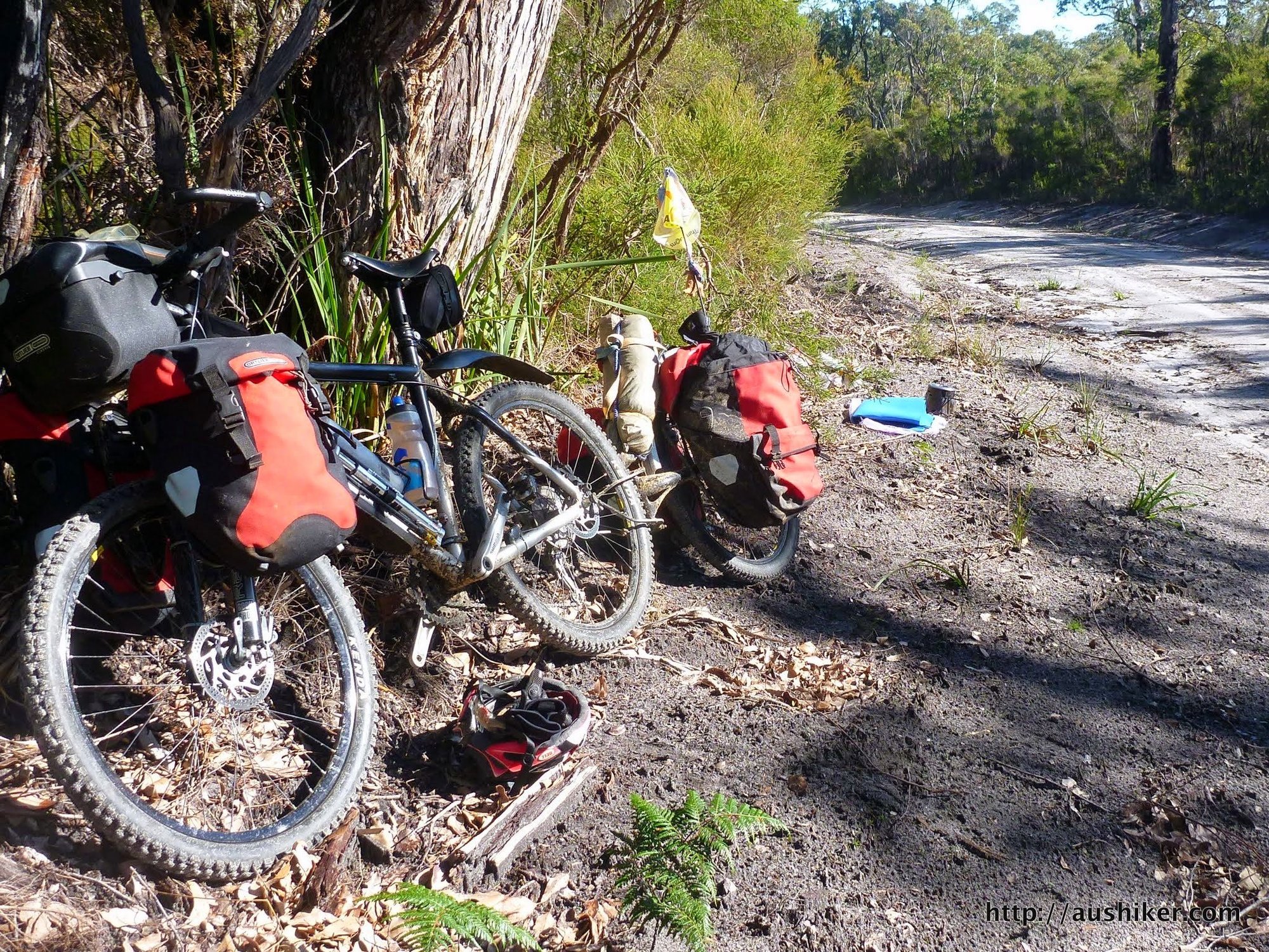

And a couple of the Tubus Swing in action ...

The first is an off at speed on a downhill ... it hurt.



The second was taken at a lunch break I believe.

Aushiker is offline
Old 03-21-24, 06:46 AM
  #16
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 13,251
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 2750 Post(s)
Liked 979 Times in 801 Posts
whammo.
did it damage the trailer attachment point, getting twisted?
djb is offline
Old 03-21-24, 06:50 AM
  #17
Senior Member
Thread Starter

Aushiker's Avatar

Join Date: Jun 2007
Location: Walyalup, Australia
Posts: 1,413

Bikes: Surly Long Haul Trucker, Salsa Mukluk, Riese & Muller Supercharger GT Rohloff (Forthcoming)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 38 Times in 31 Posts
Originally Posted by djb
whammo.
did it damage the trailer attachment point, getting twisted?
The only damage was to my pride and my body. The Exrawheel simply disconnects from the bike,

Road a few hundred kilometres after that until the brakes failed. Got a leak somehow and whilst olive oil helped it was not an ideal solution coming into some big hills so bailed from the ride (no bikeshops).
Aushiker is offline
Old 03-21-24, 06:58 AM
  #18
Senior Member
Thread Starter

Aushiker's Avatar

Join Date: Jun 2007
Location: Walyalup, Australia
Posts: 1,413

Bikes: Surly Long Haul Trucker, Salsa Mukluk, Riese & Muller Supercharger GT Rohloff (Forthcoming)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 38 Times in 31 Posts
Originally Posted by djb
hi Aus,
I
depending on what you want to carry, have you considered some good fork leg cages? You could easily put some 5-8L bags on each side, and the whole thing will be possibly lighter than a front rack setup--to me lighter is always going to be better for a front suspension, suspended weight and all that. These would be a lot less expensive (I hope) than the OMM rack..
Thanks for the feedback on the Zefal. Appreciated.

I do have Salsa Anything Cages on my fat bike and that is an option for sure. I just need to come up with a suitable mounting option to add to the suspension forks. There are a few ways to go about it and that may be the decision in the end. One I like is the Old Man Mountain Axle Pack but it does get pricey as I will need their thru axle. It is very neat but. There are cheaper/alternative options but they are not as neat. Bikepacking.com mentions a few in this article on mounting water bottle cages.
Aushiker is offline
Old 03-21-24, 08:13 AM
  #19
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 13,251
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 2750 Post(s)
Liked 979 Times in 801 Posts
The Topeka cages I got came with some sort of rachet attachment system for forks without bolt holes. Never used them so can't speak for their toughness. If possible, I figure clamps are a sure thing and stronger than plastic.
djb is offline
Old 03-21-24, 09:09 AM
  #20
ignominious poltroon

Polaris OBark's Avatar

Join Date: Jan 2022
Posts: 4,143
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 2282 Post(s)
Liked 3,504 Times in 1,840 Posts
Old Man Mountain makes a thru-axle kit, and the price seems more conventional:


https://www.gravelcyclist.com/bicycl...-for-any-fork/
Polaris OBark is offline
Old 03-21-24, 09:12 AM
  #21
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 13,251
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 2750 Post(s)
Liked 979 Times in 801 Posts
Originally Posted by Polaris OBark
Old Man Mountain makes a thru-axle kit, and the price seems more conventional:


https://www.gravelcyclist.com/bicycl...-for-any-fork/
That's pretty neat
I don't have a thru axel bike, but that's a neat think around.
djb is offline
Old 03-22-24, 03:57 AM
  #22
Junior Member

Small cog's Avatar

Join Date: Nov 2023
Location: Wessex UK
Posts: 116

Bikes: Vintage Raleigh and more modern Roberts

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 162 Times in 62 Posts
This thread reminded me that I have a Tubus Swing rack that I could never get to fit nicely to the original Marzocchi Bombers or replacement Pace RC40 on my Roberts Roughstuff, whatever I did it seemed to be too high and too far forwards but have just tried it on the Magura forks on my Thorn Sterling and it fits a lot better being further back and lower, I might actually get to use it again.



Small cog is offline
Old 03-22-24, 11:55 AM
  #23
Bike Sorceress

Arrowana's Avatar

Join Date: Apr 2008
Location: MPLS
Posts: 770

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 121 Times in 70 Posts
Originally Posted by Aushiker
I have dragged out of the archives a few photos of the swing which I attached to my Giant XTC 2 in 2012 or thereabouts.

I have some more detailed shots of the mounts if anyone wants those.
Thank you for sharing these, should make a nice reference if I actually do decide to try and make one. I wouldn't mind seeing the detail shots of the mounts.
Arrowana is offline
Old 03-22-24, 03:14 PM
  #24
Senior Member

Join Date: Aug 2010
Location: Madison, WI
Posts: 11,316

Bikes: 1961 Ideor, 1966 Perfekt 3 Speed AB Hub, 1994 Bridgestone MB-6, 2006 Airnimal Joey, 2009 Thorn Sherpa, 2013 Thorn Nomad MkII, 2015 VO Pass Hunter, 2017 Lynskey Backroad, 2017 Raleigh Gran Prix, 1980s Bianchi Mixte on a trainer. Others are now gone.

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 3515 Post(s)
Liked 1,492 Times in 1,165 Posts
Originally Posted by Arrowana
Thank you for sharing these, should make a nice reference if I actually do decide to try and make one. I wouldn't mind seeing the detail shots of the mounts.
That gal that I mentioned in a previous post that was using one, she had hers repaired a few times, I believe it was the part that attached to the fork crown that needed repair.

If you have an older fork, old enough that it had canti brake posts, Tubus also made a rack that would attach on those posts. I just did a google search and some dealers apparently still have old stock, model was Smarti. Check it out if you are intersted.

I do not recall if my Rockshox fork had mounts for the bottom of the rack or not, if it did I think that fork would have worked with the Smarti because of the brake posts.
Tourist in MSN is offline
Old 03-22-24, 06:07 PM
  #25
Bike Sorceress

Arrowana's Avatar

Join Date: Apr 2008
Location: MPLS
Posts: 770

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 121 Times in 70 Posts
Originally Posted by Tourist in MSN
That gal that I mentioned in a previous post that was using one, she had hers repaired a few times, I believe it was the part that attached to the fork crown that needed repair.
Good to know, I imagine I'd be tweaking the design some. I'm thinking pounding a star nut into the bottom of the steerer tube could provide a place to bolt it to for some extra stability, even if most of the weight would be resting on the top of the fork crown and the strut going to the uper part of the steerer tube.


Also discovered the Faiv Hoogar exists, and attaches to both the uppers and lowers while allowing the cargo to benefit from the suspension. Very expensive even without factoring in international shipping though. https://faiv.de/fahrrad/gepaecktraeger-hoogar/
Arrowana is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service -

Copyright © 2024 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
