For the love of English 3 speeds...
elcraft
Not the same threading!!
I'm interested in towing a Chariot child trailer with a '73 Raleigh Sports, but like an earlier poster I am finding the Sturmey AW axle too short to fit the left side rear axle nut over the trailer hitch cup. The Thule hitch adapter for Shimano IGH is an extension nut threaded to 3/8" 26tpi which I understand ought to fit on a Sturmey AW axle, Thule says to torque the nut to 40nm but the Sturmey AW manual advises to torque the nut to 26nm. I'm inclined to follow Thule's safety guidance but am a novice and wonder what might be the effect on the Sturmey of having over-torqued the left rear axle nut?
I would see if you could modify the mounting plate for the trailer to be secured by the fender mounts. The fender/ drop out threading is also an odd English threading like Whitworth or some other. But the drop out can be tapped out to a more standard threading and longer/ stronger bolts substituted to secure the modified trailer mount. An additional drilling in the drop out wouldn't be a lot more trouble to add another securing bolt. This re-working of the fender bolts is much less invasive a compromise than any other in this circumstance.
Senior Member
Join Date: Jan 2015
Posts: 3,240
Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1299 Post(s)
Likes: 0
Liked 103 Times
in
85 Posts
Just checked. I only see the UK seller right now. Keep searching for Sturmey Archer shifter springs. Maybe the US seller will turn up again.
NOS VINTAGE STURMEY ARCHER 4 SPEED GEAR LEVER TRIGGER SPRING SA PART NUMBER K738 | eBay
Last edited by BigChief; 07-17-17 at 12:29 PM.
Junior Member
Join Date: Nov 2015
Location: Western NY, USA
Posts: 16
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
My fiance's father offered me the bike he rode through seminary, a (from my best guess) 1954 Raleigh Sports Model 22. It's been hiding in a barn loft for 20 years, and before that in various garages as he carted it from church to church during his career. I want to know what everyone thinks of getting it back to roadworthy. Mostly whether it's worth it or not, and if I should repaint it or leave it rust and black. Seems like the mechanical parts work, though.
He also gave me and the lady a Sears lady's 3-speed from the 1970s with a Shimano 333 internal, which is in better cosmetic shape (less to fix and the paint seems better... I was thinking of overhauling that first). I know it's nothing to write home about, but we're just going to be riding on the paved trails in our small city, so I think it will work, even with the hub everyone seems to hate, according to the Intewebz.
I can't seem to upload pictures at all -- I don't have enough posts yet, as I haven't needed to post here before despite joining in 2015... I'll just have to go post a few more before everyone can see, haha.
He also gave me and the lady a Sears lady's 3-speed from the 1970s with a Shimano 333 internal, which is in better cosmetic shape (less to fix and the paint seems better... I was thinking of overhauling that first). I know it's nothing to write home about, but we're just going to be riding on the paved trails in our small city, so I think it will work, even with the hub everyone seems to hate, according to the Intewebz.
I can't seem to upload pictures at all -- I don't have enough posts yet, as I haven't needed to post here before despite joining in 2015... I'll just have to go post a few more before everyone can see, haha.
Senior Member
Join Date: Mar 2013
Location: Maryland
Posts: 3,801
Bikes: Lots of English 3-speeds, a couple of old road bikes, 3 mountain bikes, 1 hybrid, and a couple of mash-ups
Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 887 Post(s)
Liked 335 Times
in
225 Posts
I have shifters with two types of springs - a wire spring and a flat spring. The older of the two has the flat spring. Sorry about the focus.
Senior Member
Join Date: Dec 2005
Posts: 17,160
Mentioned: 481 Post(s)
Tagged: 0 Thread(s)
Quoted: 3811 Post(s)
Liked 6,717 Times
in
2,614 Posts
Yes! There's one guy in the US and another in the UK who sell NOS replacement torsion bar springs for these on eBay.
Just checked. I only see the UK seller right now. Keep searching for Sturmey Archer shifter springs. Maybe the US seller will turn up again.
NOS VINTAGE STURMEY ARCHER 4 SPEED GEAR LEVER TRIGGER SPRING SA PART NUMBER K738 | eBay
Just checked. I only see the UK seller right now. Keep searching for Sturmey Archer shifter springs. Maybe the US seller will turn up again.
NOS VINTAGE STURMEY ARCHER 4 SPEED GEAR LEVER TRIGGER SPRING SA PART NUMBER K738 | eBay
Also, perhaps this is the US seller you were looking for?
Last edited by nlerner; 07-17-17 at 01:26 PM.
Senior Member
Join Date: Jan 2015
Posts: 3,240
Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1299 Post(s)
Likes: 0
Liked 103 Times
in
85 Posts
Cool--thanks! I assume I'd have to remove and replace the faceplate rivet to get to that spring, right? I remember you posting pics on how to do that, @BigChief? I also know Martin Hanczyc, the person whose posted a history of S-A 3-speed triggers, and he might have some insight.
Also, perhaps this is the US seller you were looking for?
Also, perhaps this is the US seller you were looking for?
Yes, you have to drift out the pin that holds the cam plate. The other pin holds the pawl. Not necessary to remove this one unless you want to square up a bent case. Sometimes if the cam pin is tight, you will dimple the case in as you drift the pin out. Don't worry. The case is soft and easy to work. It's handy to have a rubber hammer and a 1/4" bar or piece of hardwood to use as an anvil to straighten up the case. The first time you reassemble, it is tricky to get the pin to line up with the holes under spring pressure. It's aggravating but you'll get it. It's one of those things you get the knack of after you rebuild a few.
Senior Member
Join Date: Dec 2005
Posts: 17,160
Mentioned: 481 Post(s)
Tagged: 0 Thread(s)
Quoted: 3811 Post(s)
Liked 6,717 Times
in
2,614 Posts
YUP! That's him.
Yes, you have to drift out the pin that holds the cam plate. The other pin holds the pawl. Not necessary to remove this one unless you want to square up a bent case. Sometimes if the cam pin is tight, you will dimple the case in as you drift the pin out. Don't worry. The case is soft and easy to work. It's handy to have a rubber hammer and a 1/4" bar or piece of hardwood to use as an anvil to straighten up the case. The first time you reassemble, it is tricky to get the pin to line up with the holes under spring pressure. It's aggravating but you'll get it. It's one of those things you get the knack of after you rebuild a few.
Yes, you have to drift out the pin that holds the cam plate. The other pin holds the pawl. Not necessary to remove this one unless you want to square up a bent case. Sometimes if the cam pin is tight, you will dimple the case in as you drift the pin out. Don't worry. The case is soft and easy to work. It's handy to have a rubber hammer and a 1/4" bar or piece of hardwood to use as an anvil to straighten up the case. The first time you reassemble, it is tricky to get the pin to line up with the holes under spring pressure. It's aggravating but you'll get it. It's one of those things you get the knack of after you rebuild a few.
On the road
Join Date: Aug 2005
Location: New England
Posts: 2,176
Bikes: Old Schwinns and old Raleighs
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 373 Post(s)
Liked 857 Times
in
327 Posts

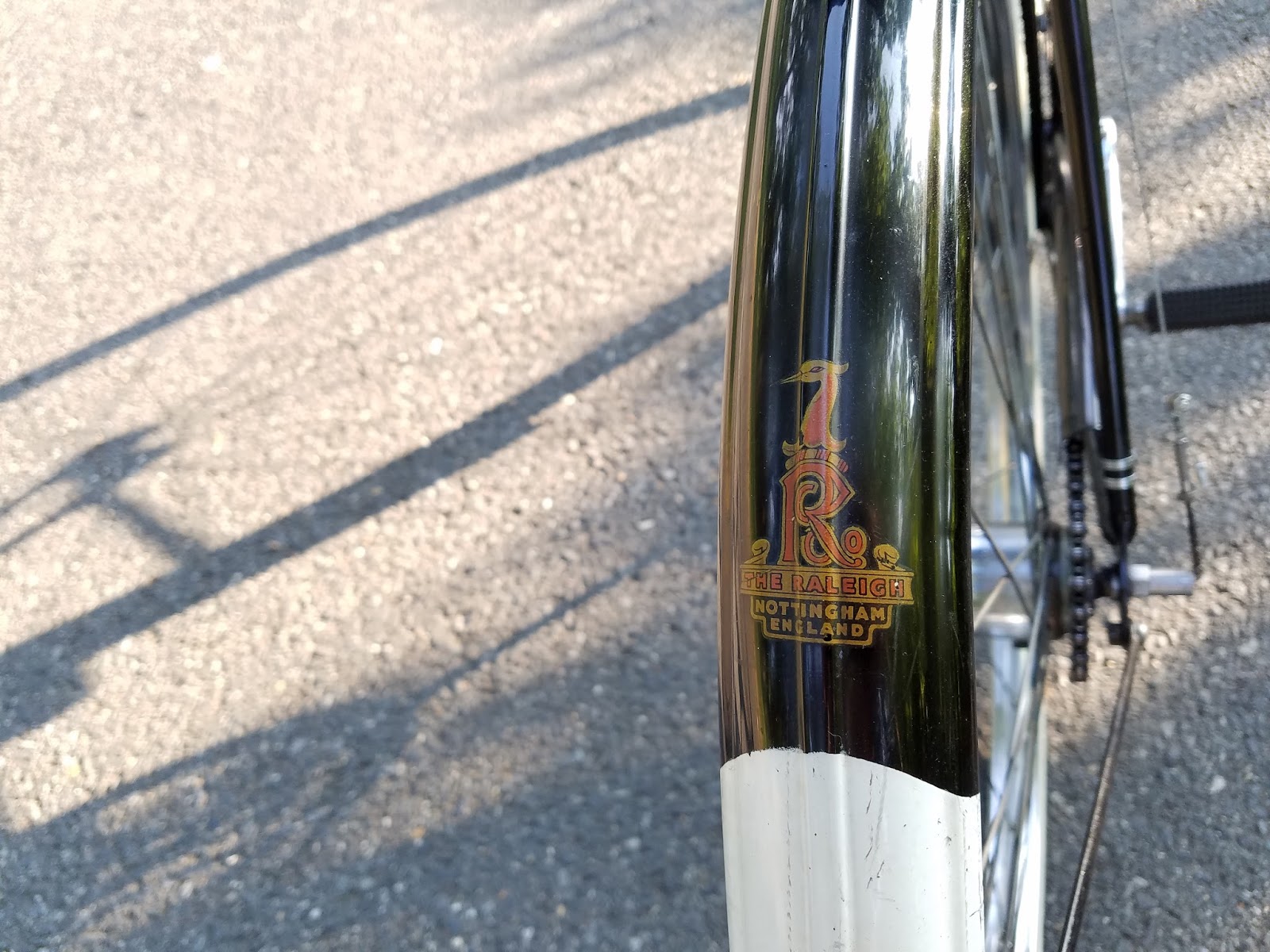

My new phone camera is better than the old - lets me take close-ups of some of the cooler parts from the earlier era of post-war Raleighs:
https://bikeshedva.blogspot.com/2017...y-touches.html
https://bikeshedva.blogspot.com/2017...y-touches.html
__________________
Classic American and British Roadsters, Utility Bikes, and Sporting Bikes (1935-1979):
https://bikeshedva.blogspot.com/
Classic American and British Roadsters, Utility Bikes, and Sporting Bikes (1935-1979):
https://bikeshedva.blogspot.com/
Senior Member
Join Date: Jan 2015
Posts: 3,240
Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1299 Post(s)
Likes: 0
Liked 103 Times
in
85 Posts
@nlerner Nice!!
Now that I think more about it, you do have to remove the pawl to get the torsion bar spring out. Sorry, got that wrong. It's been a couple of years since I repaired a window shifter and I usually completely disassemble them. I think I may be able to help with reassembly. Get the new spring in place then replace the pawl and pin. Then you set the trigger on the cam plate. Remember the position of the two when you take it apart. Then, it's not too hard to get the second pin through the hole in the cam plate. The trouble starts when you try to get the small end of the pin lined up with the hole on the back of the case under spring pressure. First, you need good lighting so you can see when the pin lines up. I hold the case up against a flat surface. The edge of my kitchen table top works for me. Then, I maneuver the trigger around with the help of a small screwdriver until I see the pin line up with the hole. Then, just some finger pressure on the pin head will get the pin to stick in place as it begins to enter the hole. Then I carefully turn the unit around and drive the pin home on a hard flat surface.
Good luck. Let us know how it goes.
Now that I think more about it, you do have to remove the pawl to get the torsion bar spring out. Sorry, got that wrong. It's been a couple of years since I repaired a window shifter and I usually completely disassemble them. I think I may be able to help with reassembly. Get the new spring in place then replace the pawl and pin. Then you set the trigger on the cam plate. Remember the position of the two when you take it apart. Then, it's not too hard to get the second pin through the hole in the cam plate. The trouble starts when you try to get the small end of the pin lined up with the hole on the back of the case under spring pressure. First, you need good lighting so you can see when the pin lines up. I hold the case up against a flat surface. The edge of my kitchen table top works for me. Then, I maneuver the trigger around with the help of a small screwdriver until I see the pin line up with the hole. Then, just some finger pressure on the pin head will get the pin to stick in place as it begins to enter the hole. Then I carefully turn the unit around and drive the pin home on a hard flat surface.
Good luck. Let us know how it goes.
Senior Member
Join Date: Apr 2012
Location: Toronto
Posts: 2,572
Bikes: 1971 Hercules, 1978 Raleigh Superbe, 1978 Raleigh Tourist, 1964 Glider 3 Speed, 1967 Raleigh Sprite 5 Speed, 1968 Hercules AMF 3 Speed, 1972 Raleigh Superbe, 1976 Raleigh Superbe, 1957 Flying Pigeon, 1967 Dunelt 3 Speed
Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 1028 Post(s)
Liked 444 Times
in
288 Posts
My new phone camera is better than the old - lets me take close-ups of some of the cooler parts from the earlier era of post-war Raleighs:
https://bikeshedva.blogspot.com/2017...y-touches.html
https://bikeshedva.blogspot.com/2017...y-touches.html
Old Boy
Join Date: Jan 2016
Location: Minnesota
Posts: 2,127
Bikes: Mostly 1st-generation, top-of-the-line, non-unicrown MTBs/ATBs: All 1984 models: Dawes Ranger, Peugeot Canyon Express, Ross Mt. Whitney (chrome), Schwinn High Sierra, and a 1983 Trek 850.
Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 984 Post(s)
Liked 1,715 Times
in
611 Posts
My new phone camera is better than the old - lets me take close-ups of some of the cooler parts from the earlier era of post-war Raleighs:
https://bikeshedva.blogspot.com/2017...y-touches.html
https://bikeshedva.blogspot.com/2017...y-touches.html
With ample justification, I might add. Your bikes are always so "pukka" and gorgeous. Why, it almost looks like you know what you're doing!
Nice bikes, Mike.
__________________
Roulez pour la joie, jamais pour la douleur.
USMC 1981-1991 Semper Fi!
Roulez pour la joie, jamais pour la douleur.
USMC 1981-1991 Semper Fi!
Senior Member
Join Date: Jun 2017
Posts: 920
Bikes: Diamond Back Apex, Mongoose IBOC Aluminum Road Bike, SR road bike
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 515 Post(s)
Liked 167 Times
in
116 Posts
I keep seeing SA 4 speed reference in here, did they make very many of them? I had never heard of them till I joined here.
On the road
Join Date: Aug 2005
Location: New England
Posts: 2,176
Bikes: Old Schwinns and old Raleighs
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 373 Post(s)
Liked 857 Times
in
327 Posts
Sturmey-Archer Heritage :: History
They're not "rare", but are less common than the AW three-speed. The medium ratio "FM" hub is more uncommon than the FW - mainly for club bikes. The FW also appears as the "FG" hub when combined with a dynohub.
__________________
Classic American and British Roadsters, Utility Bikes, and Sporting Bikes (1935-1979):
https://bikeshedva.blogspot.com/
Classic American and British Roadsters, Utility Bikes, and Sporting Bikes (1935-1979):
https://bikeshedva.blogspot.com/
Junior Member
Sturmey Archer AW axles are 13/32" by 26tpi!! The 3/8 " diameter is too small by 1/32"...Although this would be a great opportunity to learn how to dismantle and rebuild an AW hub, I don't think that what you want to do...the drop out can be tapped out to a more standard threading and longer/ stronger bolts substituted to secure the modified trailer mount.
Full Member
Join Date: Dec 2011
Location: Canberra Australia
Posts: 240
Bikes: 30's Speedwell Club Racer, 40's Speedwell 'Z' racer, 50's Unknown Aussie with nice lugs, 50's Speedwell Roadster, 50's Repco Roadster, '63 Raleigh DL-1, 70's Raleigh Sprite, Puch Promenade with Nexus 8
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 149 Post(s)
Liked 30 Times
in
23 Posts
[QUOTE=AngeloDolce;18776678]
"The gears on the AB hub are the same as the AW; it uses a larger shell to accommodate the brake (I believe same dimensions as the AG Dynohub shell). The left cone is different, to accommodate the shell."
I just came across this on page 420something and it made me wonder if S5 innards could be swapped with the AB guts if the left cone from the AB is used. I've swapped S5 innards into an AW shell, so can't see why this wouldn't work. Has anyone tried this?
"The gears on the AB hub are the same as the AW; it uses a larger shell to accommodate the brake (I believe same dimensions as the AG Dynohub shell). The left cone is different, to accommodate the shell."
I just came across this on page 420something and it made me wonder if S5 innards could be swapped with the AB guts if the left cone from the AB is used. I've swapped S5 innards into an AW shell, so can't see why this wouldn't work. Has anyone tried this?
Senior Member
Join Date: Jan 2015
Posts: 3,240
Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1299 Post(s)
Likes: 0
Liked 103 Times
in
85 Posts
There was an important thing I forgot to mention about reassembling trigger shifters. Sometimes, the main body pins will have burrs on the top edges that won't allow you to push the pin into the back case hole with finger pressure. This is something you should check before you reassemble. If they won't start into the case hole, you need to file or stone off the sharp edge so you have a slight lead into the hole. This is important because after you get the pin lined up you need to push it into place with finger pressure. Then it needs to stay in place while you turn the case around to tap the pin down.
Senior Member
Join Date: Jan 2015
Posts: 3,240
Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1299 Post(s)
Likes: 0
Liked 103 Times
in
85 Posts
I had a shifter that I already took apart and gave a 2 day soak in Evapo-Rust and didn't get around to putting together again. Figured I'd post some pics of a reassembly. This shifter looked shabby. Lots of light surface rust and rust stains but it wasn't bent and the colors on the face plate were completely intact. Which is rare. Note that the Evapo-Rust removed the stains from the face plate but didn't degrade the colors at all. The important picture here is where I'm holding the case against the edge of the table top. This is the whole trick of getting the body pins lined up while they're under spring pressure. Here, I'm fitting the second pin into the hole in the cam plate from the front. Next, I flip it over, hold it the same way and line up the pin with the hole on the back side.
001 by Billy Bones, on Flickr
002 by Billy Bones, on Flickr
004 by Billy Bones, on Flickr
005 by Billy Bones, on Flickr
006 by Billy Bones, on Flickr
007 by Billy Bones, on Flickr
008 by Billy Bones, on Flickr
009 by Billy Bones, on Flickr
001 by Billy Bones, on Flickr
002 by Billy Bones, on Flickr
004 by Billy Bones, on Flickr
005 by Billy Bones, on Flickr
006 by Billy Bones, on Flickr
007 by Billy Bones, on Flickr
008 by Billy Bones, on Flickr
009 by Billy Bones, on Flickr
Likes For BigChief:
Senior Member
Join Date: Dec 2005
Posts: 17,160
Mentioned: 481 Post(s)
Tagged: 0 Thread(s)
Quoted: 3811 Post(s)
Liked 6,717 Times
in
2,614 Posts
Very helpful, @BigChief. Thanks!
Phyllo-buster
Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,847
Bikes: roadsters, club bikes, fixed and classic
Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2298 Post(s)
Liked 2,055 Times
in
1,255 Posts
Very helpful, @BigChief. Thanks!
Senior Member
Whoa! Suddenly that bin full of broken 3 speed shifters at the LBS seems like a bounty!
Senior Member
Join Date: Nov 2014
Location: Saratoga calif.
Posts: 1,049
Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 339 Post(s)
Likes: 0
Liked 632 Times
in
229 Posts
I would love to get an aluminum 27" or 700 c rim with a good SA 3 speed hub. I am not ready to try lacing a wheel up yet but I might be able to trade?
I have some fenders (blue) and a parts bike or 2 and could possibly get some rims which I could send someone in exchange for them doing up a wheel?
ultimately I am trying to get an old Nishiki international frame with a cracked chain stay I have welded by a friend and then build it up with 700c x 40 tires and a 3 speed. I could send you a SA hub , you could use used stainless spokes? and send the completed wheel back. I could make a light weight shipping crate(cabinet maker by trade ) to ship each way .
Does this sound like a fair trade to any one?
I have some fenders (blue) and a parts bike or 2 and could possibly get some rims which I could send someone in exchange for them doing up a wheel?
ultimately I am trying to get an old Nishiki international frame with a cracked chain stay I have welded by a friend and then build it up with 700c x 40 tires and a 3 speed. I could send you a SA hub , you could use used stainless spokes? and send the completed wheel back. I could make a light weight shipping crate(cabinet maker by trade ) to ship each way .
Does this sound like a fair trade to any one?
On the road
Join Date: Aug 2005
Location: New England
Posts: 2,176
Bikes: Old Schwinns and old Raleighs
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 373 Post(s)
Liked 857 Times
in
327 Posts
I had a shifter that I already took apart and gave a 2 day soak in Evapo-Rust and didn't get around to putting together again. Figured I'd post some pics of a reassembly. This shifter looked shabby. Lots of light surface rust and rust stains but it wasn't bent and the colors on the face plate were completely intact. Which is rare. Note that the Evapo-Rust removed the stains from the face plate but didn't degrade the colors at all. The important picture here is where I'm holding the case against the edge of the table top. This is the whole trick of getting the body pins lined up while they're under spring pressure. Here, I'm fitting the second pin into the hole in the cam plate from the front. Next, I flip it over, hold it the same way and line up the pin with the hole on the back side.
001 by Billy Bones, on Flickr
002 by Billy Bones, on Flickr
004 by Billy Bones, on Flickr
005 by Billy Bones, on Flickr
006 by Billy Bones, on Flickr
007 by Billy Bones, on Flickr
008 by Billy Bones, on Flickr
009 by Billy Bones, on Flickr
001 by Billy Bones, on Flickr
002 by Billy Bones, on Flickr
004 by Billy Bones, on Flickr
005 by Billy Bones, on Flickr
006 by Billy Bones, on Flickr
007 by Billy Bones, on Flickr
008 by Billy Bones, on Flickr
009 by Billy Bones, on Flickr
__________________
Classic American and British Roadsters, Utility Bikes, and Sporting Bikes (1935-1979):
https://bikeshedva.blogspot.com/
Classic American and British Roadsters, Utility Bikes, and Sporting Bikes (1935-1979):
https://bikeshedva.blogspot.com/
Likes For SirMike1983:
Senior Member
Join Date: Dec 2005
Posts: 17,160
Mentioned: 481 Post(s)
Tagged: 0 Thread(s)
Quoted: 3811 Post(s)
Liked 6,717 Times
in
2,614 Posts
I would love to get an aluminum 27" or 700 c rim with a good SA 3 speed hub. I am not ready to try lacing a wheel up yet but I might be able to trade?
I have some fenders (blue) and a parts bike or 2 and could possibly get some rims which I could send someone in exchange for them doing up a wheel?
ultimately I am trying to get an old Nishiki international frame with a cracked chain stay I have welded by a friend and then build it up with 700c x 40 tires and a 3 speed. I could send you a SA hub , you could use used stainless spokes? and send the completed wheel back. I could make a light weight shipping crate(cabinet maker by trade ) to ship each way .
Does this sound like a fair trade to any one?
I have some fenders (blue) and a parts bike or 2 and could possibly get some rims which I could send someone in exchange for them doing up a wheel?
ultimately I am trying to get an old Nishiki international frame with a cracked chain stay I have welded by a friend and then build it up with 700c x 40 tires and a 3 speed. I could send you a SA hub , you could use used stainless spokes? and send the completed wheel back. I could make a light weight shipping crate(cabinet maker by trade ) to ship each way .
Does this sound like a fair trade to any one?
Senior Member
Join Date: Nov 2014
Location: Saratoga calif.
Posts: 1,049
Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 339 Post(s)
Likes: 0
Liked 632 Times
in
229 Posts
530 posts in this thread . Is that a record? Anyone know the longest thread on this site?
